ZC-N4125SL/DL Fanless NUC Nano ITX Motherboard Onboard Intel Gemini Lake J4125 CPU,2*HDMI,1*eDP1,
1*RJ45 or 2*RJ45,3*USB 3.0,1*USB 2.0 or 3*USB 3.0,2*COM

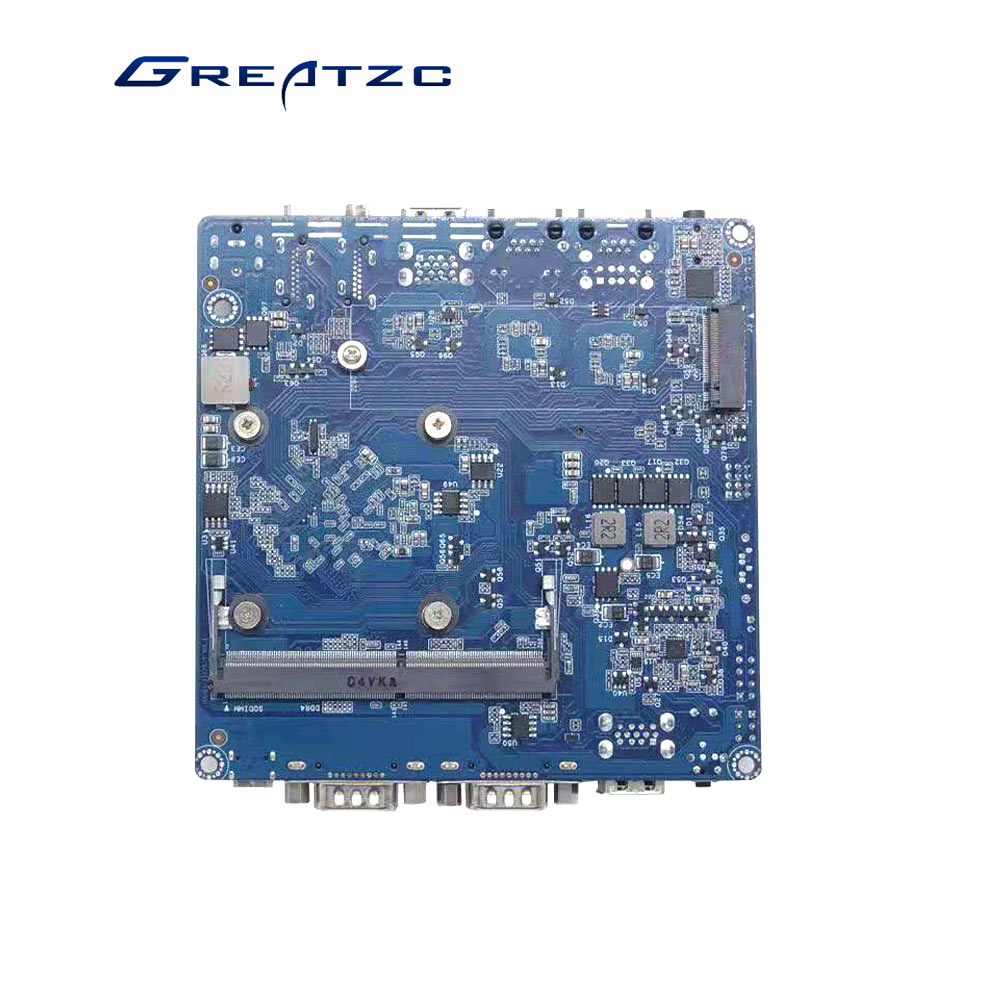

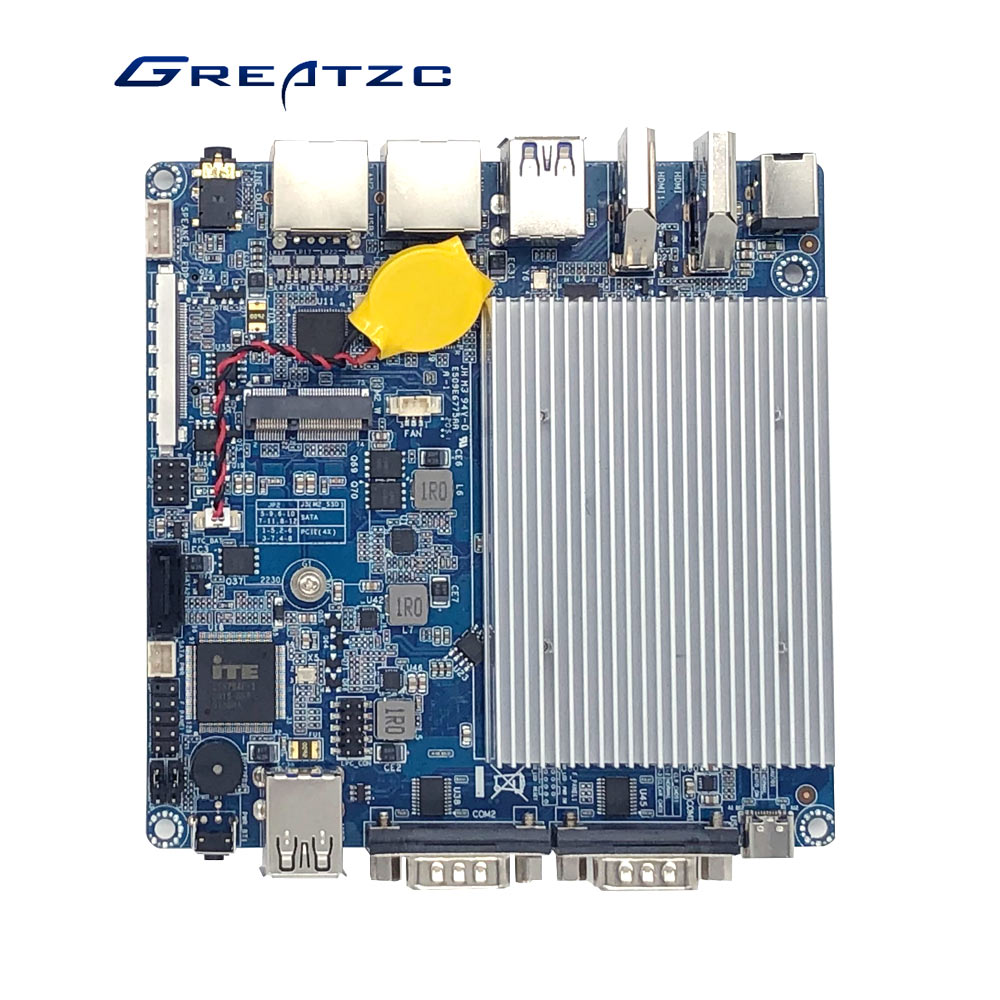

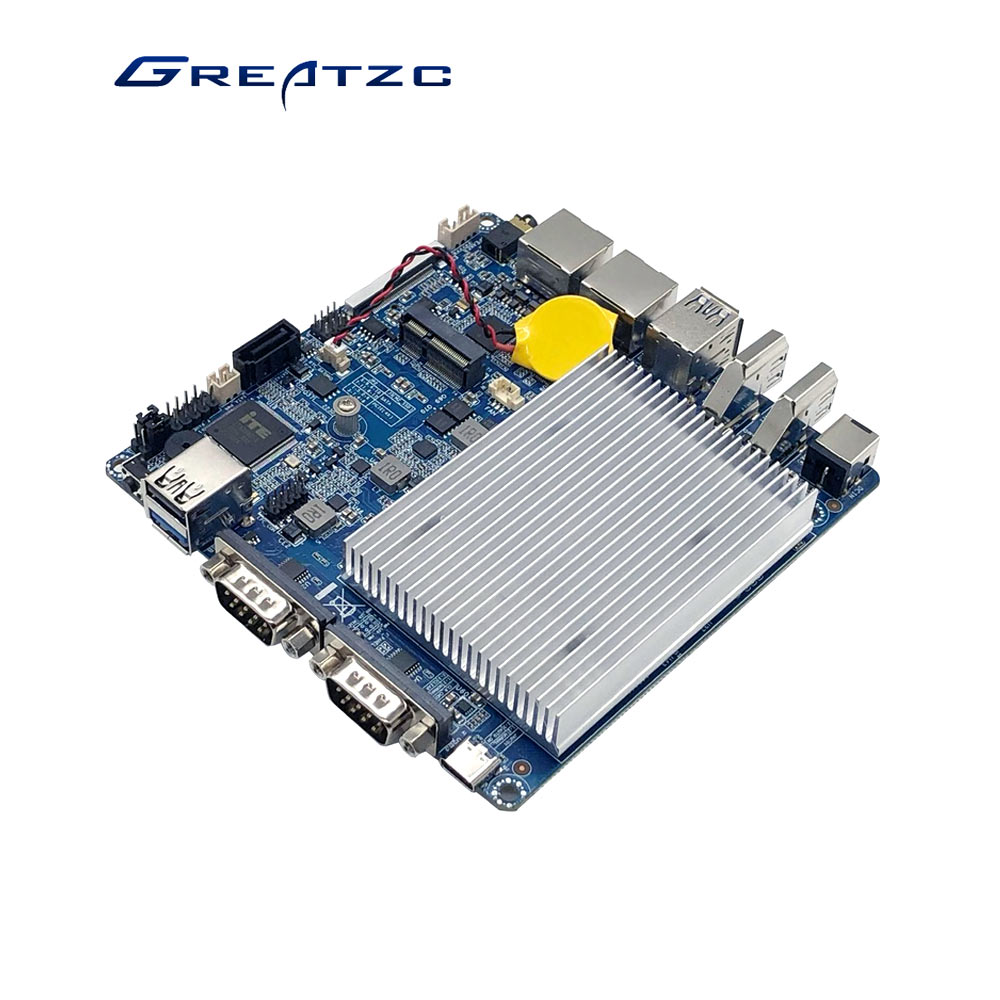

ZC-N4125SL NUC Motherboard
|
CPU |
Intel Gemini Lake Refresh J4125(Default) 4 Cores 2.00GHz Burst to 2.7GHz. 4MB Cache,TDP 10W |
|
Intel Gemini Lake/Gemini Lake Refresh Serial(Optional) J4105/J4125/J4025/J4005/ N4000/N4020/N4100/N4120/J5005/J5040/J5000/J5030 |
|
|
Chipset |
Soc |
|
Display |
Onboard Intel UHD Graphics 600,Support DirectX 12 OpenGL 4.4,Max 4096X2304 |
|
2*HDMI+e-DP |
|
|
Network Card |
2*Intel 211 Gigabit(1*LAN and 2*USB Can be replaced） |
|
Memory |
1*DDR4 SO-DIMM,Up to32GB |
|
Storage |
1*SATA3.0 |
|
1*M.2 SATA/NVME 2280(Optional) |
|
|
Expansion Slot |
1*M.2 for WIFI |
|

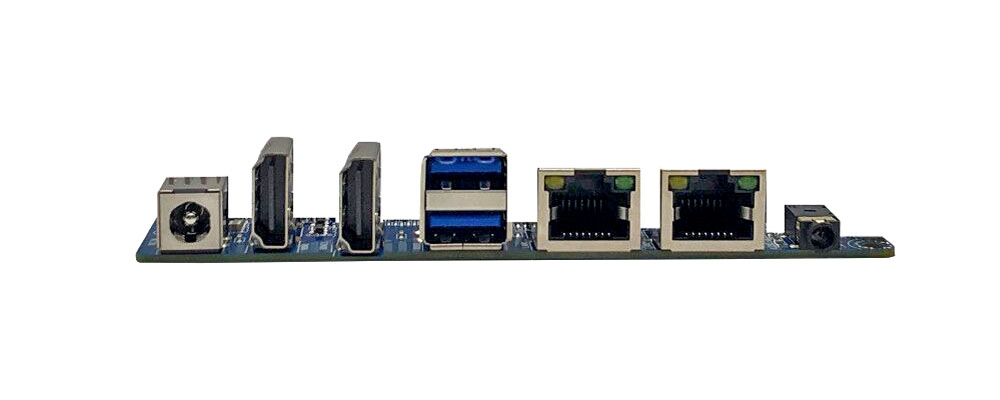

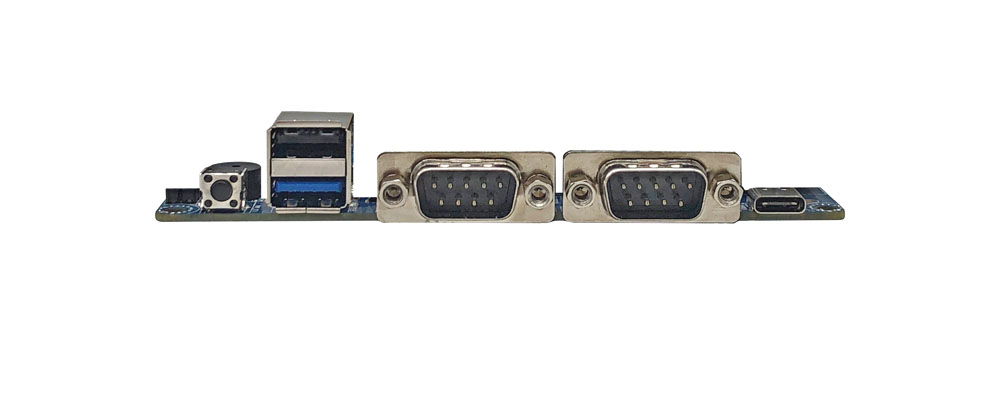

Rear I/O Ports |
3*USB 3.0, 3*USB 2.0 |
|
1*Type-C(USB3. 1) |
|
|
2*COM |
|
|
1*HDMI 2.0,1*HDM 1.4 |
|
|
2*LAN |
|
|
1*Power Button |
|
|
1*DC-IN(DC12V-19V) |
|
|
1*LINE -OUT |
|
|
Internal I/O |
1*F_PANEL Pin |
|
1*AUTO -SEL Pin(Auto Start after Power On) |
|
|
1*CLR_CMOS |
|
|
1*LPC_CON |
|
|
1*3pin FAN |
|
|
1*4pin Speaker |
|
|
BIOS |
AMI BIOS 64M |
|
Power Supply |
DC12V |
|
Cooling system |
Fanless,Passive Cooling |
|
Working Temp |
-10℃～60℃ |
|
Storage Temp |
-20℃～70℃ |
|
Working Humidity |
5%-95% relative humidity, non-condensing |
|
Size |
120X120mm |
