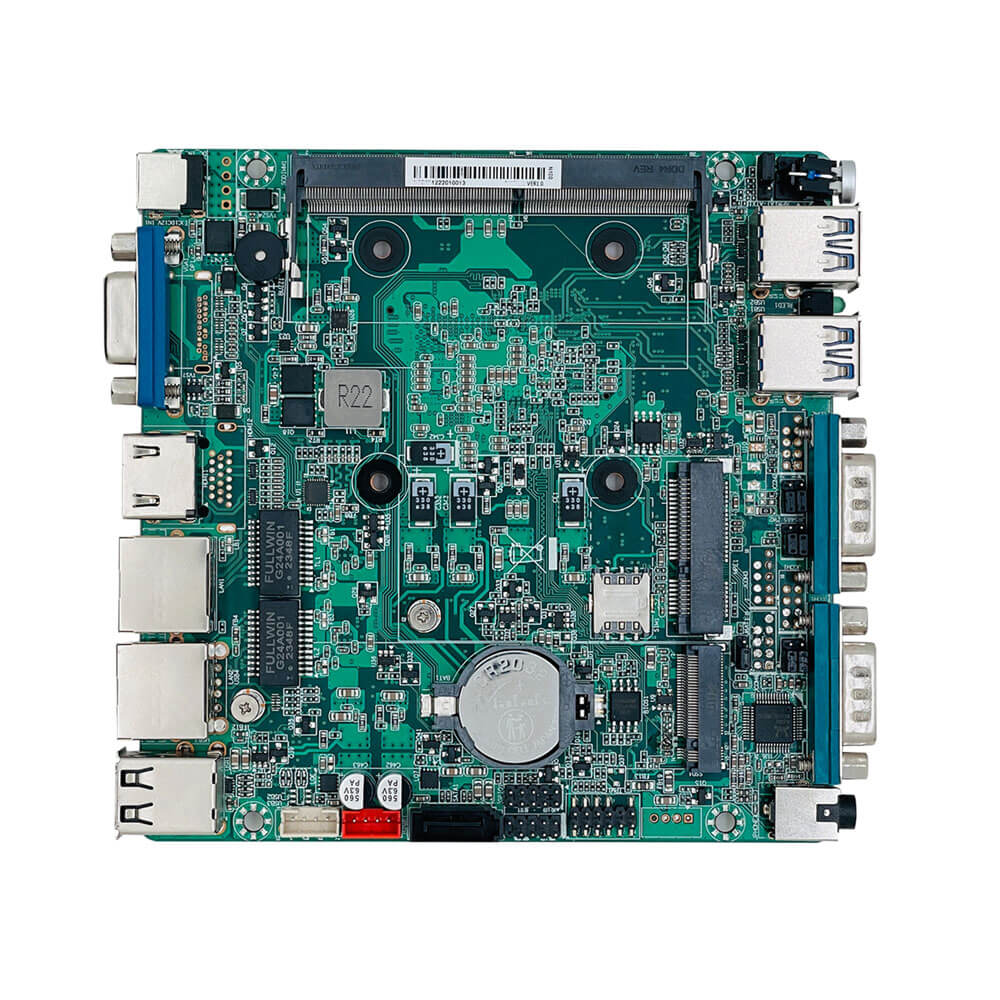

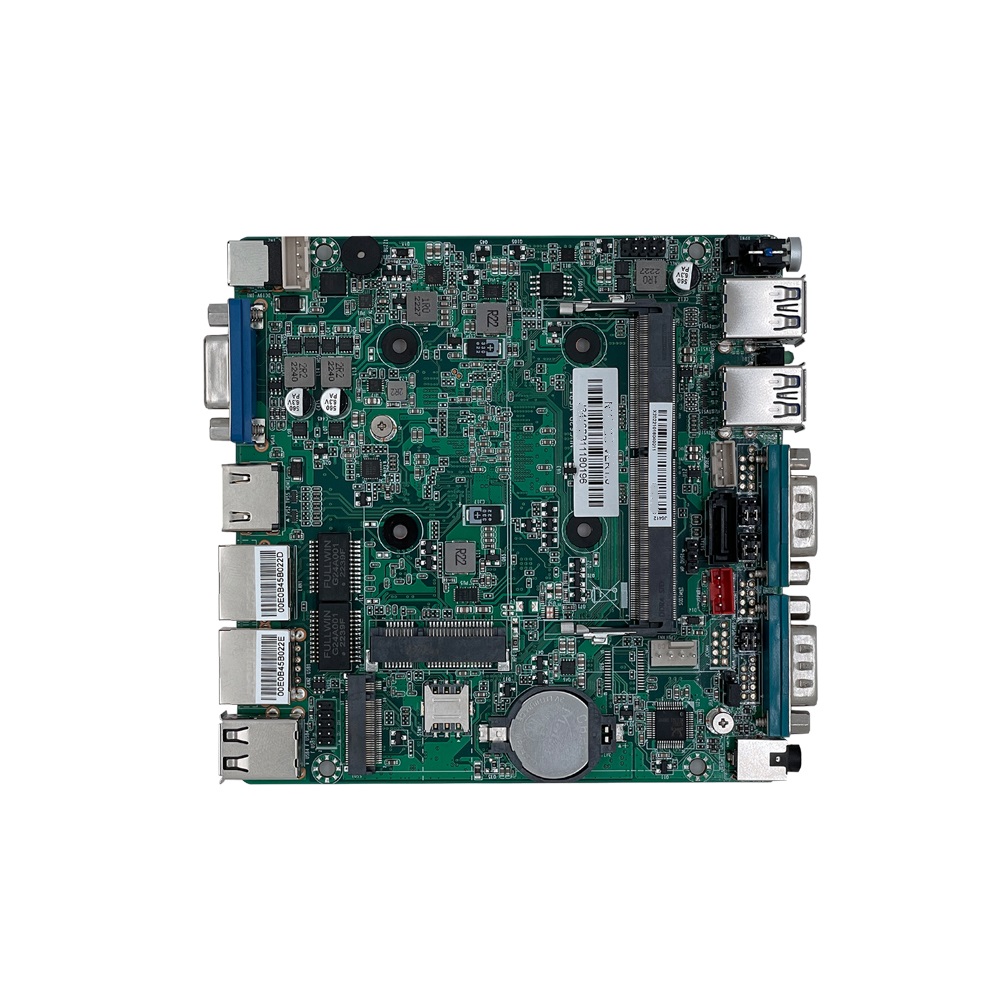

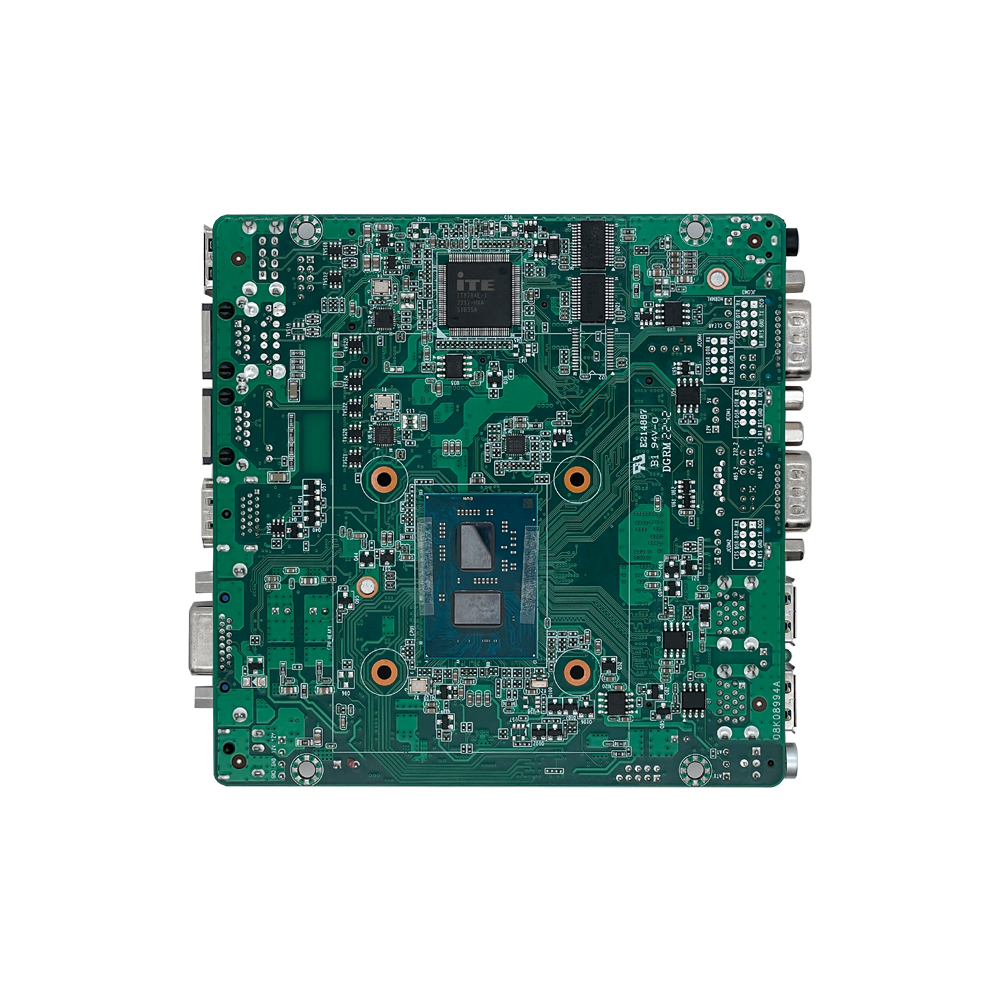

ZC-N6412DL NUC Motherboard 12x12cm Size Integrated Intel Celeron J6412 4 Cores 2.0GHz CPU,2*Network Card,2*RS232,VGA+HDMI Display
DC12V Power Supply,Fanless Design
Main Features:
1.) Integrated Intel Celeron J6412 4 Cores 2.0GHz CPU
2.) With 1* SODIMM slot, Up to 16GB
3.) Realtek RTL8111H Gigabit Network Card
4.) Storage 1* SATA+1*M.2 Key-M
5.) With 2*RS232,RS485 Optional
6.) Fanless Design,zero noise
ZC-N6214DL NUC Motherboard J6412 CPU Specification
Model
ZC-N6214DL
CPU
Intel Celeron J6412,4 Cores 2.0GHz, TDP 10W
RAM
1* SODIMM DDR4 3200MHz DDR4,up to 16GB
Display
Intel UHD Graphics
1*VGA,1* HDMI 2.0
Network
2* Realtek RTL8111H Gigabit Network Card,Support PXW,Wake on LAN
Storage
1* 7pin SATA3.0 6Gbps
1* M.2 Key-M 2280/2242 PCIE/SATA SSD
Expansion
1* Mini-PCIe

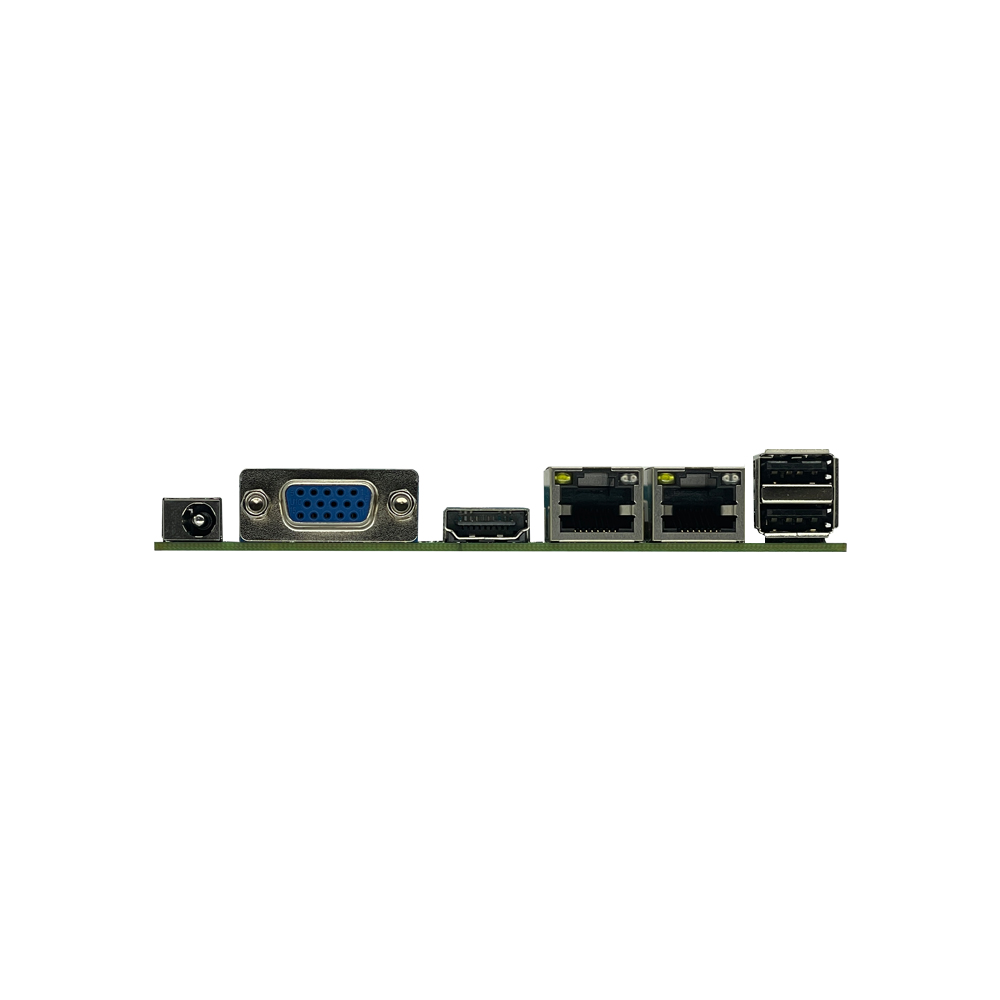

Rear I/O
2* LAN RJ45
2* USB2.0
1* HDMI, 1* VGA
1* 12V DC
Front I/O
4* USB 3.1
1* HDD Light
1* Power Button
2* COM (RS232 Default,Can change to be RS485 by jumper)
Inside I/O
1* USB 2.0 (1*4Pin)
2* USB 2.0 (2*5Pin)
1* SATA Power Pin
1* 4pin DC Power
1* Front panel switch button and indicator light (2*5Pin)
FAN
Fanless cooling design, reserved 1*4pin CPU fan interface
GPIO
Support 4 input and output GPIO
BIOS
128Mb Flash ROM
Watchdog
Support hardware reset function (256 levels, 0~255 seconds)
OS
Windows 10/Linux
Power Supply
DC 12V
Working Temp
-10℃ to 60℃
Storage Temp
-20℃~70℃
Working Humidity
5%-95% relative humidity, no condensation
Size
120mm x 120mm
Compatible with all Intel Elkhart Lake CPUs

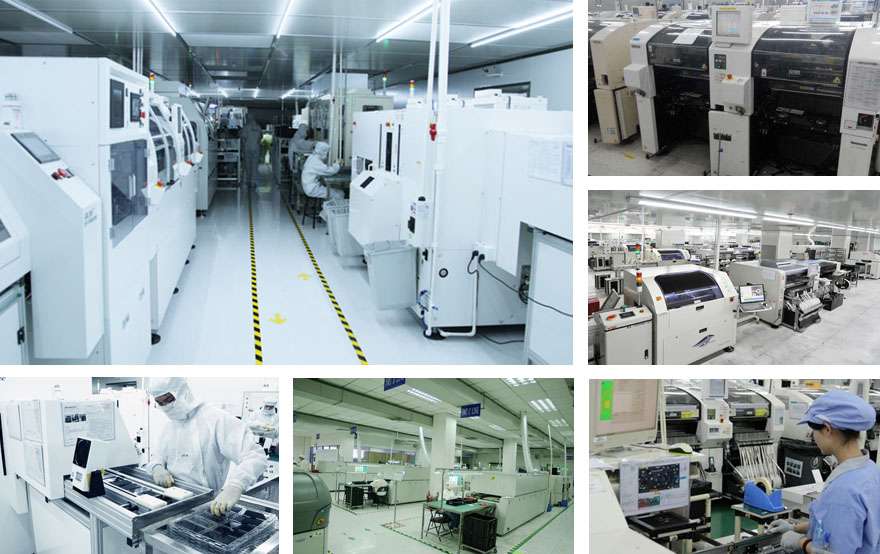

Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
