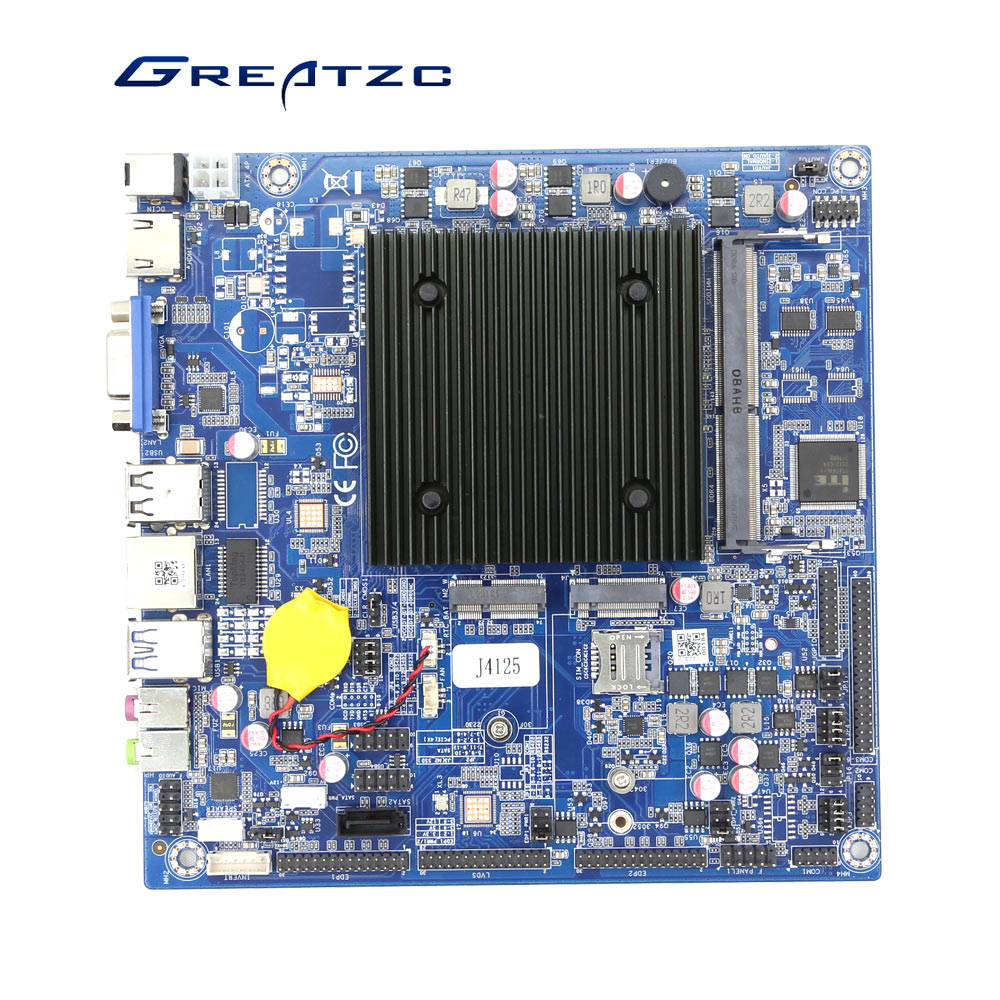

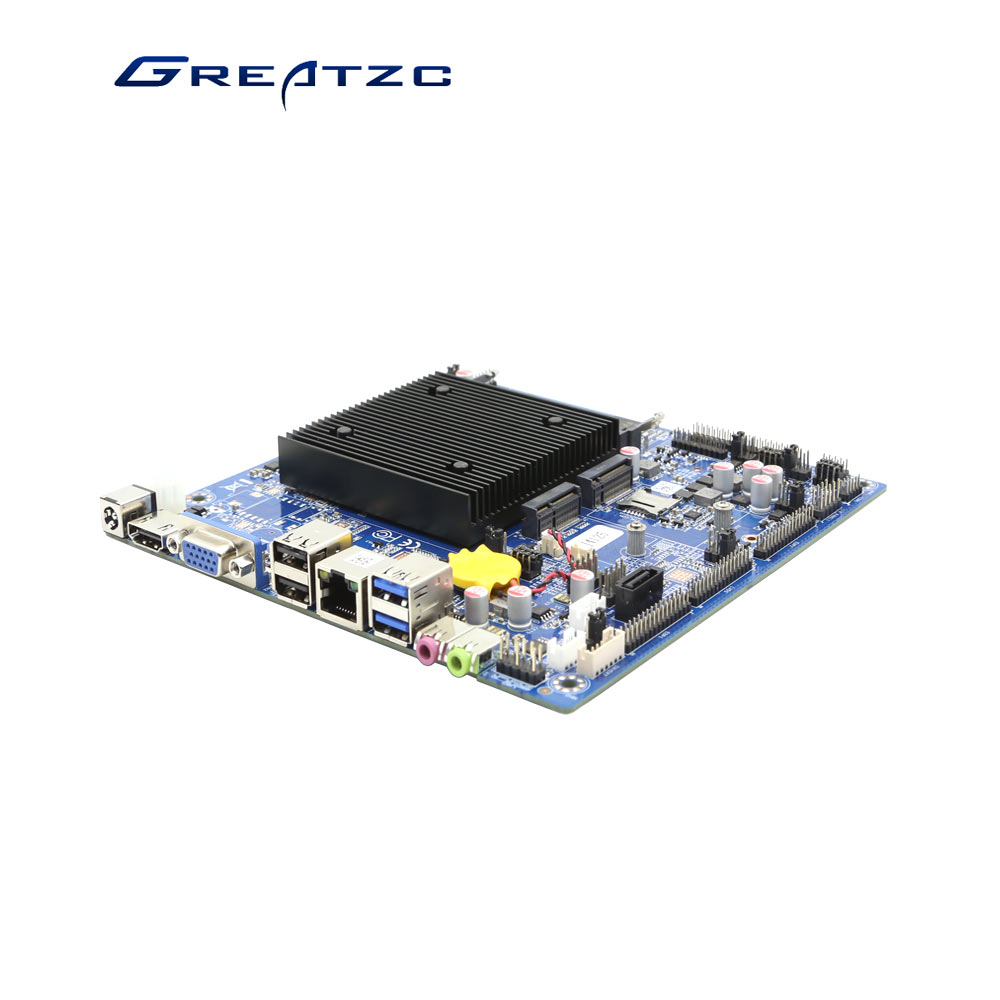

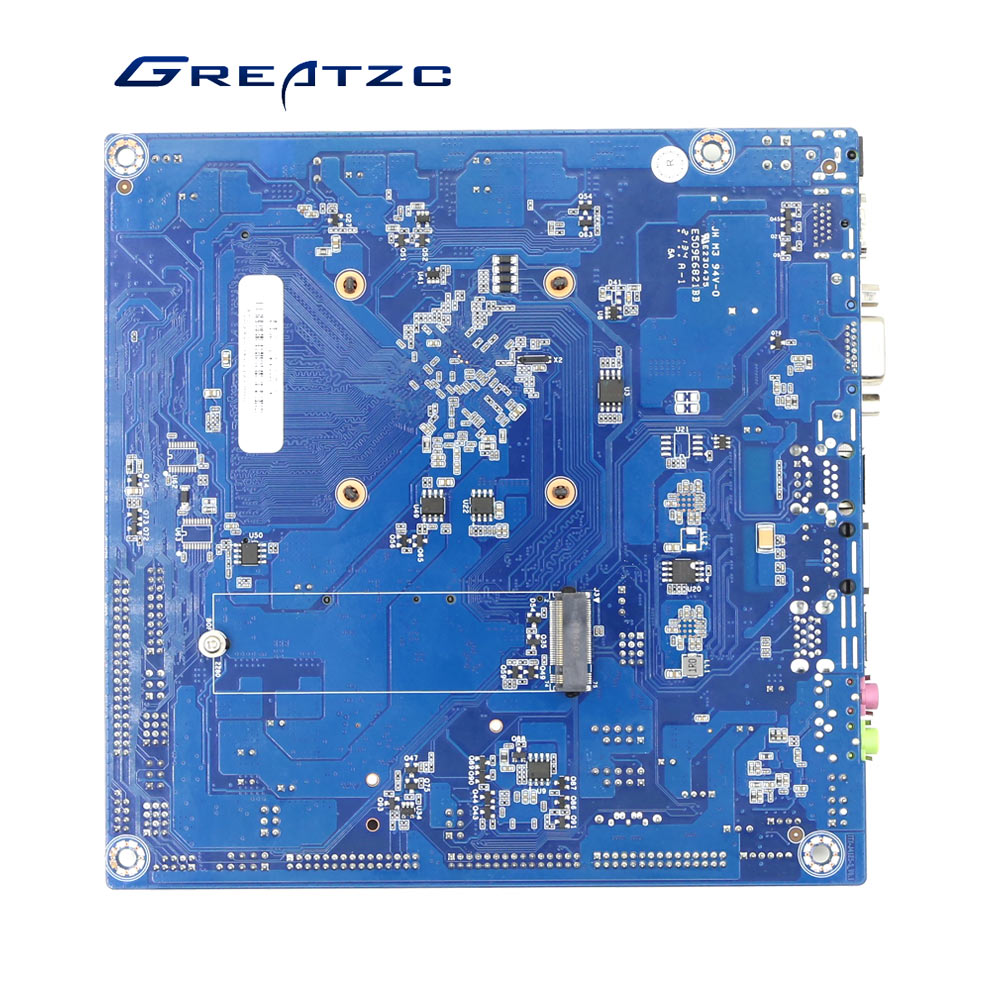

ZC-ITX-JJ4125SL Fanless Thin Mini Itx Motherboard Onboard Intel Gemini Lake J4125 CPU,1*HDMI,1*VGA,1*LVDS,2*eDP1,
1*RJ45,2*USB 3.0,6*USB 2.0
CPU |
Intel Gemini Lake J4125 4 Cores 2.00GHz Burst to 2.7GHz. 4MB Cache,TDP 10W |
Chipset |
Soc |
Display |
Onboard Intel® UHD Graphics 600,Support DirectX 12 OpenGL 4.4,Max 4096X2304 |
1*HDMI1.4,Max 4096X2304@30Hz |
|
1*VGA,Max 1920X1080 |
|
1*LVDS Dual Channel 24Bit,2*eDP Connector |
|
Network Card |
1*Intel I225 2.5GbE(Default) |
2*Intel I225 2.5GbE(Optional) |
|
Support Wake On LAN,PXE |
|
LAN 1 Support POE-PD,Powered Device(Optional) |
|
Memory |
1*SO-DIMM DDR4 |
Storage |
1*SATA3.0 |
1*M.2(Key M) SATA/NVME(Choose by Jumper) |
|
Expansion |
1*M.2(Key E) for WIFI |
1*M.2(Key B) for 3G/4G |
|
Rear I/O |
2*USB3.0,2*USB 2.0 |
1*HDMI |
|
1*VGA |
|
1*Line Out,1*MIC |
|
1*RJ-45 |
|
1*DC-IN 12V 5A( Ф2.5mm) |
|
Inside I/O |
1*LVDS Dual Channel 24Bit,2*15Pins |
1*LVDS backlight power supply Header,1*6Pins |
|
2*eDP |
|
2*USB 2.0,2*5Pins(F_USB3) |
|
2*USB 2.0,2*5Pins(F_USB4) |
|
1*Front Audio,2*5Pins |
|
1*Front Panle for Power/LED,2*5Pins |
|
1*SATA Power 1*4pin |
|
1*Amplifier Header 1*4pin |
|
1*GPIO support 16 Input output |
|
1*4Pin SATA Power |
|
1*SIM Slot |
|
1*4pin ATX |
|
6*COM,COM2/COM3 Support RS485/422/232(6*COM Optional) 2*COM(Default) |
|
Power Supply |
DC 12V |
Cooling System |
Fanless Passive Cooling |
Working Temp |
-10℃~60℃ |
Storage Temp |
-20℃~70℃ |
Working humidity |
5%-95% Relative humidity, non-condensing |
Size |
170mm x 170mm |
