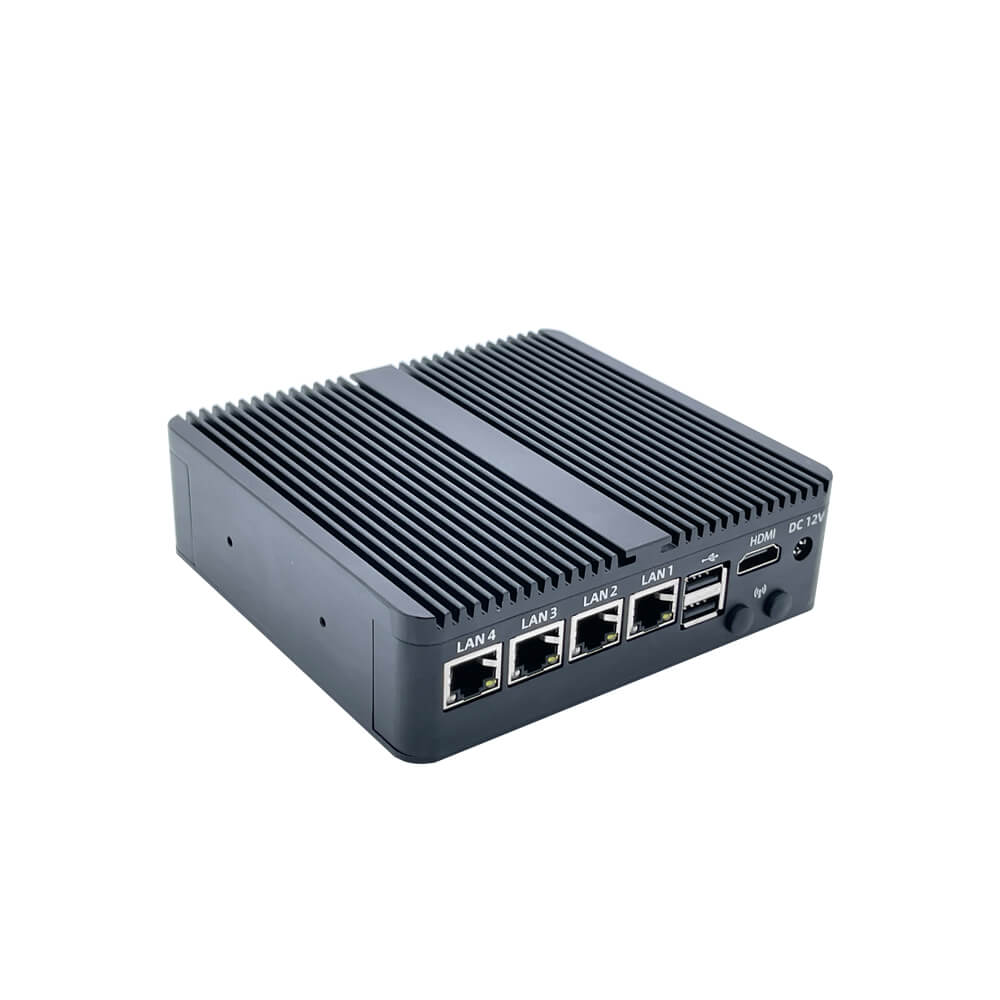

ZC-G4125-4L Mini PC With 4 Network Card Intel i225V 2.5G With 4*USB 3.0+2*USB 2.0,2*COM,HDMI Display,4G Optional
Features:
1.) Onboard CPU Intel Gemini Lake J4125 4 Cores 2.0GHz Burst to 2.7GHz
2.) With 4*Intel i225V 2.5G,Support Wake On LAN/PXE
3.) Support 1*mSATA SSD Storage
4.) Rich USB,4*USB 3.0+2*USB 2.0 Ports
5.) With 2*COM,Support 2*RS232/485
6.) Fanless Passive Cooling,Aluminium Alloy Case
7.) Industrial Grade,Low Power Low Power Consumption
8.) Small Size Only 136x127x38mm
|
Model |
ZC-G4125-4L |
|
Chassis |
All aluminum alloy without fan,bright black |
|
Size |
136*127*38mm |
|
CPU |
Intel Celeron J4125, 4 Cores 2.0GHz Burst to 2.7GHz,4MB Cache,TDP 10W |
|
Memory |
1*SO-DIMM DDR4,Up to 16GB |
|
Storage |
1*mSATA for SSD |
|
Network Card |
4*Intel i225V 2.5G,Support Wake On LAN/PXE |
|

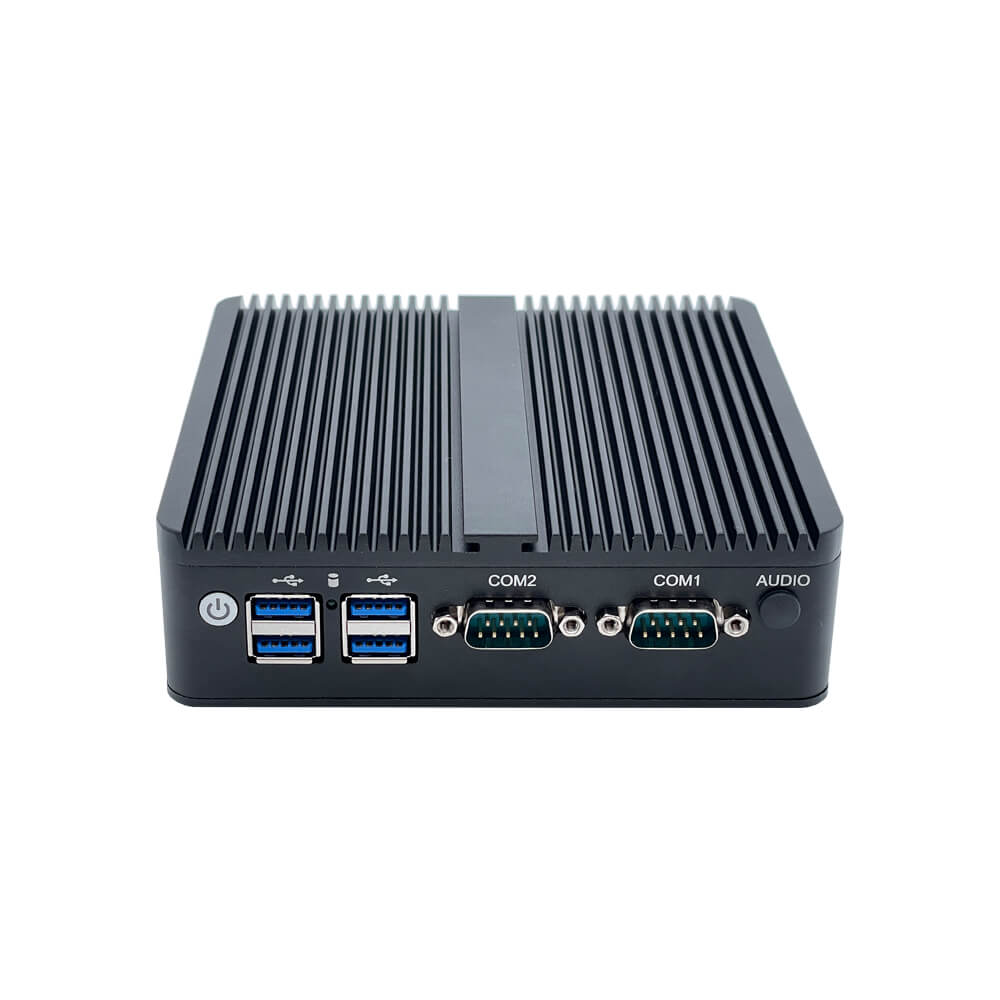

Front Ports |
4*USB 3.0 |
|
2*RS232(RS485 Optional) |
|
|
1*Power Button |
|
|

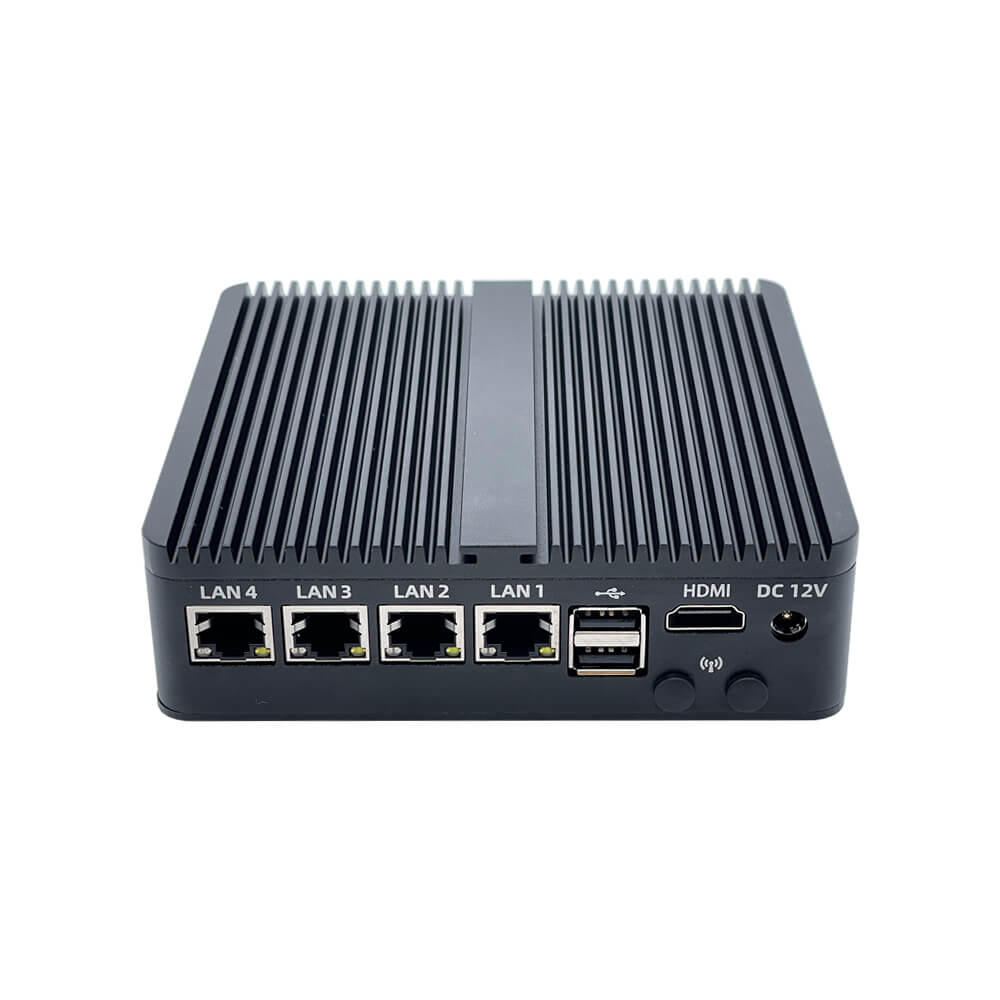

Rear Ports |
4*RJ45 |
|
2*USB 2.0 |
|
|
1*HDMI |
|
|
1*DC 12V Jack |
|
|
2*Antenna Hole |
|
|
4G |
Optional |
|
Power Supply |
12V-19V DC |
|
Working Temp |
0~ 50°C |
|
Storage Temp |
-10 - 60°C |
|
Working Humidity |
5%~95% Relative humidity, non-condensing |
|
Cooling |
Fanless cooling design, passive cooling |
|
System |
Windows/Linux |
