ZC-J6412SL Fanless Thin Mini Itx Motherboard Onboard Intel Elkhart Lake J6412,1*HDMI,1*VGA,1*LVDS,
1*RJ45,2*USB 3.0,8*USB 2.0,6*COM
Main Features
1.) Onboard Intel Elkhart Lake J6412
2.) 2*SO-DIMM DDR4 Slot,Max 32GB
3.) Support 3 display VGA,HDMI, LVDS
4.) 1 or 2 Realtek RTL8111H Gigabit Network Card

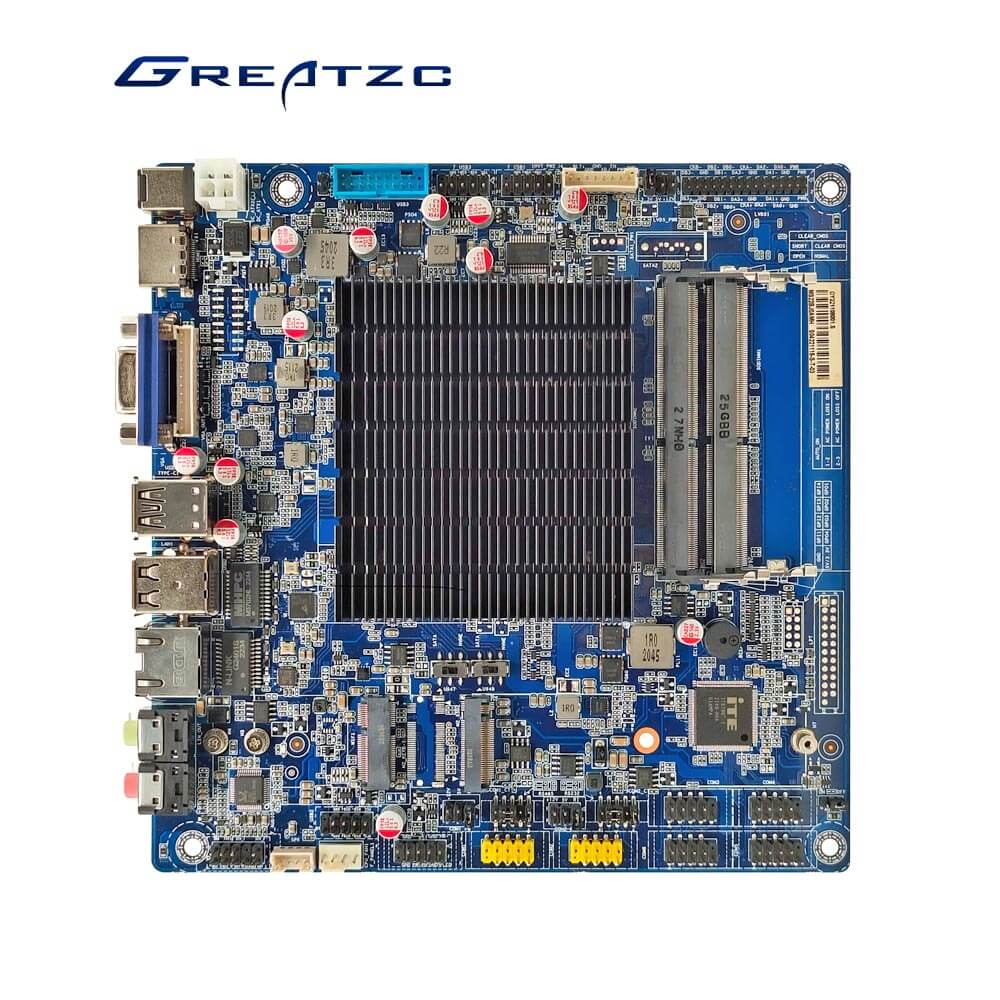

ZC-J6412SL Fanless Thin Mini Itx Motherboard
|
Processor |
Intel Elkhart Lake J6412,4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W |
|
Memory |
2*SO-DIMM DDR4 Slot,Max 32GB |
|
Display |
Intel UHD Graphics for 10th Gen Intel Processors |
|
1*HDMI (Max.4960 x 2160@60Hz) 1*LVDS(Max. 1920 x 1080@60Hz) 1*VGA(Max. 2560 x 1080@24Hz) |
|
|
Network |
1*Realtek RTL8111H Gigabit Can customize 2*LAN(Optional) |
|
Storage |
1*M.2 2280 |
|
1*SATA 2.0 |
|
|
Audio |
Onboard ALC 897 audio controller |
|
1*MIC+1*Line-out Onboard power amplifier,Support 8 ohm 2W/3W/5W |
|
|
USB |
2*USB 3.0+2*USB2.0 6*USB 2.0 Header |
|
COM |
6*COM (COM1/2 Support RS232/485) |
|
Expansion Slot
|
1*M.2 Key M(SATA Interface) |
|
1*M.2 Key-E(Support WIFI+BT) |
|
|
1*M.2 Key-B(Support 4G/5G) |
|
|
1*SIM Slot(Optional) |
|
|
Fan |
Fanless cooling design |
|
TPM 2.0 |
Optional |
|
BIOS |
64Mb Flash ROM |
|
Power Type |
DC 12V |
|
Operating Temp |
-20℃ to +60℃ |
|
Storage Temp |
-20℃to +70℃ |
|
Working Humidity |
5%-95% relative humidity, no condensation |
|
Size |
170mm x 170mm |
