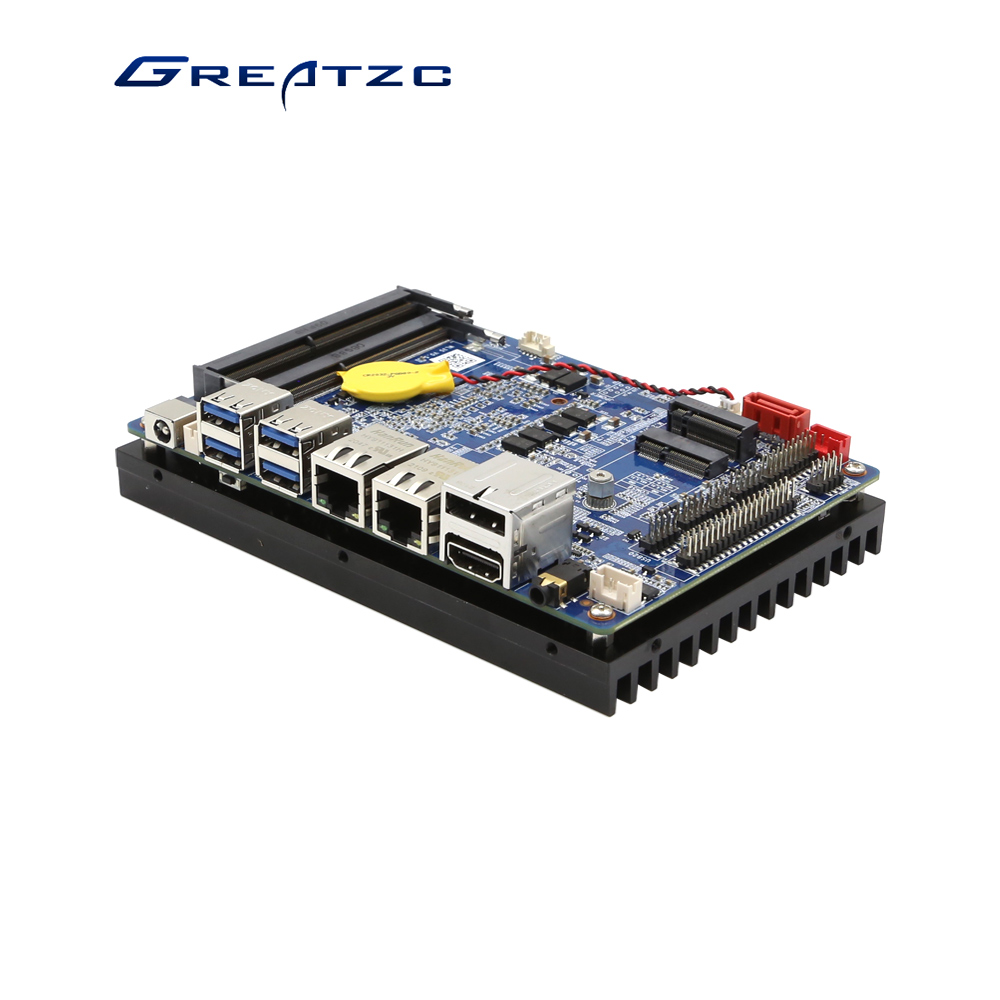

ZC35-J4125DL 3.5’’ Fanless Motherboard Onboard J4125 CPU,2*RJ45,6*USB,6*COM,VGA+HDMI+LVDS Display,SATA+M.2 Storage
Passive Fanless Cooling Design
Main Feature:
1.) Onboard Intel Gemini Lake J4125,TDP only 10W
2.) Quad-Core 4 Threads 2.0GHz,Burst to 2.42GHz
3.) With VGA,HDMI,LVDS,Support Double Display
4.) Support 4*RS232+2*RS232/485
5.) With 1*Mini PCI-E,1*M.2 2230,1*SIM Slot
6.) Rich Storage,1*M.2 SSD Slot +1*SATA
7.) Onboard 2 Gigabit Ethernet Card

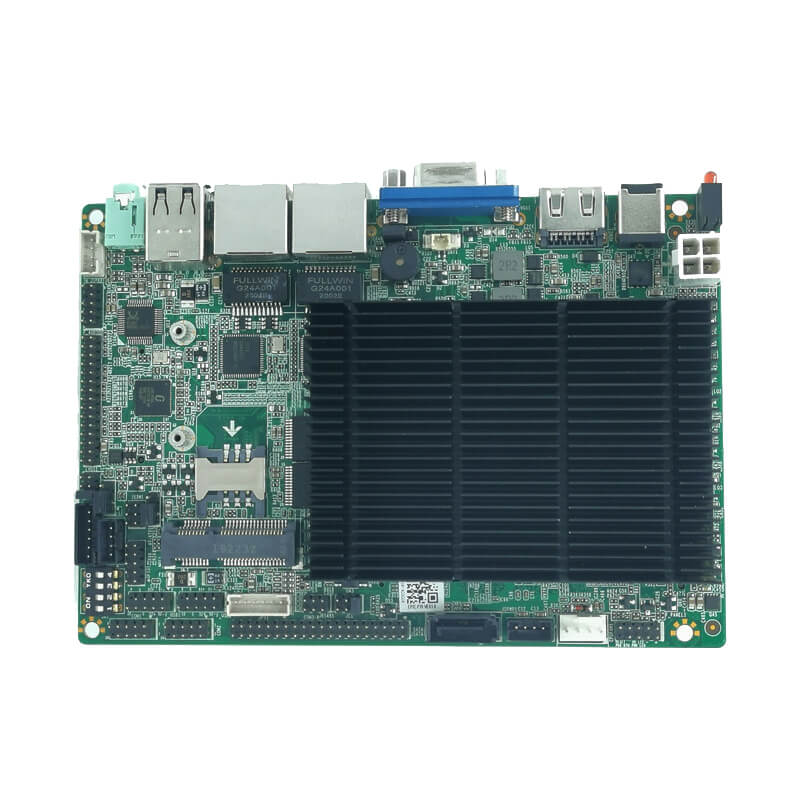

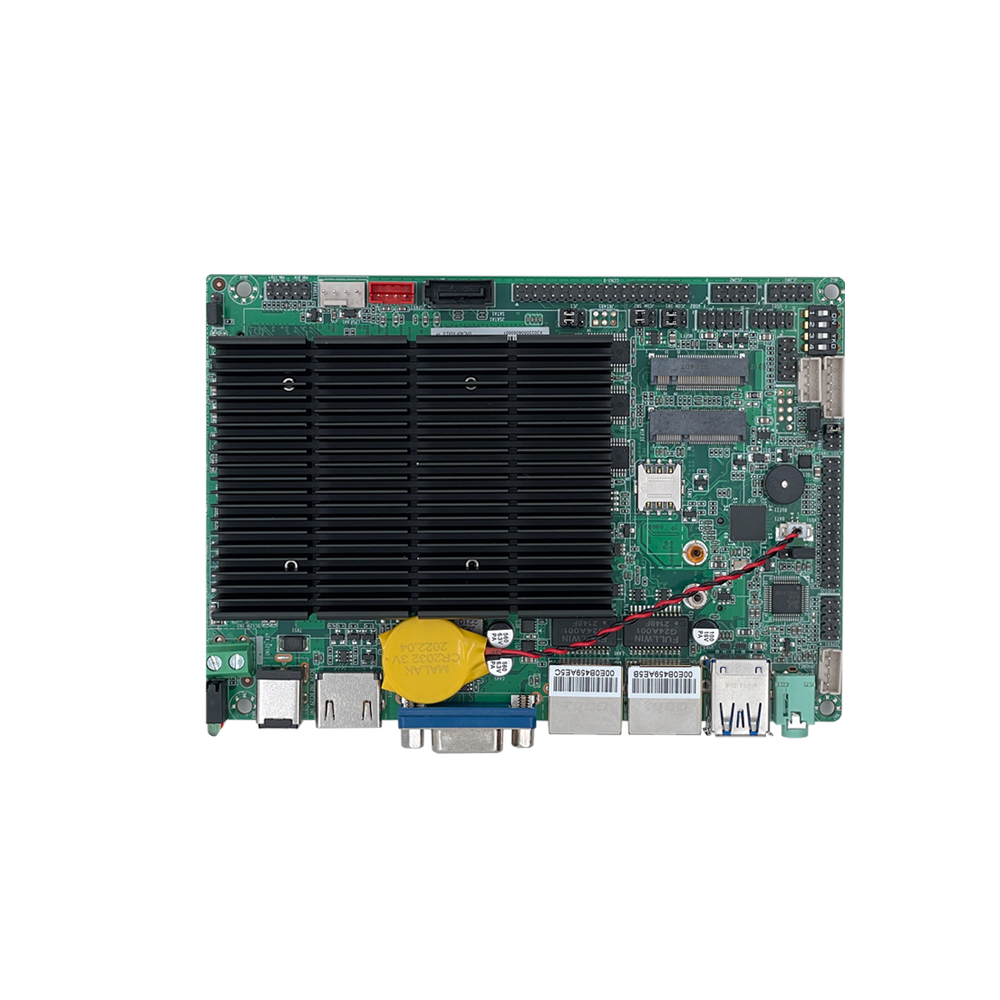

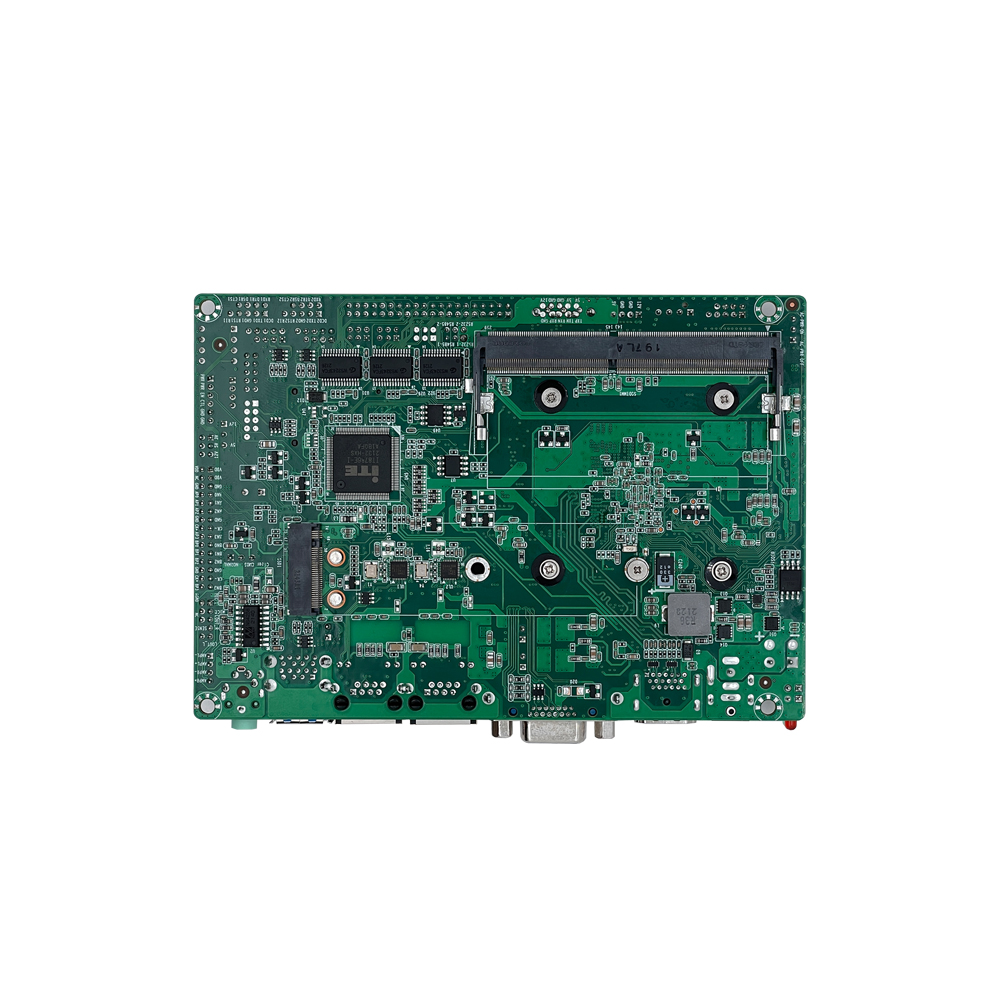

ZC35-J4125DL 3.5’’ Motherboard
|
Model |
ZC35-J4125DL |
|
Processor |
Intel Gemini Lake J4125 4 Cores 2.0GHz Burst to 2.7GHz 4MB Cache,TDP 10W |
|
Memory |
1*SO-DIMM4,Max 8GB |
|
Display |
Intel Intel UHD Graphics 600 |
|
1* VGA,1*HDMI1.4, 1*LVDS |
|
|
Support VGA, HDMI, LVDS synchronous/asynchronous dual display |
|
|
Network Card |
2* Realtek RTL8111H Gigabit,Support Wake On LAN/PXE |
|
Storage |
1* SATA3.0 |
|
1* M.2 2280 for SSD |
|
|
Extension |
1* Mini PCIE slot |
|
1* M.2 2230 for WIFI |
|
|
Audio |
Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier 3W |
|

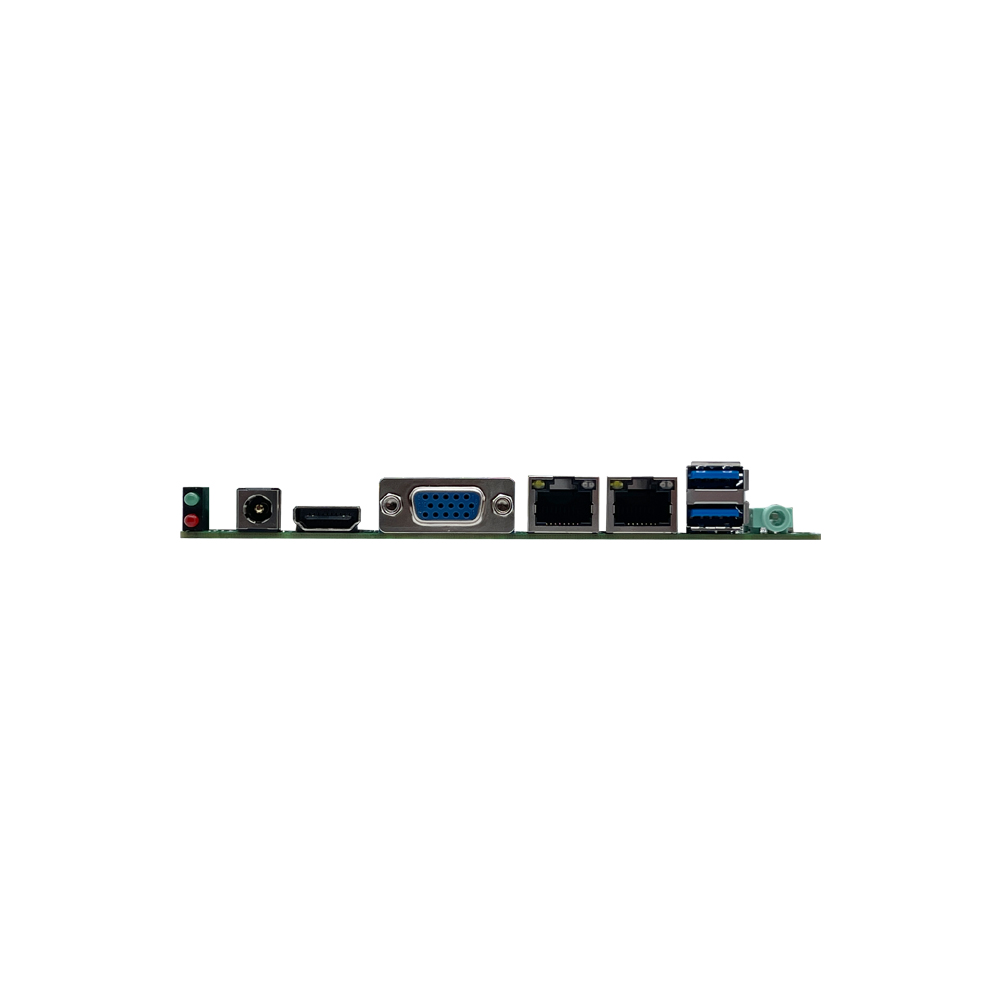

Rear I/O |
1* HDMI |
|
1* VGA |
|
|
2* USB3.0 |
|
|
2* RJ-45 |
|
|
1* Line out(Green) |
|
|
1* Hard Disk/Power Indicator LED |
|
|
1* 12V DC |
|
|
Internal I/O |
1* LVDS 2*15pin,Support Dual Channel 24bit |
|
1* Screen backlight power 1*6pin |
|
|
1* LVDS Power 2*3pin |
|
|
4* USB 2.0 2*5Pin |
|
|
1* Front Audio 2*5pin |
|
|
1* Speaker Amplifier 1*4pin |
|
|
1* SIM Card Slot 2*3Pin |
|
|
6* COM (COM2/COM3 Support RS485) |
|
|
1* SATA Slot |
|
|
1* SATA power header 1*4pin |
|
|
1* FAN header 1*4pin |
|
|
1* GPIO 2*5pin |
|
|
1* AT/ATX Header 1*3pin |
|
|
1* Front panel switch button and indicator light header 2*5Pin |
|
|
1* ATX 12V 1*2pin |
|
|
Fan |
Fanless heat dissipation design, 1* fan header 4pins reserved |
|
Cooling System |
Fanless Passive Cooling |
|
GPIO |
Support 4 input and output GPIO |
|
BIOS |
64Mb Flash ROM |
|
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
OS |
Windows 7/Windows 10/Linux |
|
Power Supply |
DC 12V ±5% |
|
Operating Temp |
-10℃ to +60℃ |
|
Storage Temp |
-20℃ to +70℃ |
|
Operating Humidity |
5% ~ 95% relative humidity, non-condensing |
|
Size |
146mm x 102mm |
