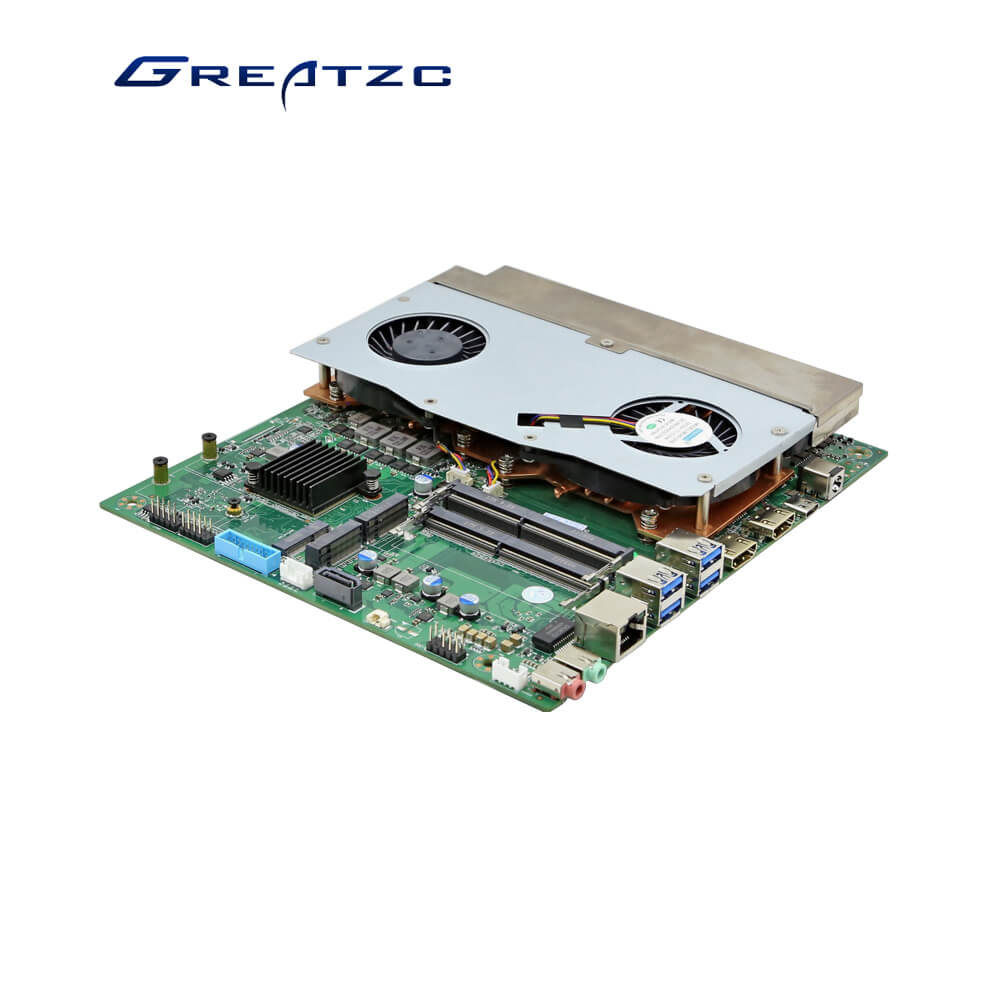

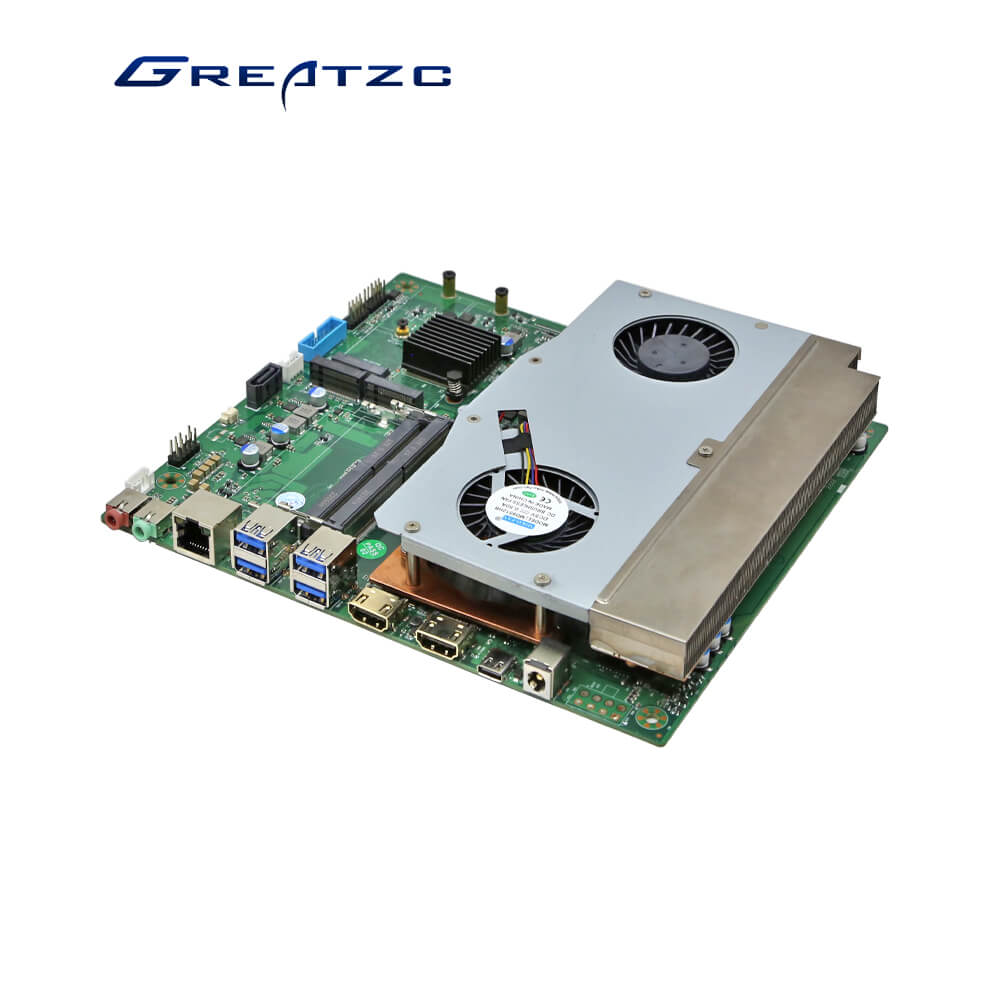

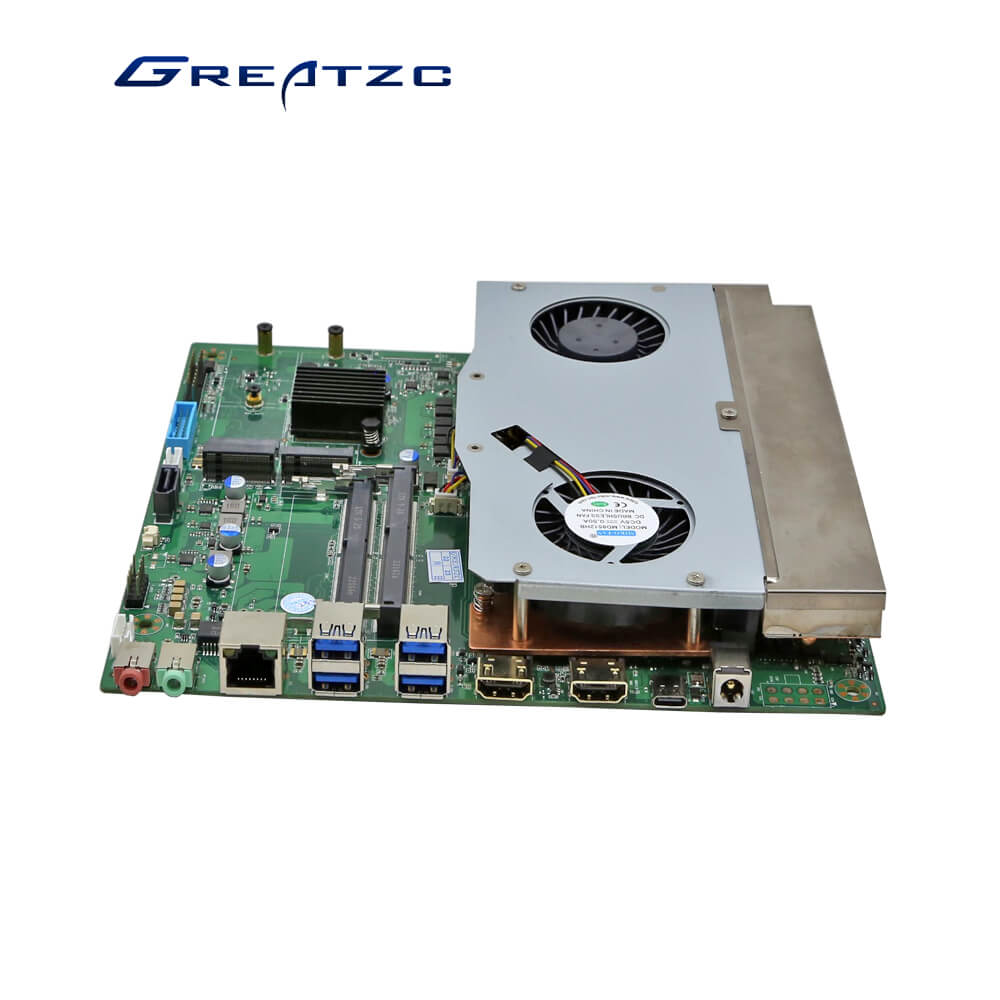

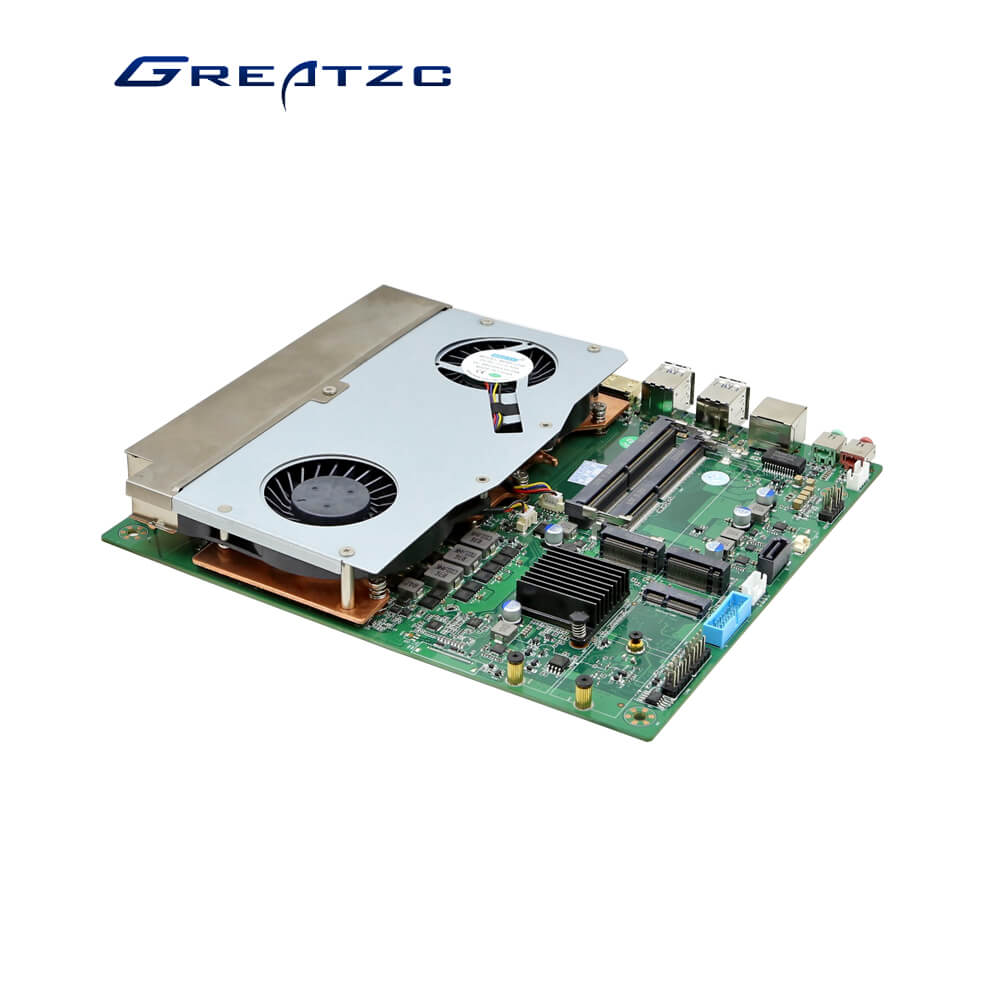

ZC-GT1650 Thin Motherboard Intel QM370/HM370 Chipset With Intel Socket LGA1151,With Nvidia GTX1650 GPU, 1*HDMI 2.0+1*HMDI 1.4,6*USB 3.0,2*USB 2.0,2*SO DDR4 Slots
ZC-GT1650 Thin Motherboard
CPU |
I7-9750H Default |
|
All Intel coffee lake-H 8th/9th generation CPU TDP 45W |
Chipset |
Intel QM370/HM370 |
Display |
Intel UHD Graphics+Nvidia GTX1650 VRAM 4G |
|
1*HDMI Out 2.0 4K 60HZ |
|
1*HDMI Out 1.4 |
|
1*Type-C (DP+USB) |
Network Card |
1*Realtek RTL8111H Gigabit |
|
Support Wake On LAN,PXE |
Memory |
2*DDR4 2133MHz/2400MHz/2666MHz,Up to 32GB |
Storage |
1*M.2 2280 slot (support SATA 3.0/NVME PCIE x4) |
|
1*M.2 2280 slot (support SATA 3.0) |
|
1*SATA 3.0 |
Expansion |
1*M.2 2230 for WIFI/BT |
Rear I/O |
4*USB3.0 |
|
1*HDMI 2.0 |
|
1*HDMI 1.4 |
|
1*Type C |
|
1*Line Out,1*MIC |
|
1*RJ-45 |
|
DC Port |
Inside I/O |
1*Front Audio,2*5Pins |
|
1*Front Panel for Power/LED,2*5Pins |
|
1*CPU FAN interface |
|
1*GPU FAN interface |
|
2*USB 3.0(2(10pins) |
|
2*USB2.0 interface 2*5Pin |
|
1*Amplifier interface 1*4pin |
|
1*8pin ATX power connector |
|
1*SATA 3.0 |
|
1*SATA power supply interface |
Power Supply |
DC 19V |
Working Temp |
-10℃~60℃ |
Storage Temp |
-20℃~70℃ |
Working humidity |
5%-95% Relative humidity, non-condensing |
Size |
210mm x 190mm x 30mm |
