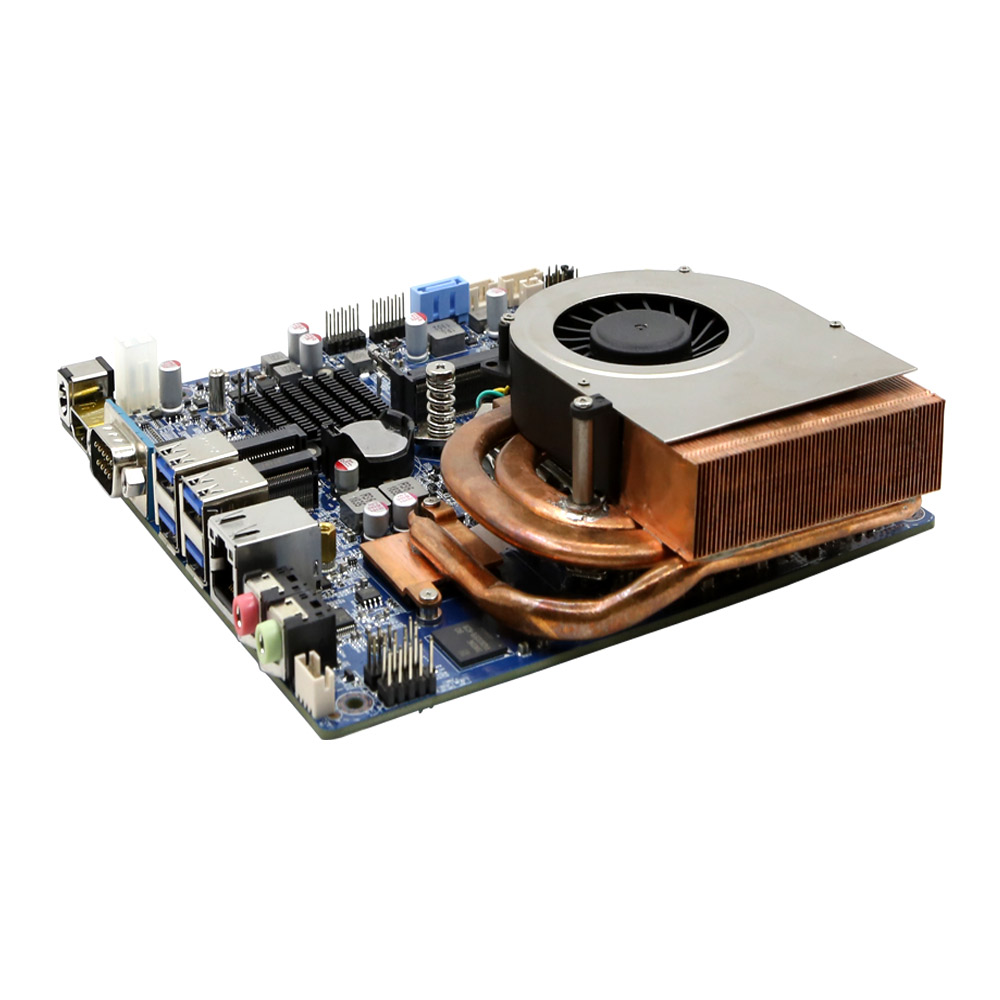

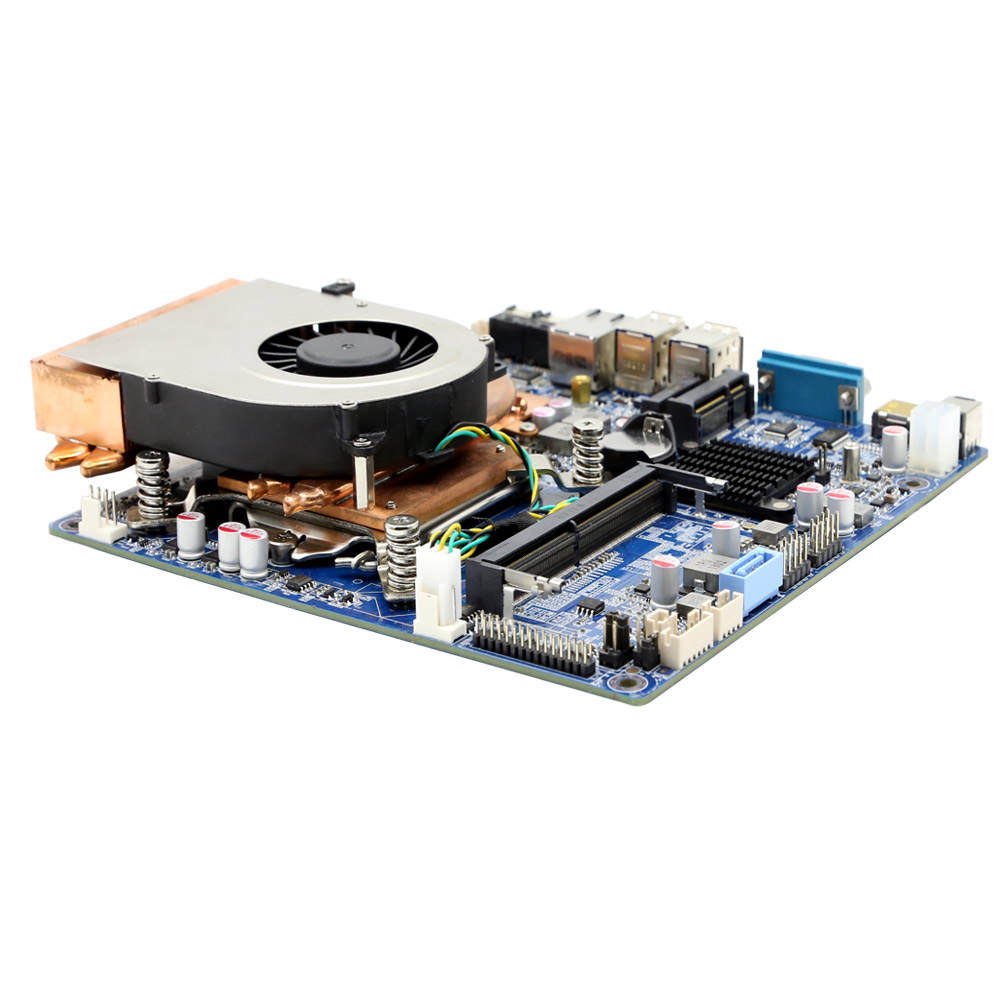

ZC-H310SL-1030 Mini Itx Motherboard With LGA1151 Socket,Intel H310 Chipset
Support 9th/8th/7th/6th/ Core i7/i5/i3/Celeron/Pentium Processor
With NVIDIA GT1030 Discrete Graphics Card,GPU Memory 2GB DDR5
With 1*HDMI,1*Ethernet,4*USB 3.0,4*USB 2.0,1*COM,
1*Mini SATA,1*M.2,1*AUDIO,12V-19V DC Power
Brief Introduction:
ZC-H310SL-1030 is a Thin Mini-ITX form factor industrial grade motherboard with an onboard
GT1030 discrete graphics card. With Intel H310C chipset, support Intel 9th, 8th, 7th, 6th
generation multi-platform desktop CPU, equipped with NVIDIA GT1030 discrete graphics
chip, support 4K ultra HD.The motherboard uses DC12-19V wide power supply, onboard
HDMI2.0,LVDS,RS-232 Serial Port,mSATA,M.2 and other interfaces, widely used in
commercial display, digital signage,high-end multimedia machine,3D presentation,
VR\AR virtual reality, drawing, face recognition, big data, medical equipment,
teaching equipment, special computers and other occasions.
Main Features:
1. Intel H310c Chipset,LGA1151 Socket,Supports 9th,8th,7th,6th Gen i7/i5/i3/Celeron
2. With NVIDIA GT1030 Discrete Graphics Card,GPU Memory 2GB DDR5
3. DC 12V-19V Wide Voltage Power Supply,High stability and wide compatibility
4. Onboard LVDS,supports LVDS Panel directly
5. With M.2 2230 Slot,support WIFI/Bluetooth
6. With 1*SATA 3.0,1*MINI SATA,Rich Storage
7. With 4*USB+4*USB 2.0,Rich USB Ports
8. Mini Itx Form Factor,17cm*17cm
ZC-H310SL-1030 Mini-Itx Motherboard With Nvidia GT1030 Specification
|
Model Name |
ZC-H310SL-1030 |
|
Processor |
Intel LGA1151 Socket Supports Intel 9th/8th/7th/6th/ Generation Core i7/i5/i3/Celeron/Pentium |
|
Chipset |
Intel H310C |
|
RAM |
1*SO-DIMM DDR4,up to 16GB |
|
Graphics Card |
Nvidia GT1030,GPU Memory DDR5 2GB |
|
Storage |
1*SATA 3.0 1*Mini SATA |
|
Expansion Slot |
1*M.2 2230,Supports WIFI Module |
|
Network Card |
1*RTL8111H,Gigabit |
|
Audio Card |
ALC 662 |
|
Rear Panel I/O |
4*USB 3.0
1*HDMI 1*DC Port 1*RJ45 Ports 1*MIC 1*Speaker |
|
Internal I/O |
1*LGA1151 Socket 1*LVDS(30 Pins) 1*LVDS Power(6 Pins) 1*LVDS Inverter(8 Pins) 1*USB(9pins,Supports 2*USB2.0) 1*USB(9pins,Supports 2*USB2.0) 1*SATA 3.0 1*SATA Power 1*CPU FAN Header(4 Pins) 1*System Fan Header(4 Pins) 1*mSATA Slot 1*M.2 2230 Slot 1*AUDIO(9Pins) 1*Auto Power(3Pins) 1*F-Panel(9Pins) 1*DC Power(4 Pins) |
|
Power |
DC 12~19V |
|
Size |
Mini ITX (17cm*17cm) |
