ZC-3855DN-NAS With 6 SATA 3.0 NAS Mini Itx Mainboard

Category:Mini Itx Motherboard

Description:1.) With 6*SATA 3.0,support software RAID.(10*SATA 3.0 can customize) 2.) With 2*Intel I211 Gigabit Network(4pcs Can customize) 3.) Mini Itx Form Facory,17x17cm,Height is 36mm 4.) Onboard 6th Gen Skylake 3855u,Can customize 6th/7th U serial Core i3/i5/i7 CPU 5...

Service Hotline:+86-0755-25872280

InquirySkype

Description

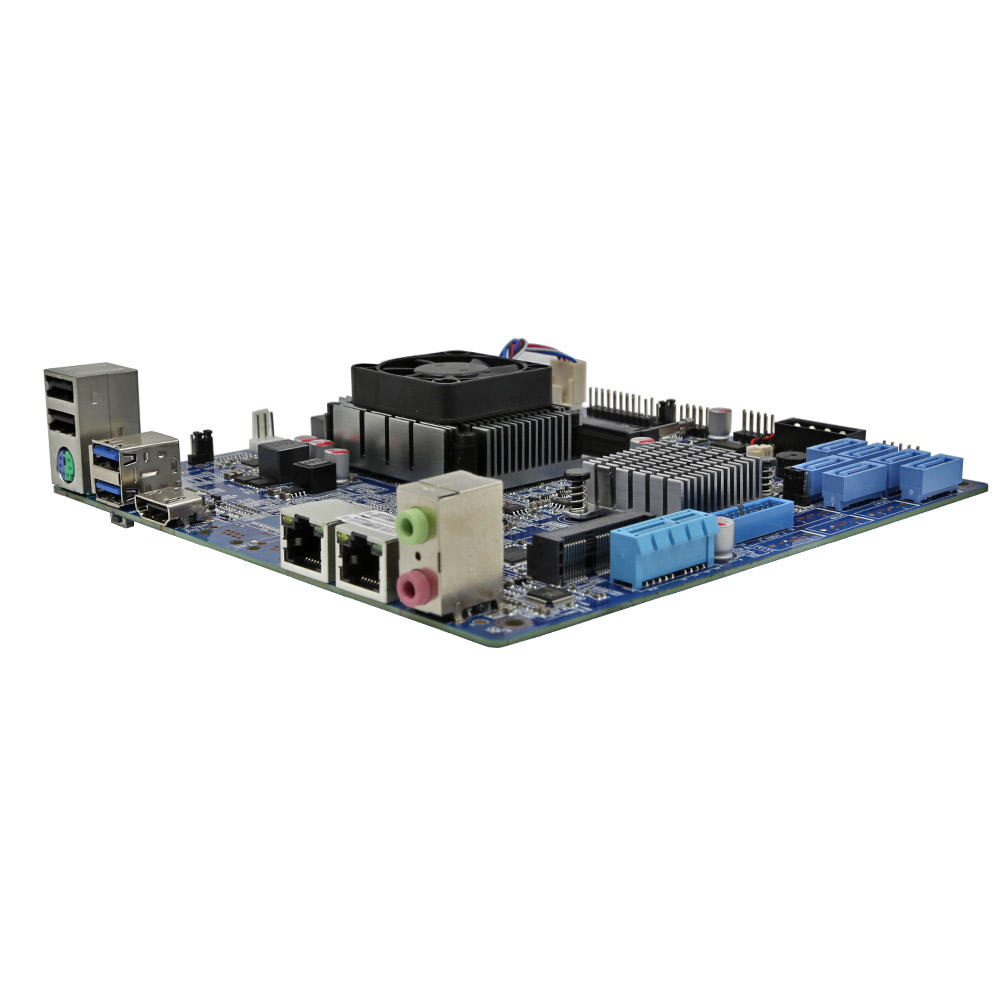

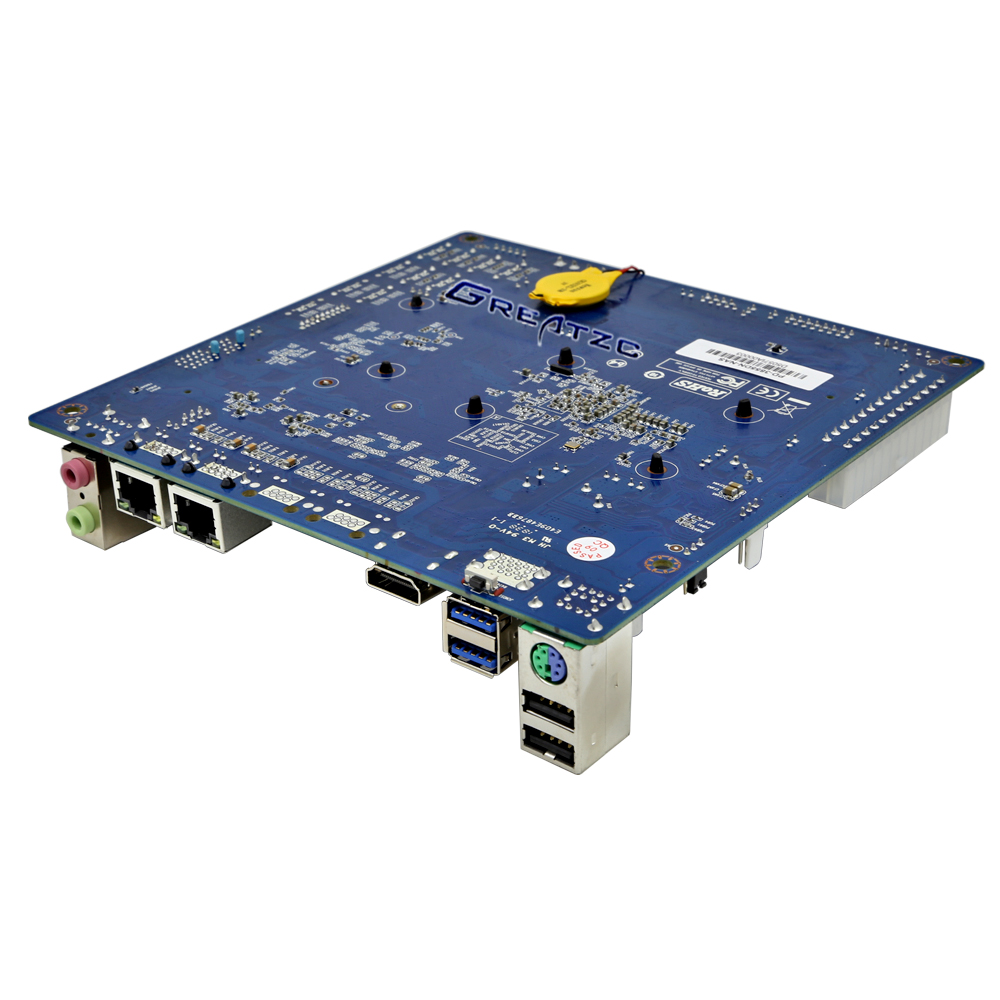

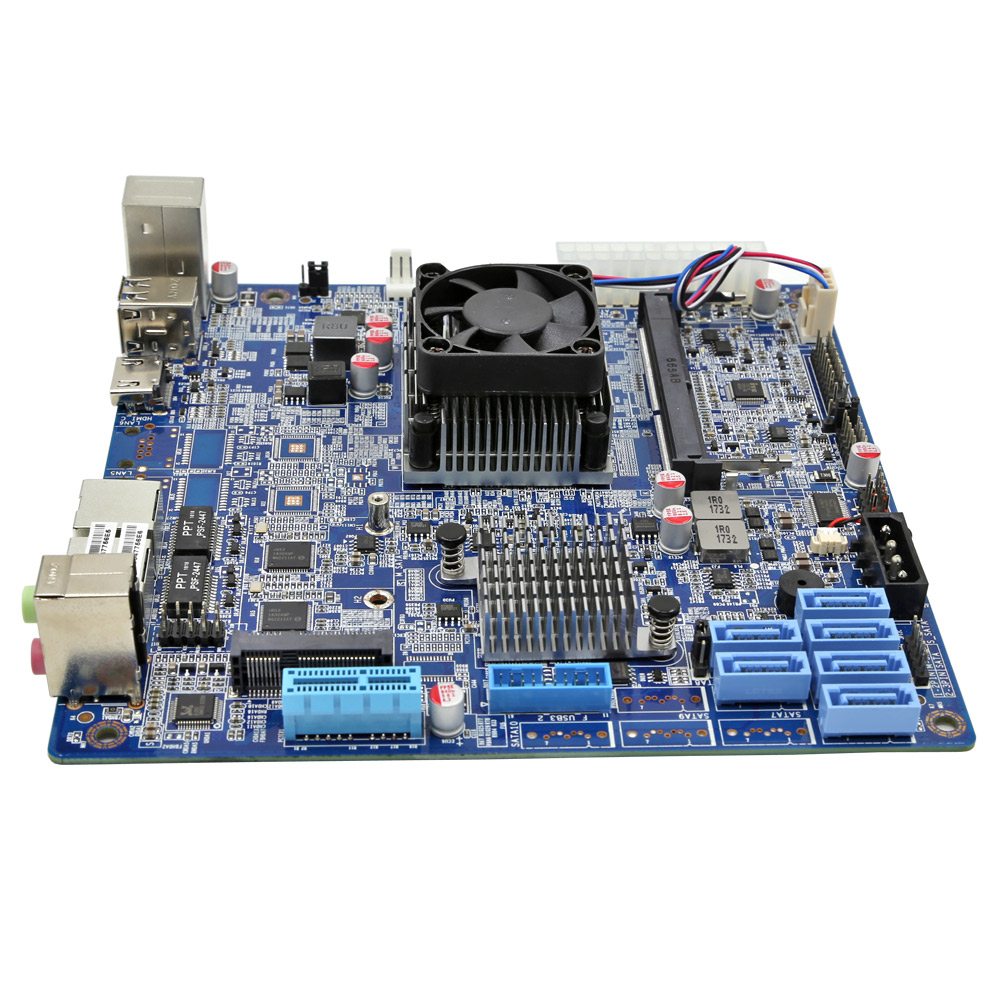

ZC-3855DN-NAS Mini ITX Motherboard For NAS,With 6*SATA 3.0,2*Gigabit Network Card,

Intel Skylake Celeron 3855U CPU,Dual Core 1.6GHz,INTEL HD510,Support 4K.

With 1*HDMI,2*RJ-45 LAN,1*COM,1*I2C,1*PCIE X1,1*MSATA


Main Features:

1.) With 6*SATA 3.0,support software RAID.(10*SATA 3.0 can customize)

2.) With 2*Intel I211 Gigabit Network(4pcs Can customize)

3.) Mini Itx Form Facory,17x17cm,Height is 36mm

4.) Onboard 6th Gen Skylake 3855u,Can customize 6th/7th U serial Core i3/i5/i7 CPU

5.) Onboad I2C,Support external device expansion

6.) Onboard PCIE X1 expansion interface for multiple conversion cards and expansion devices

7.) Support watchdog,Timing switch,Auto Power On,suitable for unattended equipment

8.) Support PXE,Wake On LAN

9.) Support Windows 8.1/10,Linux,Free NAS

10.) With sufficient material, good stability and strong anti-interference, ensure long-term stable operation of the product.


ZC-3855DN-NAS Mini Itx Motherboard Specification

CPU

INTEL 6th Skylake Celeron 3855U

Dual Core 2 Thread 1.6GHz

2MB SmartCache

TDP only 15W

(Can customize 6th/7th U serial Core i3/i5/i7 CPU)

Chipset

CPU Integrated

Graphics

INTEL HD510

Support 4K

Memory

1*SO-DIMM DDR4, MAX 16GB

Network Card

2*Intel I211,Gigabit.(4 Ports can customize)

Audio Card

Realtek ALC662

USB

Rear Ports:2*USB 3.0,2*USB 2.0

Header: 2*USB 3.0,2*USB 2.0

PCIe

1×PCIe 1X

SATA

6pcs SATA3.0 (10pcs SATA3.0 can customize)

Display

HDMI1.4B,Max 4096x2304@24Hz

Rear I/O

PS2

2*USB2.0

2*USB3.0

1*HDMI

2*RJ45

1*Speaker,1*Mic

1*Clear CMOS

Internal

I/O

6*SATA 3.0 (10pcs SATA3.0 can customize)

2*10pin Front Panel Header

1*I2C

DOM/HDD Power(1x4pin)

Over Heat LED Pins(1*2pin)

1* 9Pins USB 2.0 Header(Supoort 2*USB 2.0)

1* 19Pins USB 3.0 Header(Supoort 2*USB 3.0)

1*AUTO Power On Header

Chassis Anti-theft Pin(1*2pin)

1*MSATA (switch with jumper between MSATA and SATA1,either-or)

1*COM Header

1*Front Audio

1*System Fan Header(3Pins)

1*CPU Fan Header(3Pins)

Power Supply

24pin ATX

Form Factor

Mini-ITX,17x17cm(Height 36mm)
