ZC-ON4-1037 Mini ITX Motherboard 1037U CPU Industrial Grade Nvidia GT730 Graphic

Category:Mini Itx Motherboard

Description:Main Features: 1.Onboard CPU Intel Ivy Bridge 1037U Dual Core 1.80 GHz,2MB L2 Cache,22nm 2.NVDIA GT730,2GB Video Memory,Support 4K Playing 3.VGA&HDMI,LVDS,Support Double Display 4.DC 12V Power Supply, Can be Used to More Cases 5.MINI ITX Motherboard (17*17),Su...

Service Hotline:+86-0755-25872280

InquirySkype

Description

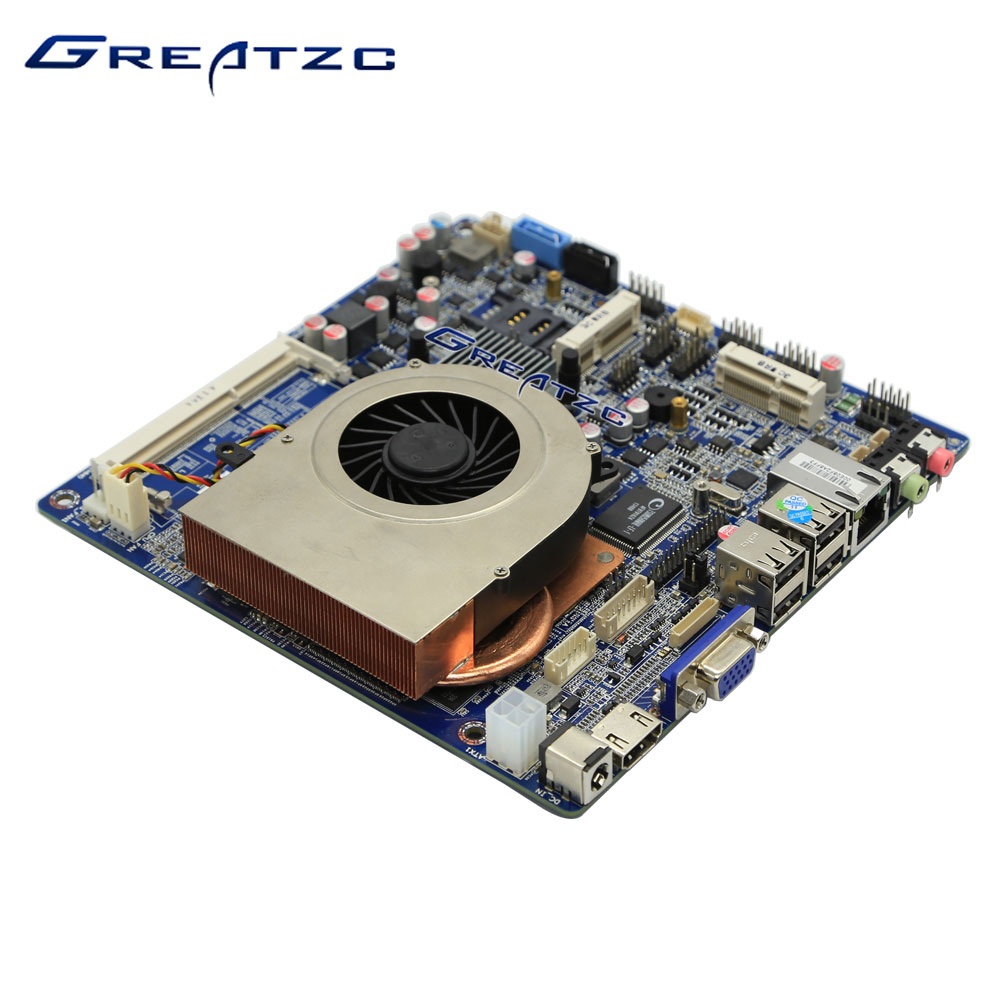

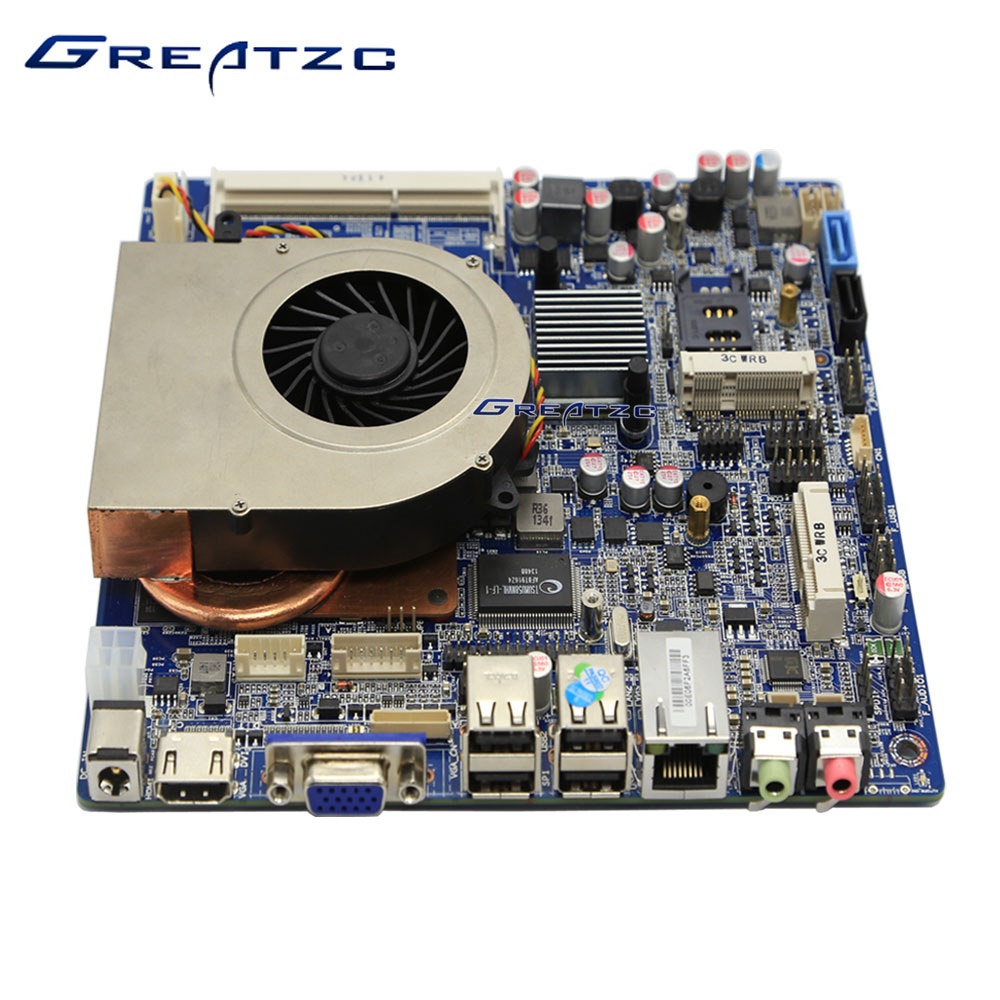

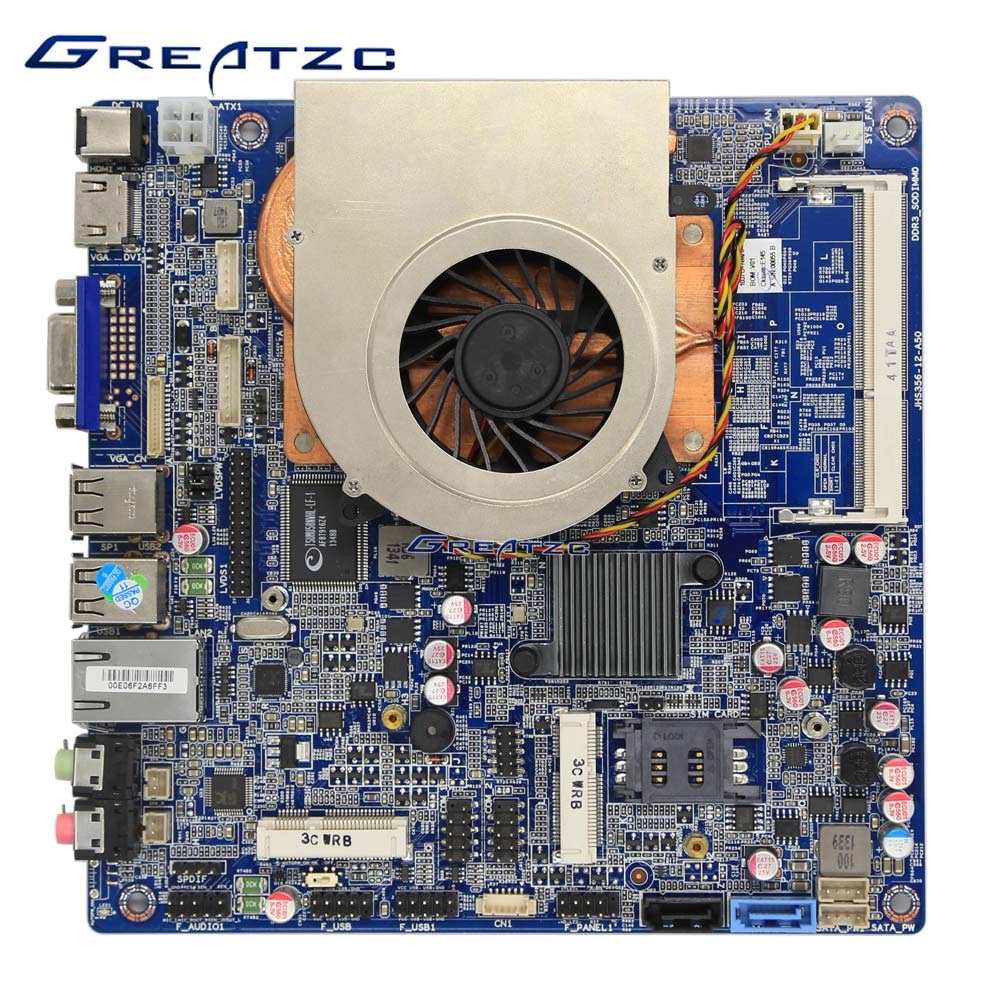

ZC-ON4-1037 Mini ITX Motherboard 1037U CPU Industrial Grade Nvidia GT730 Graphics


ZC-ION4-1037 MINI-ITX Motherboard With Intel Ivy Bridge 1037U CPU

Dual Core 1.8GHz,NVDIA GT730,2GB Video Memory,Support 4K Playing

With VGA,HDMI,LVDS Onboard,With2*SATA Slots,1*RJ-45 LAN Port

MINI PCIE,MINI SATA,SIM Card Slot,DC-12V,Support Total 8*USB.


Main Features:

1.Onboard CPU Intel Ivy Bridge 1037U Dual Core 1.80 GHz,2MB L2 Cache,22nm

2.NVDIA GT730,2GB Video Memory,Support 4K Playing

3.VGA&HDMI,LVDS,Support Double Display

4.DC 12V Power Supply, Can be Used to More Cases

5.MINI ITX Motherboard (17*17),Suitable for Majority Cases

6.With MINI SATA,MINI PCIE,SIM Card Slot,Support SSD,WIFI,3G.



ZC-ION4-1037 Motherboard Specification

CPU

Intel Ivy Bridge 1037U CPU

Dual Core 1.80 GHz

2MB L2 Cache,22nm

TDP 17W

RAM

1*SO-DIMM DDR3 1600MHz Memory,MAX 8GB

Chipset

Intel NM70

Graphics Card

NVDIA GT730,2GB Video Memory

Support 4K Playing

SATA

2*SATA Slots

Audio card

Realtek ALC662

Network Card

1*Realtek 8111E

10/100/1000M Network Card

Amplifier

Built-in SPK Ports,Support 2W,3W,5W Speaker

Display

1*HDMI

1*VGA

1*LVDS

LVDS

1*Double Channel 24Bit LVDS

Expansion Slot

1*MINI PCI-E Support SSD

1*MINI PCI-E Support WIFI,3G

Support Both Full Size and Half Size

1*SIM Card Slot

 Rear Panel I/O

4*USB 2.0

1*RJ-45

1*HDMI

1*VGA

1*DC12V_JACK

1*AUDIO Line Out

1*MIC IN

 Internal I/O

1*F-AUDIO1

1*SPDF

1*AUTO Power ON Switch

1*F-USB(Support 2 USB Ports)

1*F-USB1(Support 2 USB Ports)

2*COM PINS

1*GPIO-CON

1*CN1

F-PANEL1

2*SATA Slots

2*SATA Power Slots

1*SYS-FAN1 PWR

1*CPU FAN PWR

1*ATX1 4PINS

1*30PINS LVDS

1*VGA PINS

1*LVDS 3.3V/5V/12V Jump Hat

Power Supply

12V DC-In

4PIN DC-ATX

Size

MINI ITX(17*17)
