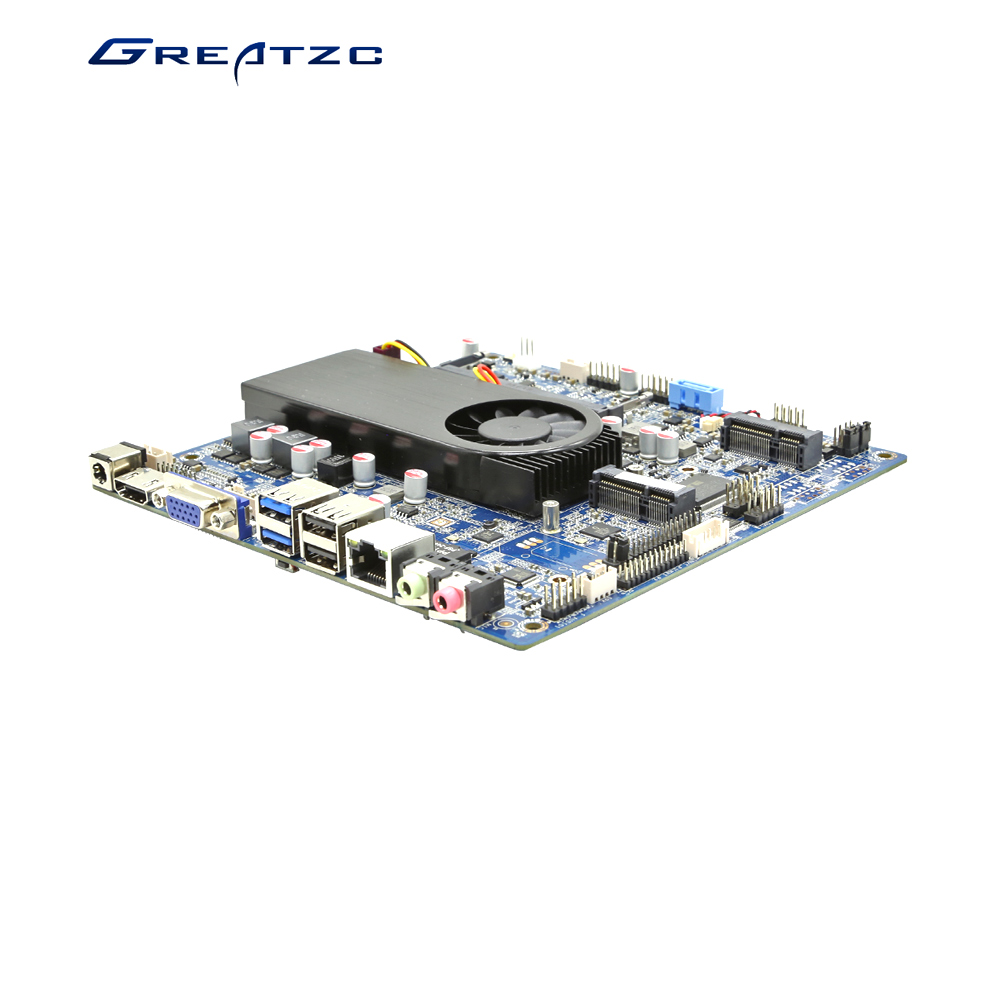

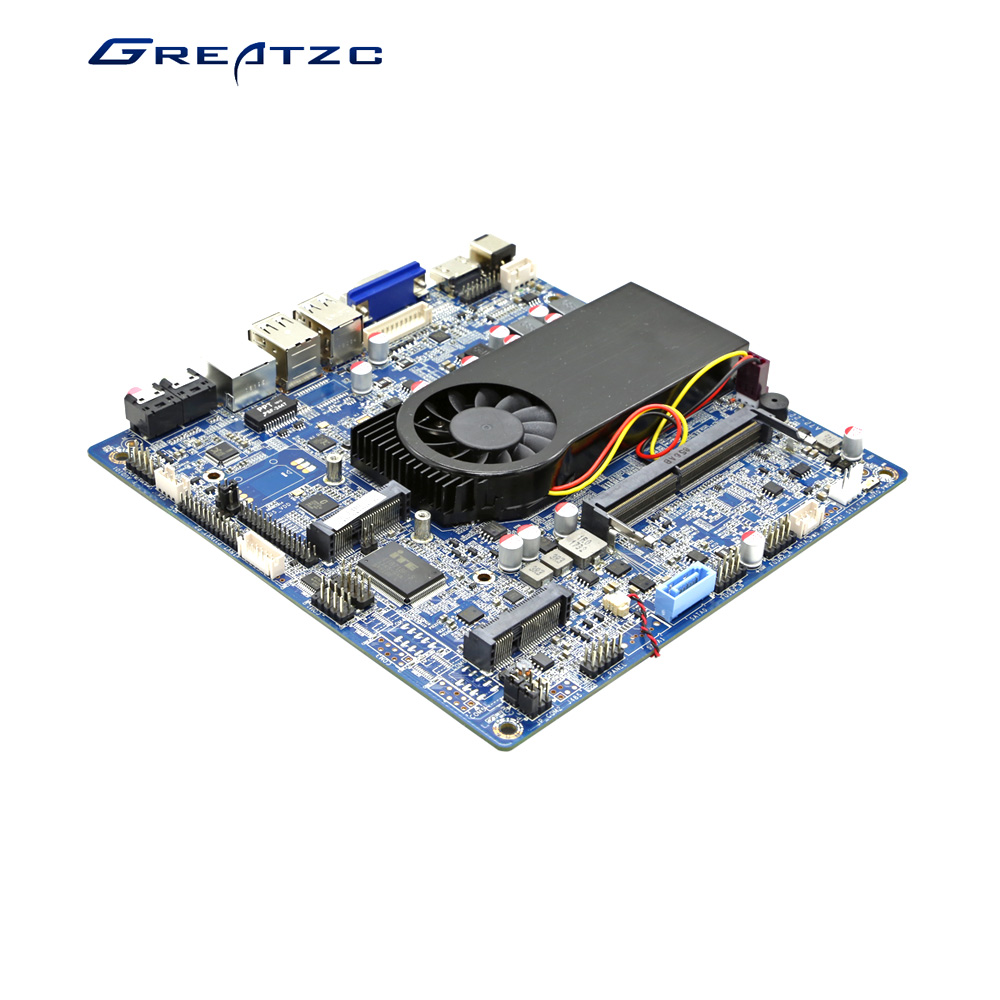

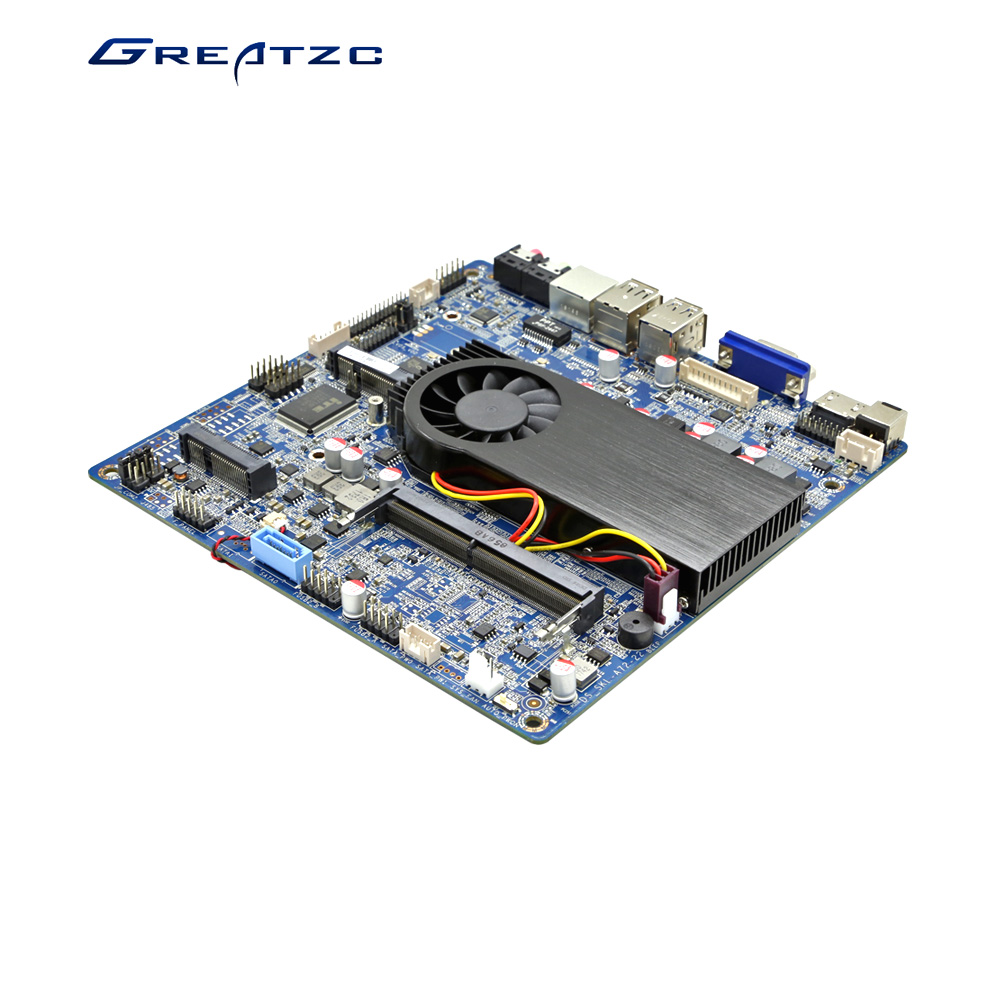

ZC-T6100SL Industrial Motherboard LVDS Mini ITX Motherboard For 4K Intel HD520 4

Category:Mini Itx Motherboard

Description:Main Features: 1. Onboard Processor Intel Skylake Core i3-6100U CPU,TDP 15W 2. INTEL HD520 Graphics,Support 4K 3. With MINI SATA,MINI PCIE,Support SSD,WIFI 4. With 1*HDMI,1*VGA,1*LVDS,Support Double Display 5. DC 12V-19V Power Supply, Can be Used to More Cases...

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-T6100SL-V Mini ITX Motherboard With Intel Skylake core i3-6100U CPU,

Dual Core 2.3GHz,INTEL HD520,Support 4K.With 1*HDMI,1*VGA,1*LVDS,

1*RJ-45 LAN,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,DC 12V-19V,

Support Total 8*USB


Main Features:

1. Onboard Processor Intel Skylake Core i3-6100U CPU,TDP 15W

2. INTEL HD520 Graphics,Support 4K

3. With MINI SATA,MINI PCIE,Support SSD,WIFI

4. With 1*HDMI,1*VGA,1*LVDS,Support Double Display

5. DC 12V-19V Power Supply, Can be Used to More Cases

6. MINI ITX Motherboard (17*17),Suitable for Majority Cases



ZC-T6100SL-V Motherboard Specification

CPU

INTEL 6th Skylake Core i3-6100U

Dual Core 4 Thread 2.3GHz

3MB SmartCache

TDP only 15W

RAM

1*SO-DIMM DDR4, MAX 16GB

Graphics Card

INTEL HD520

Support 4K

SATA

1*SATA Slot

Audio card

Realtek ALC662

Network Card

1*Realtek 8111F

1000Mbp/s Network Card

Display

1*HDMI

1*VGA

1*LVDS

LVDS

1*Double Channel LVDS

Expansion Slot

1*MINI SATA

1*MINI PCI-E

 Rear Panel I/O

2*USB 3.0

2*USB 2.0

1*RJ-45

1*HDMI

1*VGA

1*DC Jack

1*Speaker

1*MIC IN

 Internal I/O

1*F-USB(Support 2*USB 2.0 Ports)

1*F-USB(Support 2*USB 2.0 Ports)

1*JHDMI(16PINS)

1*JVGA(15PINS)

1*F-PANEL1(9PINS)

1*F-AUDIO(9PINS)
2*COM PINS(9PINS)

1*SATA 3.0 Slots

1*SYS-FAN1 PWR(3PINS)

1*CPU FAN PWR(3PINS)

1*30PINS LVDS

1*LVDS Backlight(6PINS)

1*LPT

1*SPK(4PINS)

1*DC ATX(4PINS)

1*MINI SATA

1*MINI PCI-E

Power Supply

12V-19V DC-In

4PIN DC-ATX

Size

MINI ITX(17*17)
