ZC-3855DL-D With 6 COM 1 LPT Dual LAN Skylake 3855u Mini itx Industrial Motherbo

Category:Mini Itx Motherboard

Description:Main Features: 1. Onboard Processor Intel Skylake Celeron 3855U CPU,TDP 15W 2. INTEL HD510 Graphics,Support 4K 3. With MINI SATA,MINI PCIE,Support SSD,WIFI 4. With 1*HDMI,1*LVDS,1*VGA,Support 3 Display 5.With Dual LAN Gigabit NIC,Support WOL 6.With 6*COM Ports...

Service Hotline:+86-0755-25872280

InquirySkype

Description

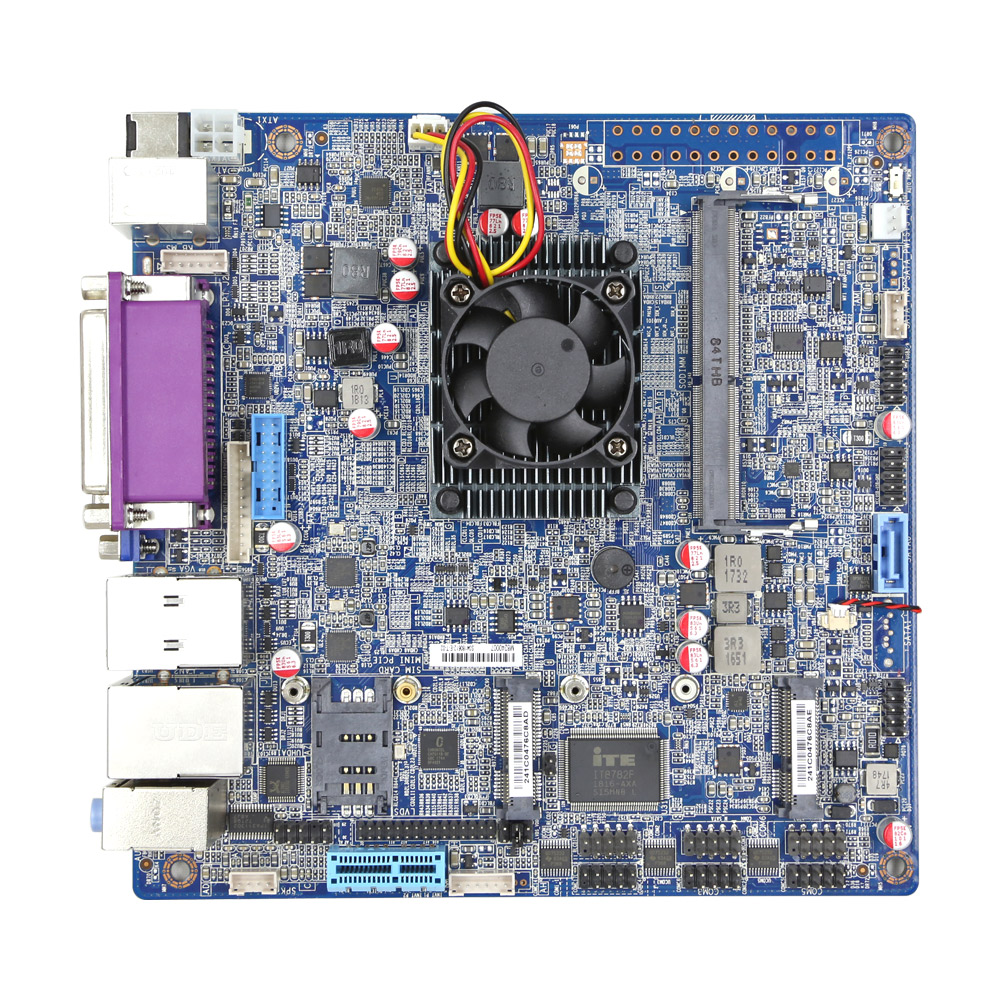

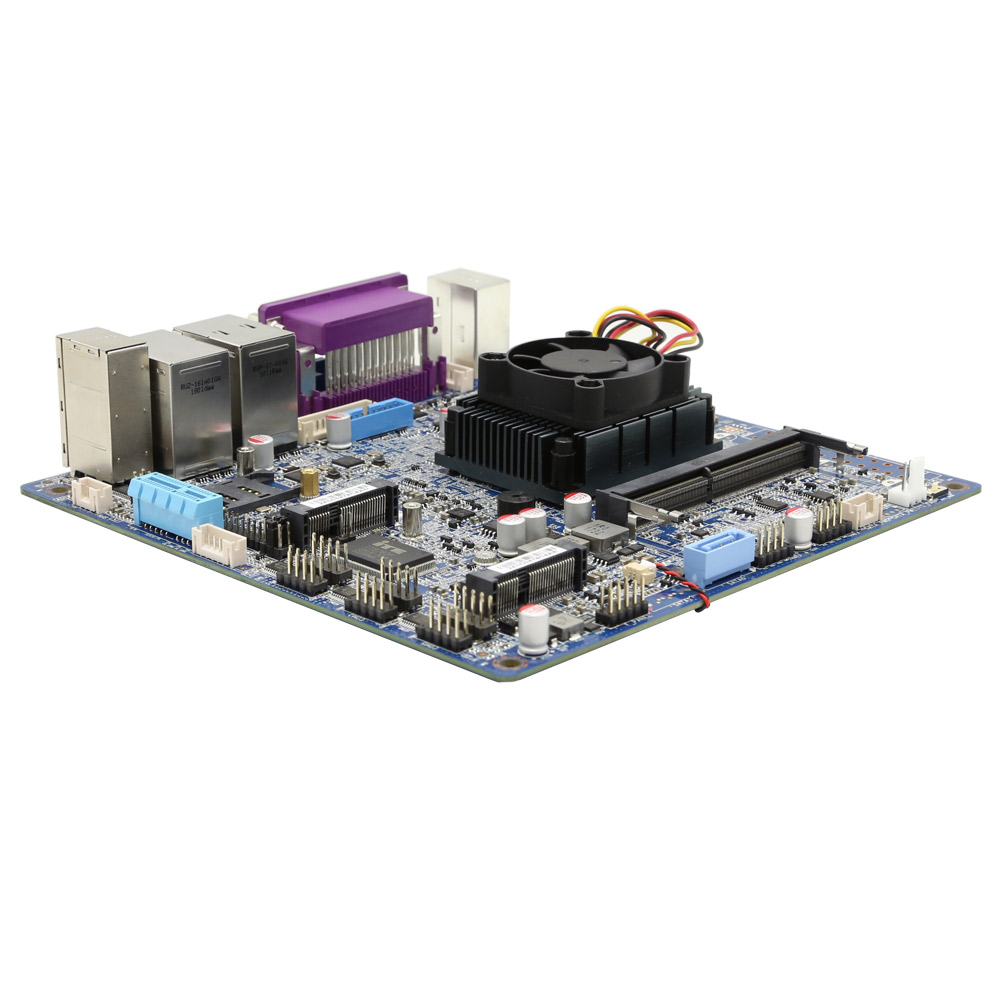

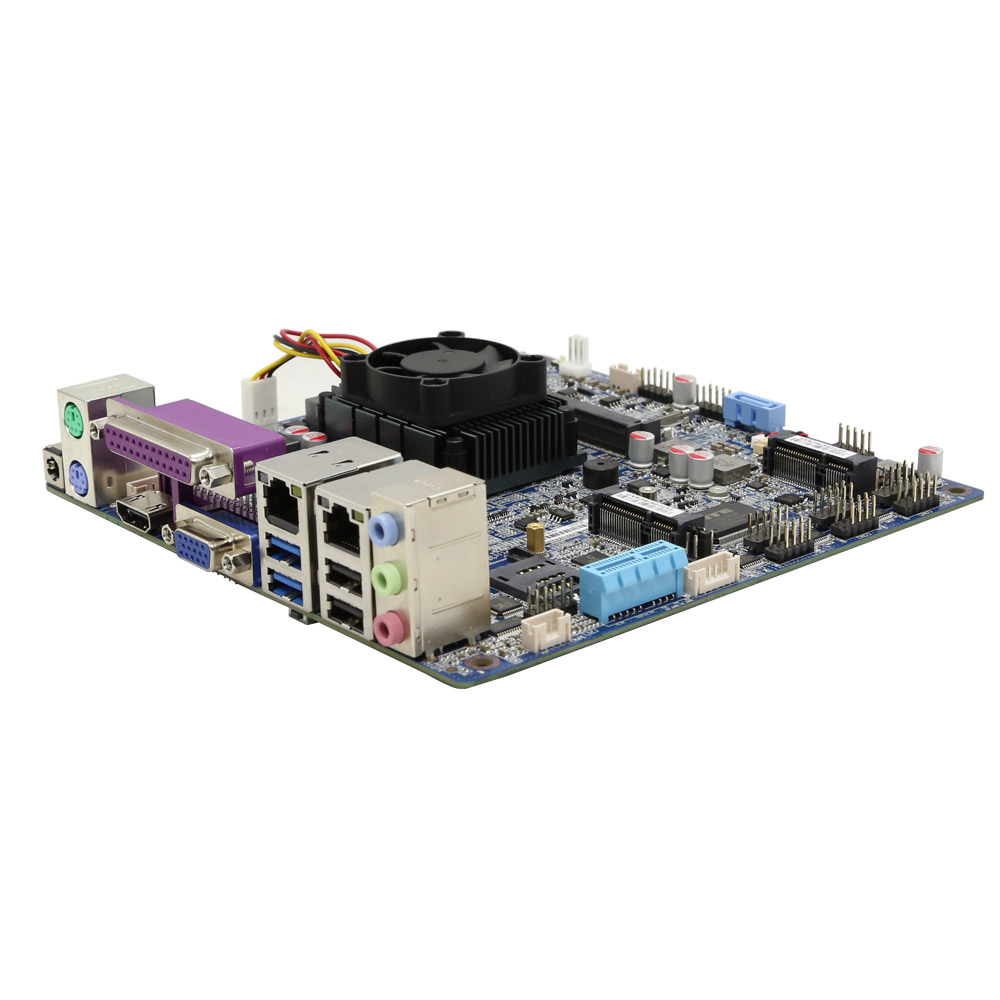

ZC-3855DL-D Mini ITX Motherboard With Intel Skylake Celeron 3855U CPU,

Dual Core 1.6GHz,INTEL HD510,Support 4K.With 1*HDMI,1*LVDS,1*VGA

2*RJ-45 LAN,6*COM,1*LPT,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,DC 12V-19V


Main Features:

1. Onboard Processor Intel Skylake Celeron 3855U CPU,TDP 15W

2. INTEL HD510 Graphics,Support 4K

3. With MINI SATA,MINI PCIE,Support SSD,WIFI

4. With 1*HDMI,1*LVDS,1*VGA,Support 3 Display

5.With Dual LAN Gigabit NIC,Support WOL

6.With 6*COM Ports,1*LPT Port

7. DC 12V-19V Power Supply, Can be Used to More Cases

8. MINI ITX Motherboard (17*17),Suitable for Majority Cases

ZC-3855DL-D Motherboard Specification

CPU

INTEL 6th Skylake Celeron 3855U

Dual Core 2 Thread 1.6GHz

2MB SmartCache

TDP only 15W

RAM

1*SO-DIMM DDR4, MAX 16GB

Graphics Card

INTEL HD510

Support 4K

SATA

1*SATA Slot

Audio card

Realtek ALC662

Network Card

2*Realtek 8111F

1000Mbp/s Network Card

Display

1*HDMI

1*VGA

1*LVDS

LVDS

1*Double Channel 8Bit/24Bit LVDS

Expansion Slot

1*MINI SATA

1*MINI PCI-E

1*SIM Slot

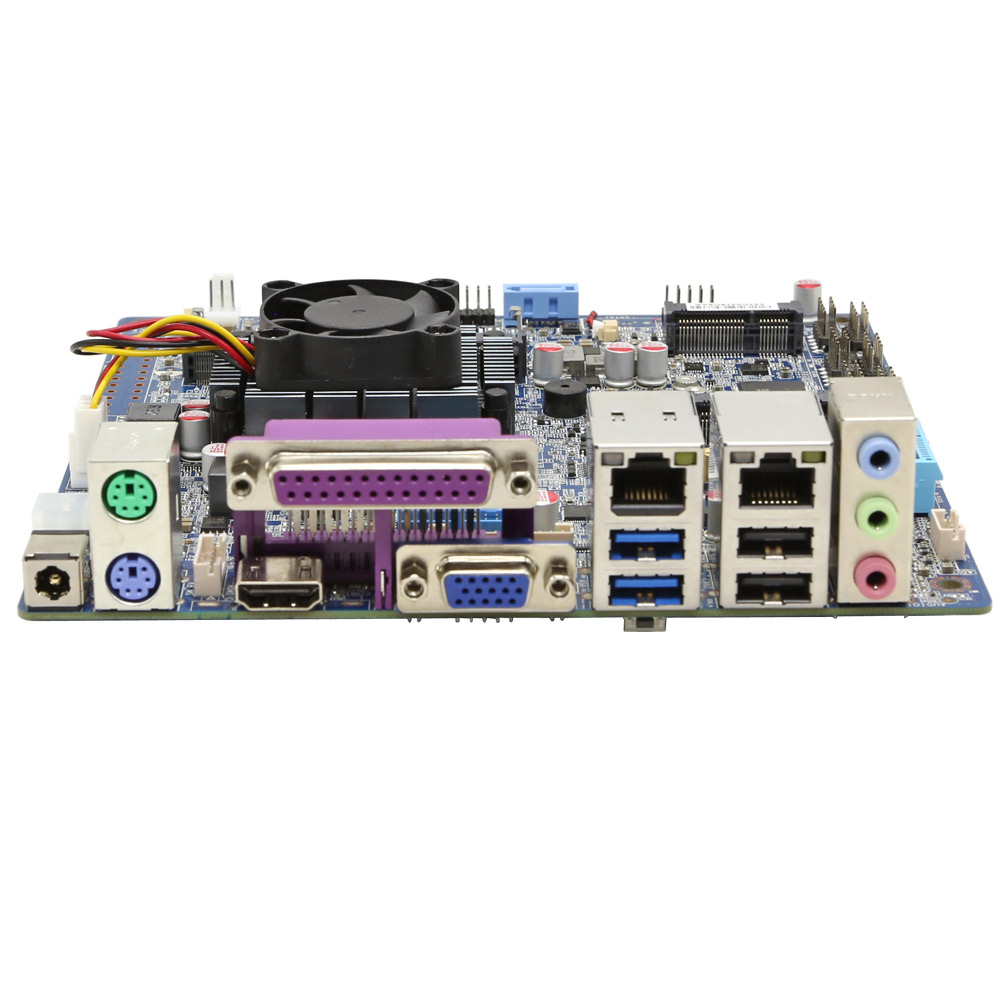

 Rear Panel I/O

2*USB 3.0

2*USB 2.0

2*RJ-45

1*HDMI

1*VGA

1*LPT

1*PS2

1*DC Port

1*Speaker

1*MIC IN

 Internal I/O

1*F-USB(Support 2*USB 2.0 Ports)

1*F-USB(Support 2*USB 2.0 Ports)

1*USB 3.0(Support 2*USB 3.0 Ports)

1*KB-MS(6PINS)

1*F-PANEL1(9PINS)

1*F-AUDIO(9PINS)

1*Amplifier(4PINS)
6*COM PINS(9PINS)

1*SATA 3.0 Slot

1*SATA Power

1*SYS-FAN PWR(3PINS)

1*CPU FAN PWR(3PINS)

1*30PINS LVDS(30PINS)

1*LVDS Backlight(6PINS)

1*LVDS VDD(6PINS)

1*DC ATX(4PINS)

1*MINI SATA

1*MINI PCI-E

1*SIM Slot

1*AUTO Power ON Switcher

1*CMOS Clear Switcher

Power Supply

12V-19V DC-In

4PIN DC-ATX

Size

MINI ITX(17cm*17cm)
