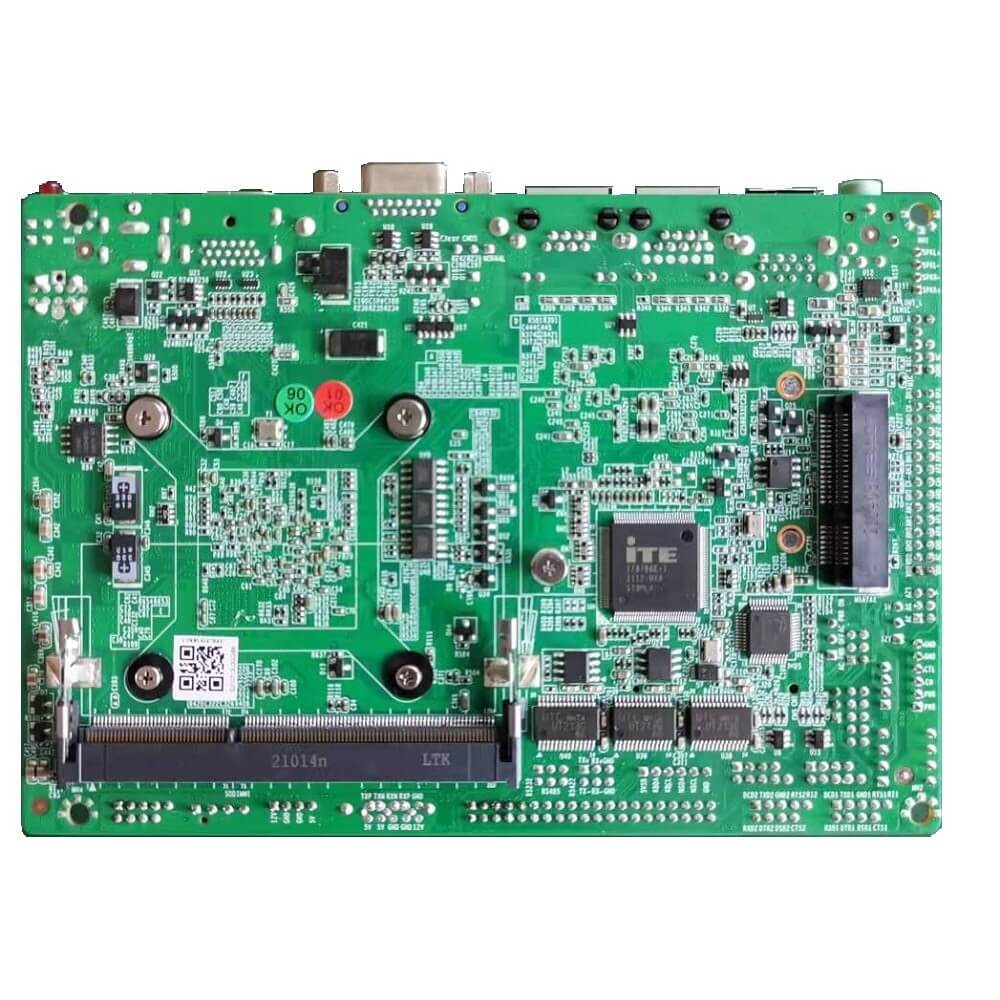

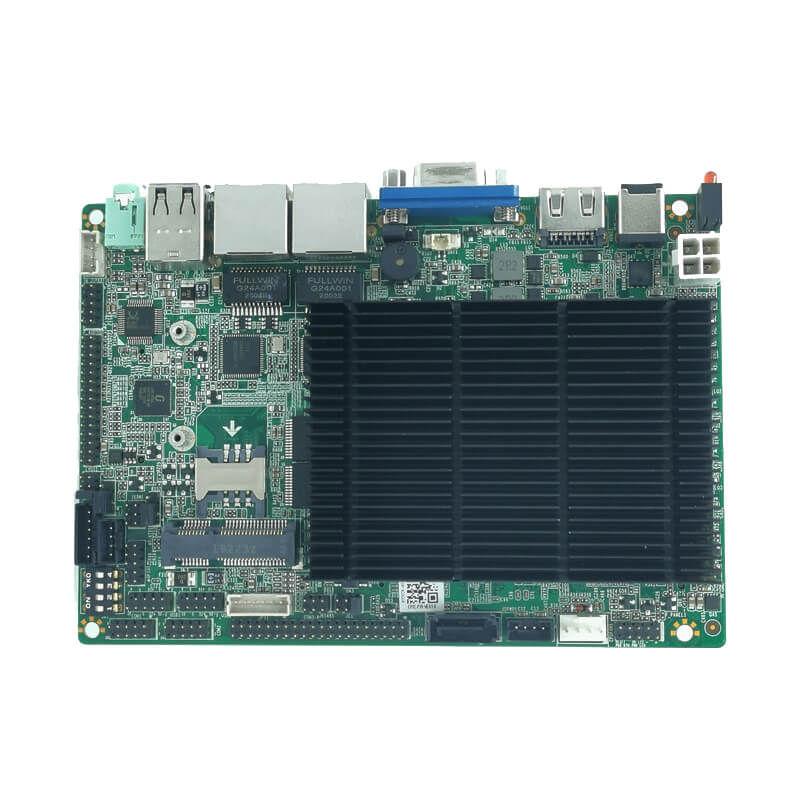

ZC35-1900DL 3.5’’ Fanless Motherboard Onboard J1900 CPU,2*RJ45,6*USB,6*COM,VGA+HDMI+LVDS Display,SATA+mSATA Storage
Passive Fanless Cooling Design
Main Feature:
1.Onboard INTEL Bay Trail-D Celeron J1900,TDP only 10W
2.Quad-Core 4 Threads 2GHz,Burst to 2.42GHz
3.With VGA,HDMI,eDP,Support Double Display
4.Support 1*SO-DIMM DDR3L 1600MHz
5.With 1*Mini PCI-E,1*SIM Slot
6.Rich Storage,1*mSATA,1*SATA
7.Two Gigabit Ethernet is optional
ZC35-1900DL 3.5’’ Motherboard
Model |
ZC35-1900DL VER1.1 |
Processor |
Intel® Celeron J1900,4 Cores Burst to 2.42GHz |
Memory |
1*SO-DIMM Support 1600/1333MHz DDR3L/1.35V,Max 8GB |
Display |
Intel® HD Graphics |
1* VGA, 1*HDMI1.4, 1*LVDS(eDP can customize) |
|
Support VGA, HDMI, LVDS synchronous/asynchronous dual display |
|
Network Card |
2* intel i211 Gigabit,Support Wake On LAN/PXE |
1* Mini-PCIe(Support both half size/full size),Support WIFI/4G/3G |
|
Storage |
1* SATA2.0 |
1* mSATA2.0 |
|
Audio |
Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier 3W |

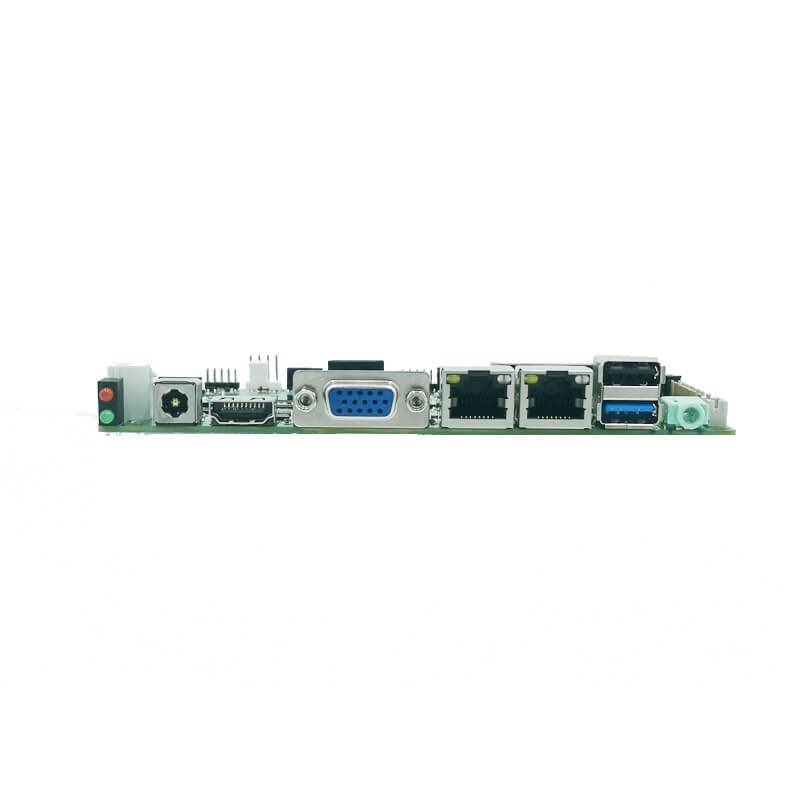

Rear I/O |
1* HDMI |
1* VGA |
|
1* USB3.0,1* USB 2.0 |
|
2* RJ-45 |
|
1* Line out(Green) |
|
1* Hard Disk/Power Indicator LED |
|
1* 12V DC Jack |
|
Internal I/O |
1* LVDS 2*15pin,Support Dual Channel 24bit |
1* Screen backlight power supply interface 1*6pin |
|
4* USB 2.0 2*5Pin |
|
1* Front Audio 2*5pin |
|
1* Speaker Amplifier interface 1*4pin |
|
1* SIM 2*3Pin |
|
6* COM (COM2/COM3 Support RS485) |
|
1* PS2 1*6Pin |
|
1* Hard disk power supply interface 1*4Pin |
|
1* Front panel switch button and indicator light interface 2*5Pin |
|
1* 2pin DC 12V |
|
Fan |
Fanless heat dissipation design, 1*4pin CPU fan interface |
Cooling System |
Fanless Passive Cooling |
GPIO |
Support 4 input and output GPIO |
BIOS |
64Mb Flash ROM |
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
OS |
Windows 7/Windows 10/Linux |
Power Supply |
DC 12V ±5% |
Operating Temp |
60℃~-10℃ |
Storage Temp |
-20℃~70℃ |
Operating Humidity |
5% ~ 95% relative humidity, non-condensing |
Size |
146mm x 102mm |
