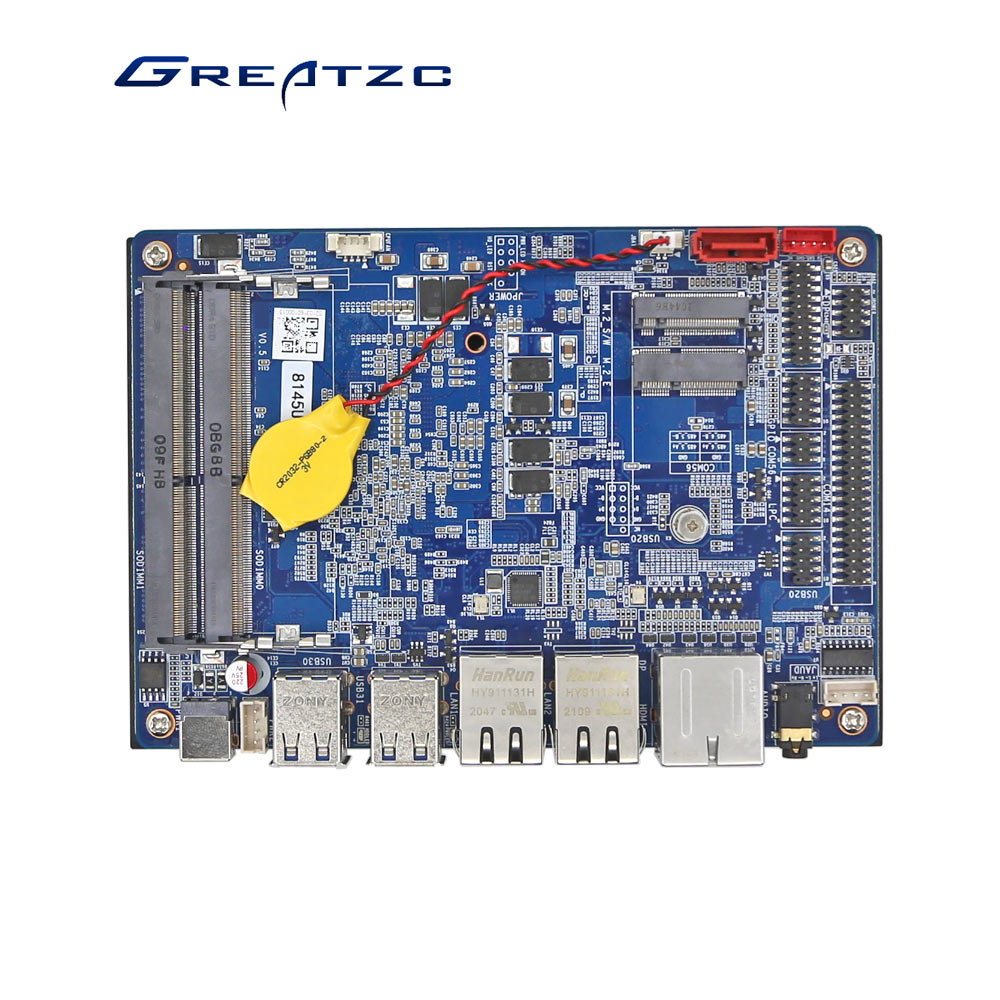

Form Factor

3.5’’,146x102mm

Processor

Onboard 8th Gen Whiskey Lake-U

Celeron 4205u,2 Cores 1.8GHz,2MB Cache

I3-8145u,2 Cores 2.1GHz Turbo 3.9GHz,4MB Cache

I5-8265u,4 Cores 1.6GHz Turbo 3.9GHz,6MB Cache

I7-8565u,4 Cores 1.8GHz Turbo 4.6GHz,8MB Cache

Memory

Dual Channel SO-DIMM DDR4,Max Capacity 32GB

Graphics Card

Intel UHD Graphics

Display

HDMI + DP + eDP (can be expanded to LVDS via daughter board)

eDP

1x eDP(2*10pins)

Storage

1x M.2 for 4G/2242 SSD

1x SATA3.0

Ethernet

Controller: 1x intel i211 +1x intel i219 Gigabit

Interface: 2x RJ45

Support Wake on LAN

vPro/AMT: based on the specified CPU and intel i219 ethernet chip

Audio

Audio codec: Realtek HD

Interface: Line-out and mic-in in one, amplifier header(4pins)

USB

4x USB3.1 Gen1(Rear)

1x F-USB Pins(Supports 2*USB 2.0)

Serial Port

4x RS232 + 2x RS485

LPC

1x LPC (2*5pins)

GPIO

1x GPIO (2*5pins)

FAN

1x CPU FAN (1*4ins)

Expansion

1x M.2 for Wi-Fi

1x Micro SIM

Switch

1x F-Panel(2*5pins)

for Power On/Off,Restart,Power LED,HDD LED

 Rear I/O

1x DP

1x HDMI

2x RJ45

4x USB 3.1 Gen1

1x DC12V Port

1x Audio(Line-out+Mic-in in one)

Power

1x Standard Port 12V

1x 12V Power Header(1*4pins)

Operating Temp.

-20°C to 60°C

Storage Temp.

-40°C to 80°C

Cooling Method

Passive

Operating System

Win10 64bit, Linux 64bit
