CPU

Intel 8th Generation Whiskey Lak U Serial CPU

Celeron 4305U,2 Core 2.20 GHz,15W TDP (As Default)

I3-8145u,2 Core 2.1GHz to 3.9GHz,15W TDP (Optional)

I5-8265u,4 Cores 1.6GHz to 3.9GHz,15W TDP (Optional)

I7-8565u,4 Cores 1.8GHz to 4.6GHz,15W TDP (Optional)

RAM

2*SO-DIMM DDR4 2400Mhz

Up to 32GB

Graphics Card

Intel UHD Graphics

1x LVDS Max: 1920 x 1080@60Hz

1x eDP Max Resolution: 4096x2304@60Hz(either-or LVDS)

1x HDMI1.4 Max: 3840 x 2160@30Hz

1x DP1.2 Max: 3840 x 2160@60Hz

Storage

1*SATA 3.0 Slot,

1*M.2, Support SATA or PCIE SSD

Audio

Realtek ALC662

1x Audio_out&Mic_in Port

Build-in 3W 8ΩAmplifier

Network Card

1*Intel i211A Gigabit

1*Intel i219LM Giabit

Serial Interface

1*40pin,support 4*RS232 COM,

2*5pin,Support 2*COM

COM1/COM2 Support RS232/RS485(Setup by BIOS)

Expansion Interface

1x M.2 M2230 Support WIFI/Bluetooth/4G etc

1*PCIe 4X

1*GPIO（8 Channel）

2*4pin SPI

TPM

Onboard TPM 2.0

OS Support

Windows 8.1/10;Linux

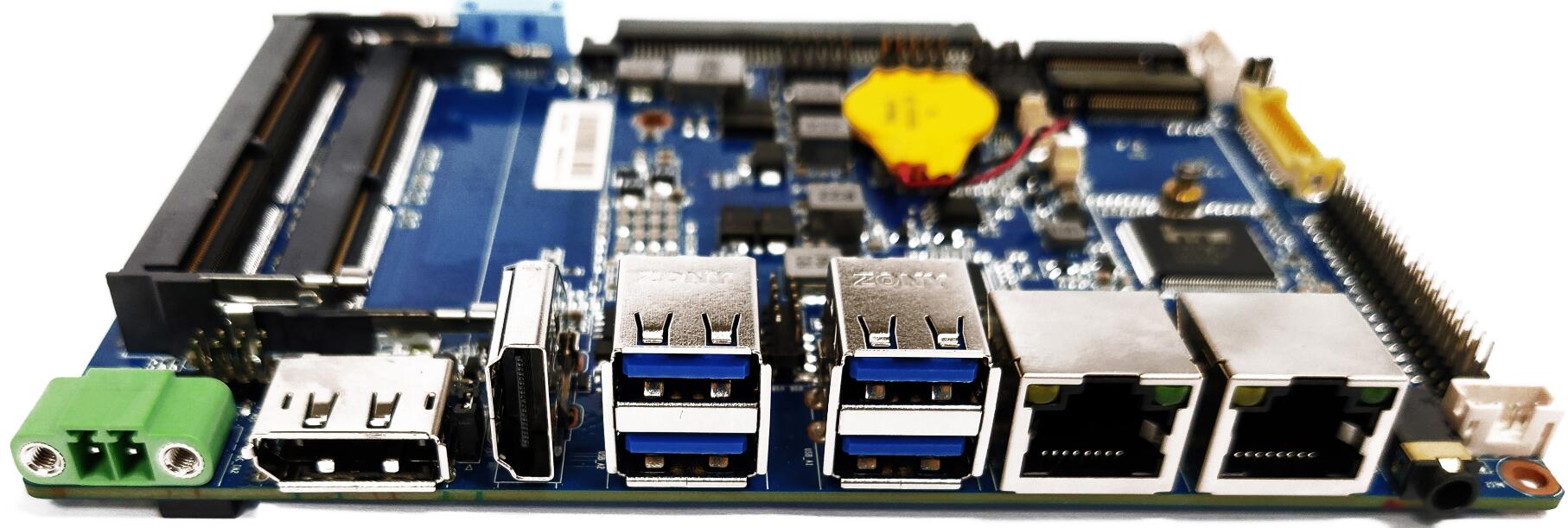

 Rear Panel I/O

1*DP

1*HDMI

2*RJ-45

4*USB 3.1

1*9-36V DC Jack

Power Supply

9-36V DC Power

Dimension

146*104mm

Working Temperature

-20℃ ~ +60℃

Storage Temperature

-40℃ ~ +80℃
