Processor

Intel N5095,4 Cores 2.0GHz

Memory

1*SO-DIMM DDR4 2933 MHz Slot,Max 16GB

Display

Intel UHD Graphics for 10th Gen Intel Processors

1*VGA+ 1*HDMI+1*LVDS/EDP Optional,Support 3 Display

Network

1 or 2 Realtek RTL8111H Gigabit LAN,support Wake-on-LAN/PXE

Storage

1*7pin SATA3.0,6Gbps

1*mSATA Slot

Audio

Onboard ALC897 7.1 6-channel high-fidelity audio controller

Support MIC/Line-out, power amplifier-2 ohm 5W dual channel

Expansion Slot

1*Mini PCIE,half/full Size

1*Mini PCIE,half Size(Optional)

1*PCIE X1(Optional)

Rear I/O Port

1*12V DC Port

1*HDMI

1*VGA

1*RJ45

1*RJ45 (either-or 2*USB 2.0)

1*Line out (green), 1*MIC(red)

2*USB3.0

2*USB 2.0 ( either-or 1*RJ45)

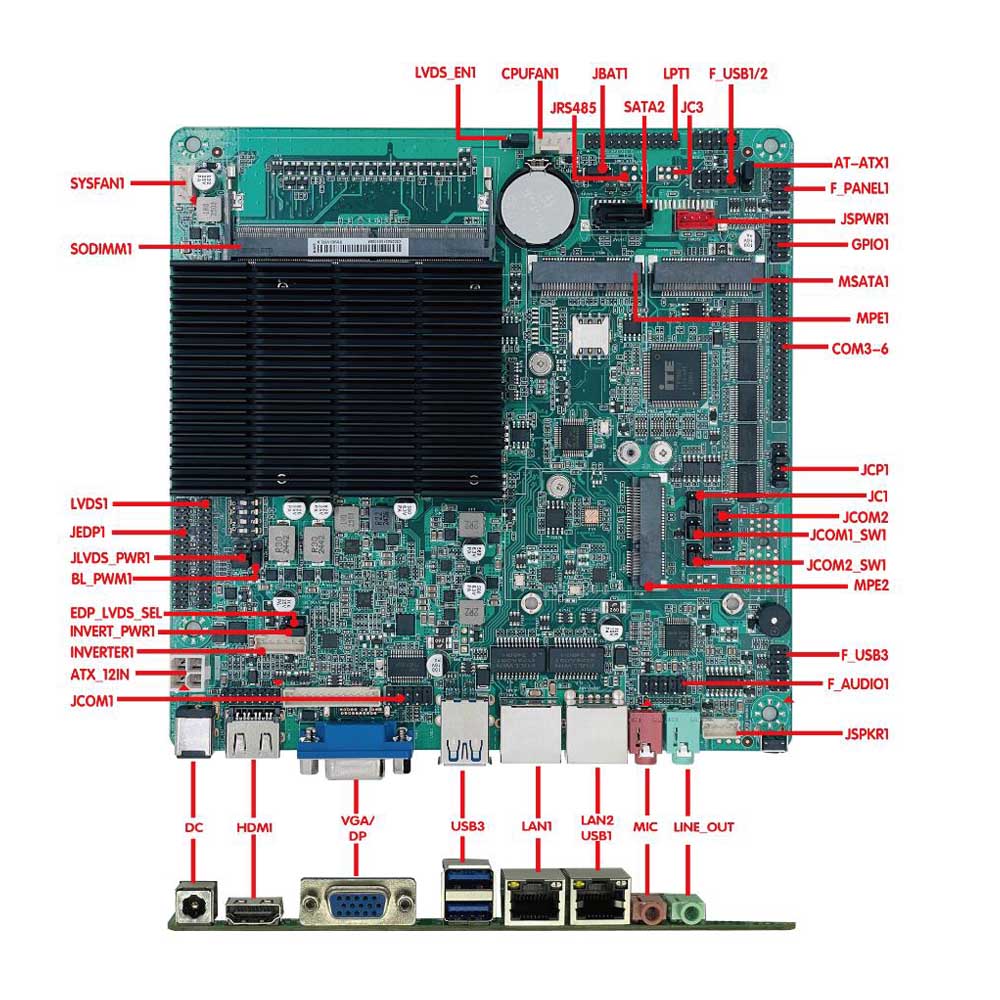

Inside I/O Ports

1*JHDMI,2*8Pin (optional)

1*JVGA,1*12Pin (same signal as DB15)

1*LVDS,2*15pin,Dual channel 24bit (either-or eDP)

1*Screen backlight power supply,1*6pin

1*eDP,2*15pin (choose one from LVDS, optional)

4 or 6*USB 2.0,2*5Pin

(1 LAN Version Support 6 USB 2.0,2 LAN Version support 4*USB 2.0)

1*Front audio,2*5pin

1*Amplifier,1*4pin

1*LPT

1*4pin ATX power

1*SATA Power

1* Front panel switch button and indicator,2*5Pin

6*COM (COM1-2 support RS485, COM1/2 9P is powered, optional support 4*485)

Fan

Fanless cooling design, reserved 1*4pin CPU fan,1*4pin system fan

GPIO

Support 4 input and output GPIO

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/11/Linux

Power Type

DC 12V

Operating Temp

-20℃ to +60℃

Storage Temp

-20℃to +70℃

Working Humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm
