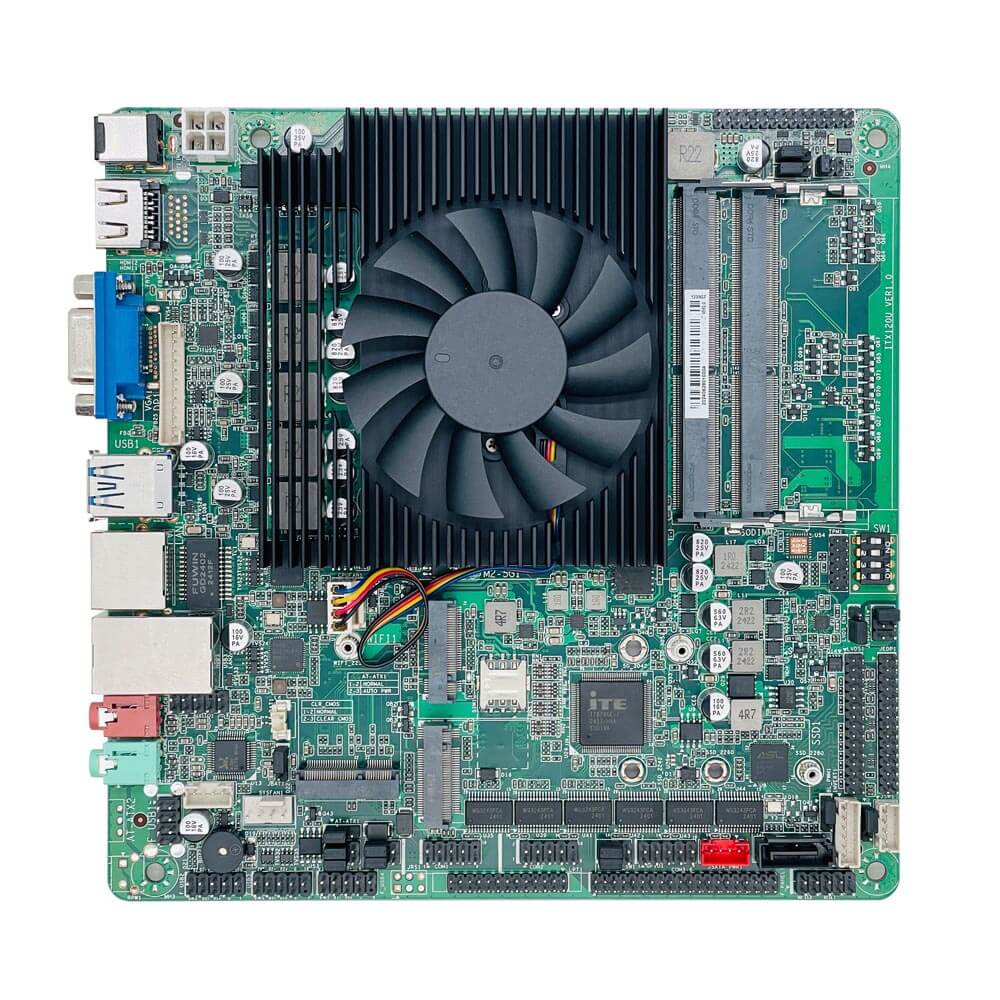

ZC-ITX120U Thin Mini Itx Motherboard Onboard Intel 12th Gen Series Processor ,2*LAN Ports,6*COM,VGA+HDMI+LVDS Display
DC Power Supply
Main Features:
1.) Integrated Intel 12th Gen Series Processor
2.) With 2* SO-DIMM 4 Slot, Up to 96GB
3.) 2* Intel I226 2.5G Network Card
4.) Storage 1* SATA+1*M.2 Key-M
5.) With 6*RS232,RS485 Optional
6.) VGA+HDMI+LVDS Display
CPU
Intel 12th Gen Alder Lake-U/P/H i3/i5/i7
Intel 13th Gen Raptor Lake-U/P/H i3/i5/i7
RAM
2* SODIMM DDR4 3200MHz DDR4,up to 96GB
Display
Intel® Iris® Xe Graphics eligible
1*VGA(1*DP Optional)
1*HDMI(2*HDMI Optional)
1*LVDS
1*EDP2
Network
2*Intel I226 2.5G Network,Support PXW,Wake on LAN
Storage
1* 7pin SATA3.0 6Gbps
1* M.2 Key-M 2280/2242 PCIE4.0 X4/SATA SSD
Audio
Onboard ALC897
Support MIC/Line-out, power amplifier-2 ohm 5W dual channel
Expansion
1*M.2 Key B 3042
1*M.2 Key E

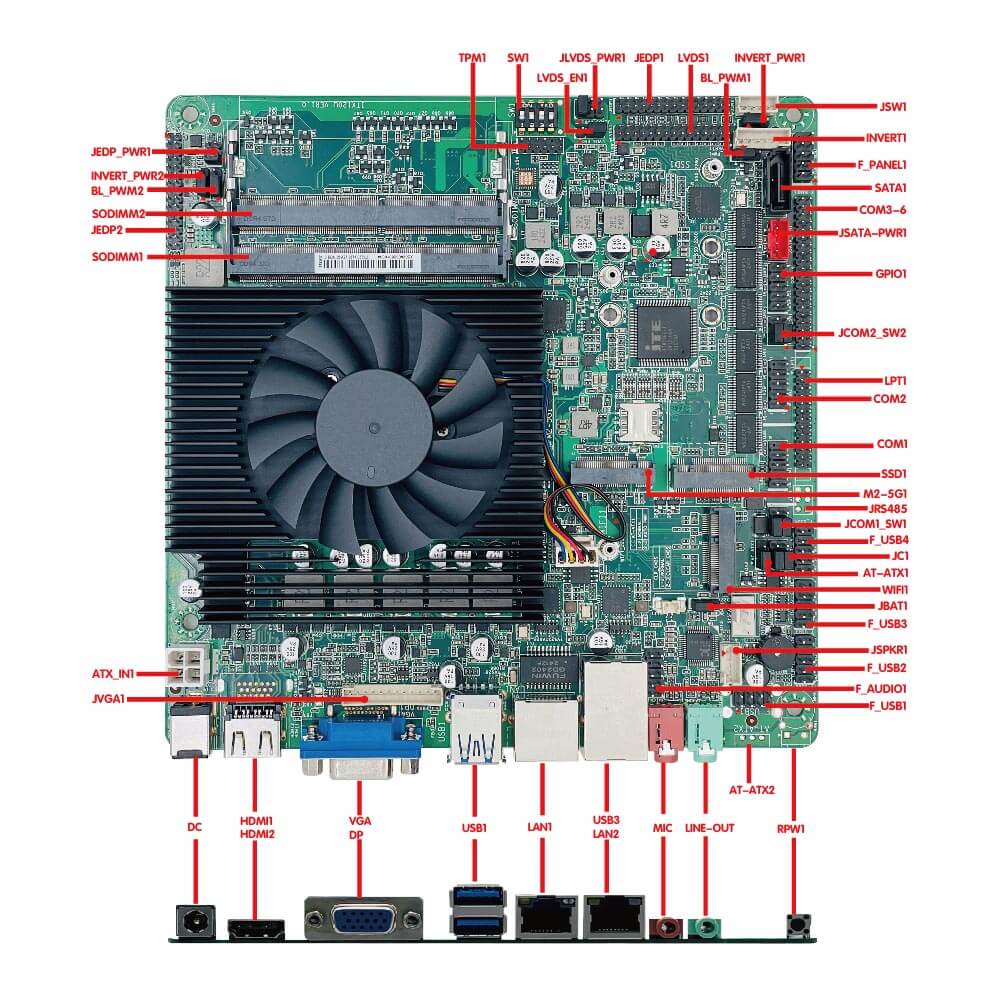

Rear I/O
2* LAN RJ45
2* USB3.0
1* HDMI 2.1(2*HDMI Optional)
1*VGA
1*Lini Out,1*Mic In
1* 12V-19V DC Port
Front I/O
4* USB 3.1
1* HDD Light
1* Power Button
1*Line Out,1*Mic In
2* COM (RS232 Default,COM1/2 can change to be RS485 by jumper)
Inside I/O
1*EDP2 (2*15Pins)
1*LVDS (2*15Pins)
1*INVERTER(1*6Pins)
6*COM(6*RS232 Default,COM1 can be RS485/422,COM2 Can be RS485)
1*ATX Power(2*2Pins)
4* USB 2.0 (2*5Pins,can expand 6*USB 2.0)
1* SATA Power Pin
1* 4pin SATA Power
1* Front panel switch button and indicator light 2*5Pin
1*Amplifier 1*4Pins 2W5Ω(Customize)
FAN
1*CPU FAN(1*4Pins),1*System Fan(1*4pin)
GPIO
Support 4 input and output GPIO
Watchdog
Support hardware reset function (256 levels, 0~255 seconds)
OS
Windows 10/11/Linux
Power Supply
DC 12V/19V
Working Temp
-10℃ to 60℃
Storage Temp
-20℃～70℃
Working Humidity
5%-95% relative humidity, no condensation
Size
170mm x 170mm
Modole#
CPU
Core
Speed
DDR
HDMI
VGA
LVDS
EDP
LAN
USB
LPT
COM/485
POWER
1
ZC-ITX120U-L26-1235U
I5-1235U
2P/8E
1.3-4.4Ghz
DDR4*2
1
1
1
1
2
8
1
6/2
12V/19V
2
ZC-ITX120U-L26-1265U
I7-1265U
2P/8E
1.8-4.8Ghz
DDR4*2
1
1
1
1
2
8
1
6/2
12V/19V
3
ZC-ITX120U-L26-1240P
I5-1240P
4P/8E
1.7-4.4Ghz
DDR4*2
1
1
1
1
2
8
1
6/2
12V/19V
4
ZC-ITX120U-L26-12450H
I5-12450H
4P/4E
2.0-4.4Ghz
DDR4*2
1
1
1
1
2
8
1
6/2
12V/19V
5
ZC-ITX120U-L26-1340P
I5-1340P
4P/8E
1.9-4.6Ghz
DDR4*2
1
1
1
1
2
8
1
6/2
12V/19V
6
ZC-ITX120U-L26-1335U
I5-1335U
2P/8E
1.3-4.6Ghz
DDR4*2
1
1
1
1
2
8
1
6/2
12V/19V
6
ZC-ITX120U-L26-1215U
I3-1215U
2P/4E
3.3-4.4Ghz
DDR4*2
1
1
1
1
2
8
1
6/2
12V/19V
