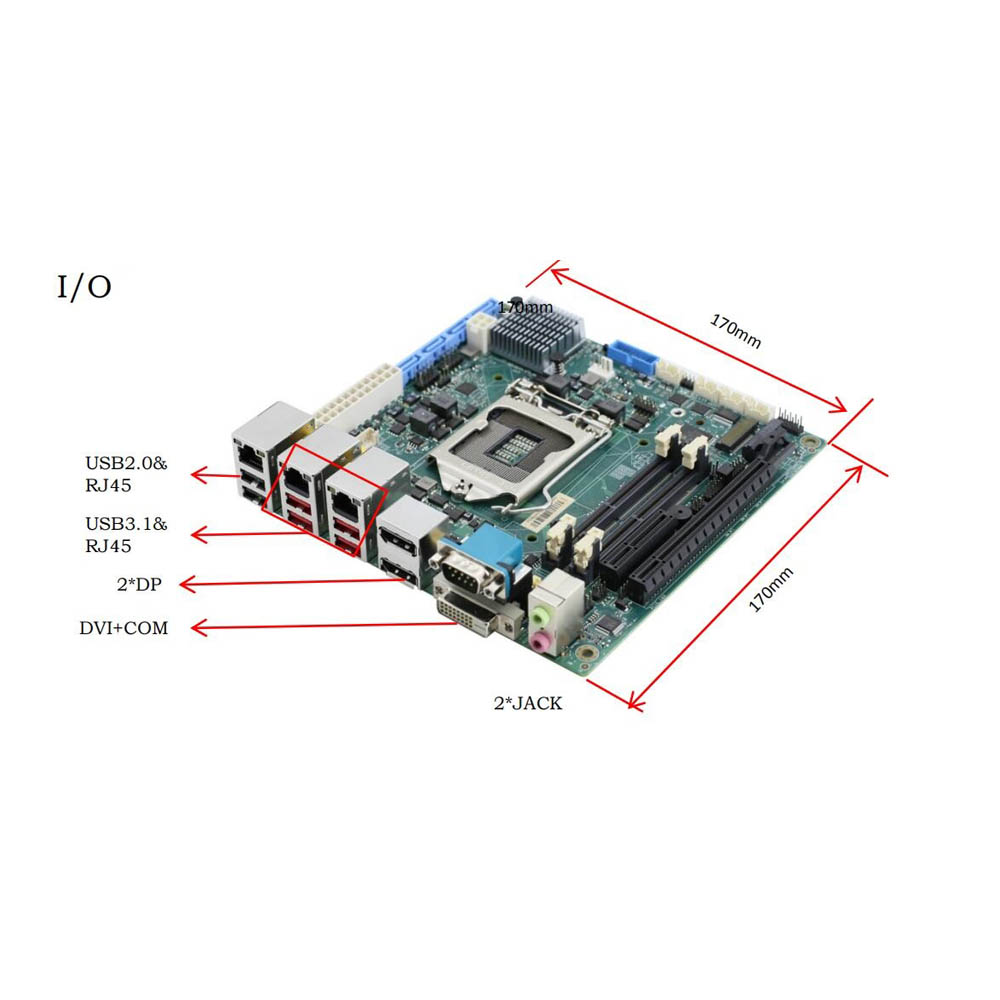

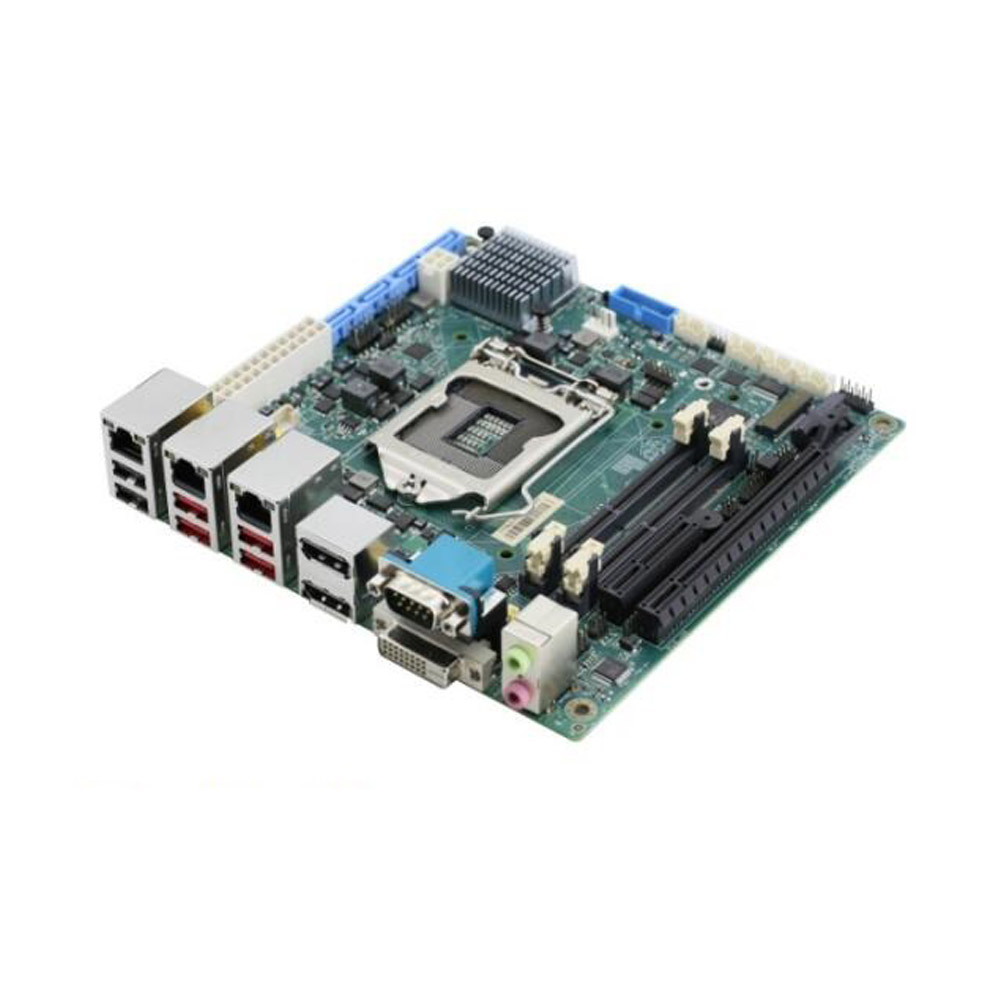

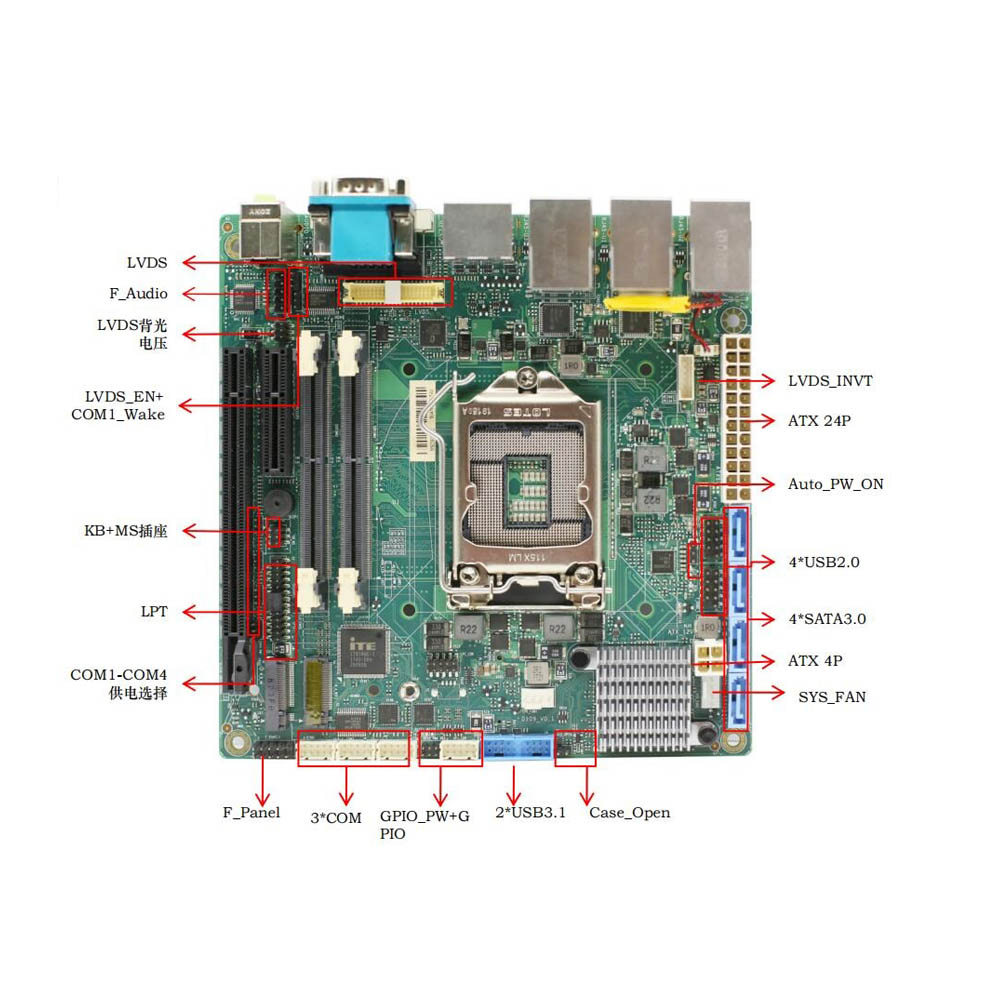

ZC-DK-Q370TL With Intel® Q370 Chip,Support Intel® 8th 9th Gen CPU,2*DP+DVI+LVDS 3*LAN,4*COM,1*PCIE 16X+1*PCIE 4X,1*M.2 2230 for WIFI/BL,1*M.2 2240 for 4G
Main Features:
1.)Intel Q370 Chip,Support 8th 9th Gen CPU
2.)Support DP+DVI+LVDS Display
3.)With SO-DIMM DDR4 2667MHz
4.)3*LAN,4*COM,1*LPT
5.)1*PCIE 16X,1*PCIE 4X,1*M.2 2230,1*M.2 2242
|
ZC-DK-Q370TL |
||
|
CPU |
CPU |
Intel® 8th 9th LGA1151 CPU |
|
Chip |
Intel® Q370 |
|
|
Memory |
Ty[e |
2x SO-DIMM DDR4 2667MHz |
|
Max |
32GB |
|
|
Display |
Graphics |
CPU Integrated |
|
Display Ports |
2x DP1.2,DP++ （Max. 3840 x 2160@60Hz） 1x DVI-D 1x LVDS |
|
|
Network |
Chip |
1x Intel I219,Gigabit 1x Intel I210AT,Gigabit |
|
USB |
I/O |
4x USB3.1 + 2x USB2.0 |
|
Inside |
2x USB3.1 + 4x USB2.0 |
|
|
Storage |
M.2 |
1x M.2 2280/42,Support PCIE SSD |
|
SATA |
4x SATA3.0 |
|
|
Audio |
Chip |
Realtel ALC662-VDO |
|
Ports |
Audio_out+Mic_in |
|
|
Serial Port |
COM |
Support 4x COM RS232 COM3,COM4 can be RS485/422(Setup in BIOS) |
|
Parallel |
LPT |
1x 25Pins LPT |
|
Expansion |
M.2 |
1x M.2 2230 for WIFI/BL 1x M.2 2240 for 4G 1x NANO SIM Slot |
|
PCIe 16X,4X |
1x PCIe 16X, 1x PCIe 4X |
|
|
Other Function |
GPIO |
8 Line GPIO |
|
TPM |
Onboard TPM2.0 |
|
|
Auto Start |
Setup by jumper |
|
|
Software |
Wake On LAN |
Support |
|
OS |
Windows8.1/10；Linux |
|
|
Power Supply |
Type |
ATX 24Pin |
|
Environment |
Operate Temp. |
-10 to 60℃ |
|
Storage Temp. |
-20 to 80℃ |
|
|
Size |
Size |
170 x 170MM |
|
Heat-dissipating |
heat-dissipating |
FAN |
