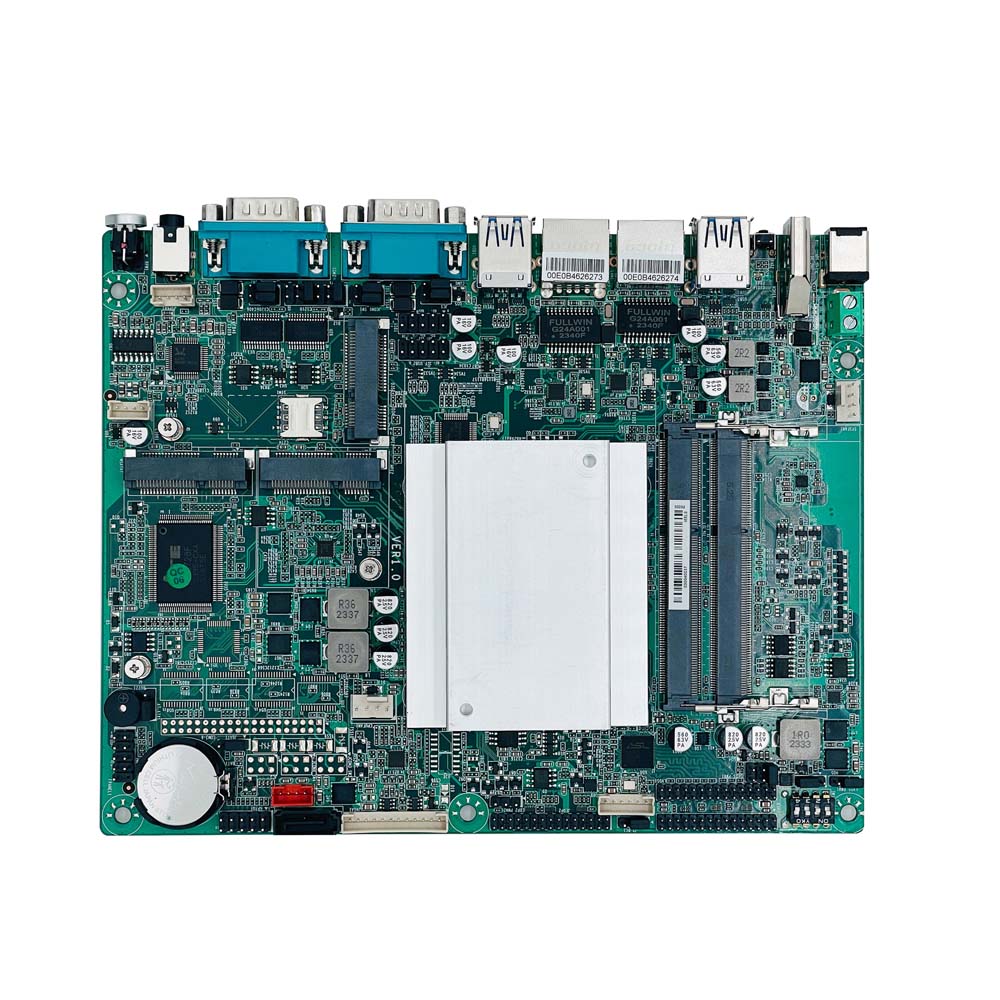

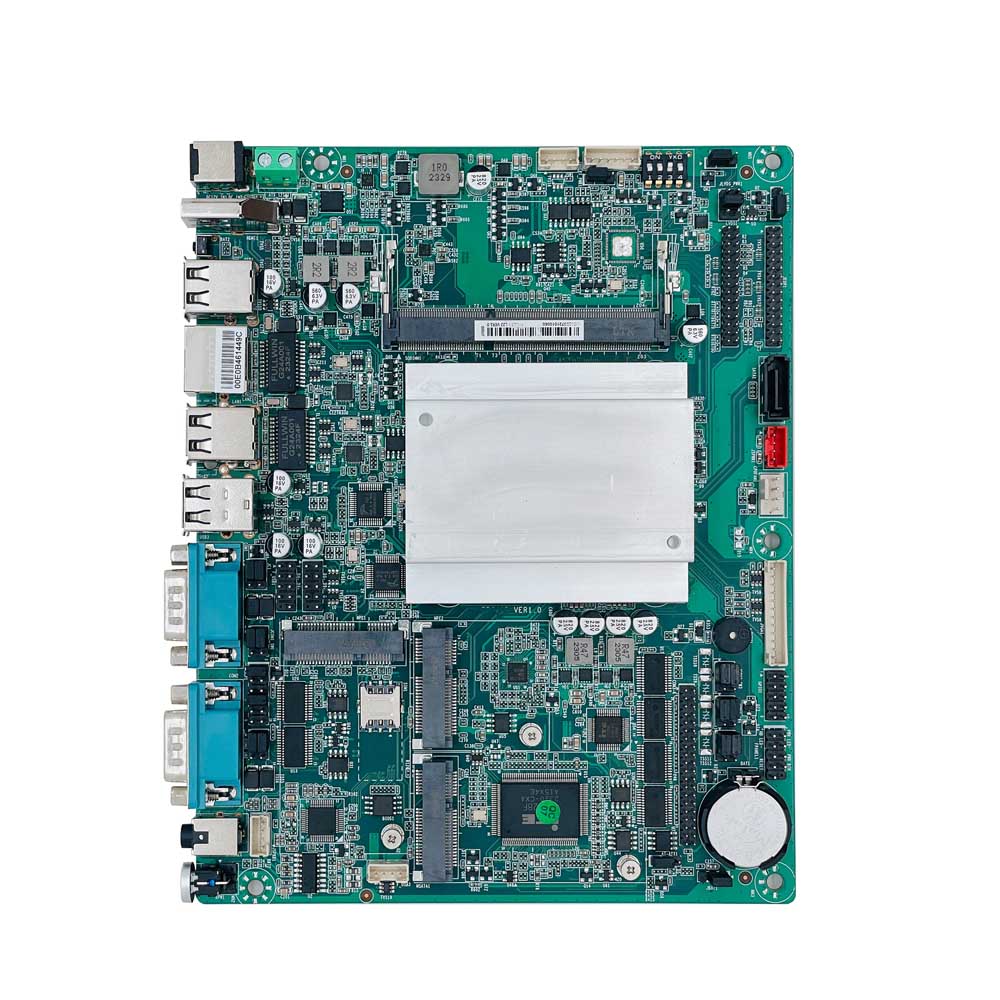

ZC-EPC54U Mini Motherboard Intel Haswell-U or Broadwell-U Core®I3/I5/I7 CPU,1*HDMI+1*VGA+1*LVDS+1*EDP Display,
2*Realtek RTL8111H,6*COM Ports,2*mPCIE,1*mSATA Slot
Main Features:
1.) Intel Haswell-U or Broadwell-U Core I3/I5/I7 CPU
2.) With 1*HDMI+1*VGA+1*LVDS+1*EDP,Double Display
3.) 2*SO DIMM DDR3 RAM SLots,Max 16GB
4.) 2*Realtek RTL8111H, Support Wake-on-LAN/PXE
5.) Rich Serial Ports,6*RS232, Support 4*RS485
6.) Support 2*mPCIE,1*mSATA Slots
7.) Enough USB Ports total 4*USB3.0+5*USB 2.0
8.) Support Win7,Win10,Linux OS
|
CPU |
Intel Core i3-4030U Dual Core 1.9GHz |
|
Intel Core i3-5005U Dual Core 2.0GHz |
|
|
Intel Core i5-4300U Dual Core 1.9GHz |
|
|
Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U Optional |
|
|
RAM |
2* SO-DIMM 1600/1333MHz DDR3L/1.35V,Max 16GB |
|
Display |
Intel Graphics |
|
1* VGA 1*12Pin,1*HDMI,1*LVDS,1*EDP |
|
|
Support VGA/HDMI/LVDS/EDPSynchronous/asynchronous display |
|
|
LAN |
2* Realtek RTL8111H,Support Wake On LAN/PXE |
|
Storage |
1* SATA3.0 |
|
1* mSATA3.0 |
|
|
Audio |
ALC897 7.1 SUpport MIC/Line-out, power amplifier (2 ohm 5W dual channel) |
|
Expand |
1* Mini-PCIe(Half size,support WIFI/BL) |
|
1* Mini-PCIe(Full size,support WIFI/4G) |
|
|

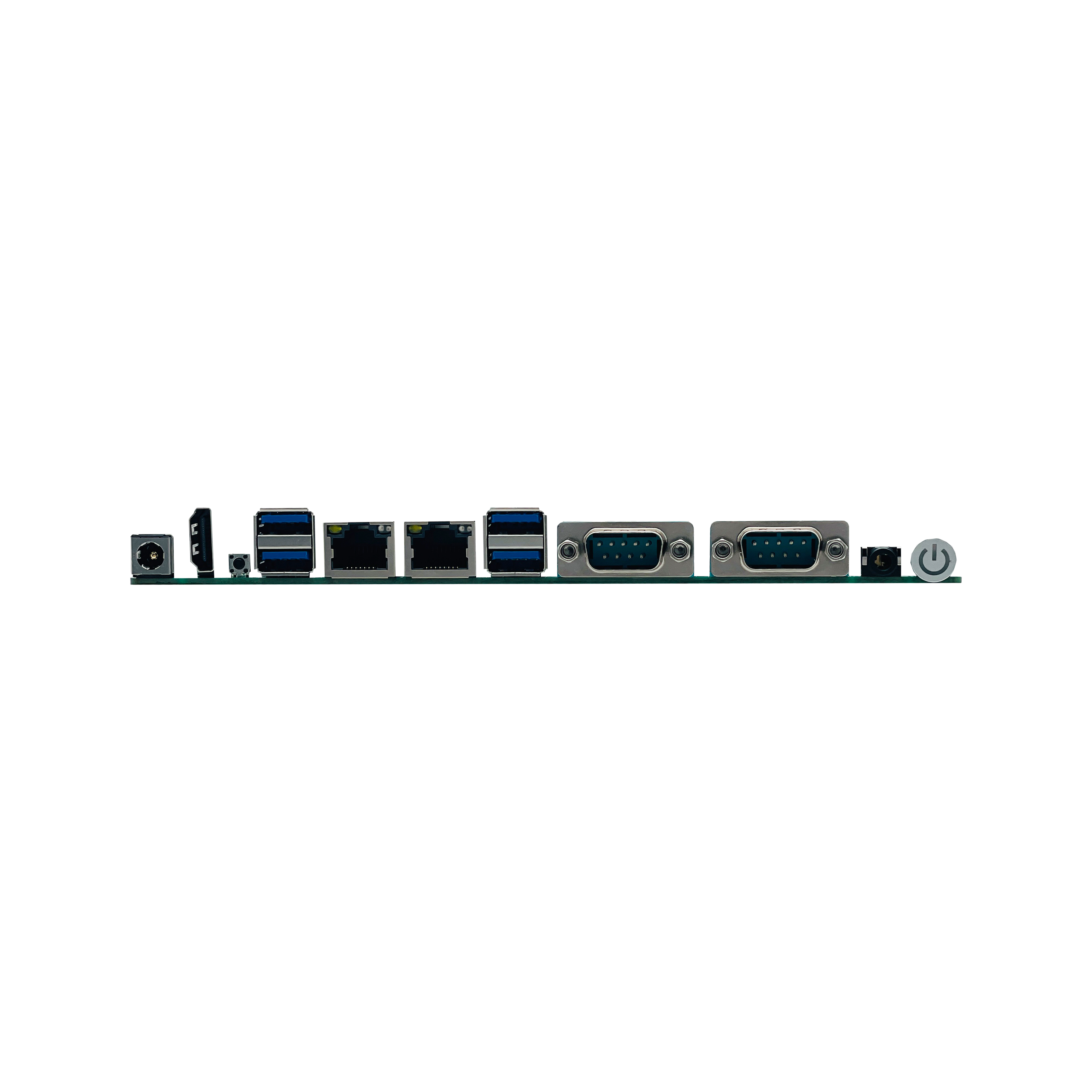

RearI/O |
1* HDMI |
|
1*COMS |
|
|
1*Power Button and LED |
|
|
4* USB3.0 |
|
|
2* RJ-45 |
|
|
1* 3.5mm,Support Line out, MIC |
|
|
2 *DB9 RS232(Can setup 2*RS485 by jumper;The 9th Pin can be jumpered to support live charging） |
|
|
1* 12V DC |
|
|
Inside I/O |
1* EDP 2*15Pin |
|
1* JVGA 1*12Pin |
|
|
1* LVDS 2*15pin,Support dual channel 24bit |
|
|
1* Screen backlight power supply interface 1*6pin |
|
|
4* USB2.0 2*5Pin |
|
|
1* USB2.0 1*4Pin |
|
|
1*power amplifier 1*4pin |
|
|
4* RS232 2*20Pin(COM3~4 Can Support RS485) |
|
|
1* SATA Power |
|
|
1* 2*2pin ATX |
|
|
1*Frount Panel Power On/off,LED2*5Pin |
|
|
Fan |
1*4pin CPU Fan,1*4pin System Fan |
|
GPIO |
Support 4 input and output GPIO |
|
BIOS |
64Mb Flash ROM |
|
Watchdog |
Support hardware reset function (level 256, 0~255 seconds) |
|
OS |
Windows 7/Windows 10/Linux |
|
Power |
DC12V |
|
Operating Temp |
60℃～-20℃ |
|
Storage Temp |
-30℃～70℃ |
|
Operating Humidity |
5%-95% Relative humidity,non-condensing |
|
Size |
190mm x 150mm |
