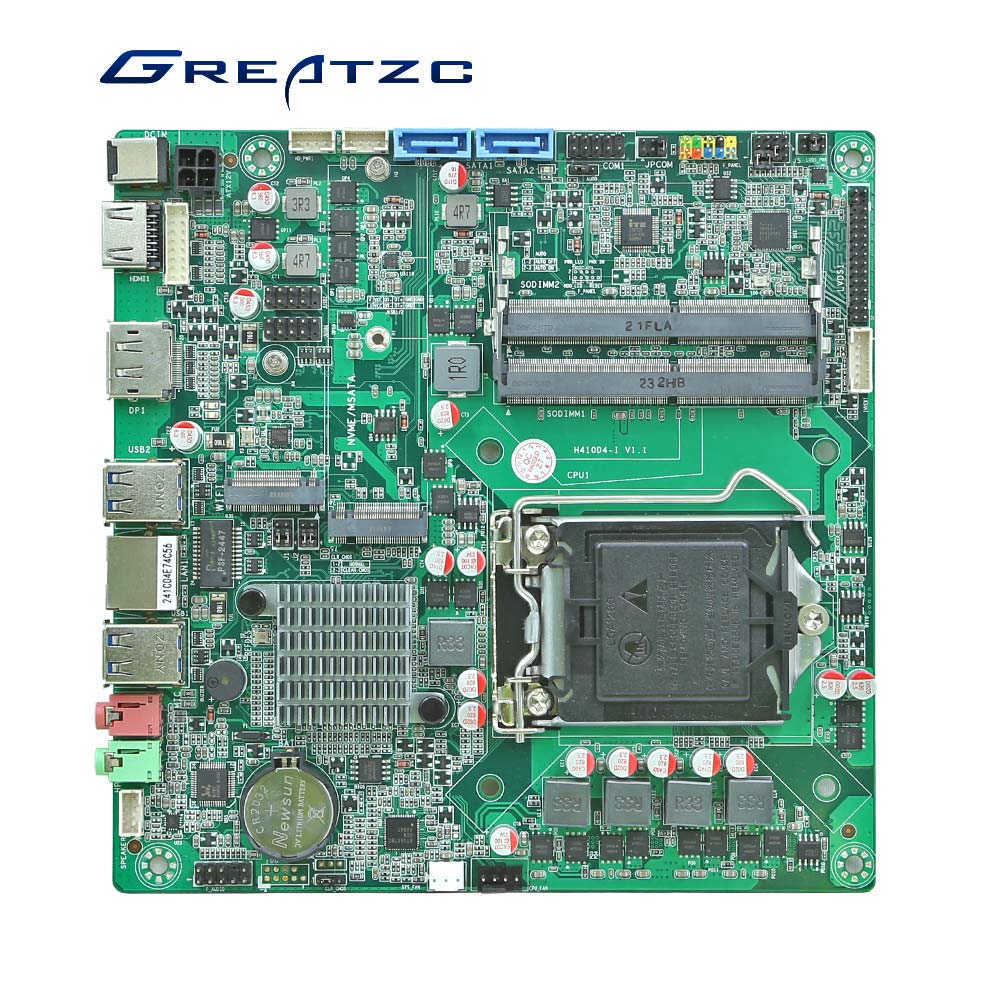

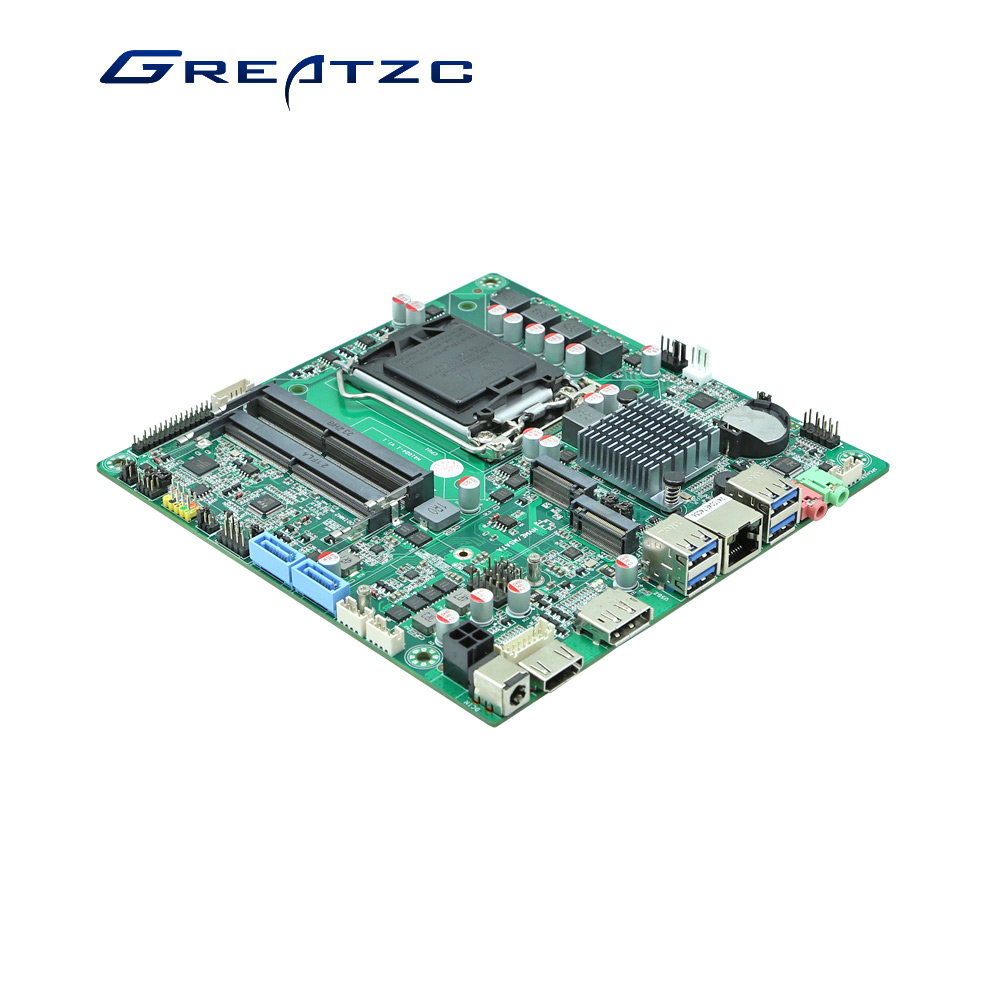

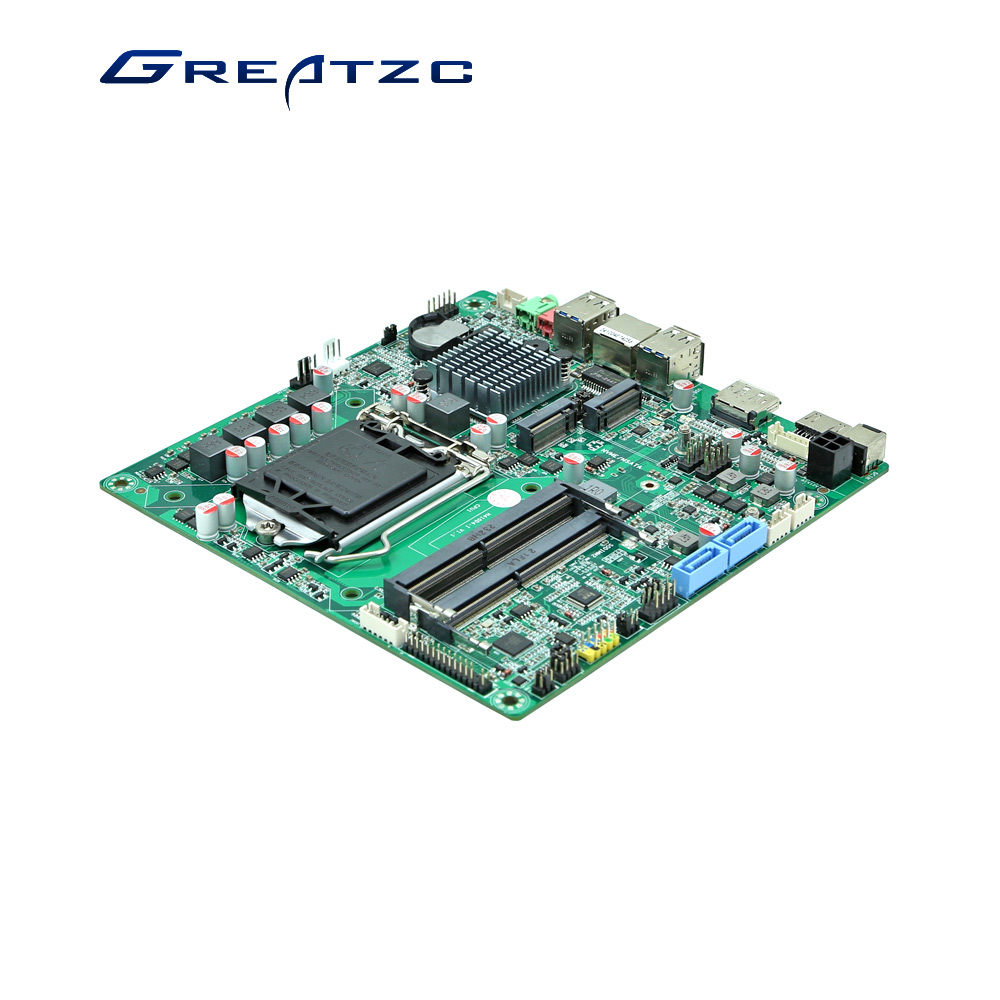

ZC-ITX-H410 Mini Itx Motherboard Intel H410 Chipset With Intel Socket LGA1200,Support 10th Gen Comet Lake
Intel Celeron/Pentium/Core i3/i5/i7/i9 CPU,2*SO DIMM DDR4 Slot,2*SATA+1*M.2 Storage,1*HDMI+1*VGA+LVDS,
4*USB 3.0+4*USB 2.0,2*SO DDR4 Slots,1*RJ45,1*RS232,DC 12V-19V Power Supply
Main Features:
1.) H410 Chipset Socket LGA1200 Support Intel 10th Gen Comet Lake Celeron/Pentium/Core i3/i5/i7/i9 CPU
2.) Rich Memory 2*SO DIMM DDR4 2933MHz,Max128GB
3.) Support Double Display 1*HDMI+1*VGA+LVDS
4.) Rich Storage 2*SATA 3.0+1*M.2 SSD
5.) Mini Itx form factor,DC12V-19V Power
CPU |
Socket LGA1200 Support Intel 10th Gen Comet Lake Celeron/Pentium/Core i3/i5/i7/i9 CPU |
Chipset |
Intel H410 |
Memory |
2*SO DIMM DDR4 2933MHz,Max128GB |
Display |
Intel UHD Graphics Support 4K |
1*VGA |
|
1*HDMI |
|
1*LVDS |
|
Network Card |
1*Realtek RTL8111H Gigabit |
Support Wake On LAN,PXE |
|
Audio Card |
Onboard ALC892 7.1+2 channel high-fidelity audio controller |
Supports MIC/Line-out, amplifier. The amplifier supports 2Ω/3W stereo. |
|
Storage |
2*SATA3.0 |
1*M.2 2260/2280 SATA standard SSD |
|
Expansion |
1*M.2 2230 for WIFI |
Rear I/O |
4*USB3.0 |
1*HDMI |
|
1*VGA |
|
1*Line Out,1*MIC |
|
1*RJ-45 |
|
DC Port |
|
Inside I/O |
1*Front Audio,2*5Pins |
1*Front Panel for Power/LED,2*5Pins |
|
1*GPIO Support 4 input and output GPIO |
|
1*4pin CPU fan interface, 1*3pin system fan interface |
|
1*JVGA interface 1*12Pin (same signal as DB15) |
|
1*LVDS interface 2*15pin, support dual channel 24bit |
|
1*Screen backlight power supply interface 1*6pin |
|
1*screen brightness adjustment interface1*4pin |
|
4*USB2.0 interface 2*5Pin |
|
1*Amplifier interface 1*4pin |
|
1*RS232 COM |
|
1*4pin ATX power connector |
|
2*SATA power supply interface |
|
Power Supply |
DC12V~19V |
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
GPIO |
Support 4 input and output GPIO |
OS |
Windows 10/Linux |
Working Temp |
-10℃~60℃ |
Storage Temp |
-20℃~70℃ |
Working humidity |
5%-95% Relative humidity, non-condensing |
Size |
170mm x 170mm |
