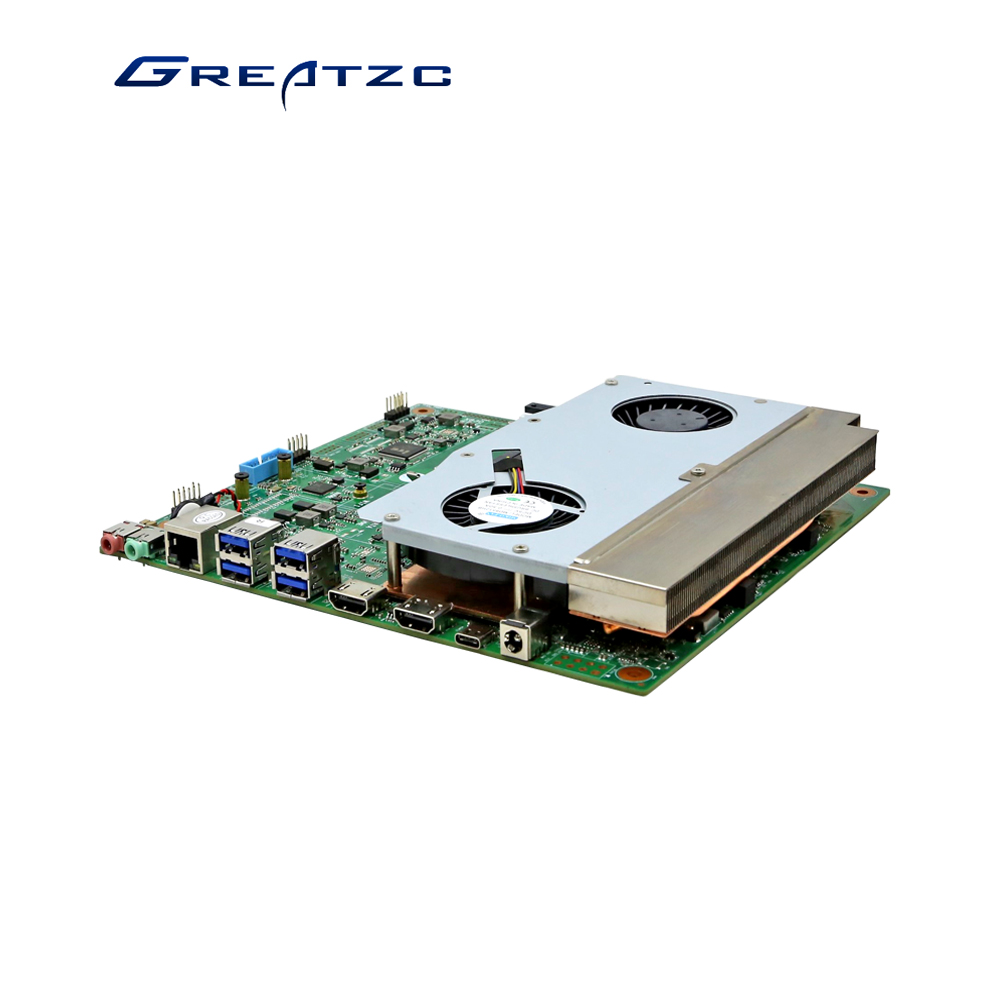

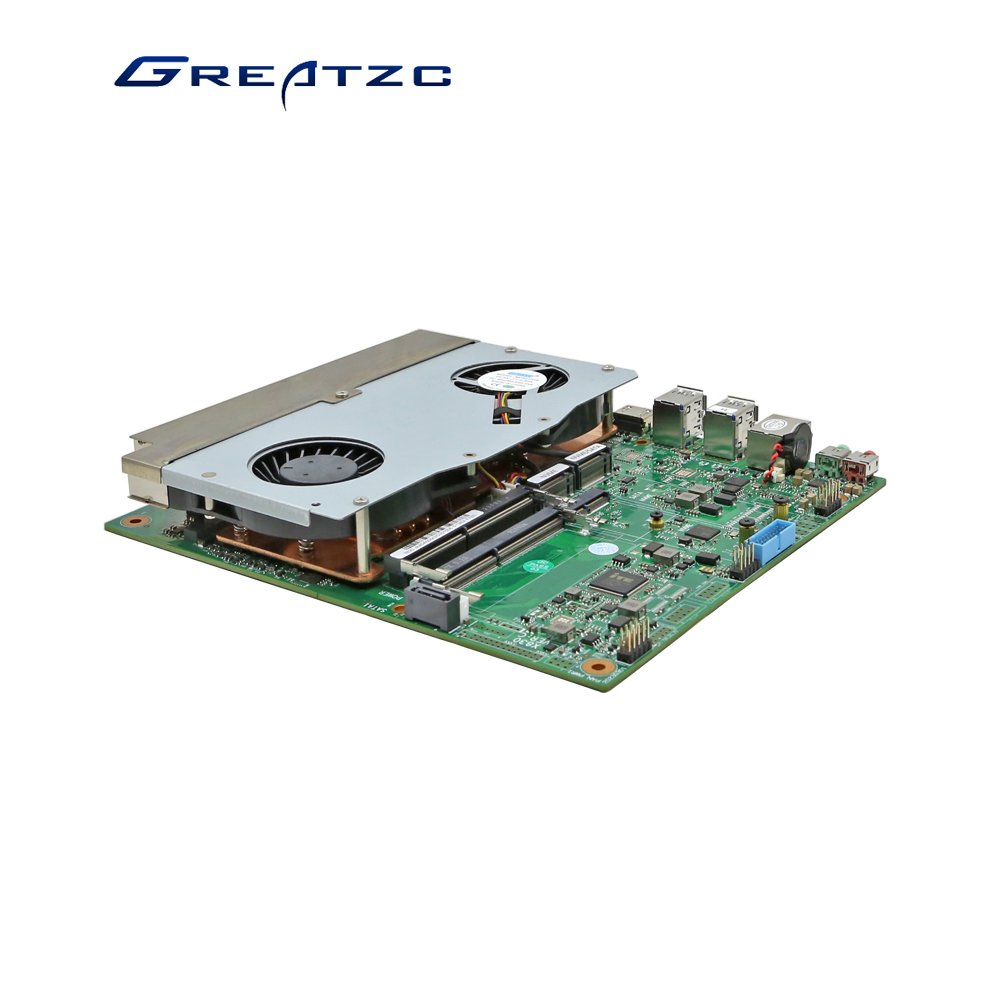

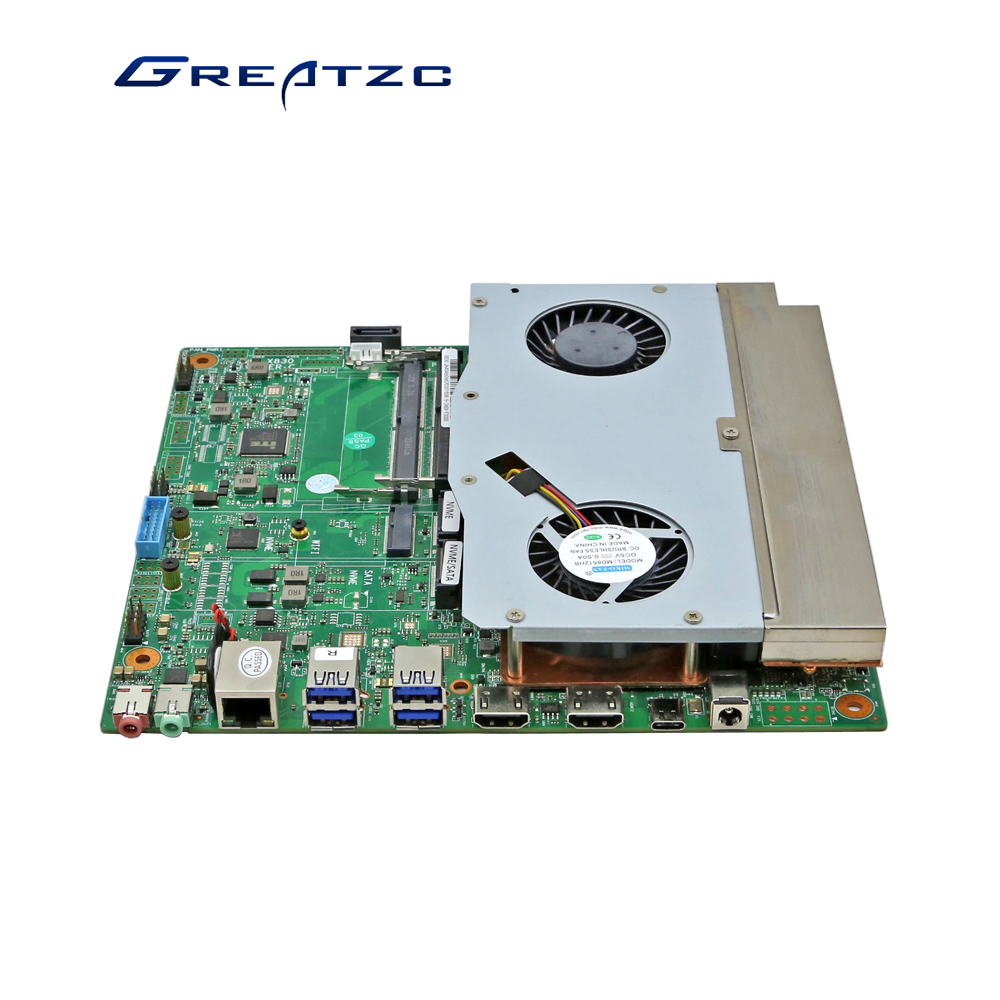

ZC-RTX3050 Industrial Grade Motherboard Onboard Nvidia RTX3050/RTX3050TI Discrete Graphics chip, GDDR6 4GB video memory
Intel 12th Gen Alder Lake-H 45W series CPU I3 I5 I7 I9 optional,1 or 2*LAN,2*HDMI 2.0+1*LVDS/EDP,1*Type C,1*HDMI Header,
Support 4 Display
Main Features:
1.) Onboard Nvidia RTX3050/RTX3050TI Discrete Graphics chip, GDDR6 4GB video memory
2.) Intel 12th Gen Alder Lake-H 45W series CPU, I3, I5, I7, I9 optional
3.) Dual channel SO-DIMM DDR4 2400/2666/3200MHz,up to 64GB
4.) Support 2*M.2 NVME high-speed SSD,1*SATA 3.0
5.) 2*HDMI 2.0 Ports,1*LVDS/EDP,1*Type C,1*HDMI Header,Support 4 Display
6.) With 1 or 2*Intel i226-V 2.5G Network Card

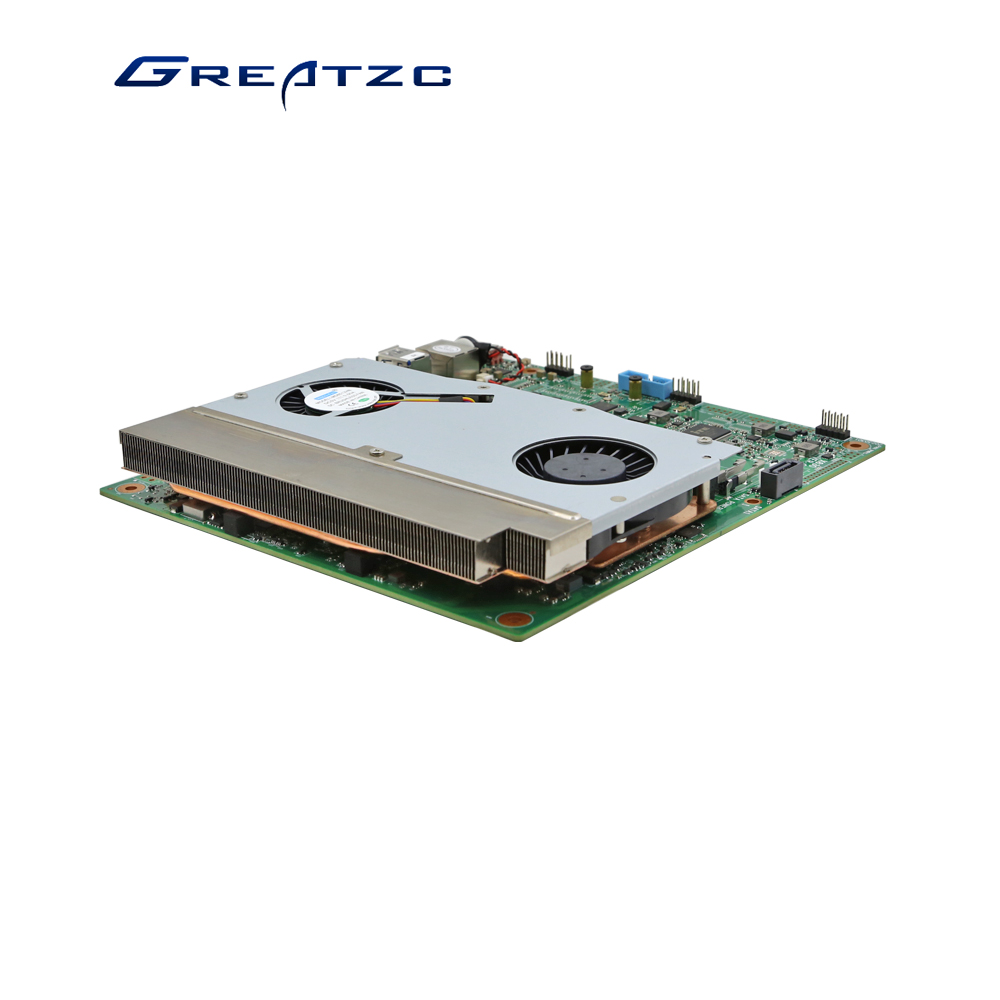

7.) High-performance heat pipe radiator, good heat dissipation effect
8.) Support wake-up on LAN, watchdog, GPIO, PXE diskless boot
ZC-RTX3050 Datesheet
|
CPU |
I5-12500H (12 Cores,3.3GHz Turbo to be 4.5GHz) |
|
I7-12700H (14 Cores,3.5GHz Turbo to be 4.7GHz) |
|
|
I9-12900H (14 Cores,3.8GHz Turbo to be 5GHz) |
|
|
Graphics |
Intel® Iris® Xe Graphics eligible(Integrated on CPU) |
|
Nvidia RTX3050/RTX3050TI VRAM GDDR6 4G Discrete Graphics Card |
|
|
Memory |
|
|
Storage |
2*M.2 2280 NVME |
|
1*SATA 3.0 |
|
|
Network Card |
1 or 2 * Intel i226-V 2.5G |
|
Expand |
1×M.2 2230 |
|
Audio |
Onboard HD audio chip ALC1200 |
|
BIOS |
AMI EFI BIOS Support GPIO,Watchdog,PXW |
|
Display |
2*HDMI2.0, Support 4K@60Hz |
|
1×Type-C(DP+USB) |
|
|
Rear I/O |
1* DC IN(5.5*2.5mm) 1* TYPE-C 2* HDMI2.0 2* USB3.0 1*RJ45 1* RJ45(Optional) 1*SPK 1*MIC |
|
Inside I/O |
1×EDP I-PEX 30 Pin(reserved) 1×HDMI2.0 I-PEX 30 Pin 1×30Pin LVDS (30Pin 2.0mm） 1×6Pin Inverte 1×SATA3.0 1×SATA Power(4PIN) 2×RS232(RS485/RS422 Optional) 1×F_Audio 1×Speaker 2*8Ω1W 2*USB2.0 2*USB3.0 |
|
Power Supply |
DC19V |
|
Size |
210mm(L) X 190mm(W),Height 28mm |
|
OS |
Windows 10/11 / Linux |
|
Working Temp |
-10℃ to 60℃ |
|
Storage Temp |
-20℃～70℃ |
|
Working Humidity |
5%-95% relative humidity, no condensation |
|
Ordering Info |
ZC-RTX3050-12500 Onboard I5-12500H CPU |
|
ZC-RTX3050-12700 Onboard I7-12700H CPU |
|
|
ZC-RTX3050-12900 Onboard I9-12900H CPU |
