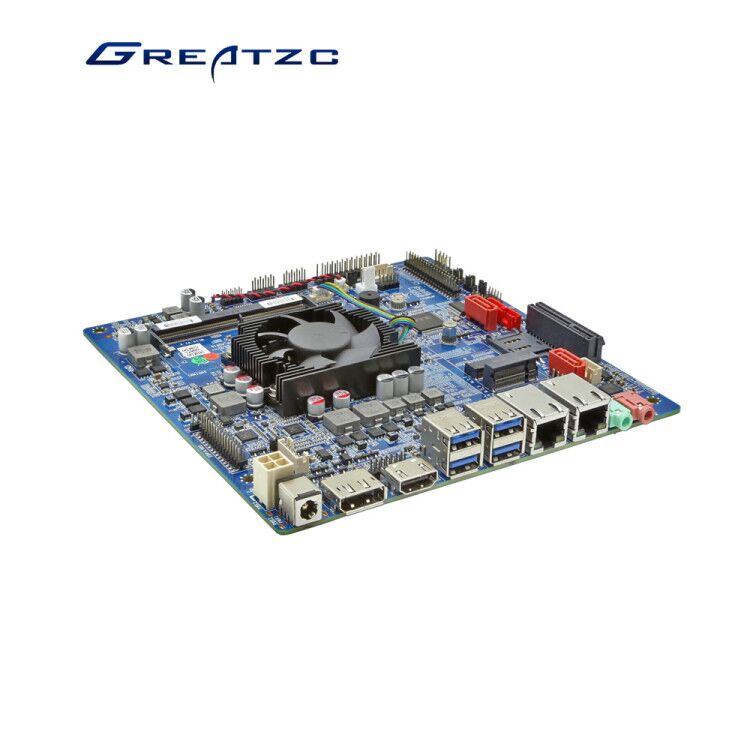

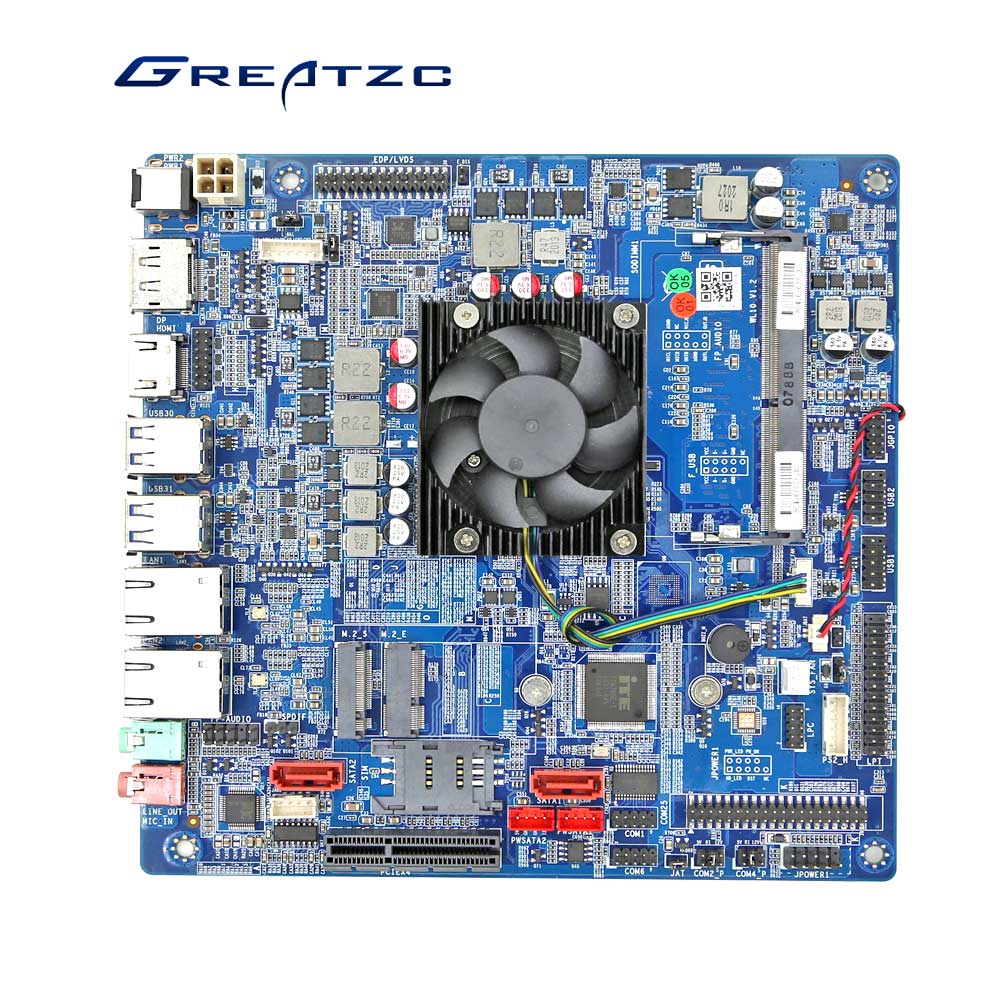

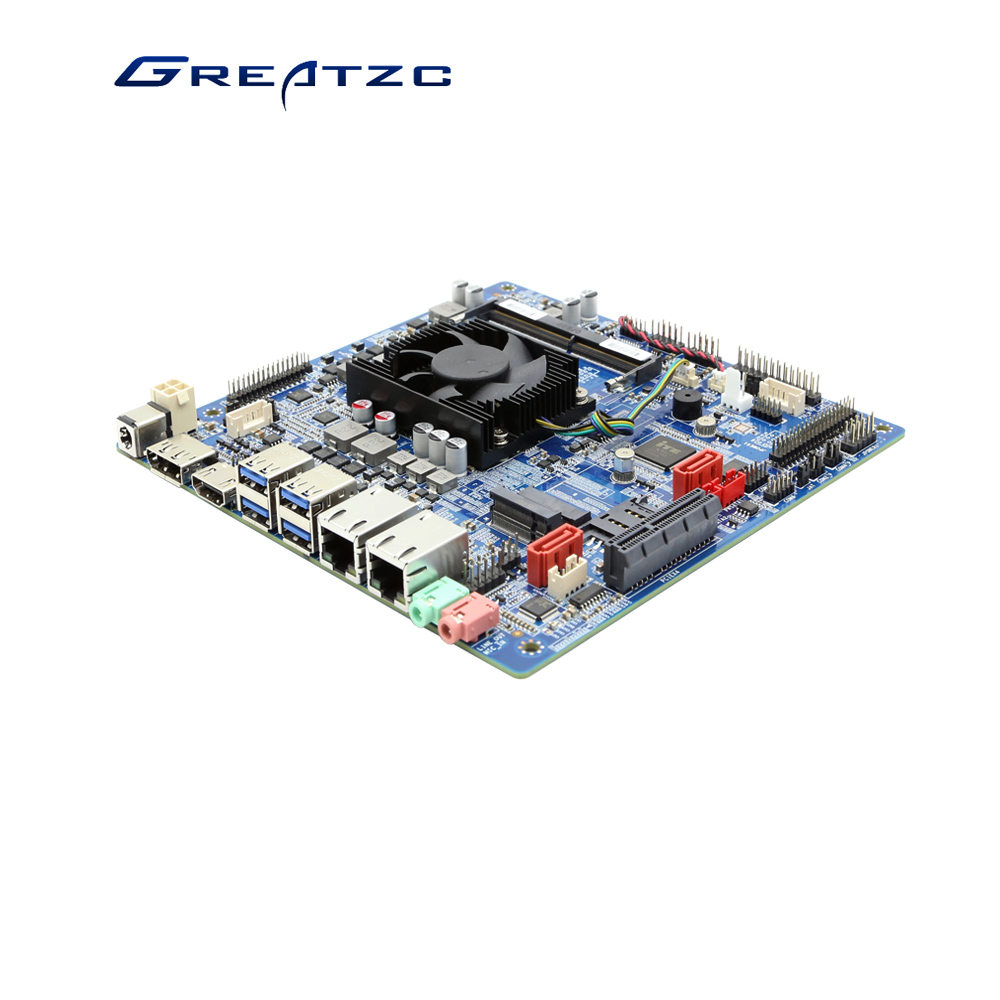

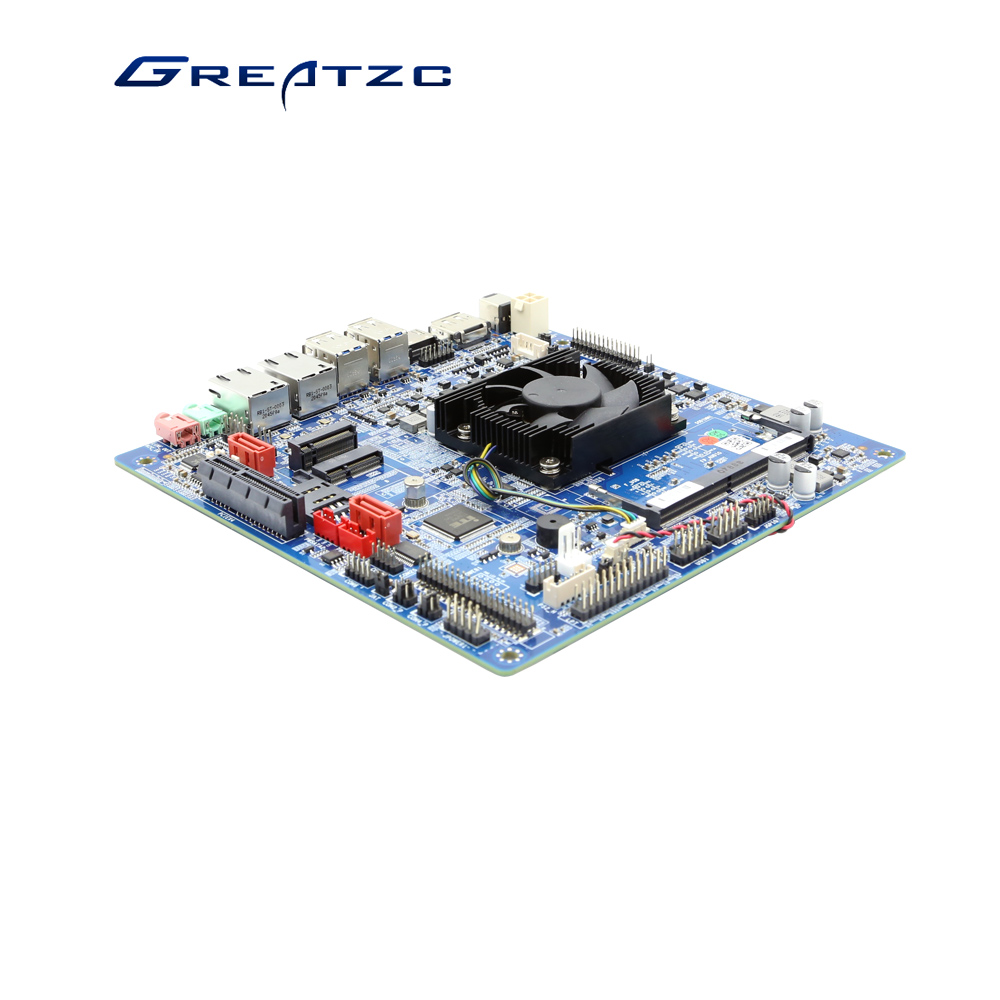

ZC-MI-8145DL Mini ITX Motherboard Onboard 8th Gen Whiskey Lake-U CPU Celeron 4205U/I3-8145U/I5-8265U/I7-8565U 2*DDR4 Memory Slots,1*DP+1*HDMI+1*LVDS,2*Gigabit LAN,5*RS232+1*RS485,1*LPT,1*GPIO,2*M.2 ,1*PCIE X4
This board features multiple display via 1xDisplay Port 1.2 and 1xHDMI 1.4 and 1xeDP or 1xLVDS. It carries 2xDDR4 SO-DIMM 2400MHz slots up to 32GB to add higher bandwidth and lower latencies for processes. It has 2x10M/100M/1000M BASE-T Gigabit LAN (Intel i211),3xUSB3.0,5xUSB2.0,5xRS232,1xRS485,1x LPT,1xJHDMI,1xPS2_H,1xGPIO.
Main Features:
1.) Intel Whiskey Lake-U processor
2.) 2*DDR4 Memory Slots,Max 32GB
3.) Multiple display: HDMI, DP, eDP/LVDS
4.) 2*Gigabit Ethernet
5.) 5*RS232+1*RS485
6.) 1*LPT,1*GPIO,PCIE X4 Slots
ZC-MI-8145DL Mini ITX Motherboard Specification
|
Processor |
Celeron 4205u,2 Cores 1.8GHz |
|
i3-8145u,2 Cores 2.1GHz~3.9GHz |
|
|
i5-8265u,4 Cores 1.6GHz~3.9GHz |
|
|
i7-8565u,4 Cores 1.8GHz~4.6GHz |
|
|
Chipset |
Soc |
|
Memory |
2*DDR4 DIMM 2400MHz,Max 32GB |
|
Graphics |
Intel UHD Graphics for 8th Generation Intel Processors |
|
Display |
1*DP 1.2 1*HDMI 1.4 1*LVDS or eDP |
|
Storage |
2*SATA 3.0 (only 1 if Celeron onboard) 1*M.2 for 4G/2280 SSD |
|
Audio |
Realtek HD ALC662,Supports MIC in /Line-out,Loudspeakers |
|
Network Card |
2*Intel I211 Gigabit,Support Wake-on-LAN/PXE |
|
Wireless |
1*M.2 for WIFI |
|
Extension |
1*PCIE X4 |
|
Rear Panel I/O |
2*USB 2.0 3*USB 3.0
1*HDMI 1*DC Jack 2*RJ45 1*Audio In 1*Line Out |
|
Internal I/O Header |
4*USB 2.0 5*RS232 1*RS485 1*Front Audio 1*Speaker 1*SPDIF 1*Front panel and light 1*LPT 1*GPIO 1*4pins Power Header 1*4pins CPU Fan Header 1*3pins System Fan Header |
|
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
Power Supply |
DC 12V |
|
Operating Temp |
-20℃～60℃ |
|
Storage Temp |
-40℃～80℃ |
|
Operating Humidity |
5%-95% Relative humidity,non-condensing |
|
Dimensions |
Thin Mini ITX ,170mm*170mm |
