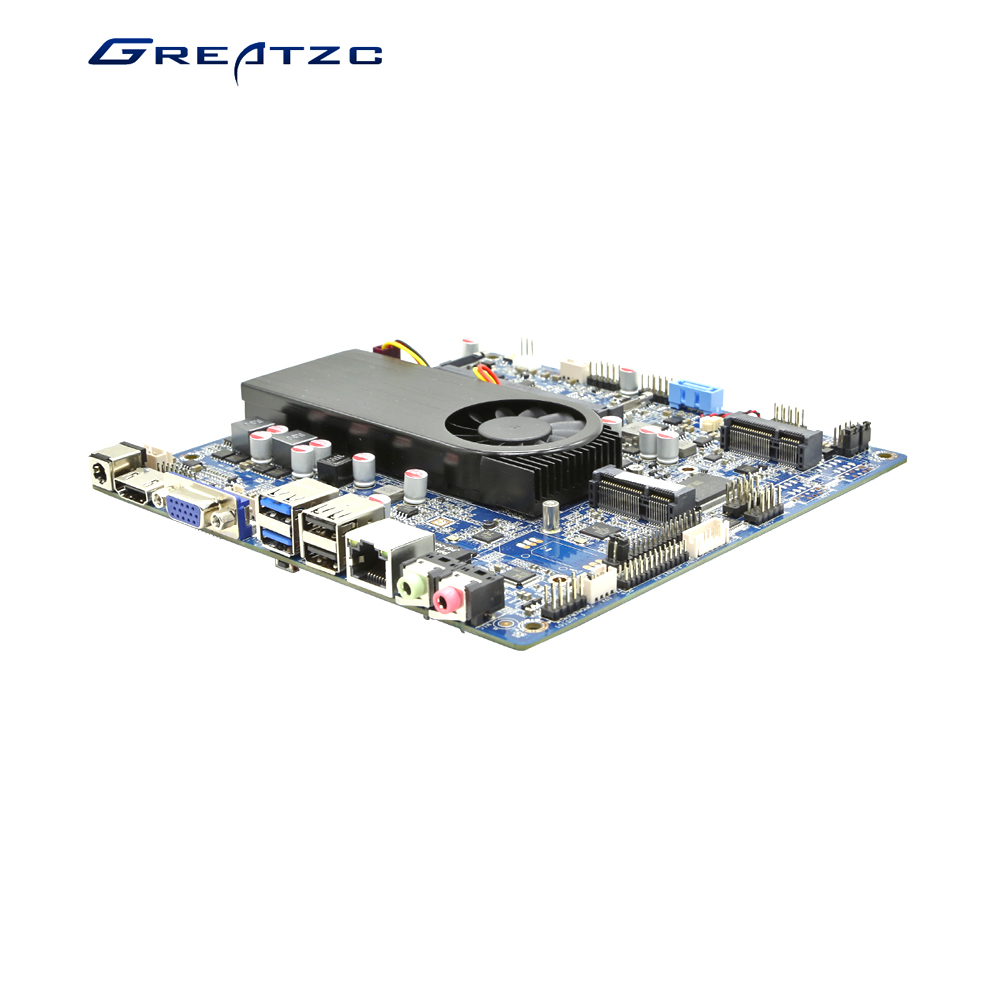

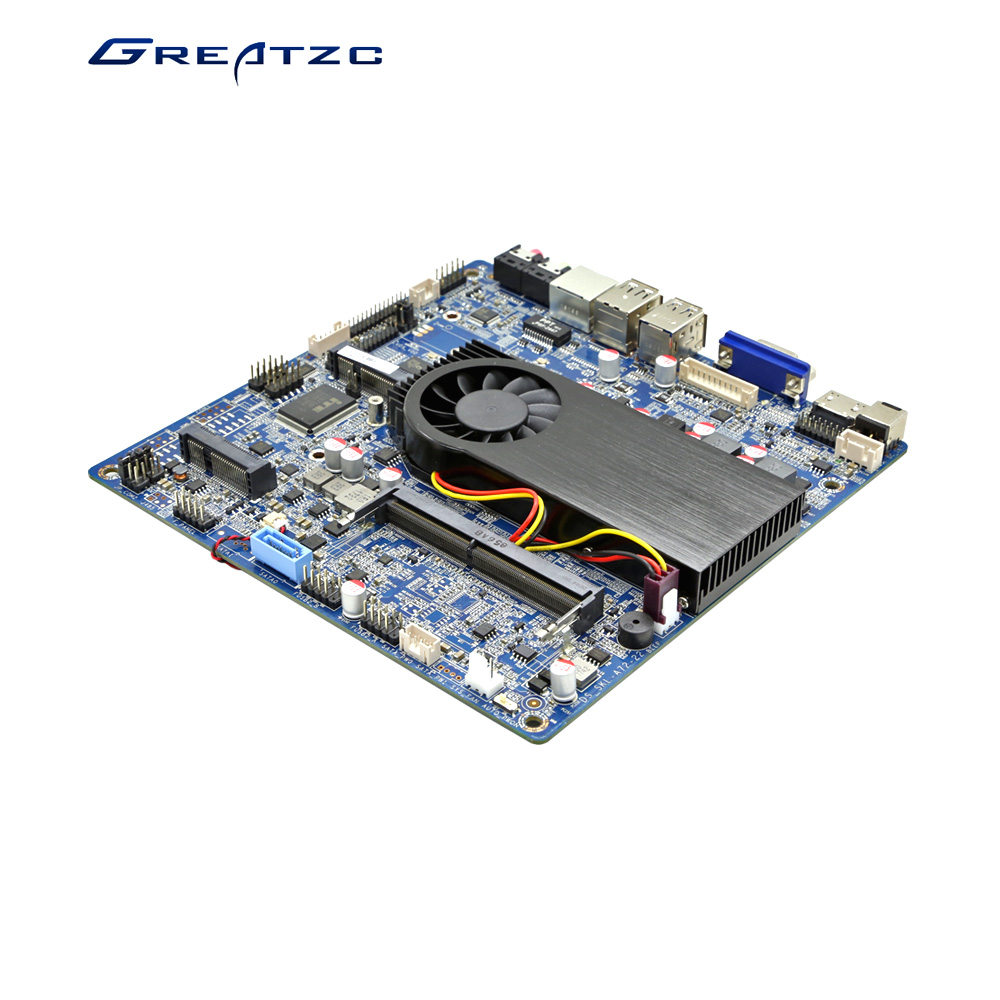

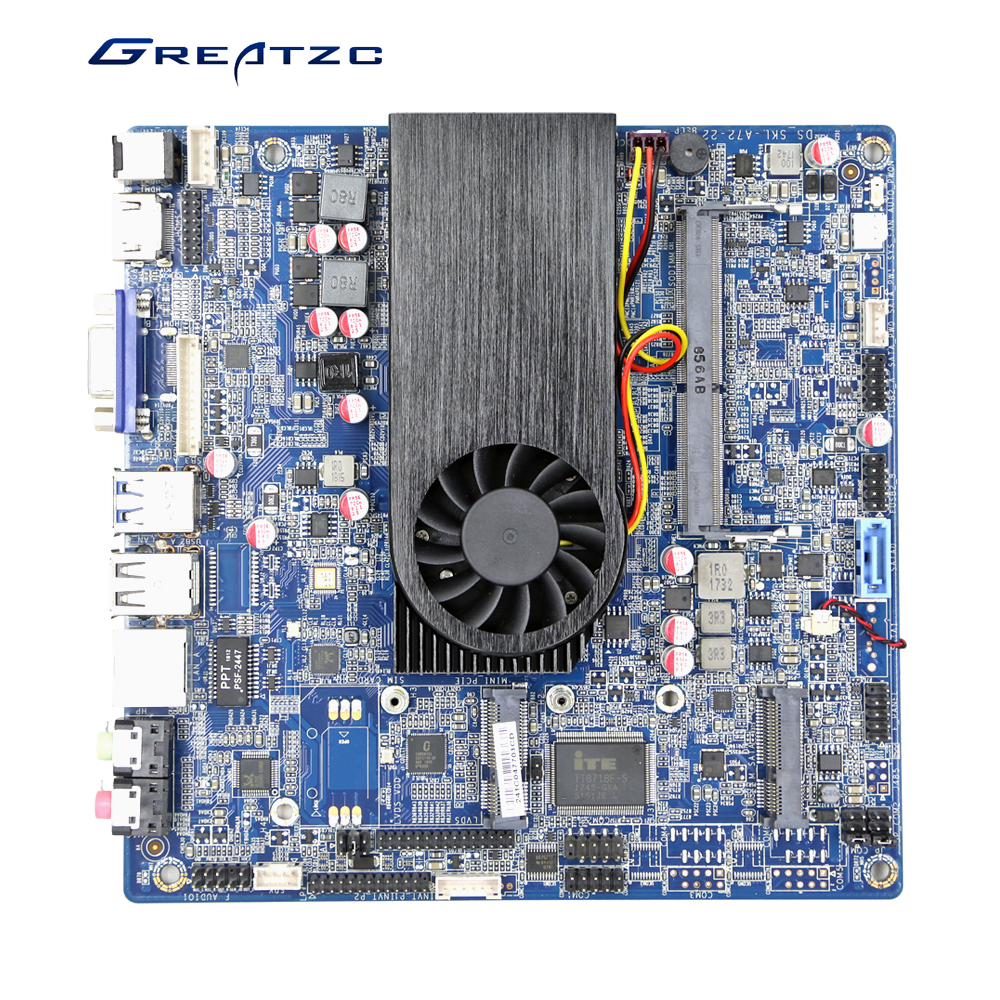

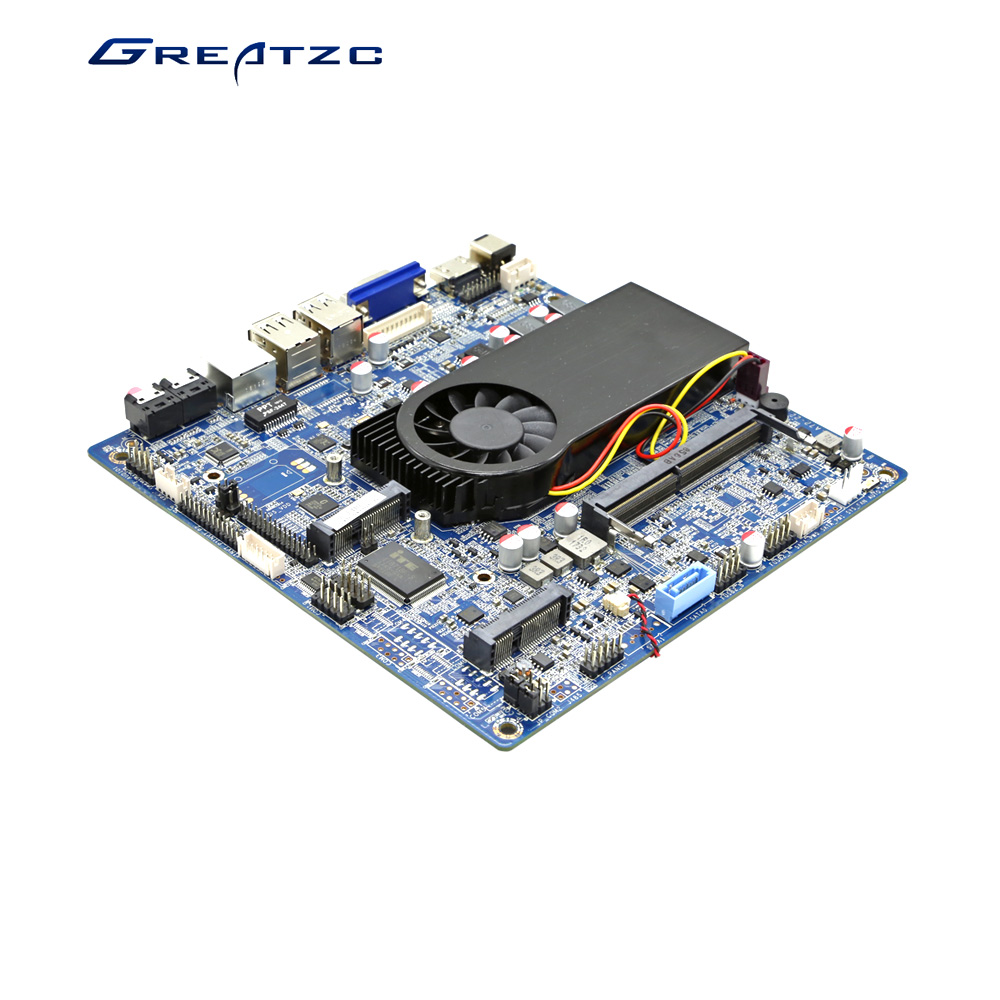

ZC-T3855SL DC12V Industrial Mini ITX Motherboard With 3855U CPU,2 COM Ports

Category:Mini Itx Motherboard

Description:ZC-T3855SL Mini ITX Motherboard With Intel Skylake Celeron 3855U CPU, Dual Core 1.6GHz,INTEL HD510,Support 4K.With 2*HDMI,LVDS, 1*RJ-45 LAN,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,DC 12V-19V, Support Total 8*USB

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-T3855SL Mini ITX Motherboard With Intel Skylake Celeron 3855U CPU,

Dual Core 1.6GHz,INTEL HD510,Support 4K.With 2*HDMI,LVDS,

1*RJ-45 LAN,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,DC 12V-19V,

Support Total 8*USB



Main Features:

1. Onboard Processor Intel Skylake Celeron 3855U CPU,TDP 15W

2. INTEL HD510 Graphics,Support 4K

3. With MINI SATA,MINI PCIE,Support SSD,WIFI

4. With 2*HDMI,LVDS,Support Double Display

5. DC 12V-19V Power Supply, Can be Used to More Cases

6. MINI ITX Motherboard (17*17),Suitable for Majority Cases


ZC-T3855SL Motherboard Specification

CPU

INTEL 6th Skylake Celeron 3855U

Dual Core 2 Thread 1.6GHz

2MB SmartCache

TDP only 15W

RAM

1*SO-DIMM DDR4, MAX 16GB

Graphics Card

INTEL HD510

Support 4K

SATA

1*SATA Slot

Audio card

Realtek ALC662

Network Card

1*Realtek 8111F

1000Mbp/s Network Card

Display

2*HDMI

1*LVDS

LVDS

1*Double Channel 8Bit/24Bit LVDS

Expansion Slot

1*MINI SATA

1*MINI PCI-E

 Rear Panel I/O

2*USB 3.0

2*USB 2.0

1*RJ-45

2*HDMI

1*DC Jack

1*Speaker

1*MIC IN

 Internal I/O

1*F-USB(Support 2*USB 2.0 Ports)

1*F-USB(Support 2*USB 2.0 Ports)

1*F-PANEL1(9PINS)

1*F-AUDIO(9PINS)
2*COM PINS(9PINS)

1*SATA 3.0 Slots

1*SYS-FAN1 PWR(3PINS)

1*CPU FAN PWR(3PINS)

1*30PINS LVDS

1*LVDS Backlight(6PINS)

1*DC ATX(4PINS)

1*MINI SATA

1*MINI PCI-E

Power Supply

12V-19V DC-In

4PIN DC-ATX

Size

MINI ITX(17*17)
