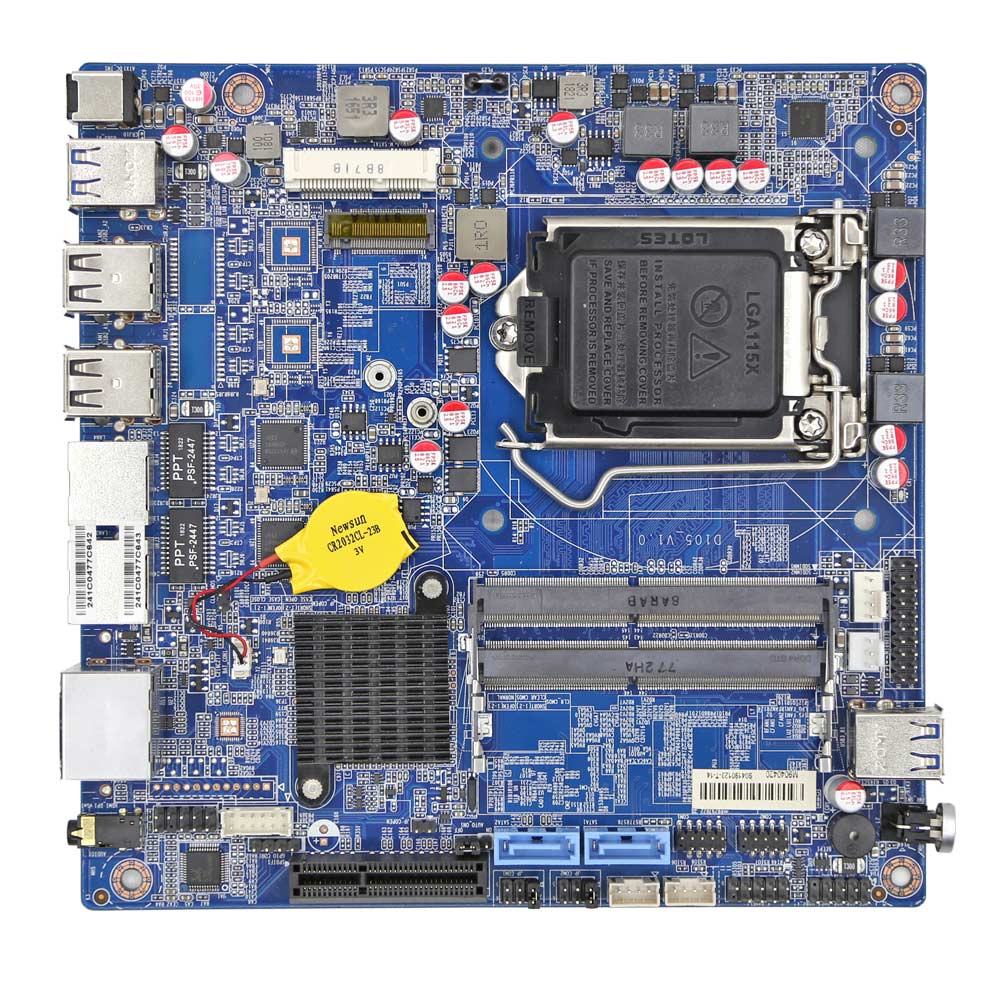

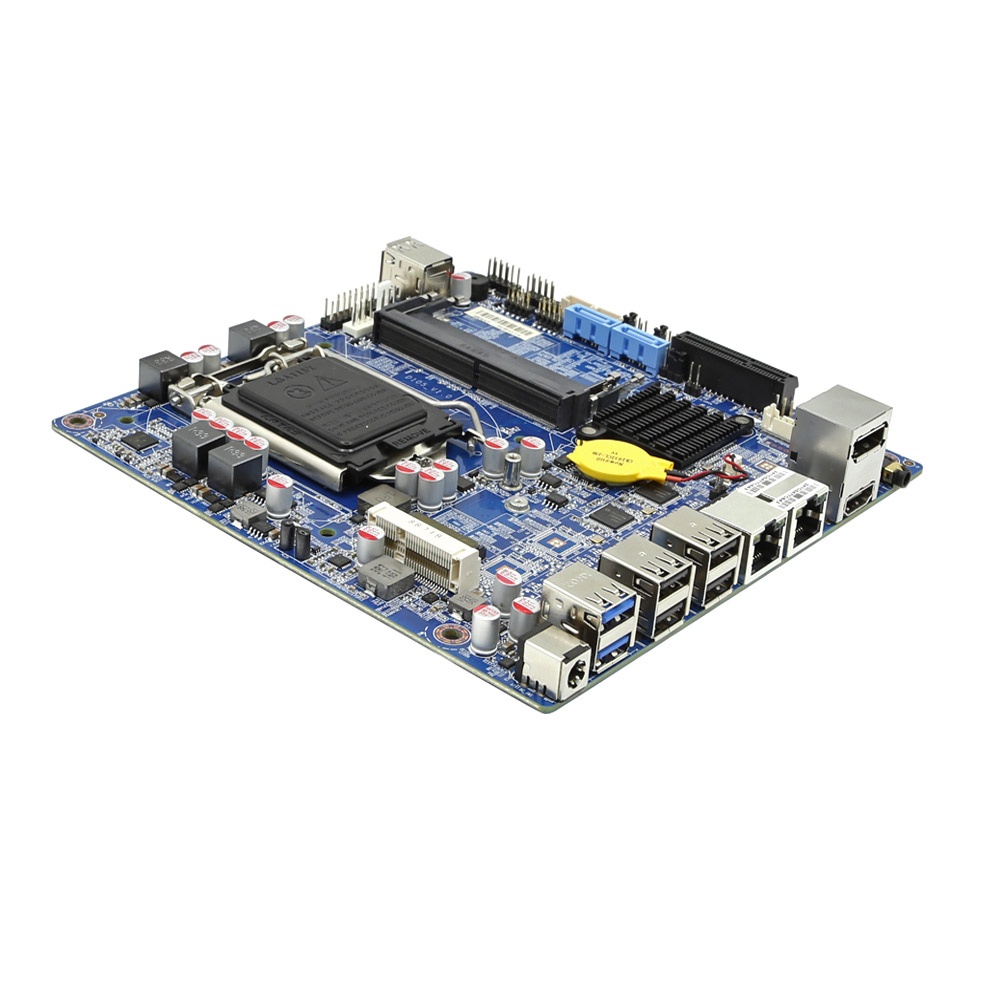

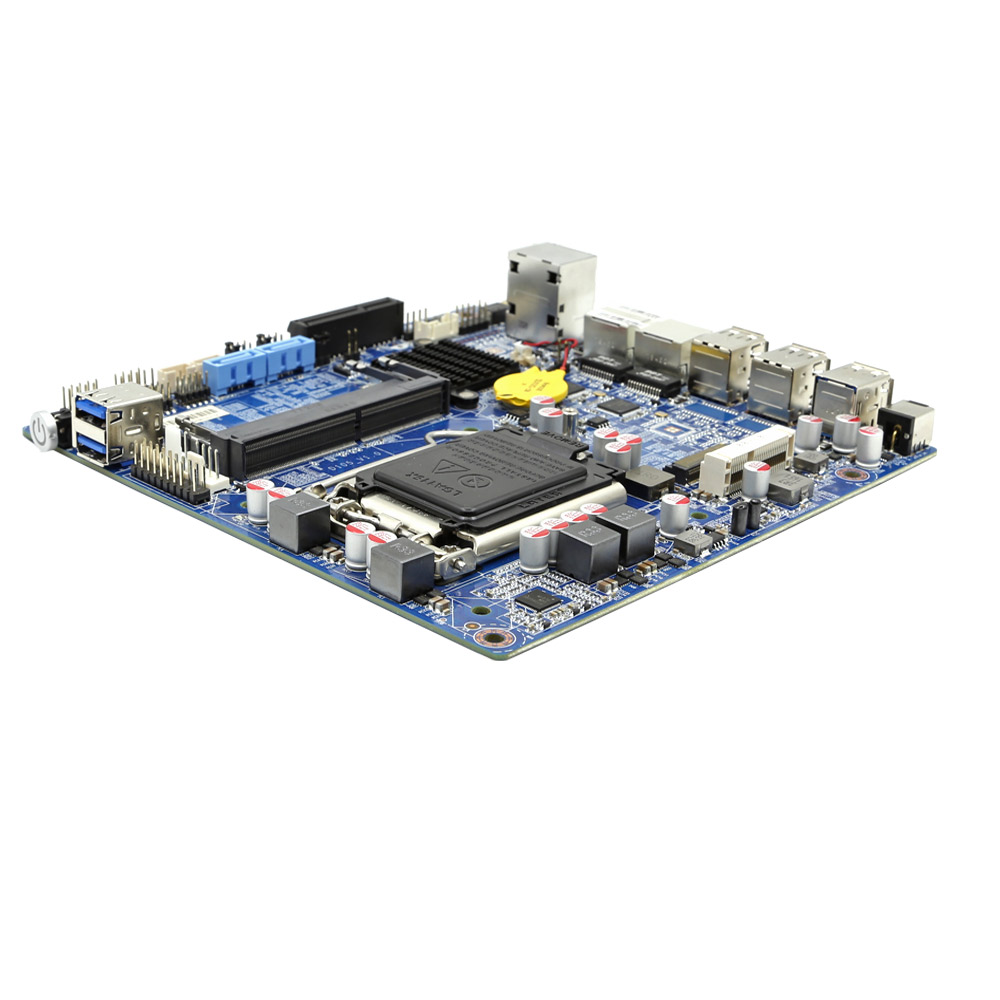

ZC-DN-H310DH H310 Chipset Mini Itx Motherboard With LGA1151 Socket
ZC-DN-H310DH Mini Itx Motherboard With LGA1151 Socket,Intel H310 Chipset
Support 9th,8th Coffee Lake Core i7/i5/i3/Celeron/Pentium Processor
With 1*HDMI,1*DP,2*Ethernet,4*USB 3.0,6*USB 2.0,2*COM,
1*Mini SATA,1*M.2,1*PCIE-4X,1*SPDIF,1*GPIO,1*AUDIO,1*TPM,
12V-19V DC Power
Main Features:
1. Intel H310 Chipset,LGA1151 Core i7/i5/i3/Celeron/Pentium
2. With 1*HDMI,1*DP,Support Double Display
3. DC 12V-19V Power Supply,Can be Used to More Cases
4. Processor integrated Intel HD Graphics,Support 4K
5. With 2*SO-DIMM DDR4 Slot,Support Max 32GB
6. With 2*SATA 3.0,1*MINI SATA,Rich Storage
7. With 1*M.2 2230 Support WIFI/4G/3G Module
8. 4*USB 3.0+6*USB 2.0,Rich USB Ports
9. With 2 COM Ports,More Application
10.Mini Itx Form Factor,17cm*17cm
ZC-DN-H310DH Mini-Itx Motherboard Specification
|
Model Name |
ZC-DN-H310HD |
|
Processor |
Intel LGA1151 Socket Supports Intel 9th, 8th Gen Coffee Lake Core i7/i5/i3/Celeron/Pentium |
|
Chipset |
Intel H310 |
|
RAM |
2*SO-DIMM DDR4 |
|
Graphics Card |
N/A Processor Integrated Graphics Card |
|
Storage |
2*SATA 3.0,1*Mini SATA |
|
Expansion Slot |
1*M.2 2230,Supports WIFI/3G/4G Module 1*PCI-E 4X |
|
Network Card |
2*Intel I211 Ethernet Card,Gigabit |
|
Rear Panel I/O |
2*USB 3.0 4*USB 2.0
1*HDMI 1*DC 12V-19V Port 2*RJ45 Ports 1*Power Button 1*3.5mm Audio(SPK+MIC) |
|
Internal I/O |
1*LGA1151 Socket 1*mSATA Slot 1*M.2 2230 Slot 1*SPDIF(4Pins) 1*GPIO(12Pins) 1*AUDIO(9Pins) 1*PCI-E 4X 1*Auto Power(3Pins) 2*SATA 3.0 2*SATA Power(4Pins) 1*COM1(9Pins) 1*COM2(9Pins) 1*F-Panel(9Pins) 1*F-USB(9pins,Supports 2*USB2.0) 1*GPIO(19Pins) 1*Fan(4Pins) 1*Fan(3Pins) 2*DIMM DDR4 Slots |
|
Power |
DC 12V-19V Port |
|
Size |
Mini ITX (17cm*17cm) |
