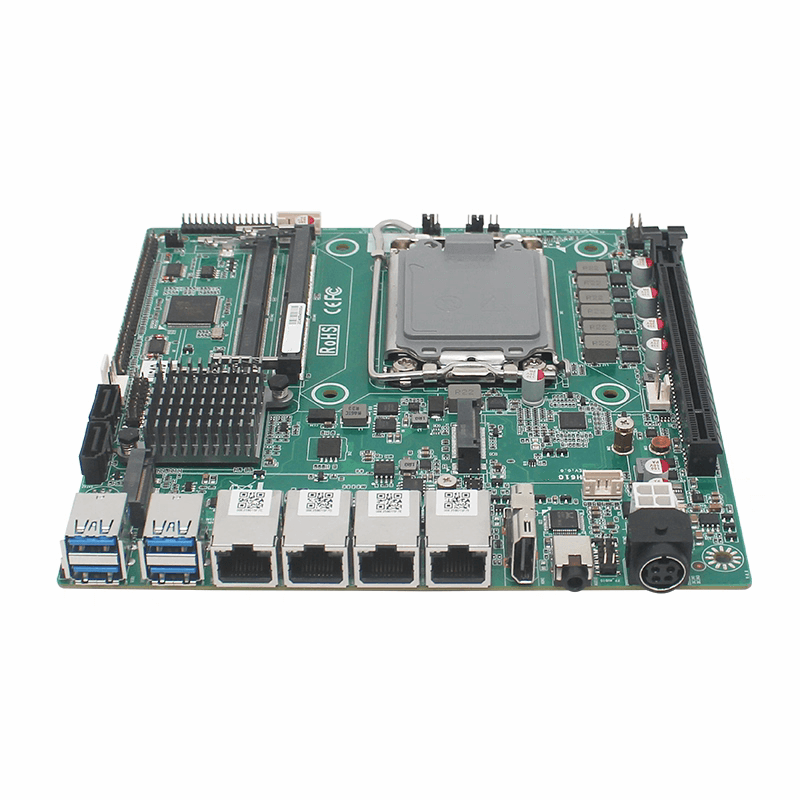

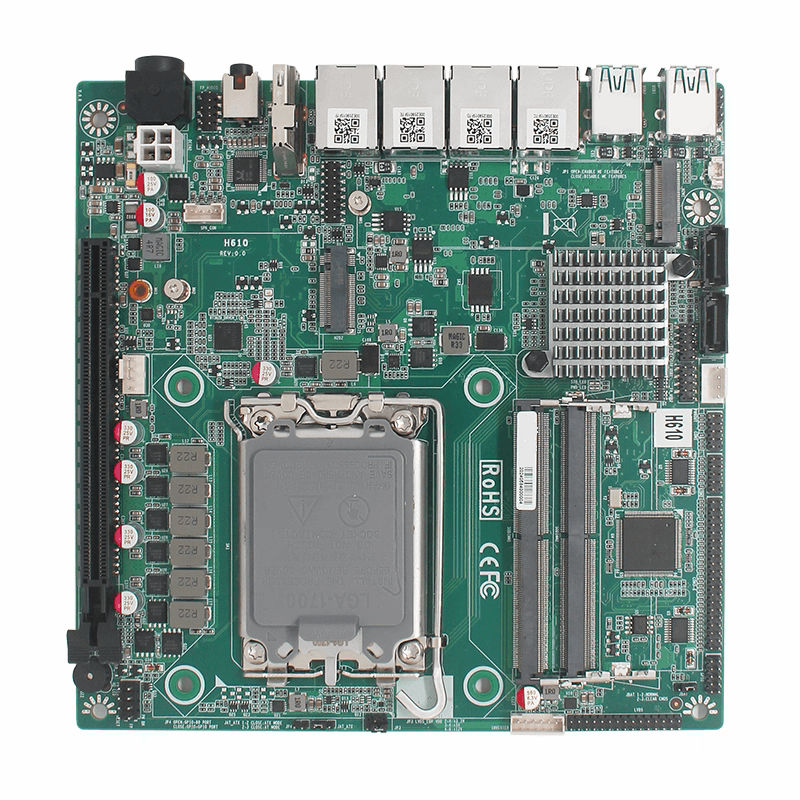

ZC-ITXH6104L Mini Itx Motherboard H610 Chip Supports 12th Gen Intel Core i3/i5/i7/Celeron/Pentium CPU

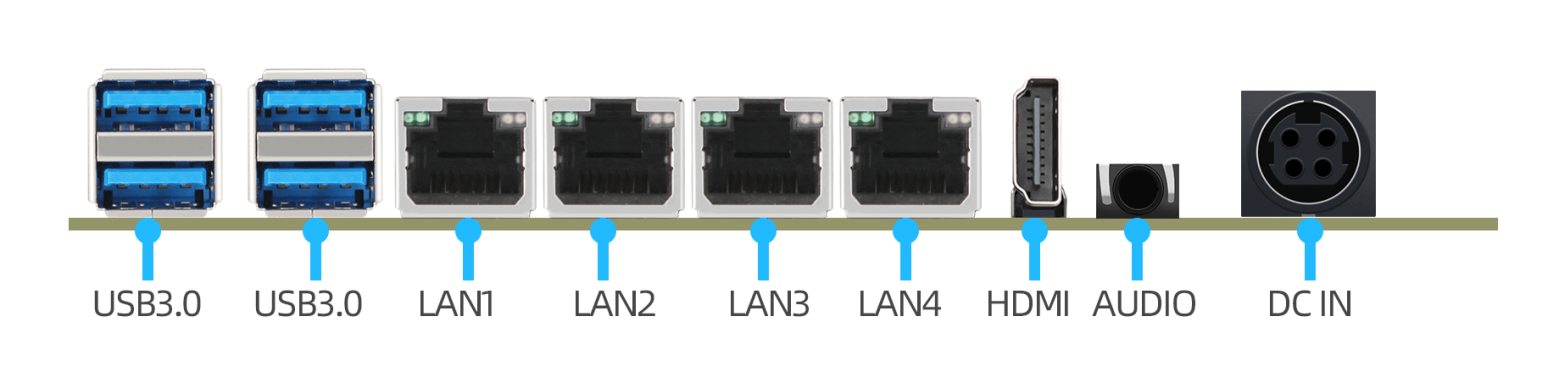

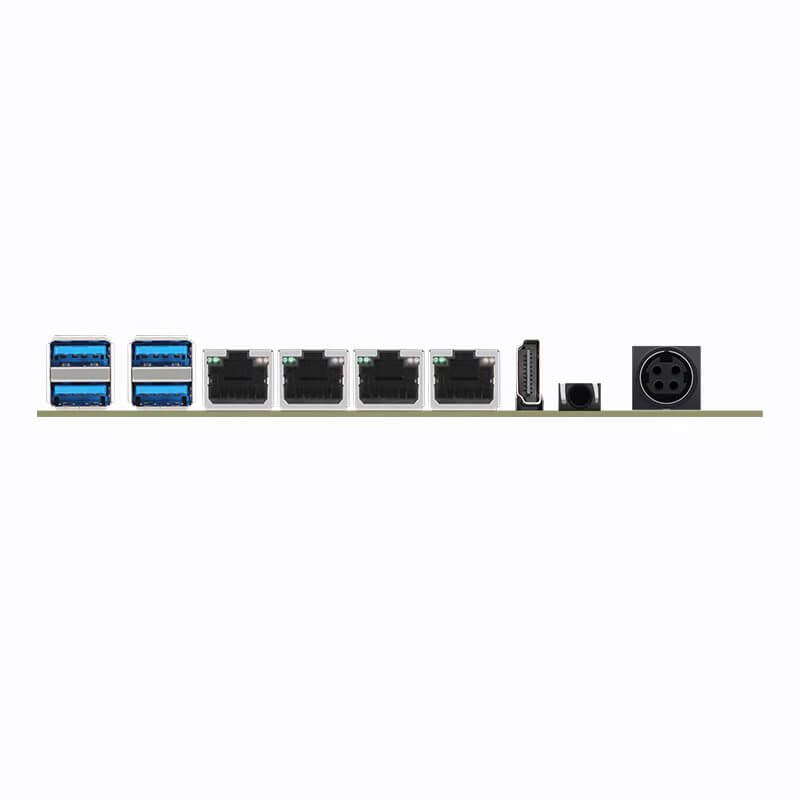

3*Intel i225/i226+1*Intel i219V Ethernet,HDMI+VGA+LVDS/EDP Display,6*COM,8*USB
Main Features:
1.) Intel H610 Chip,Support 12th Gen Intel Core i3/i5/i7
2.) 4*Ethernet Port(3*i225/i226+1* i219V）
3.) Dual Channel SO-DIMM DDR5*2,Up to 64G
4.) Support 3 Display VGA+HDMI+LVDS/EDP
5.) With 6*COM Ports RS232
6.) Supports 4*USB3.0+4*USB2.0
|

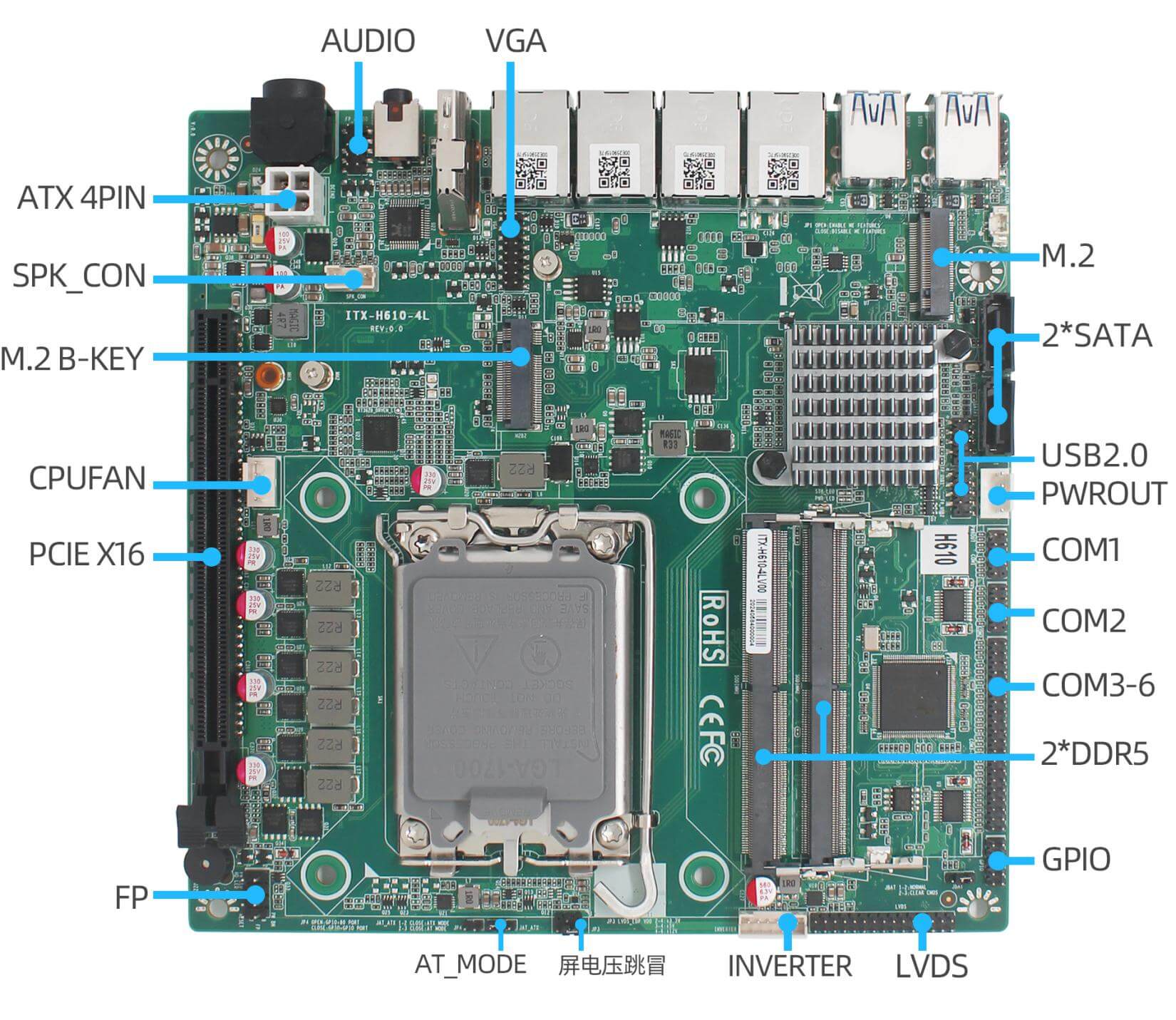

CPU |
Intel 12th Gen Core i3/i5/i7 LGA1700 CPU |
|
RAM |
2*SO-DIMM DDR5 4800MHz,up to 64GB |
|
Network |
4*LAN(3*Intel i225/i226+1*Intel i219V） 1*SIM |
|
Display |
1*HDMI 1*VGA 2*8Pin 1*LVDS/EDP Supports synchronous or asynchronous display. |
|
Audio |
1*AUDIO(Line Out/In all one) 1*FP_AUDIO 2*5Pin |
|
USB |
4*USB 3.0 4*USB2.0 2*5Pin |
|
COM |
6*COM RS232 |
|
Storage |
1*M.2（NVME） 2*SATA3.0 |
|
Expand |
1*PCIE X16 1*M.2 B-KEY |
|
Others |
1*FP 2*4Pin 1*GPIO 2*5Pin 1*CPUFAN 1*SPK_CON |
|
Watchdog |
Support hardware reset function (255 levels, 0~255 seconds) |
|
Power Supply |
DC 12-24V Wide Voltage Input |
|
Temp |
Storage： -20℃ -70℃ ,Operating： -0℃ -60℃ |
|
Size |
170mm*170mm |
