ZC-N6412-L4C2 NUC Firewall Motherboard 12x12cm Size Integrated Intel Celeron J6412 4 Cores 2.0GHz CPU,4*Network Card,2*RS232,VGA+HDMI Display DC12V Power Supply,Fanless Design
Main Features:
1.) Integrated Intel Celeron J6412 4 Cores 2.0GHz CPU
2.) With 2* SODIMM slot, Up to 16GB
3.) 4* Intel i225 2.5G Gigabit Network Card
4.) Storage 1* SATA+1*M.2 Key-M
5.) With 2*RS232,RS485 Optional
6.) Fanless Design,Zero noise
ZC-N6214-L4C2 NUC Motherboard 4 LAN J6412 CPU Specification
Model
ZC-N6214-L4C2
CPU
Intel Celeron J6412,4 Cores 2.0GHz, TDP 10W
RAM
2* SODIMM DDR4 3200MHz DDR4,up to 16GB
Display
Intel UHD Graphics
1*DP,1* HDMI
Network
4* Intel i225 2.5G Network Card,Support PXW,Wake on LAN
Storage
1* 7pin SATA3.0 6Gbps
1* M.2 Key-M 2280/2242 PCIE/SATA SSD
Expansion
1* Mini-PCIe for 4G/WIFI

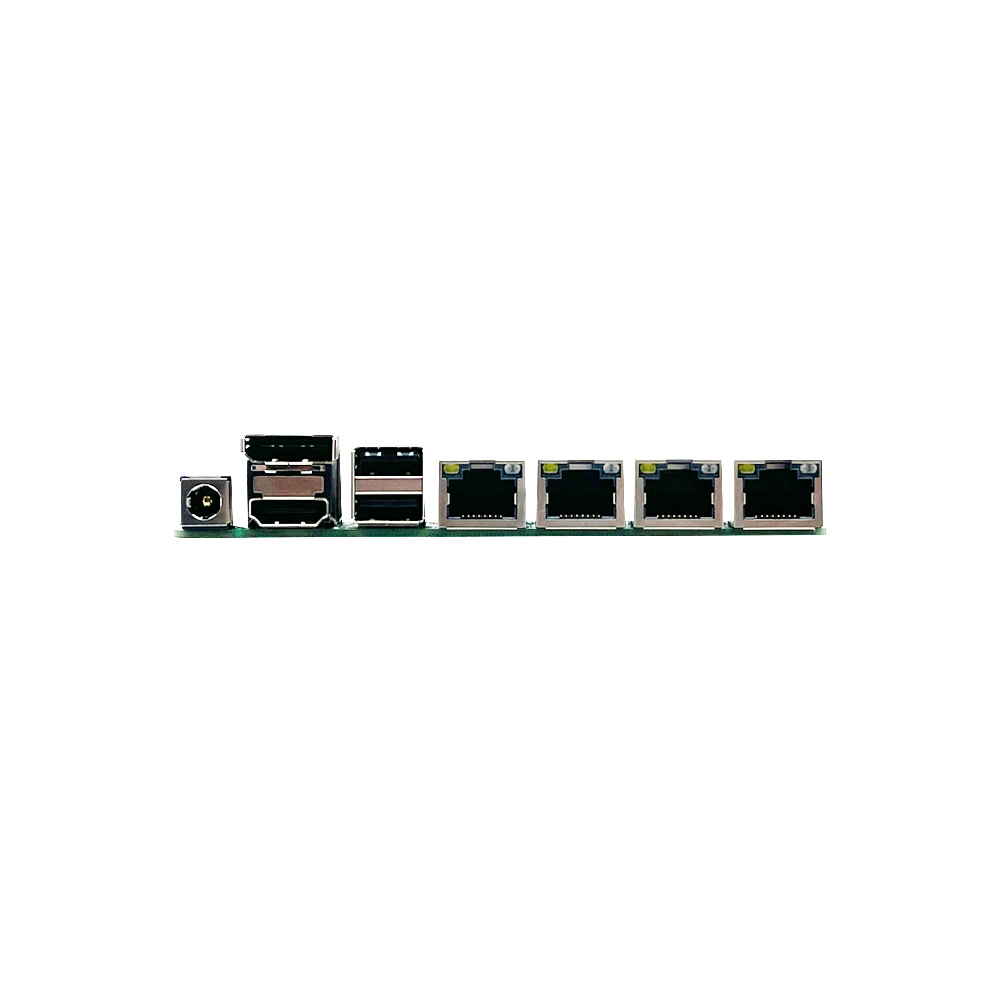

Rear I/O
4* LAN RJ45
2* USB2.0
1* HDMI+1*DP
1* 12V DC

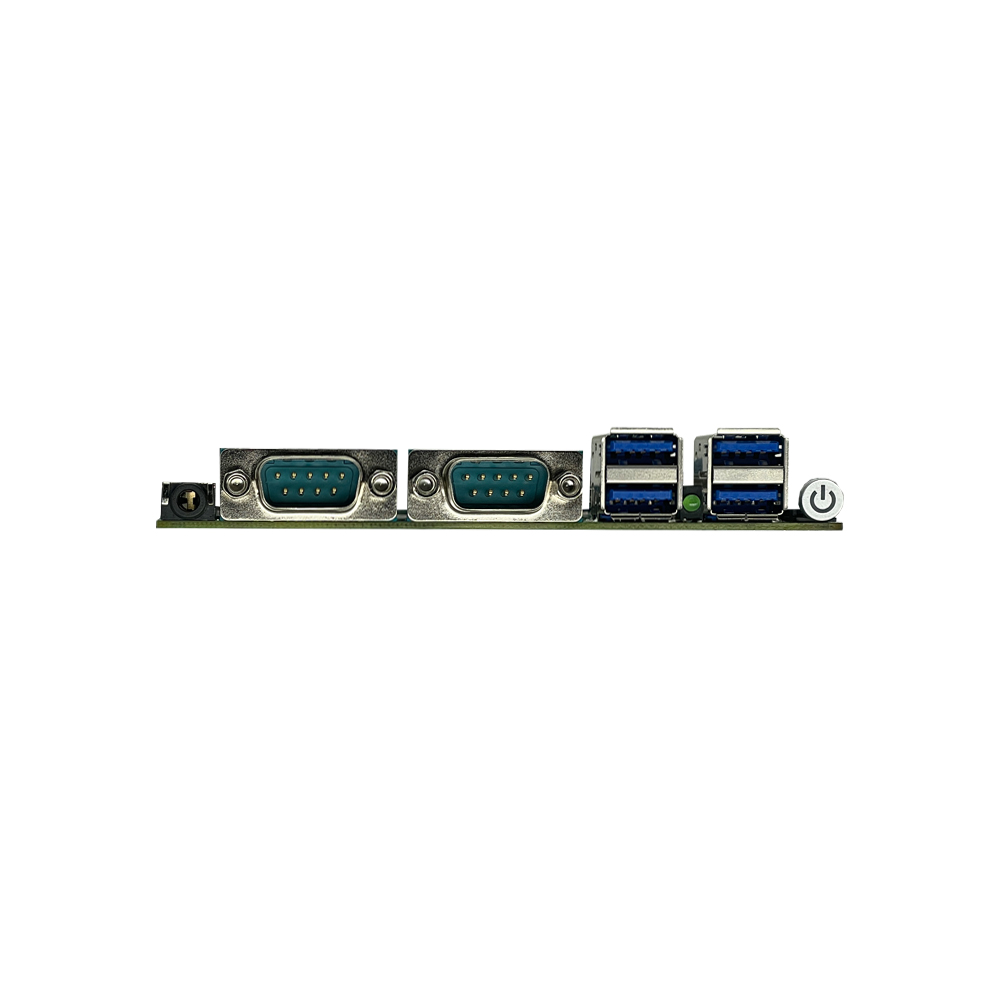

Front I/O
2* USB 3.1
2*USB 3.0
1* HDD Light
1* Power Button
1*USB Type C (Optional)
2* COM (RS232 Default,Can change to be RS485 by jumper)
Insize I/O
1*TPM2.0 (2*6Pins)
2* USB 2.0 (2*5Pin)
1* SATA Power Pin
1* 4pin DC Power
1* Front panel switch button and indicator light 2*5Pin
FAN
Fanless cooling design, reserved 1*4pin CPU fan interface
GPIO
Support 4 input and output GPIO
BIOS
128Mb Flash ROM
Watchdog
Support hardware reset function (256 levels, 0~255 seconds)
OS
Windows 10/11/Linux
Power Supply
DC 12V
Working Temp
-10℃ to 60℃
Storage Temp
-20℃～70℃
Working Humidity
5%-95% relative humidity, no condensation
Size
120mm x 120mm
Compatible with all Intel Elkhart Lake CPUs
