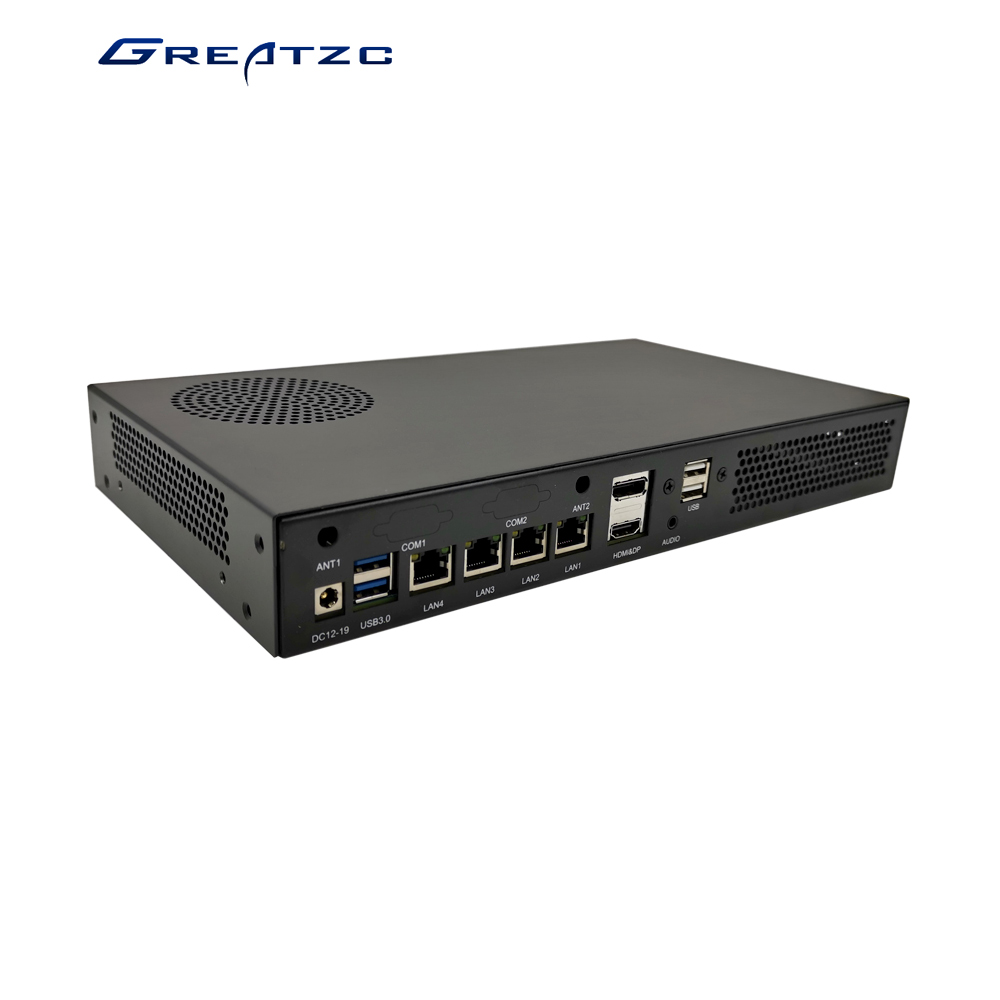

ZC-H78-H3104L Mini PC With 4 Gigabit Ethernet Ports Intel H310 Chipset LGA1151 Socket Supports 8th,9th
Generation Processor i7/i5/i3/Celeron/Pentium,With 1*DP,1*HDMI,4*Ethernet,4*USB 3.0,2*USB 2.0
2*COM Optional,WIFI/4G Module Optional
Main Features:
1.) Intel H310 Chipset,LGA1151 Core i7/i5/i3/Celeron/Pentium
2.) 4 Gigabit Intel I211 Ethernet Card
3.) 4 USB 3.0 +2*USB 2.0 Ports,2 COM Ports optional
4.) Rich Storage,1*3.5inch(or 2*2.5inch) +1*mSATA
5.) 2*SO-DIMM DDR4 Slot,Support Max 32GB
6.) 1*M.2 2230 Support WIFI/4G/3G Module.
7.) With DIN Rail Mount,easy to mount
8.) Wide used in pfsense firewall,network server,firewall appliance,firewall vpn,network router
ZC-H78-3104L 4 Gigabit Ethernet Mini PC
|
Processor |
Intel LGA1151 Socket Supports Intel 8th,9th Intel CPU Core i7/i5/i3/Celeron/Pentium |
|
Chipset |
Intel H310 |
|
RAM |
2*SO-DIMM DDR4 |
|
Graphics Card |
Processor Integrated Graphics Card |
|
Storage |
1*3.5inch(or 2*2.5inch),1*Mini SATA |
|
Expansion Slot |
1*M.2 2230,Supports WIFI/3G/4G Module 1*PCI-E 4X |
|
Display Port |
1*DP,1*HDMI |
|
Network Card |
4*Intel I211 Ethernet Card,Gigabit |
|
I/O Ports |
4*USB 3.0 2*USB 2.0 1*DP 1*HDMI 2*RS232 1*DC Port 4*RJ45 Ports 1*Power Button 1*3.5mm Audio(SPK+MIC) |
|
Power Adapter |
19V |
|
Dimension |
320x174x44mm |
Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
