ZC-H77-H3104L With 4 Gigabit Ethernet Mini Firewall PC Network Security Mini Server
Intel H310 Chipset LGA1151 Socket 8th,9th Generation Processor i7/i5/i3/Celeron/Pentium
With 1*VGA,4*Ethernet,4*USB 3.0,2*COM Optional,WIFI,4G Module Optional
Main Features:
1.) Intel H310 Chipset,LGA1151 Core i7/i5/i3/Celeron/Pentium
2.) 4 Gigabit Intel I211 Ethernet Card
3.) 4 USB 3.0 Ports,2 COM Ports optional
4.) Rich Storage,1*3.5inch(or 2*2.5inch) +1*Msata
5.) 2*SO-DIMM DDR4 Slot,Support Max 32GB
6.) 1*M.2 2230 Support WIFI/4G/3G Module.
7.) With DIN Rail Mount,easy to mount
8.) Wide used in pfsense firewall,network server,firewall appliance,firewall vpn,network router

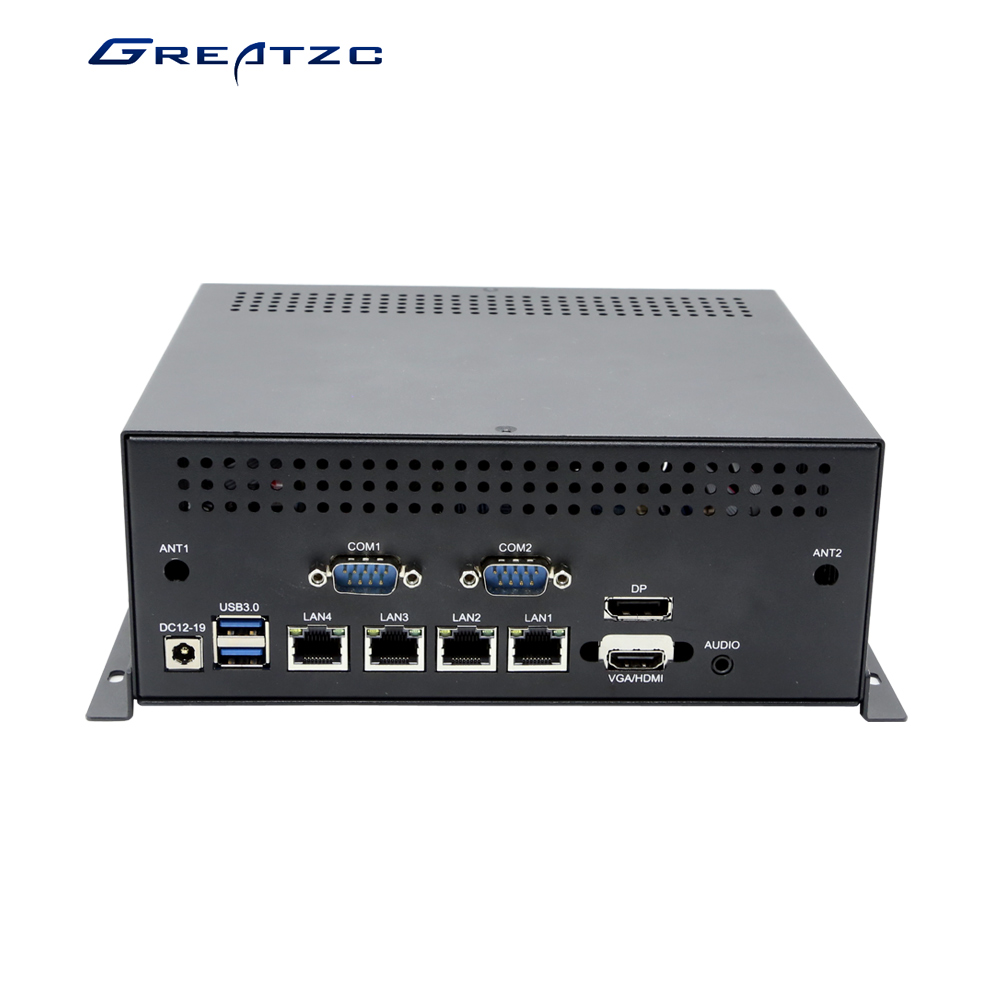

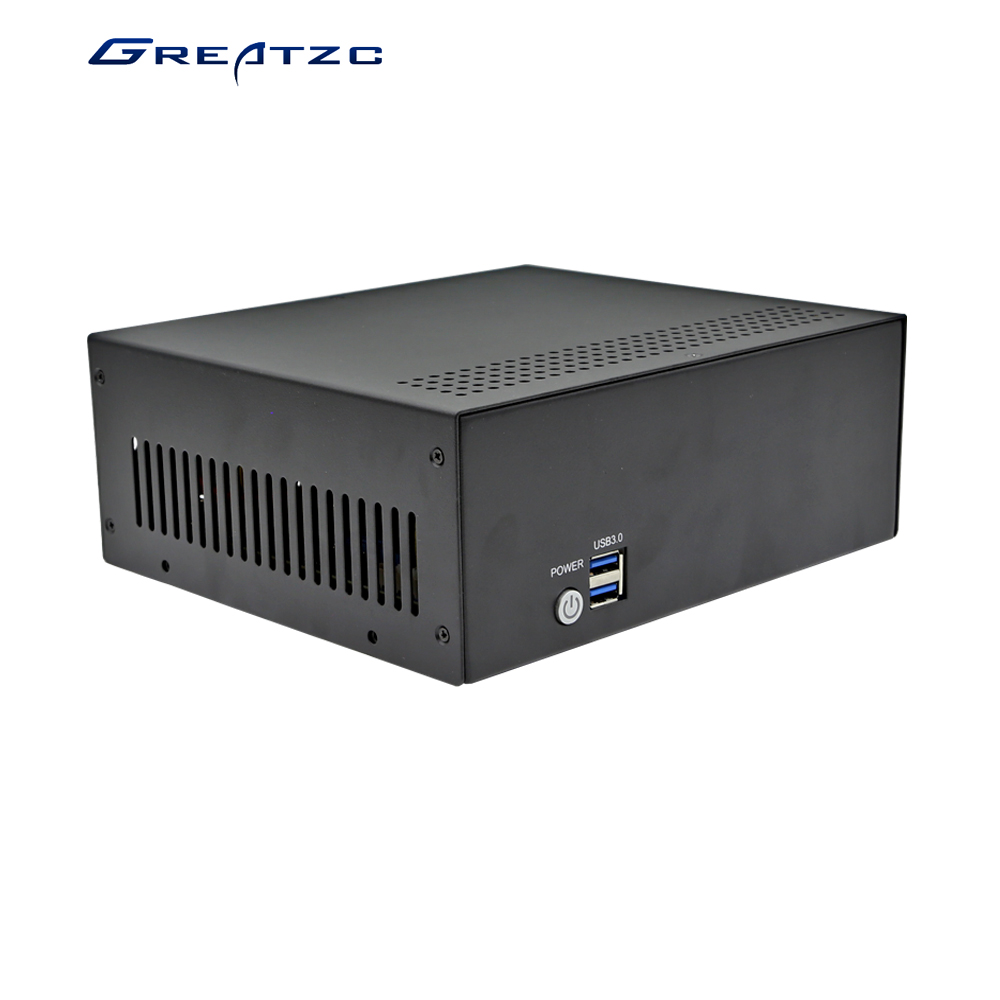

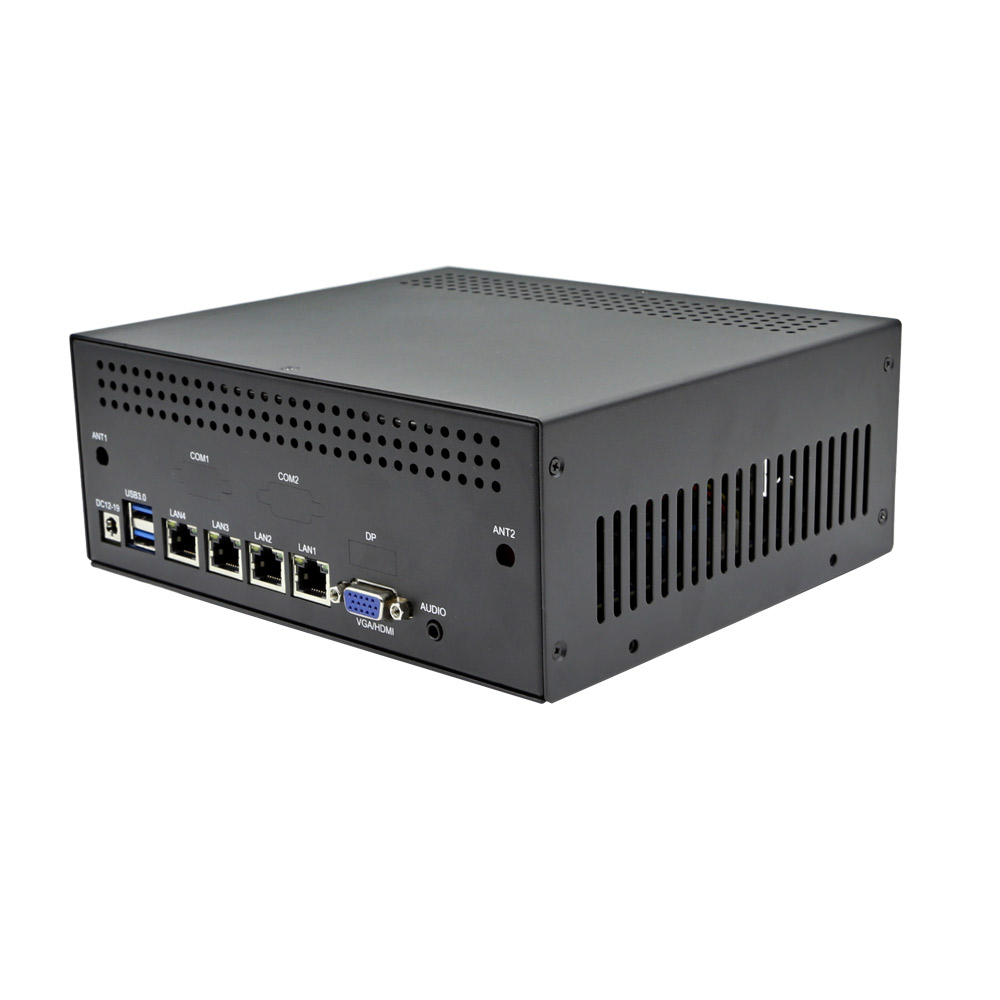

ZC-H77-3104L 4 Gigabit Ethernet Mini Firewall PC
|
Processor |
Intel LGA1151 Socket Supports Intel 8th,9th Intel CPU Core i7/i5/i3/Celeron/Pentium |
|
Chipset |
Intel H310 |
|
RAM |
2*SO-DIMM DDR4 |
|
Graphics Card |
Processor Integrated Graphics Card |
|
Storage |
1*3.5inch(or 2*2.5inch),1*Mini SATA |
|
Expansion Slot |
1*M.2 2230,Supports WIFI/3G/4G Module 1*PCI-E 4X |
|
Display Port |
1*VGA |
|
Network Card |
4*Intel I211 Ethernet Card,Gigabit |
|
I/O Ports |
4*USB 3.0 1*VGA 1*DC19V Port 4*RJ45 Ports 1*Power Button 1*3.5mm Audio(SPK+MIC) |
|
Power Adapter |
19V/6.32A |
|
Dimension |
200x175x77mm |
|
Accessories |
19V/6.3A Power Adapter,DIN Rail Mount |
Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
