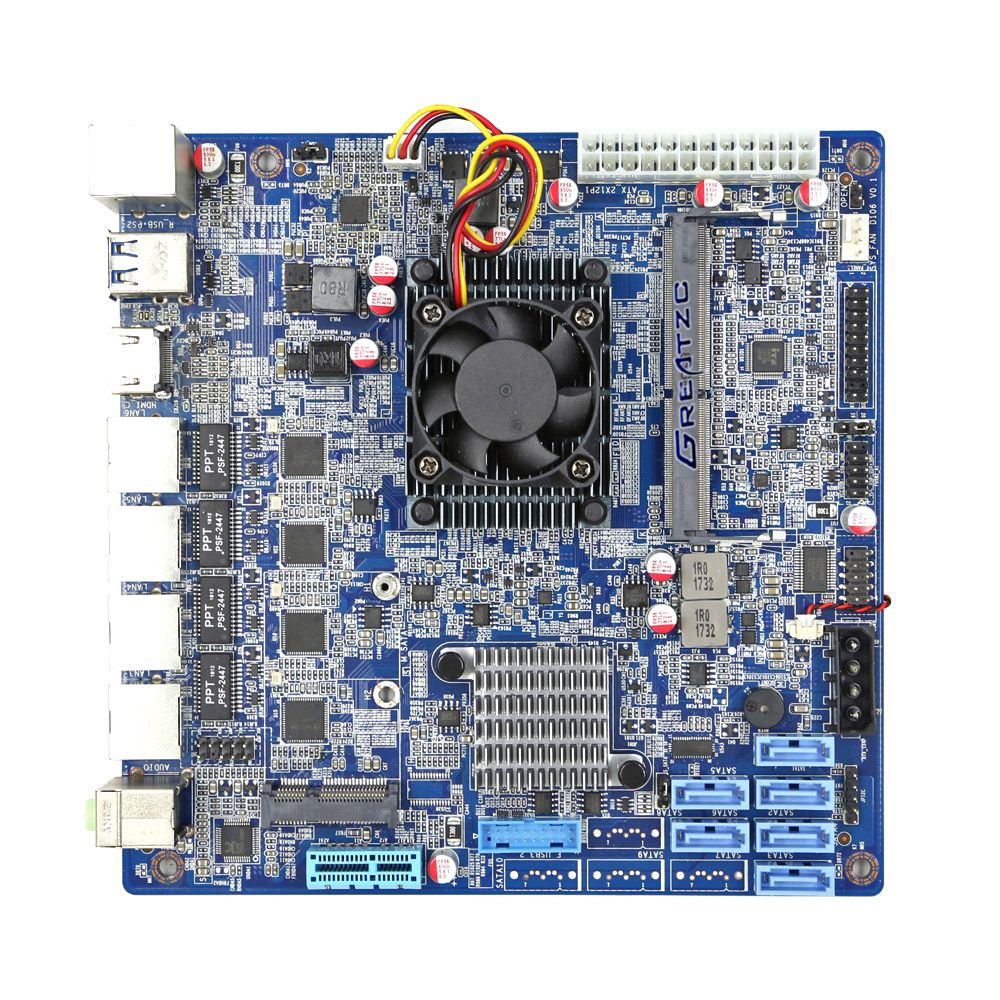

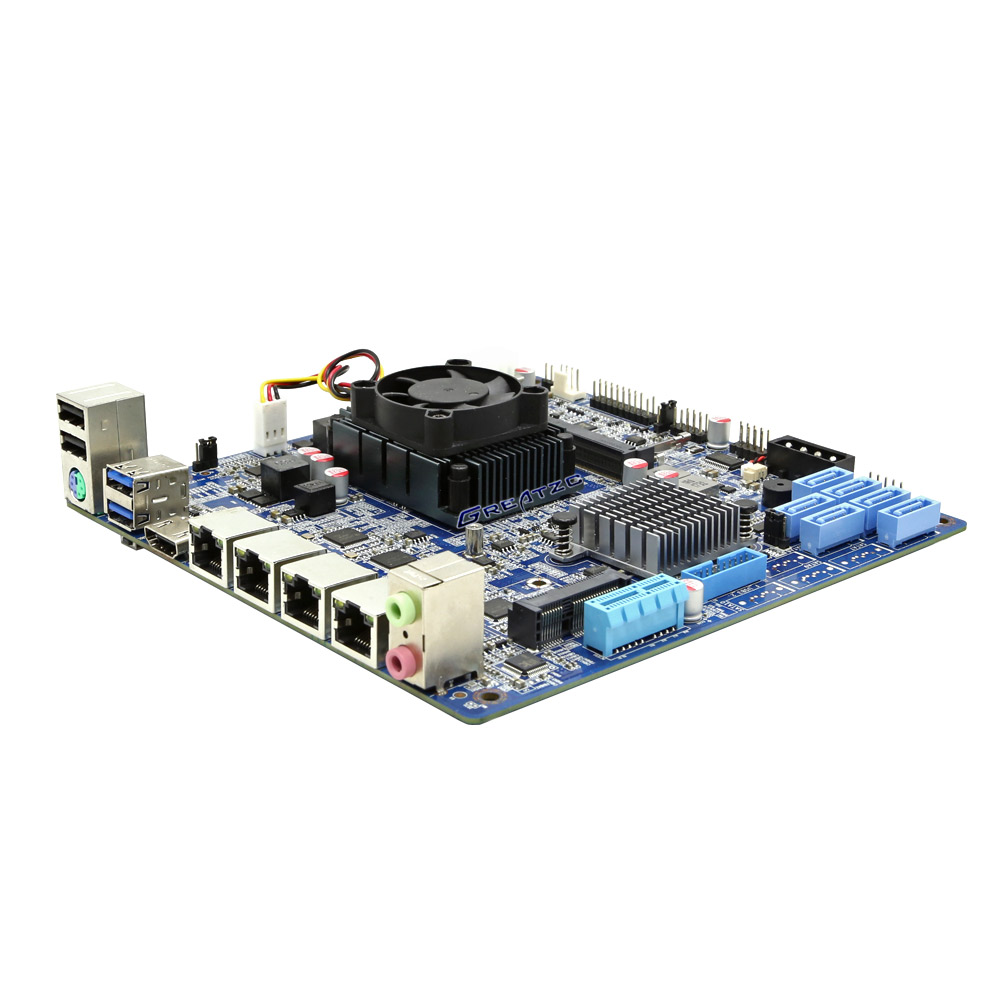

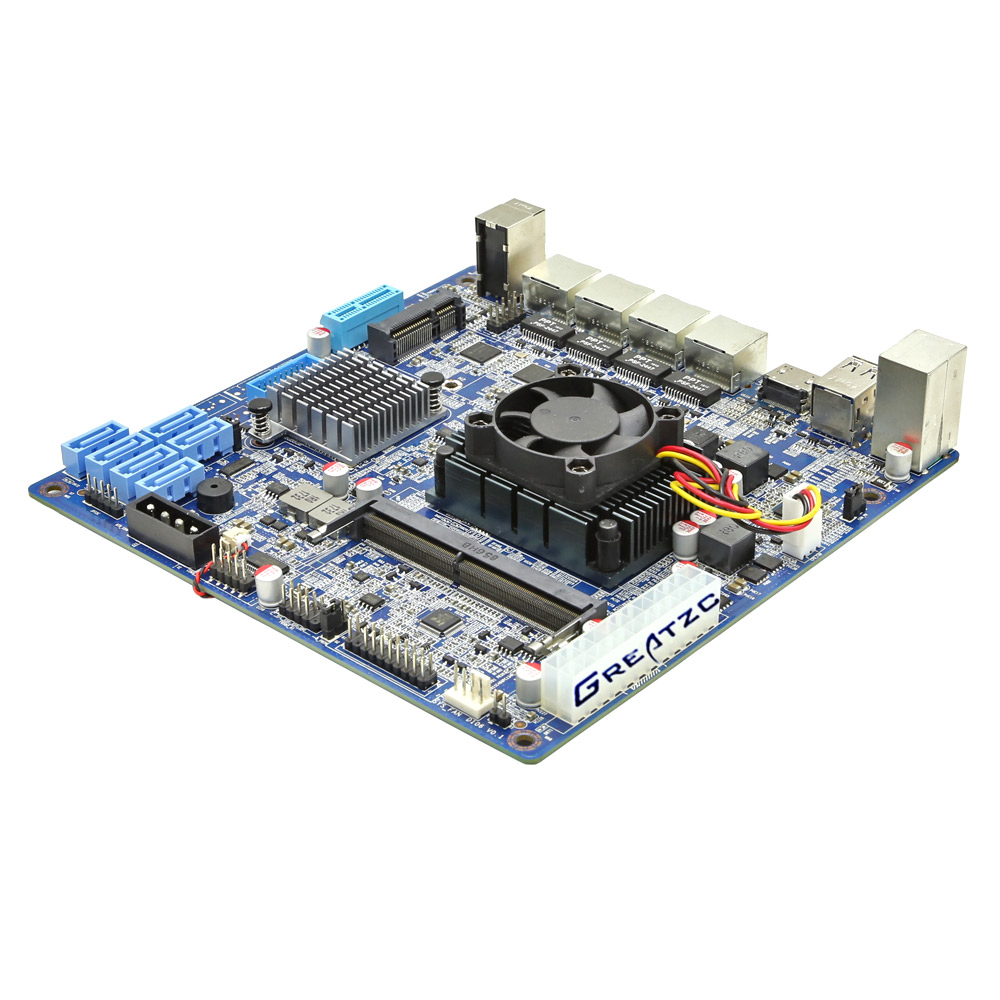

Mini-ITX Low Power DC12V pfSense Firewall Mini itx Motherboard ZC-3855NAS-4L
ZC-3855NAS-4L Mini ITX Motherboard With 6*SATA 3.0,4*Intel I211 Ethernet,
Intel Skylake Celeron 3855U CPU,Dual Core 1.6GHz,INTEL HD510,Support 4K.
With 1*HDMI,4*RJ-45 LAN,1*COM,1*I2C,1*PCIE X1,1*MSATA
Main Features:
1.) With 6*SATA 3.0,support software RAID.(10*SATA 3.0 Optional)
2.) With 4*Intel I211 Gigabit Network
3.) Mini Itx Form Facory,17x17cm,Height is 36mm
4.) Onboard 6th Gen Skylake 3855u,Can customize 6th/7th U serial Core i3/i5/i7 CPU
5.) Onboad I2C,Support external device expansion
6.) Onboard PCIE X1 expansion interface for multiple conversion cards and expansion devices
7.) Support watchdog,Timing switch,Auto Power On,suitable for unattended equipment
8.) Support PXE,Wake On LAN
9.) Support Windows 8.1/10,Linux,Free NAS
10.) With sufficient material, good stability and strong anti-interference, ensure long-term stable operation of the product.
ZC-3855NAS-4L Mini Itx Motherboard Specification
|
CPU |
INTEL 6th Skylake Celeron 3855U Dual Core 2 Thread 1.6GHz 2MB SmartCache TDP only 15W (Can customize 6th/7th U serial Core i3/i5/i7 CPU) |
|
Chipset |
CPU Integrated |
|
Graphics |
INTEL HD510 Support 4K |
|
Memory |
1*SO-DIMM DDR4, MAX 16GB |
|
Network Card |
4*Intel I211,Gigabit |
|
Audio Card |
Realtek ALC662 |
|
USB |
Rear Ports:2*USB 3.0,2*USB 2.0 Header: 2*USB 3.0,2*USB 2.0 |
|
PCIe |
1×PCIe 1X |
|
SATA |
6pcs SATA3.0 (10pcs SATA3.0 Optional) |
|
Display |
HDMI1.4B,Max 4096x2304@24Hz |
|

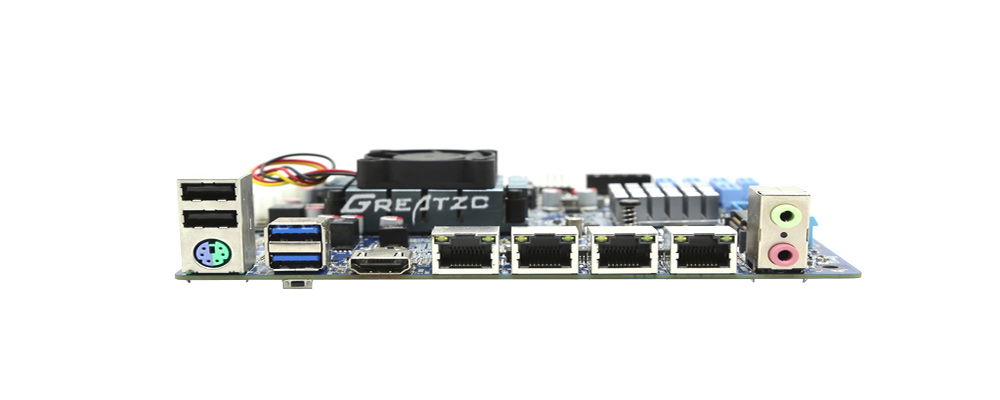

Rear I/O |
PS2 |
|
2*USB2.0 |
|
|
2*USB3.0 |
|
|
1*HDMI |
|
|
2*RJ45 |
|
|
1*Speaker,1*Mic |
|
|
1*Clear CMOS |
|
|
Internal I/O |
6*SATA 3.0 (10pcs SATA3.0 Optional) |
|
2*10pin Front Panel Header |
|
|
1*I2C |
|
|
DOM/HDD Power(1x4pin) |
|
|
Over Heat LED Pins(1*2pin) |
|
|
1* 9Pins USB 2.0 Header(Supoort 2*USB 2.0) |
|
|
1* 19Pins USB 3.0 Header(Supoort 2*USB 3.0) |
|
|
1*AUTO Power On Header |
|
|
Chassis Anti-theft Pin(1*2pin) |
|
|
1*MSATA (switch with jumper between MSATA and SATA1,either-or) |
|
|
1*COM Header |
|
|
1*Front Audio |
|
|
1*System Fan Header(3Pins) |
|
|
1*CPU Fan Header(3Pins) |
|
|
Power Supply |
24pin ATX |
|
Form Factor |
Mini-ITX,17x17cm(Height 36mm) |
