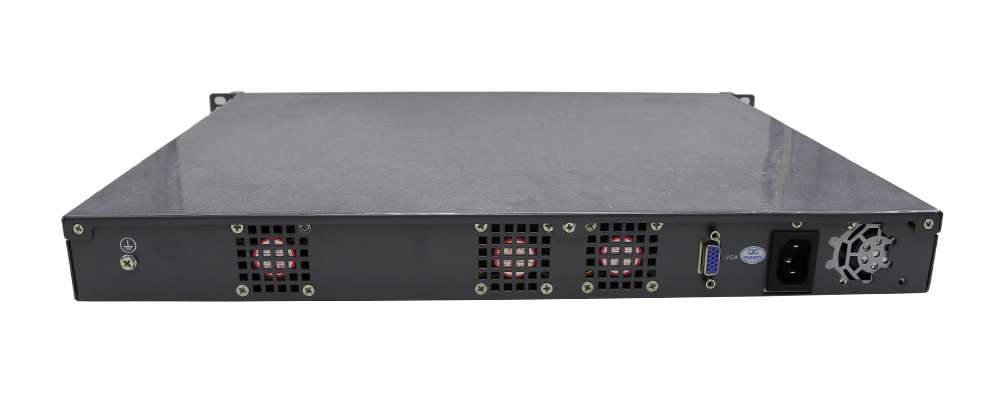

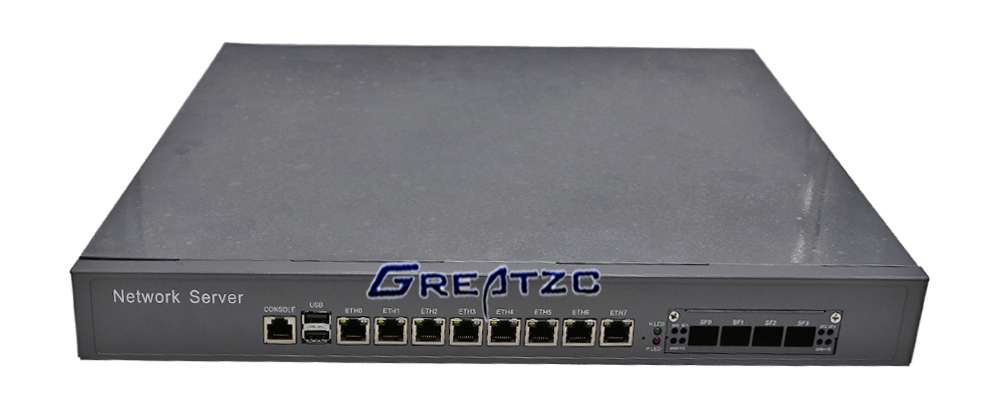

ZC-U36H878L Network Security Server Firewall PC 1U Rack-Mounted Case
With 8*Intel I219 Gigabit Card,2*USB,1*VGA,2*SO DIMM DDR3,
Support LGA1150 CPU Haswell 4th Core I7/I5/I3,Pentium,Celeron.
Main Features:
1.INTEL H87 Chipset,LGA 1150 Socket,Haswell 4th Core I7/I5/I3,Pentium,Celeron.
2.Integrated 6*Intel I219 Gigabit Card,Very Stable and Reliable,WIFI Optional.
3.Standard 1U Case,Size is 482*360*44.5mm,Adaptive to Kinds of Cabinet.
4.With Internal Mini PCI-E and SIM Slots,3G/4G/WIFI Optional.
5.With PCI-E 8X,and 4*SF Slots on Case,Optical Fiber Optional.
6.For Storage,Support SATA 2.5 and SATA 3.5,Also mSATA SSD.
7.With 250W ATX Power Supply 80Plus,Support 100-240V.
8.Support GPIO Programmable Controlling.
ZC-U36H878L Specification
CPU |
INTEL LGA 1150 Socket Support Haswell 4th Core I7/I5/I3,Pentium,Celeron |
Chipset |
Intel H87 |
RAM |
2*SO-DIMM DDR3 1600/1333/1066 Support Max 16GB |
Graphics Card |
CPU Integrated |
Storage |
2*SATA Slot 1*mSATA Slot 1*Onboard 2.5inch HDD Slot |
Network Card |
8*INTEL I219 Gigabit Card Support 2xGroups Bypass |
Expansion Slot |
1*MINI PCI-E(Full Size,Support WIFI/3G/4G) 1*MINI SATA(Full Size,Support SSD) 1*PCIE X8(Support Optical Fiber Module) 1*SIM Slot |
Outside I/O |
8*RJ-45 LAN Ports 2*USB 2.0 1*Power Slot 1*Console Port( RJ45 Type) 1*PWR LED,1*HDD LED 1*VGA 1*AC Power Port 4*SF Ports(Need Buy Additional Optical Fiber Module.) |
Power Supply |
ATX Power Supply 250W(100-240V) |
Size |
482*360*44.5mm |
Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
