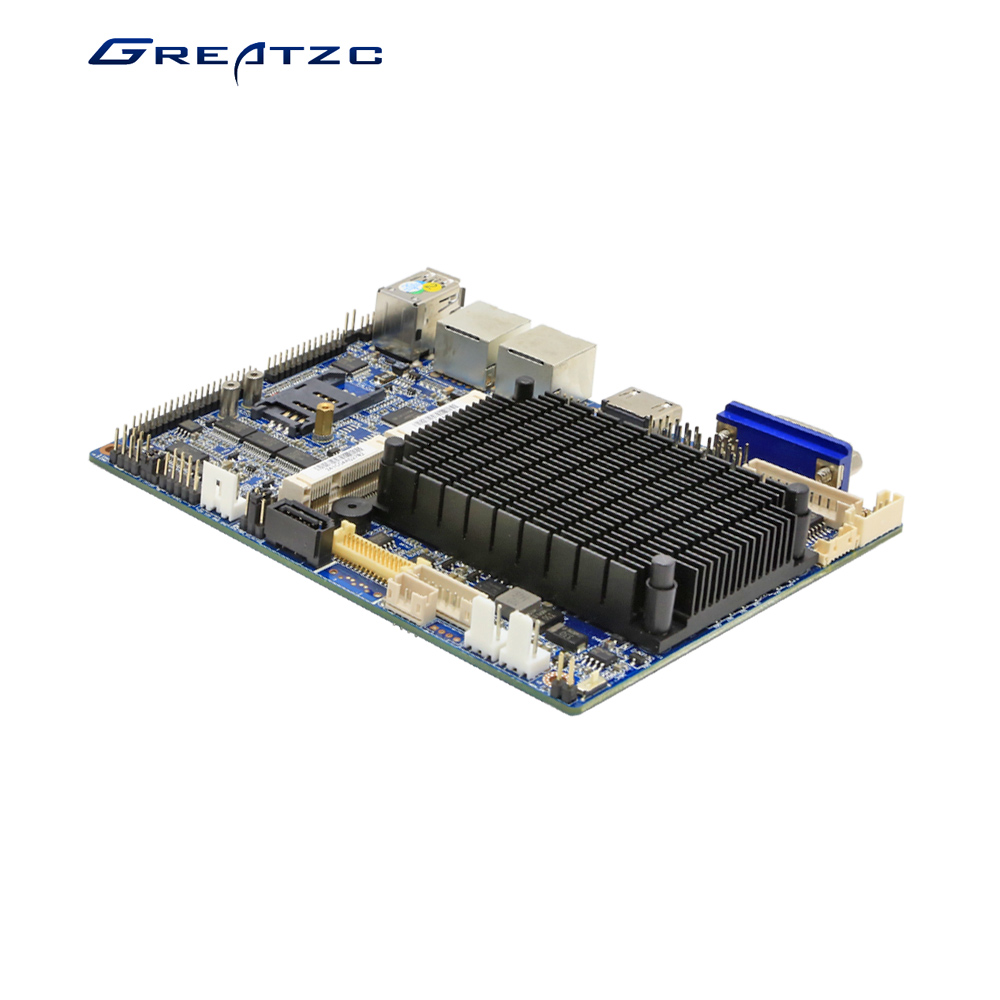

  • ZC35-EN2807DL 3.5'' Dual LAN Fanless Motherboard With 6 COM Ports

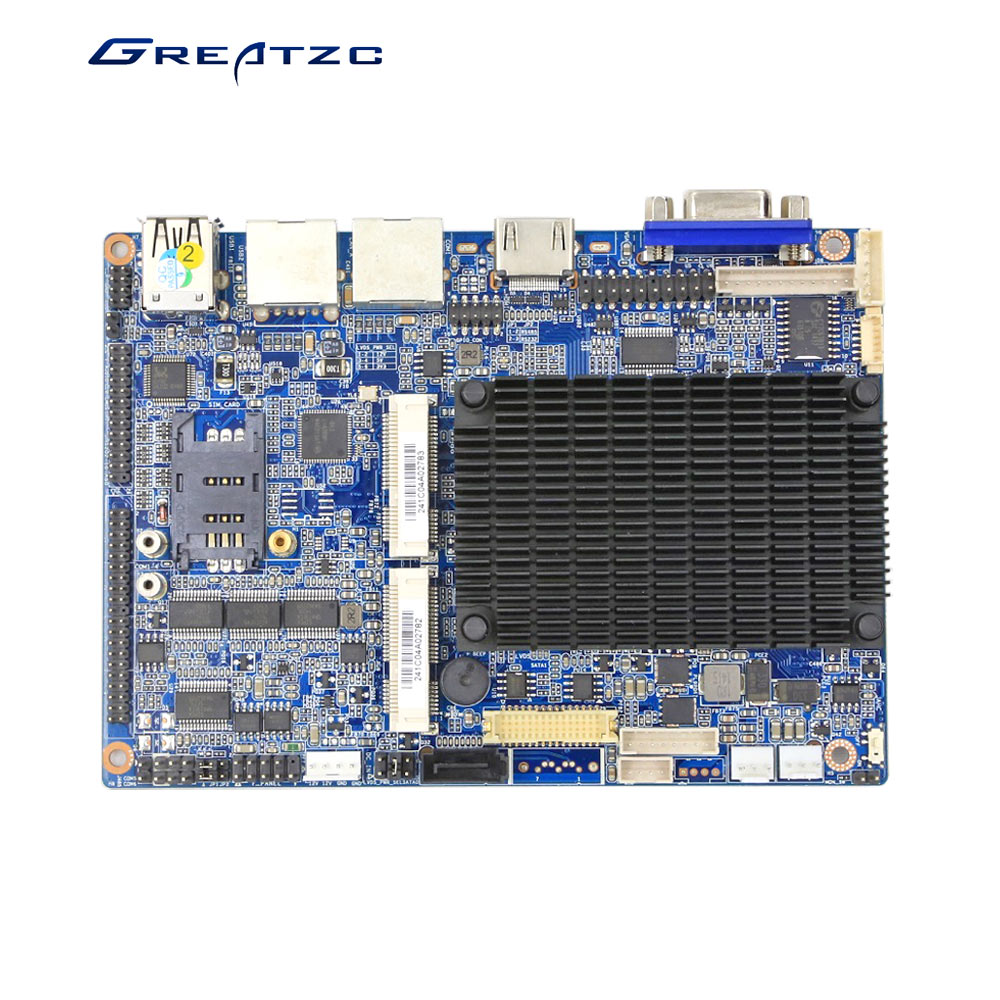

  • 2.jpg

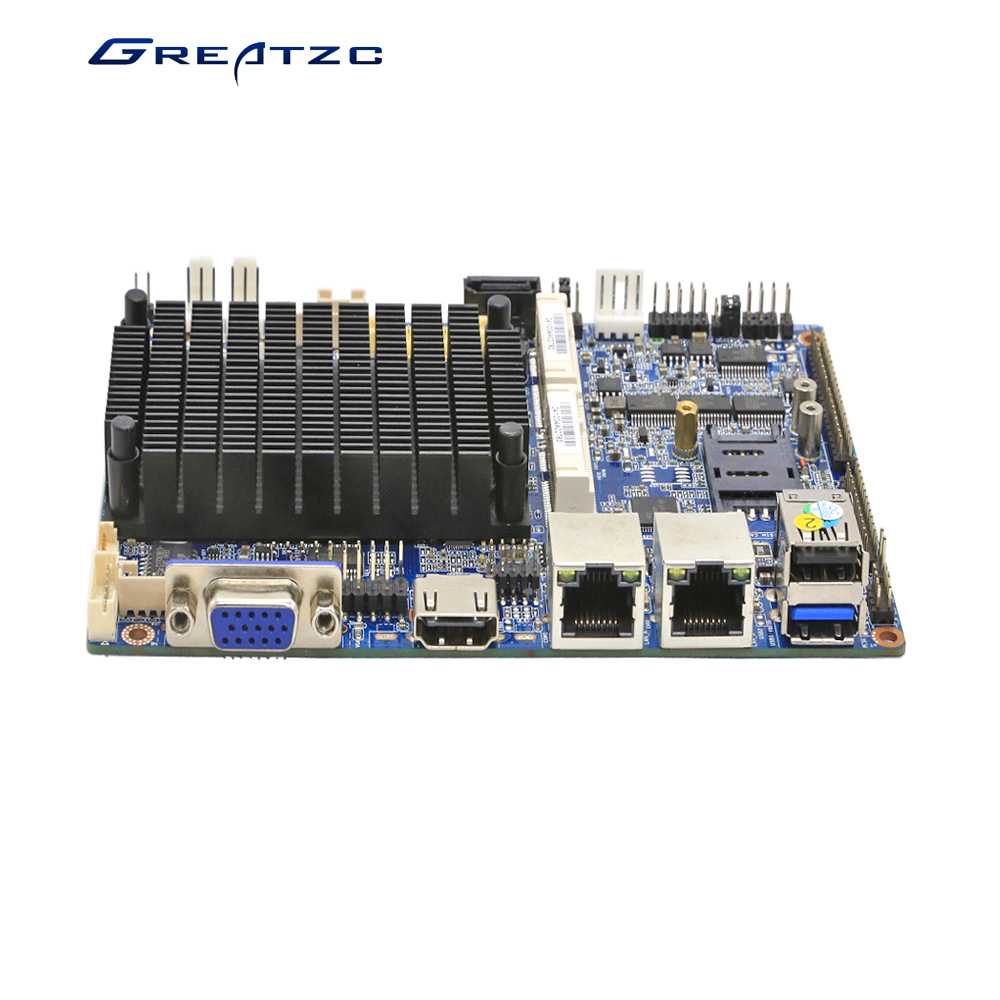

  • 3.jpg

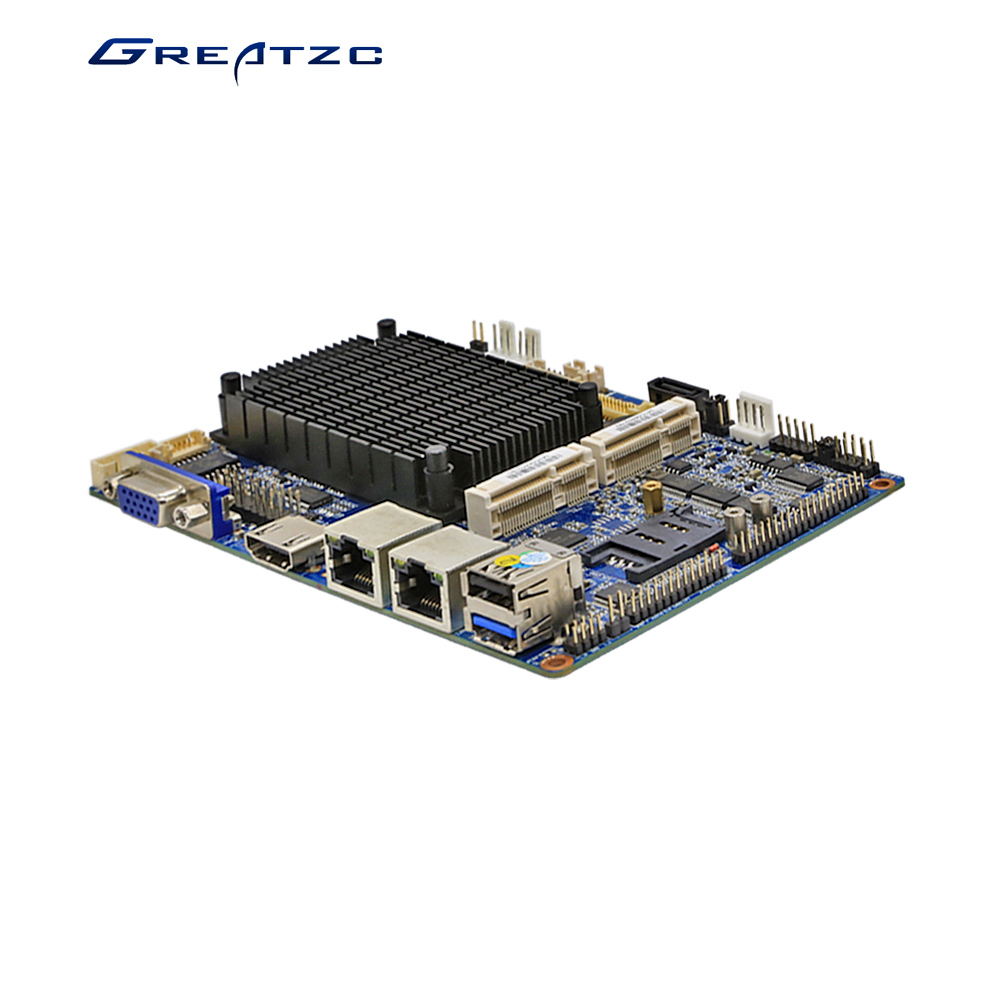

  • 4.jpg

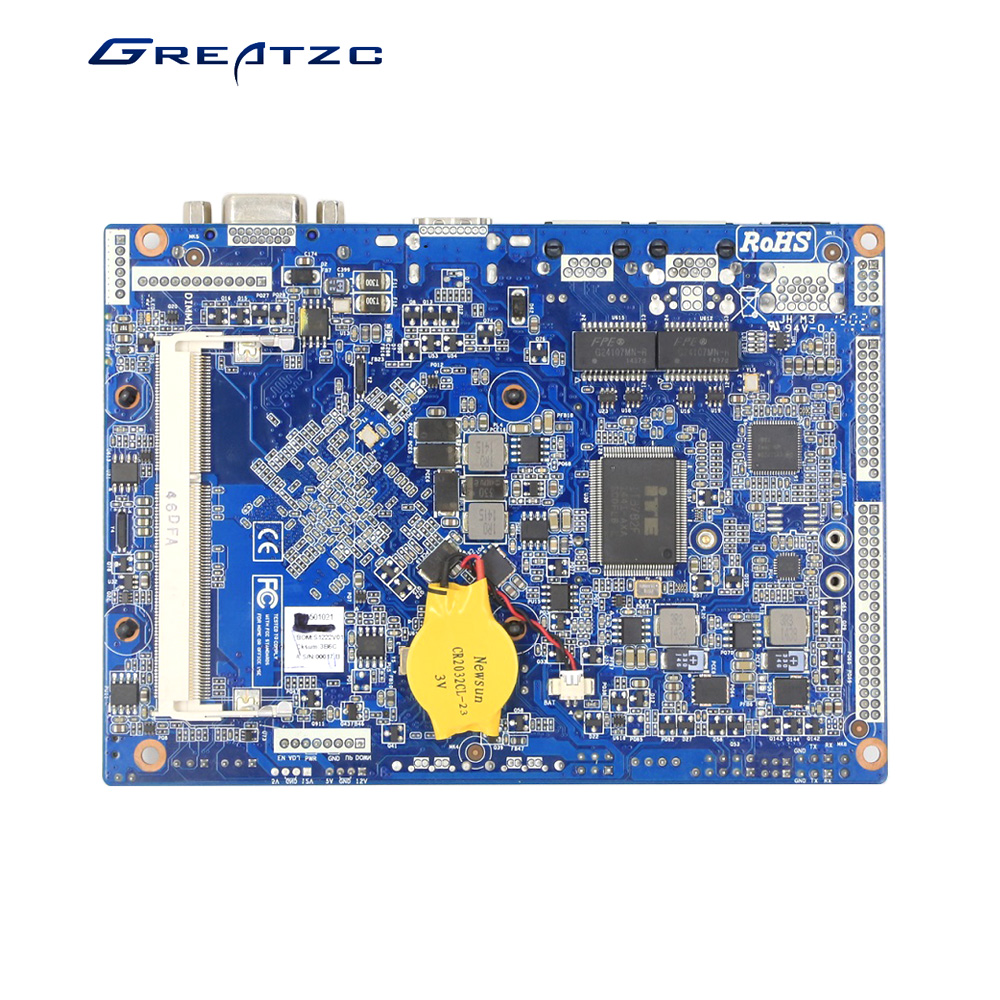

  • 5.jpg

ZC35-EN2807DL 3.5'' Dual LAN Fanless Motherboard With 6 COM Ports

Category:3.5 Inch Motherboard

Description:ZC35-EN2807DL 3.5inch Mini Fanless Industrial Motherboard, With VGA, HDMI, LVDS, Support 6 COM, 2*Gigabit Network Card, With Intel Bay Trail N2807 CPU, TDP only 4.3W. Can be used in Industrial, monitoring, medical,instrument and apparatus. All BAY Trail CPU c...

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC35-EN2807DL 3.5inch Mini Fanless Industrial Motherboard, With VGA, HDMI, LVDS,

Support 6 COM, 2*Gigabit Network Card, With Intel Bay Trail N2807 CPU,

TDP only 4.3W. Can be used in Industrial, monitoring, medical,instrument and apparatus.

All BAY Trail CPU can be customized.



Main Features:

1)Onboard Dual-core N2807 CPU, TDP only 4.3W, 1.58GHz-2.16GHz

2)3.5 inch, Size only 146*104mm, Height only 20mm

3)Fanless design, no noise,Suitable for a unattended workplace for a long time.

4)Abundant Display ports,VGA /VGA pin,HDMI, 24bit LVDS,Support dual screen display output

5)CPU and memory part adopts switching power supply design, strong anti-jamming, more stable.

6)Rich interfaces,2*Gigabit network card, 6*COM, 6*USB 2.0, LPT,GPIO etc.

7)Onboard 1*Mini SATA,1*Mini PCI-E,1*SIM slot,Support SSD,WIFI,3G/4G

8)DC 12V power supply, Suitable for car, camera, etc

9)Support watchdog support Hardware Reset

10)Support Diskless Booting,Wake On LAN,Resume By Alarm.



ZC35-EN2807DL 3.5 inch Fanless Motherboard

CPU

Intel Bay Trail N2807

(1M Cache, dual-core 1.58 GHz, Turbo to 2.16G)

22nm, TDP only 4.3W

RAM

1*SO-DIMM DDR3L 1600MHz Memory,Max 4 GB

Chipset

CPU integrated

Graphics Card

INTEL HD, Support 1080 HD playing.

Storage

1*SATA Slot,1*MSATA SSD

Audio card

Realtek ALC662

Network Card

2*Gigabit Network Card

Expansion Slot

1*MINI PCI-E  Support WIFI or 3G /4G module

1*MINI SATA  Support SSD

 Rear Panel I/O

1*VGA

1*HDMI

2*RJ-45

2*USB

 Internal I/O

DC 12V 4PIN

1*12pin built-in VGA

1*KB/MS pin

2*Fan pin

1*SIM Slot

1*SATA-PW supply

LVDS-CL Backlight power supply

24bit LVDS(30PIN)

F-Pannel pin

1*SATA

COM1-4, 4*RS232

COM 6 support RS485 or TTL

COM5 support TTL

2*F-USB pin, support 4*USB 2.0

1*GPIO pin

1*LPT pin

1*F-AUDIO                                                                               1*AUTO PW ON

1*Mini PCI-E

1*Mini SATA Full-size,support SSD

Display Function

Support VGA,HDMI,LVDS

Support 1080P Playing

Watchdog

Support Hardware Reset

Power Supply

12V DC-In

Size

3.5inch    146*104*20mm
