CPU

LGA 1151 Socket

Support 9th/8th Gen Coffee Lake,also 7th/6th Gen All CPU

Core i3/i5/i7/Pentium/Celeron

Chipset

Intel H310C

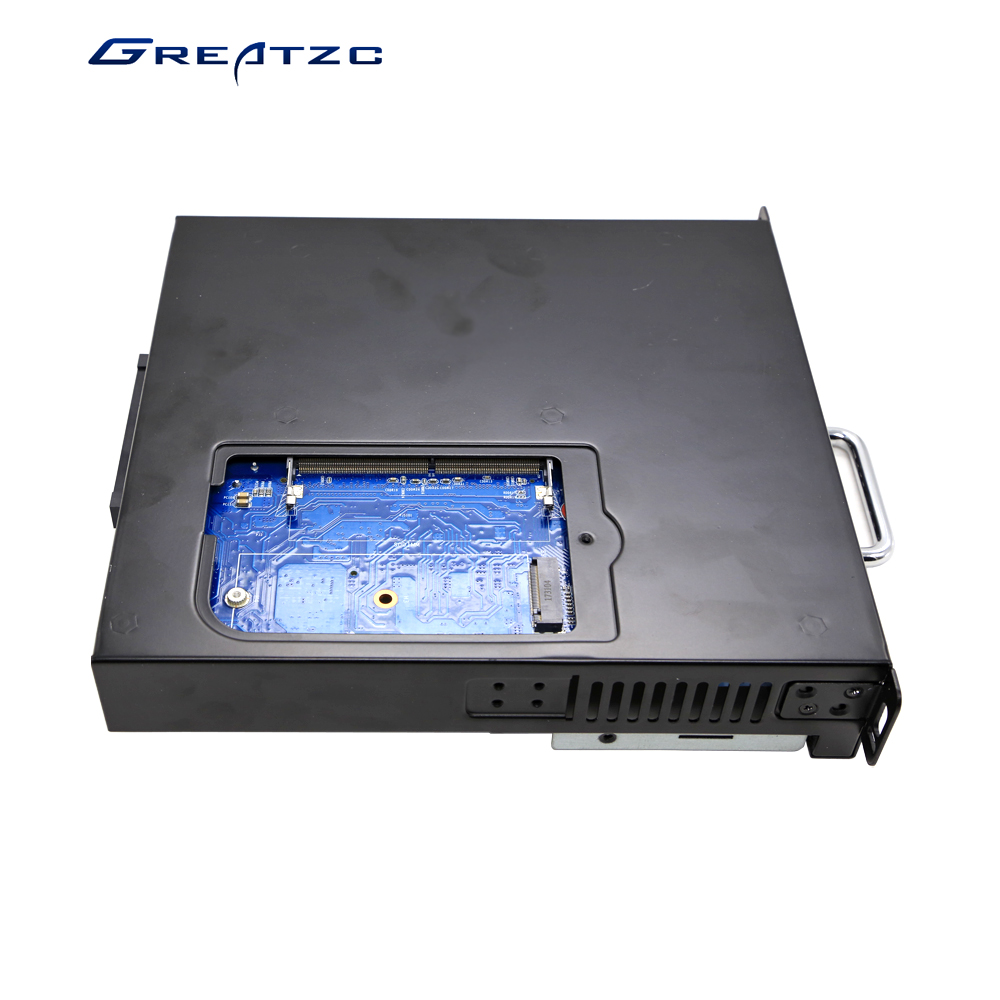

RAM

2*SO-DIMM DDR4

Max 32GB

Graphics

Nvidia GT1030,2GB DDR5 Memory

HDMI 1.4B: Max 4096*2160@30Hz

DP 1.2:Max 4096*2160@60Hz

OPS JAE:Max 4096*2160@60Hz

Display

OPS JAE Port 2 Display Signal from Discrete Graphcis NVIDIA GT1030

DP 1.2: 4096x2304@60Hz

HDMI 2.0: 4096x2304@60Hz

Rear I/O Display Ports Signal from CPU Integrated Graphics

DP 1.2: 4096x2304@60Hz

HDMI 1.4: 4096x2304@30Hz

Note:It need CPU must be integrated Graphics

Hard Disk

1*SATA 2.5inch Slot

1*MSATA SSD Slot

1*M.2 2280 NVME SSD Slot

Network Card

1*RTL8111F Gigabit Card

WIFI/Bluetooth

M.2 2230 Slot WIFI/Bluetooth Module Optional

Audio Card

Realtek HD

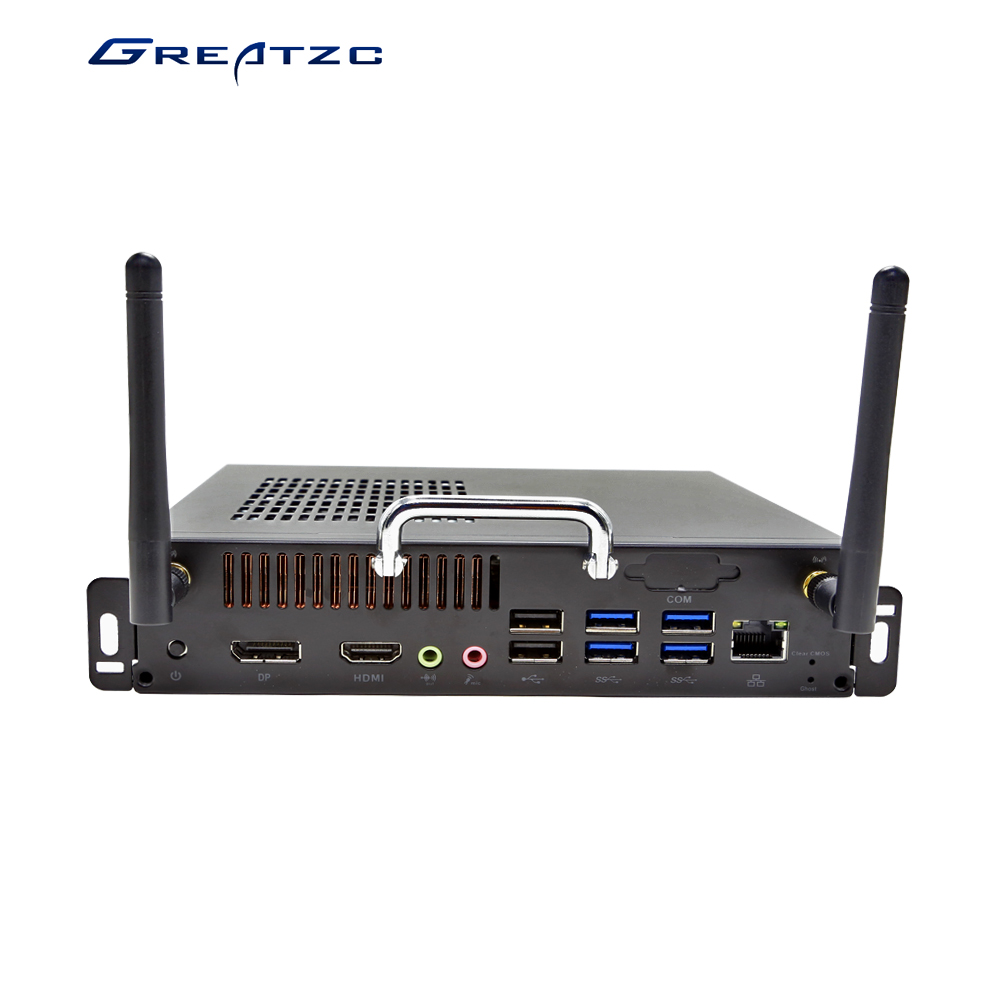

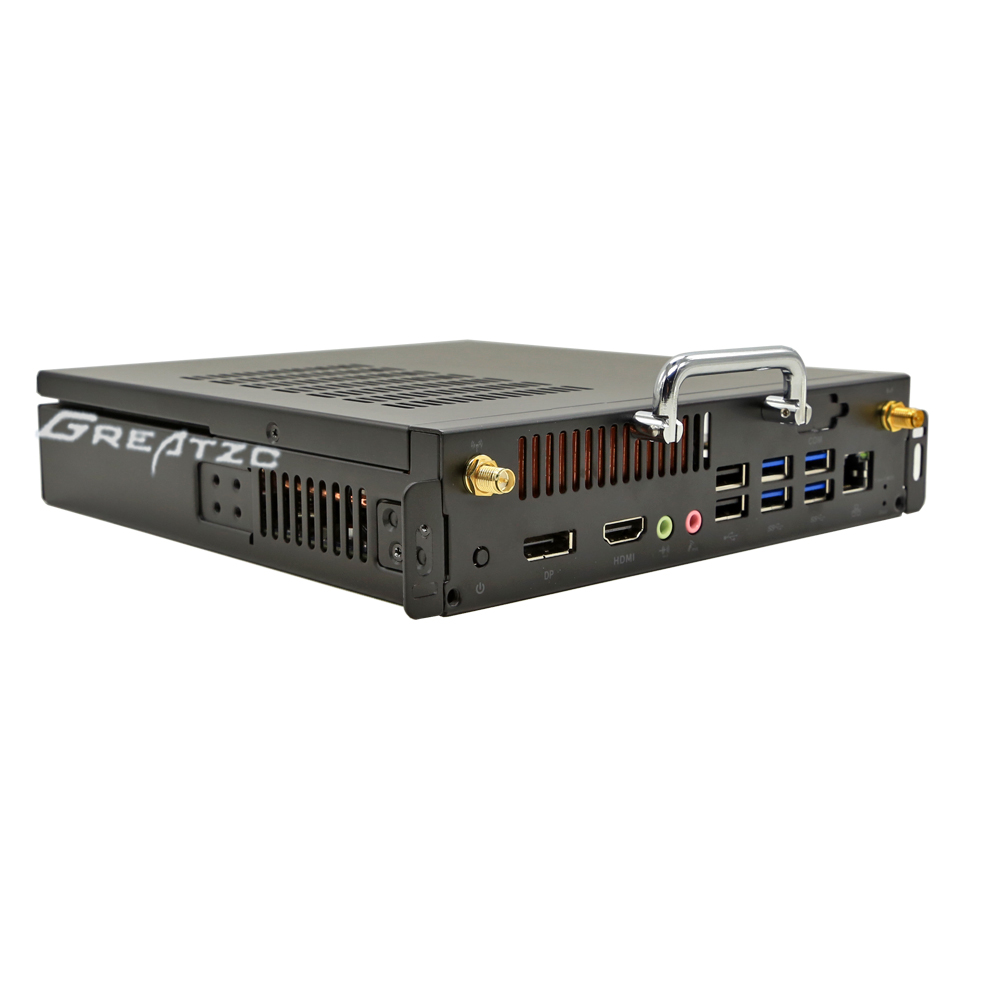

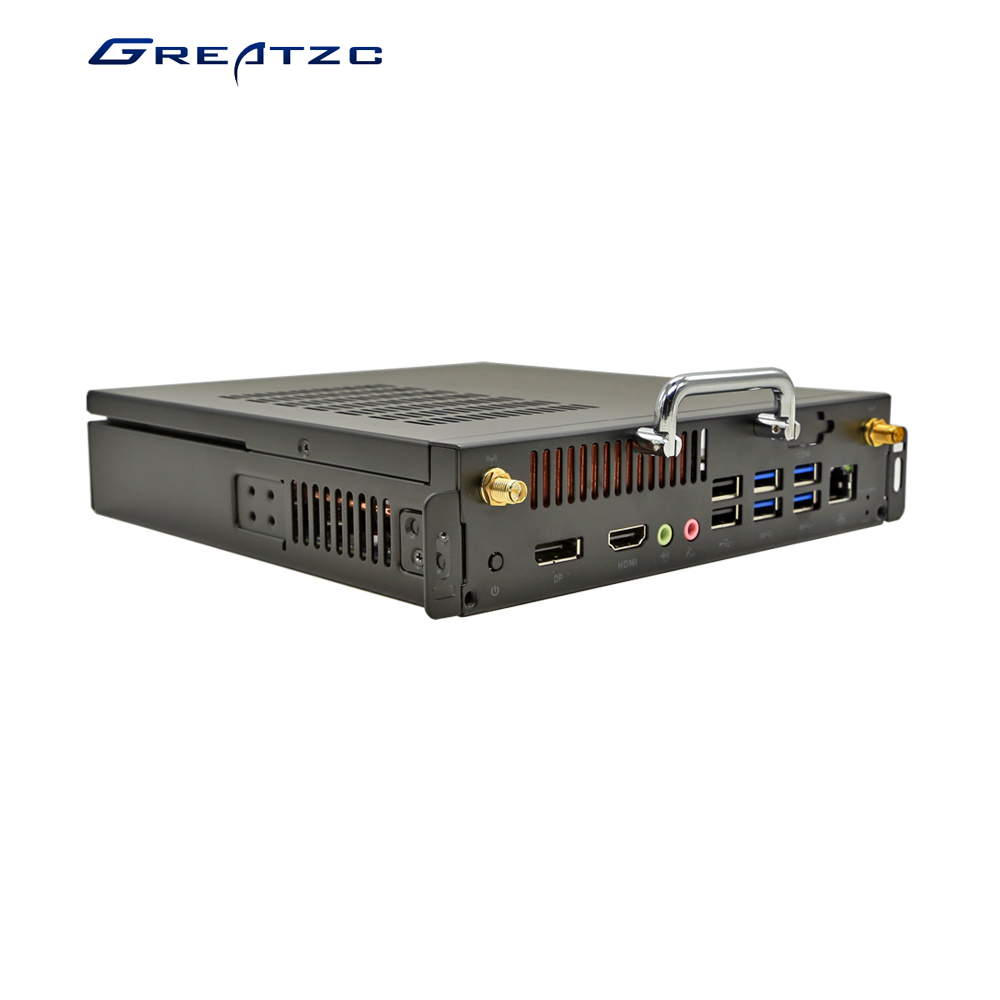

I/O Ports

1*HDMI 1.4

1*DP 1.2

4*USB 3.0

2*USB 2.0

1*RJ45

1*MIC In(3.5mm)

1*Audio Out(3.5mm)

1*Power Button

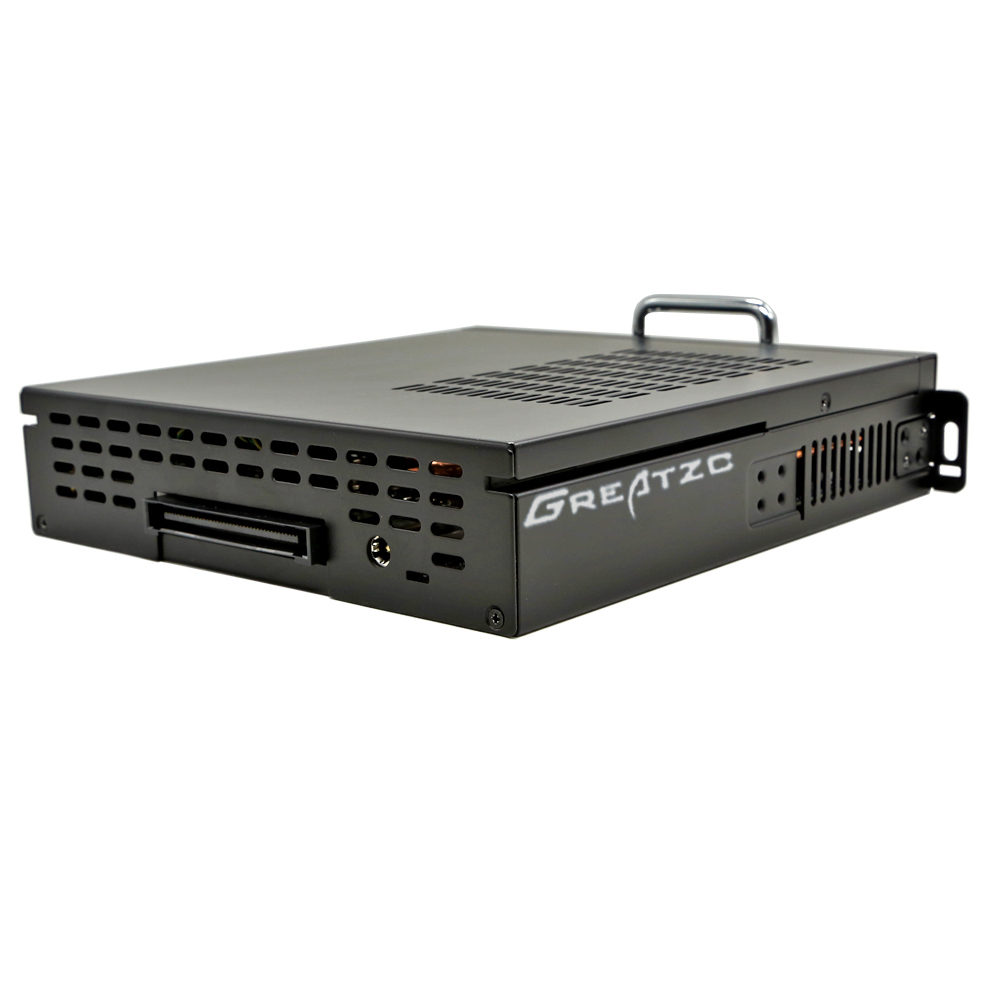

1*OPS JAE TX25 Port

1*RS232 Optional

1*Clean CMOS

1*GHOST Button

2*WIFI Antenna Ports

1*DC Port(Support 12V to 19V)

Size

195*180*42.5mm

Weight

N.W.:1.8KG

Working Temperature

0℃ to +40℃
