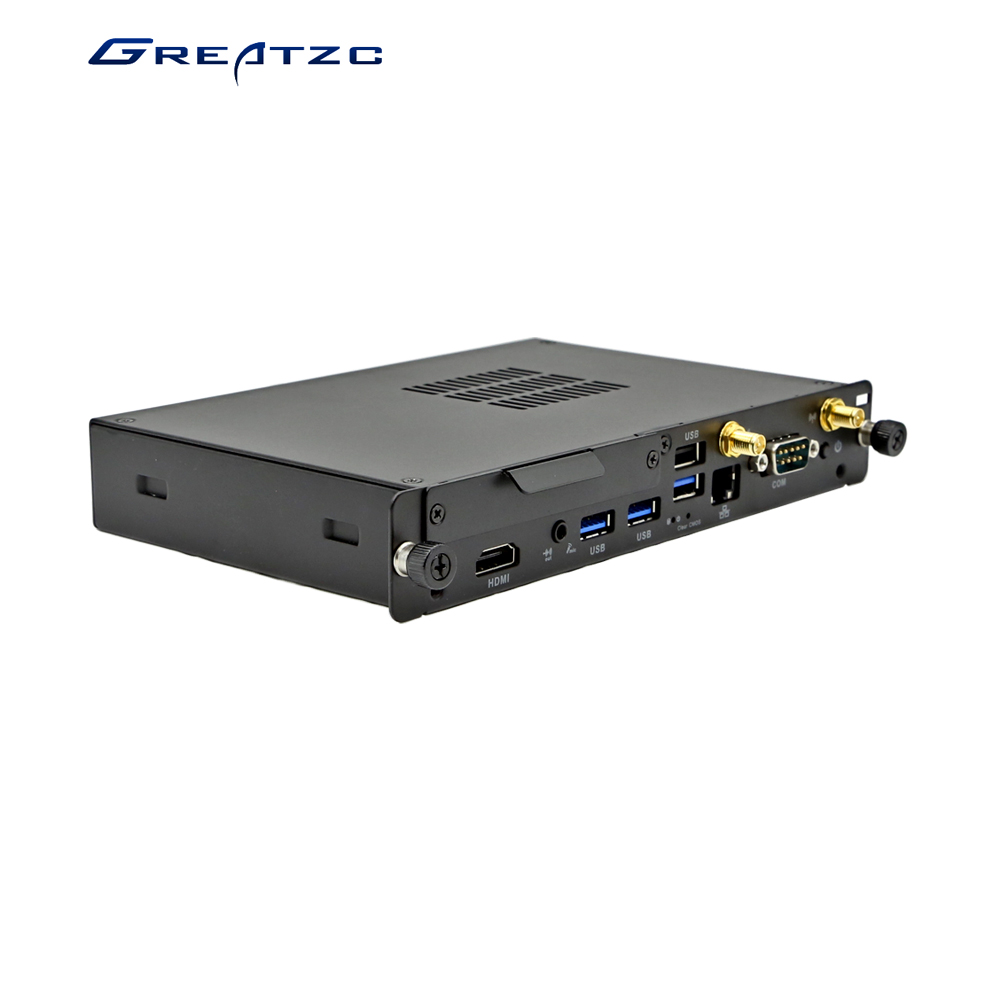

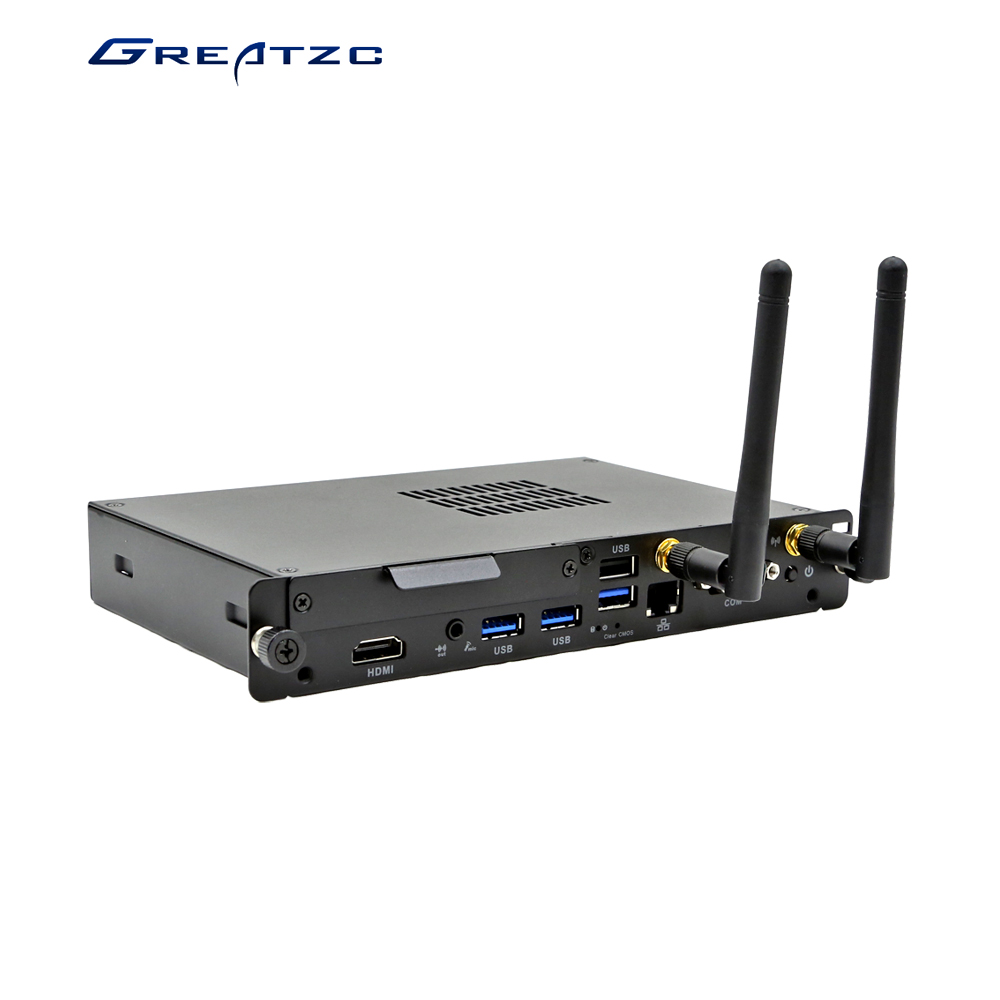

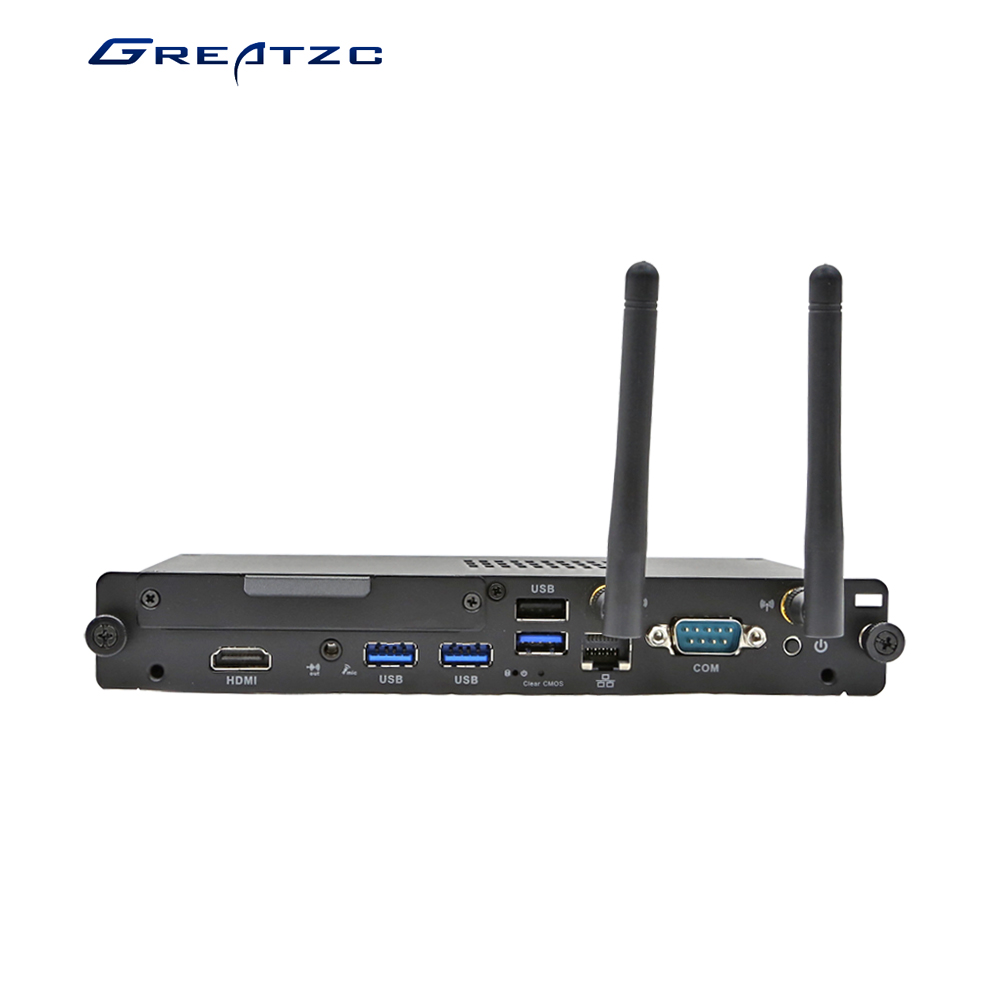

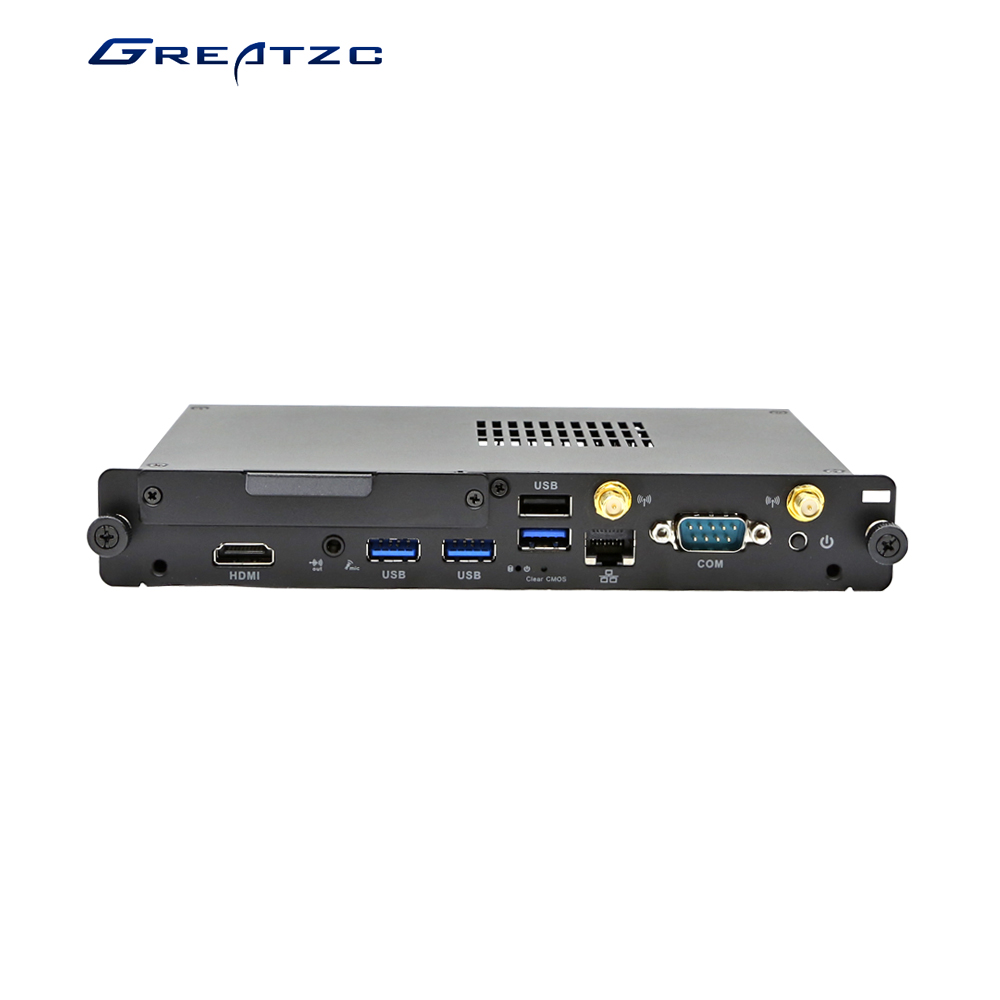

ZC-OPS7200-V2 OPS Mini PC With 7th Gen Kaby lake I5-7200u Dual Core 4 Thread 2.5GHz
Turbo Boost 3.1GHz,Intel HD 620 GPU,Support 4K,3*USB 3.0,1*USB 2.0
1*RJ45 Lan Port,1*JAE Port,1*HDMI,DC12V-19V.
Main Features:
1.Onboard CPU INTEL I5-7200u Dual Core 4 Thread 2.5GHz.
Turbo Boost 3.1GHz,3MB L3 Cache TDP only 15W.
2.Standard OPS Frame,the Size is 180*119*30mm.
3.With Graphic Card:Intel HD620,Support 4K.
4.With MINI SATA ,SATA,Support Both SSD and 2.5 inch HDD.
5.Onboard M.2 Slot,Support WIFI/Bluetooth Module.
6.Silent Fan,Low Noise,Excellent Heat Exchange.
7.Good Quality:All Solid Cap,With Stable and Reliable Performance.
ZC-OPS7200-V2 OPS Mini PC Specification
|
CPU |
7th Gen INTEL Kaby Lake I5-7200u Dual Core 4 Thread 2.5GHz Turbo Boost 3.1GHz 3MB L3 Cache TDP only 15W |
|
RAM |
2*SO-DIMM DDR4, Max 32GB |
|
Hard Drive |
1*SATA 2.5inch 1*mSATA |
|
Graphics Card |
Intel HD 620 Support 4K |
|
Display |
OPS JAE 80Pins: 4096*2160@60Hz |
|
Network Card |
1*Intel I219 Gigabit Network Card WIFI Optional |
|
Outside I/O Ports |
1*DC Port 1*HDMI 1*OPS JAE Port 3*USB 3.0 1*USB 2.0 1*RJ45 1*COM 1*Power Button 2*WIFI Antenna Ports |
|
Internal I/O Port |
1*SATA 3.0 1*MINI SATA 3.0,Support SSD 1*M.2(Support WIFI/Bluetooth Module) |
|
Size |
Product Size:180*119*30mm |
Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
