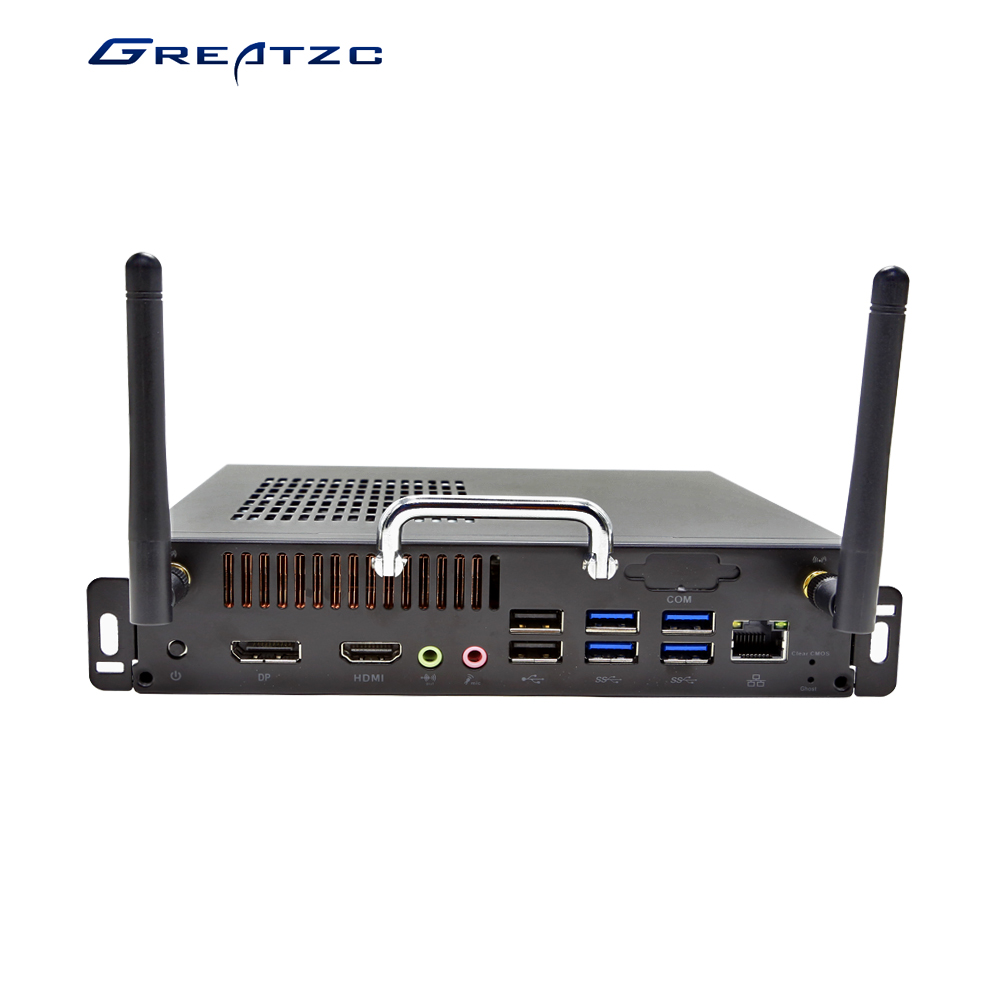

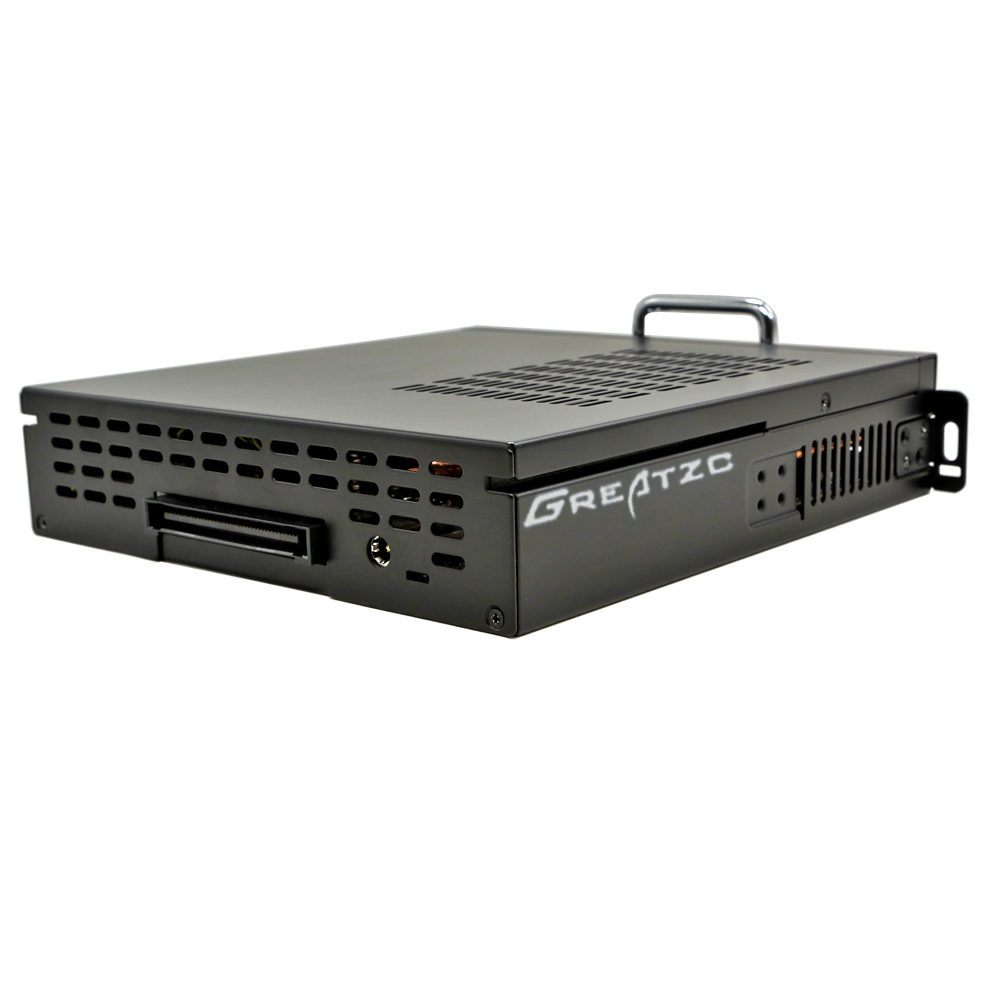

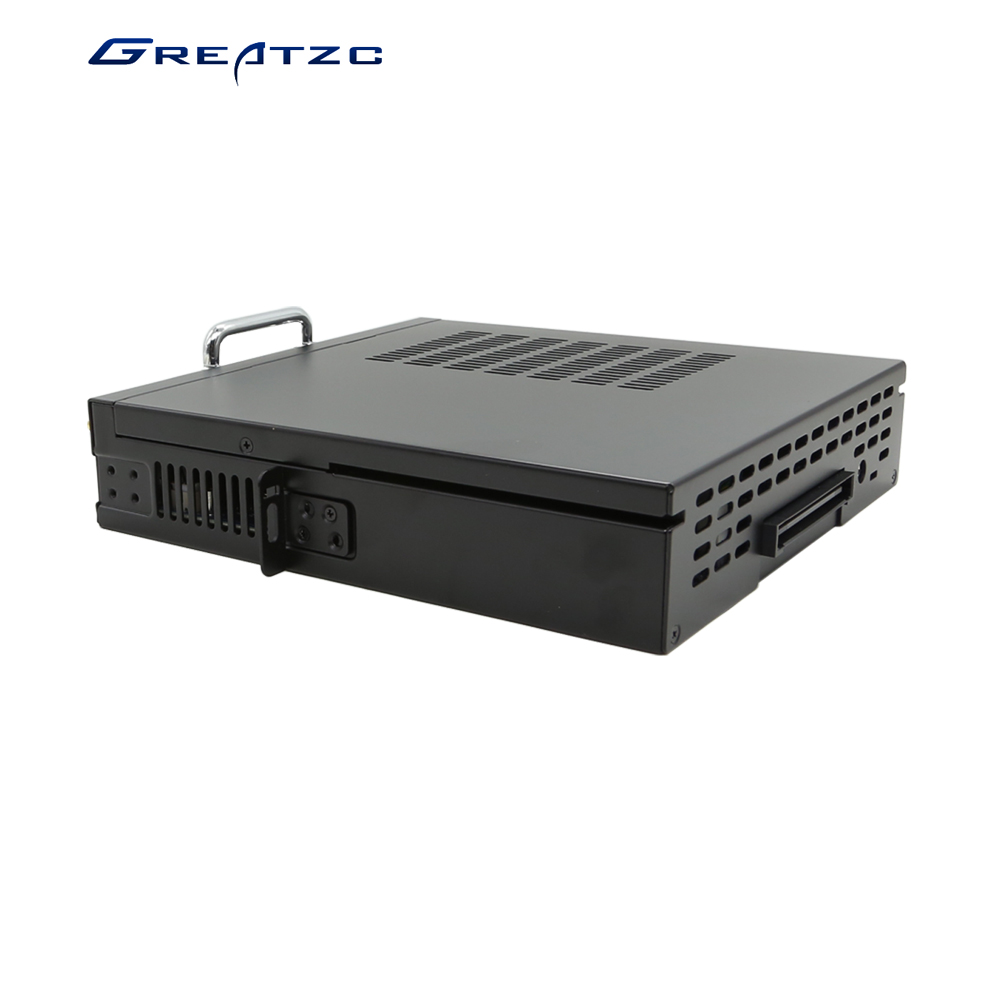

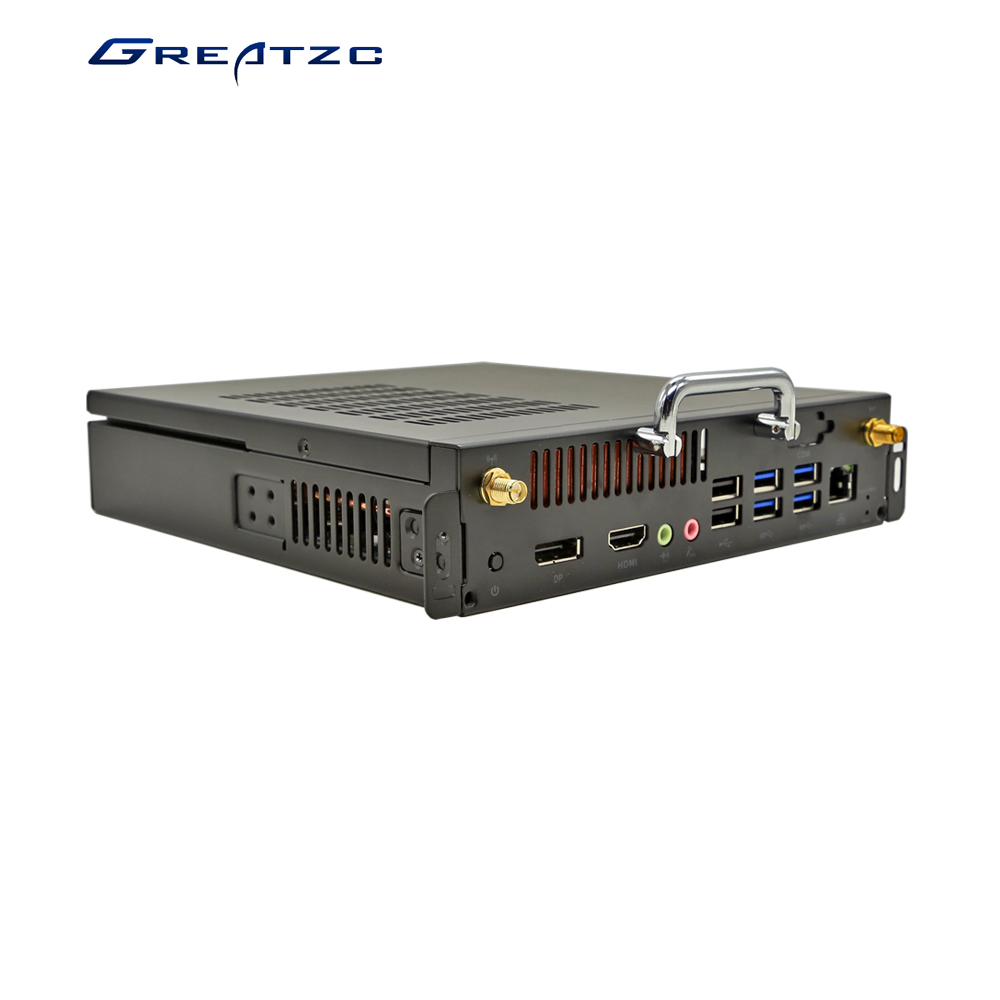

ZC-OPS1030 OPS Mini PC With Intel LGA1151 Socket,Graphics Card Nvidia GT1030
Support 7th Gen I3/I5/I7 CPU,With DP,HDMI,Support Double Display,4*USB 3.0,
2*USB 2.0,1*MIC,1*SPK,1*RJ45 Lan Port,1*OPS Port,2*WIFI Antenna Ports,
19V DC In
Main Features:
1. With Intel LGA 1151 Socket,Support 6th,7th Gen Core I3/I5/I7.
2. Onboard Graphics Card Nvidia GT1030,Support 4K.
2. Standard OPS Frame,the Size is 195*180*42.5mm.
3. Double Display,With DP and HDMI,Support Double Display.

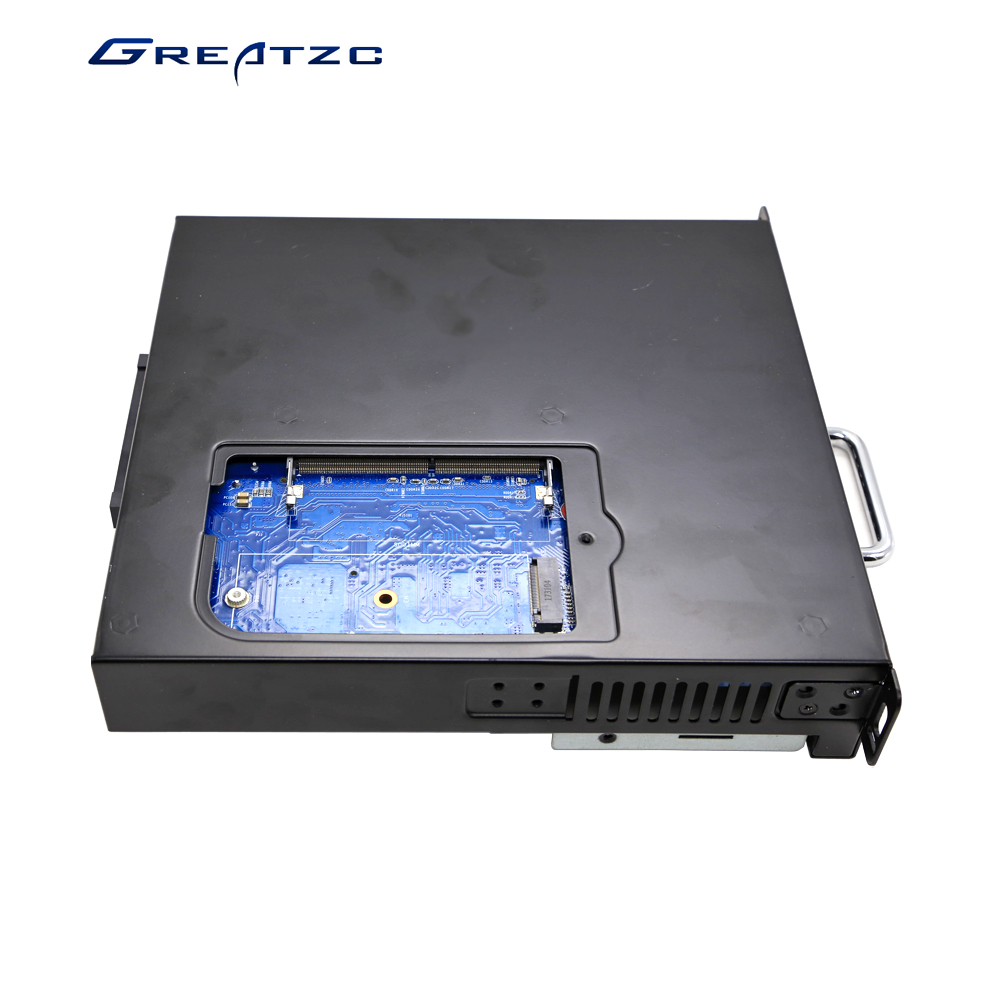

4. With MINI SATA ,SATA,M.2 Slots,Support Both SSD and 2.5 inch HDD.
5. Onboard MINI PCIE ,Support WIF.SIM Card Can Be Customized.
6. Silent Fan,Low Noise,Excellent Heat Exchange.
7. Good Quality:All Solid Cap,With Stable and Reliable Performance.
ZC-OPS1030 OPS Mini PC Specification
|
CPU |
With Intel LGA 1151 Socket Support LGA 1151 Core i3/i5/i7/Pentium/Celeron 6th Generation and 7th Generation |
|
Chipset |
Intel H110 |
|
RAM |
2*SO-DIMM DDR4 2133/2400M,Max 32GB |
|
Graphics |
Onboard Nvidia GT1030,2GB DDR5 Memory HDMI 1.4B: Max 4096*2160@30Hz DP 1.2:Max 4096*2160@60Hz OPS JAE:Max 4096*2160@60Hz |
|
Hard Disk |
1*SATA 2.5inch 500GB,1TB,2TB 1*mSATA SSD 32GB,64GB,128GB,256GB 1*M.2 SSD 32GB,64GB,128GB,256GB |
|
Network Card |
1*RTL8111F Gigabit Card WIFI Optional |
|
OUT I/O Port |
1*DC Port 1*HDMI 1.4B 1*DP 1.2 4*USB 3.0 2*USB 2.0 1*RJ45 1*MIC 1*Audio Out 2*WIFI Antenna Ports 1*Power Button 1*OPS JAE TX25 Port 1*RS232 Optional |
|
Size |
195*180*42.5mm |
|
Weight |
N.W.:1.8KG |
|
Power Adapter |
Φ=5.5*2.5mm DC Port,DC 19V. It is optional,Need Additional Cost |
