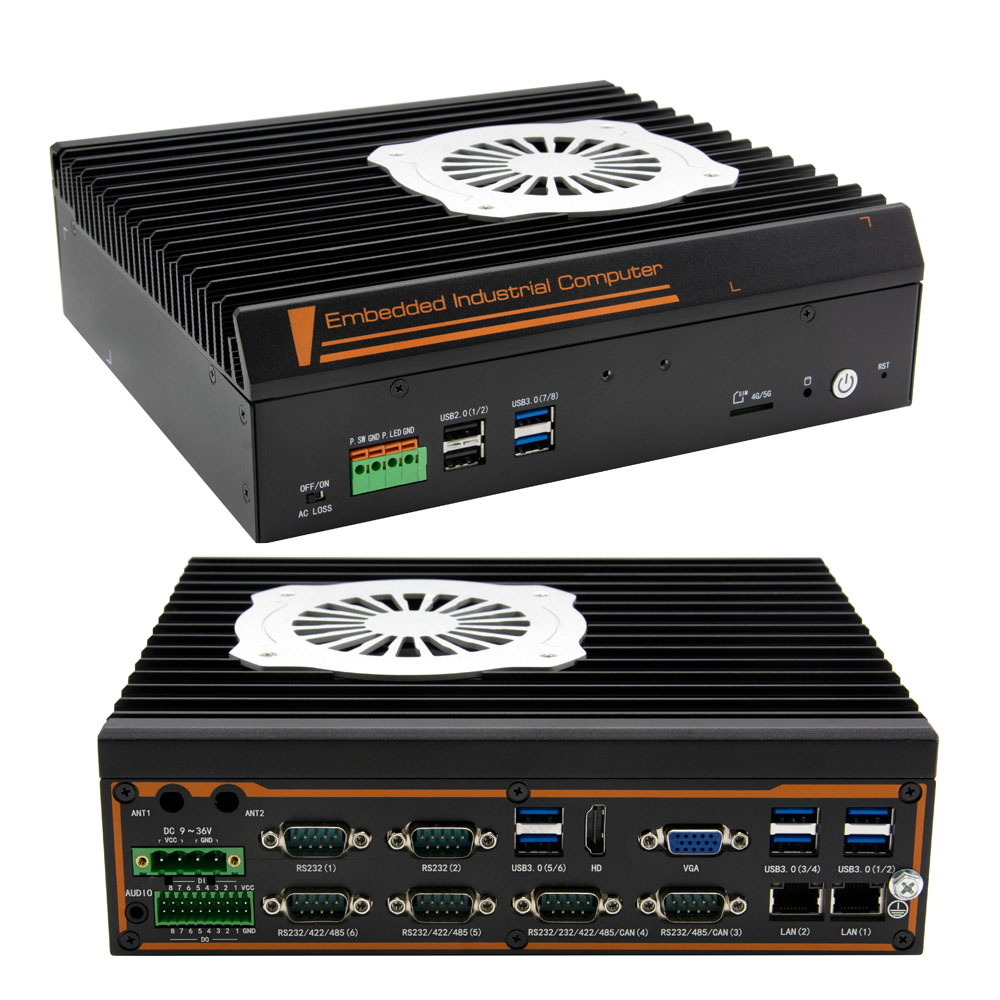

ZC-G770F-P4 Industrial PC 12th 13th 14th Core I3 I5 I7 CPU,2*LAN,2*RS232,4*RS232/422/485 9-36V Power In
Main Feature
● Intel LGA1700 12th/13th/14th CPU
● Intel®H770 Chipset
● 2*SODIMM 2400MHz DDR4,Max 64GB
● 1*HDMI+1*VGA,Support Double Display
● 2*Intel I210AT Gigabit
● 2*RS232,4*RS232/422/485,COM3/4 Support CAN
● 8*USB3.0,2*USB2.0,1*USB2.0 Inside
● DIO 7in 7 out isolated
● DC 9~36V Power Input(1*4Phoenix terminal)
● Fan or fanless heat dissipation, copper tube heat conduction
|
Model |
ZC-G770F-P4 V1.0 |
|
|
Chasiss |
Material/structure |
Aluminum alloy + sheet metal material fan cooling or fanless cooling |
|
Color |
Black |
|
|
Dimensions (length, width and height) |
229*208*67.7MM |
|
|
Weight |
3.4KG |
|
|
Install |
Desktop/embedded/DIN rail |
|
|
Motherboard |
CPU |
Intel®LGA1700 12th/13th/14th Celeron/Pentium/Core/i3/i5/i7
|
|
Chip |
Intel®H770 |
|
|
Display |
Intel HD Graphics |
|
|
RAM |
2*SODIMM 2400MHz DDR4,Max 64GB |
|
|

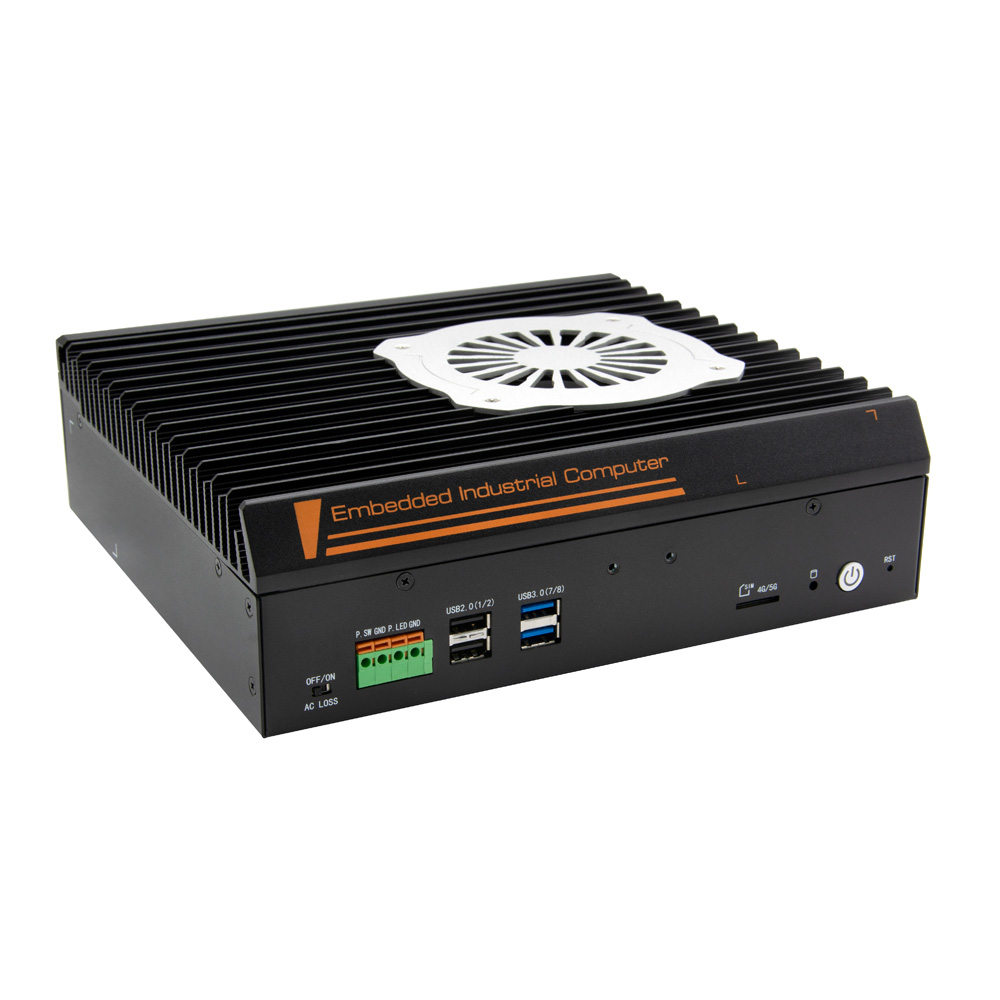

Front |
On/Off |
1*Power Button With LED,1*Restart，1*ACLOSS |
|
LED |
1*Hard Disk |
|
|
USB |
2*USB3.0，2*USB2.0 |
|
|
Phoenix terminal |
1*4pin |
|
|
SIM |
1*SIM |
|
|

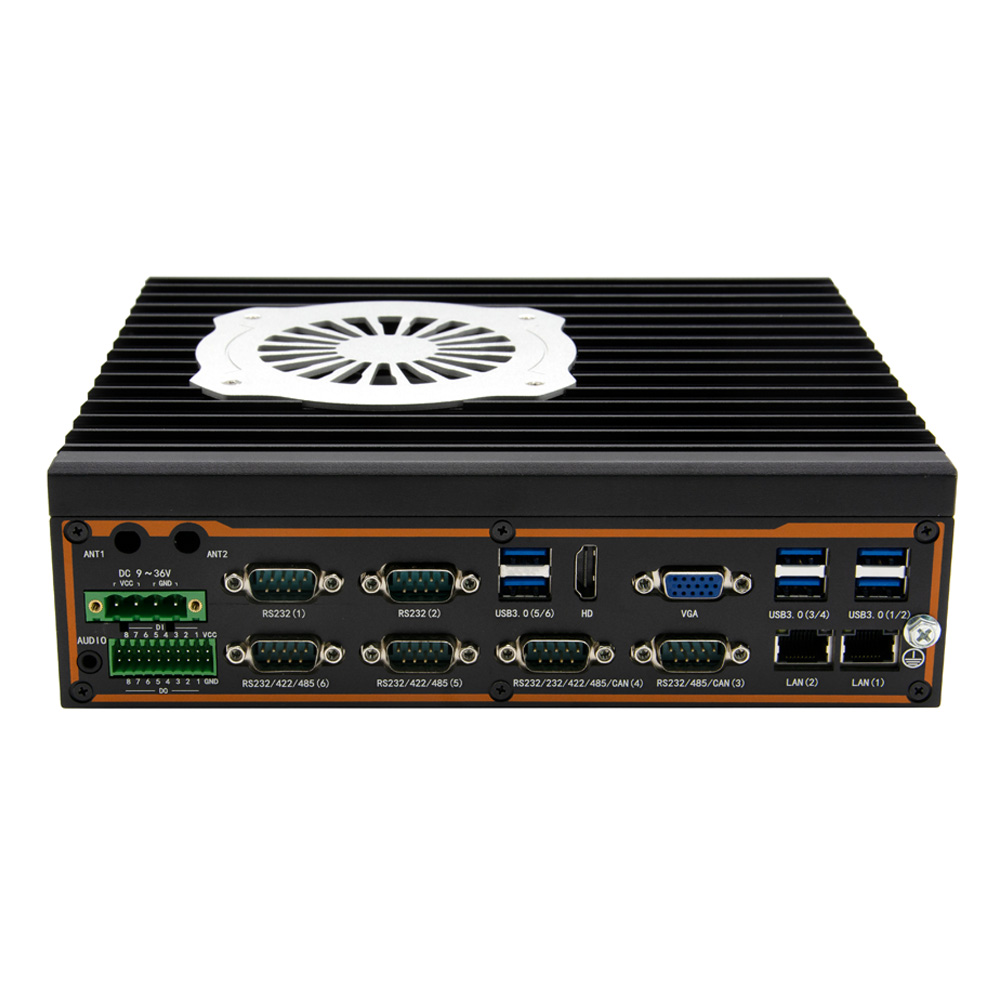

Rear |
Button |
1*Power Button With LED， 1*Restart |
|
LED |
1*Hard Disk LED |
|
|
Display |
1*VGA(1920*1200@60Hz)，1*HDMI1.4 |
|
|
USB |
6*USB3.0 |
|
|
COM |
2*RS232,4*RS232/422/485,COM3/4 Support CAN COM3/4 Support CAN(Need to load CAN module) |
|
|
LAN |
2*Intel I210AT Gigabit |
|
|
Phoenix terminal |
2*8pin(7in7out GPIOisolated） |
|
|
Audio |
1*Audio，Line out and MIC in one |
|
|
Power Connector |
1*4pinPhoenix terminal,Support DC 9~36V |
|
|
Storage |
SATA |
1*2.5 Hard Disk |
|
MSATA |
1*MSATA |
|
|
M.2 |
1*M.2/SSD，Support Key-M，2280，NVME PCIEx4 SSD |
|
|
Expand |
MINIPCIE |
1*MINIPCIE，Support WiFi/4G(Shares a SIM card slot with 5G, default M.2 5G) |
|
M.2 |
1*M.2/WiFi，Support Key-E, 2230, WiFi module |
|
|
1*M.2/5G,Support Key-B, 2242/52, 5G module (shares a SIM card slot with 4G, default M.2 5G) |
||
|
OS |
Microsoft |
Windows 10/11 |
|
Linux |
Linux |
|
|
Power |
Type |
1*4pinPhoenix terminal |
|
Voltage Input |
DC 9-36V |
|
|
Output |
AC TO DC 90W Above |
|
|
Environment |
Operating Temp |
-10℃～60℃ |
|
Storage Temp |
-20℃～70℃ |
|
|
Relative humidity |
5%-95%Relative humidity, non-condensing |
|
|
Work shock |
0.5g rms/5-500HZ/random/operating |
|
