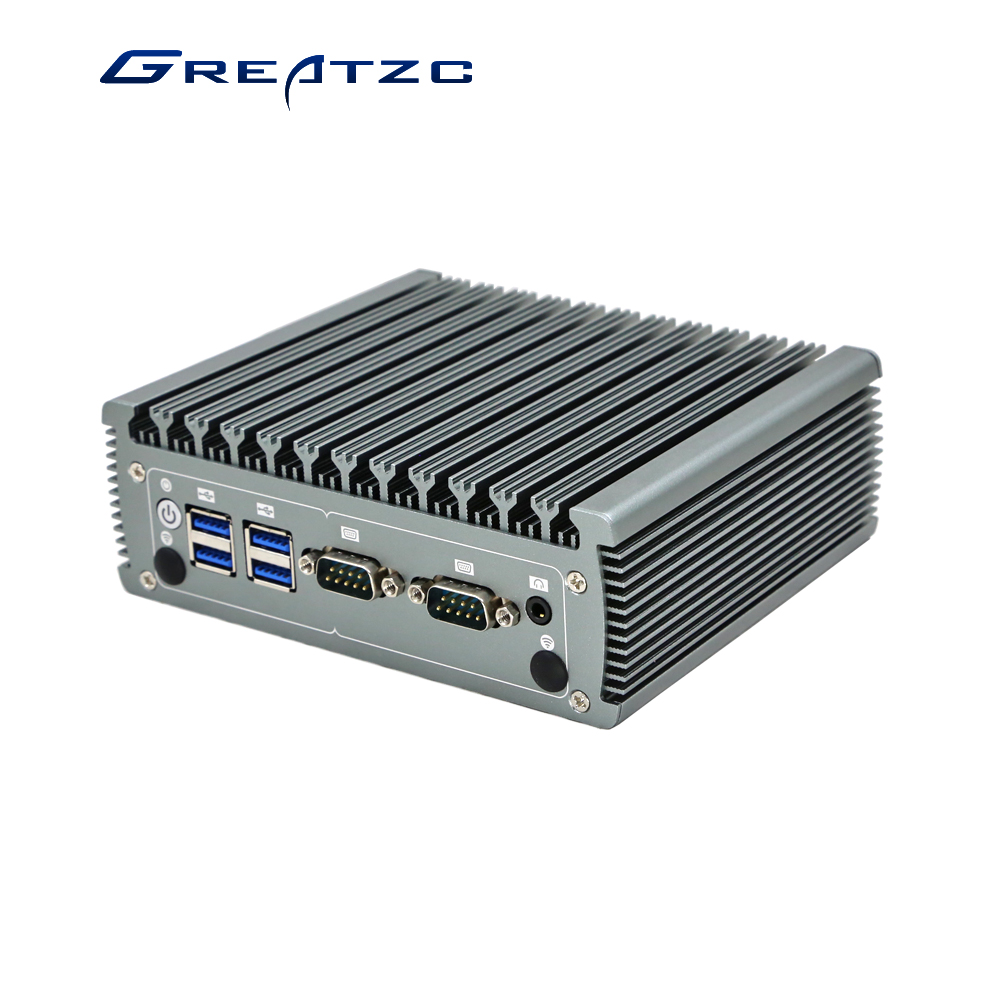

ZC-G6412DL-V2 Fanless Industrial Mini PC Onboard CPU Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz
2*Realtek RTL8111H Network,1*HDMI+1*VGA,2*COM,4*USB 3.0,2*USB 2.0,1*Line Our/Mic,1*DC12V Jack,2*Antenna Holes
Features:
1.) Onboard CPU Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz
2.) With 2*Realtek RTL8111H,Support Wake-on-LAN/PXE
3.) 1* M.2 Key-M 2280/2242 NVME/SATA SSD Slot
4.) Support Doubel Display 1*HDMI+1*VGA
5.) Rich USB,4*USB 3.0 Ports+2*USB 2.0 Ports
6.) With 2*COM,Support 2*RS232/485
7.) Fanless Passive Cooling,Aluminium Alloy Case
8.) Industrial Grade,Low Power Low Power Consumption
9.) Small Size Only 157x130x52mm
|
Chassis |
Material |
Aluminium Alloy |
|
Color |
Silver Gray |
|
|
Size |
157x130x52mm |
|
|
Weight |
0.7KG |
|
|
Motherboard |
CPU |
Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W |
|
Chipset |
SOC |
|
|
Graphics |
Intel UHD Graphics for 10th Gen Intel Processors |
|
|
Display |
1*HDMI |
|
|
1*VGA |
||
|
Network Card |
2*Realtek RTL8111H,Support Wake-on-LAN/PXE |
|
|
Memory |
1*SO-DIMM DDR4,Max 32GB |
|
|
Storage |
1* M.2 Key-M 2280/2242 NVME/SATA SSD Slot 128GB/256GB/512GB/1TB Optional |
|
|
I/O |

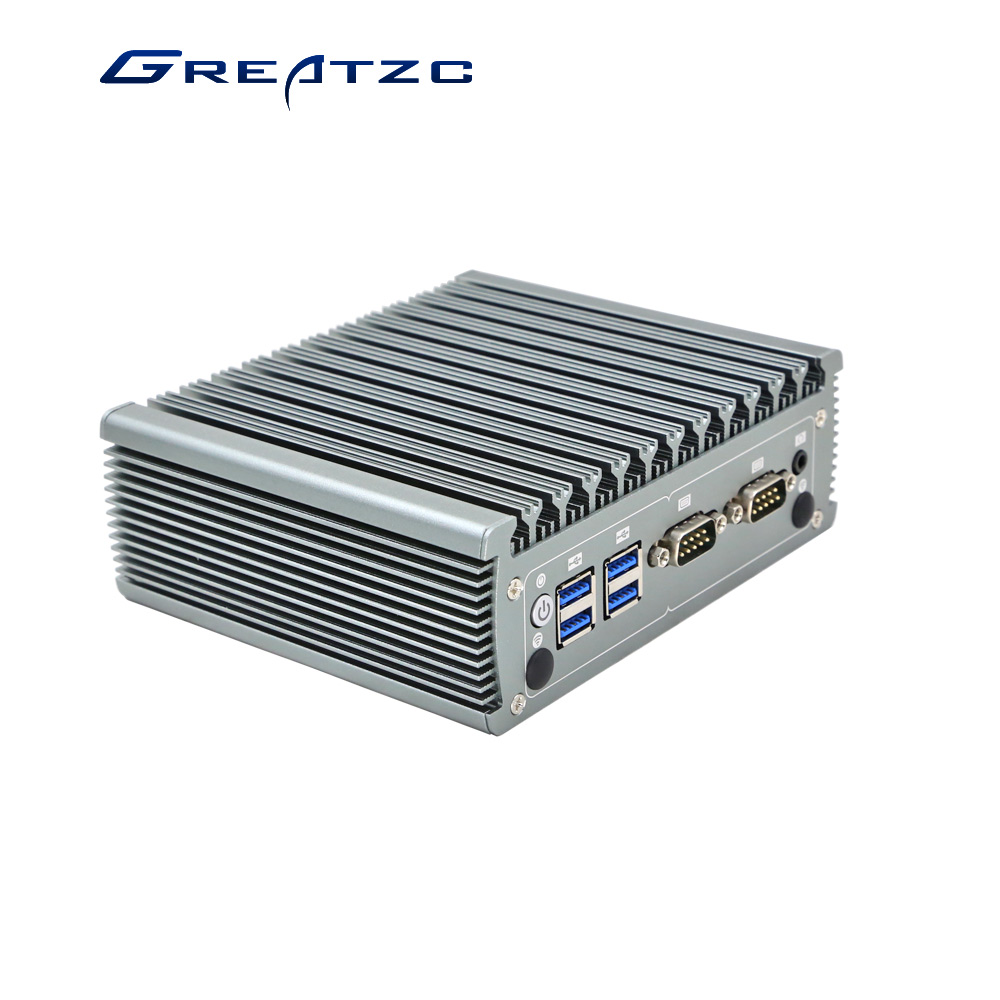

Front |
1*Power Button |
|
4*USB3.0 |
||
|
2*COM |
||
|
1*Line Out/Mic |
||
|

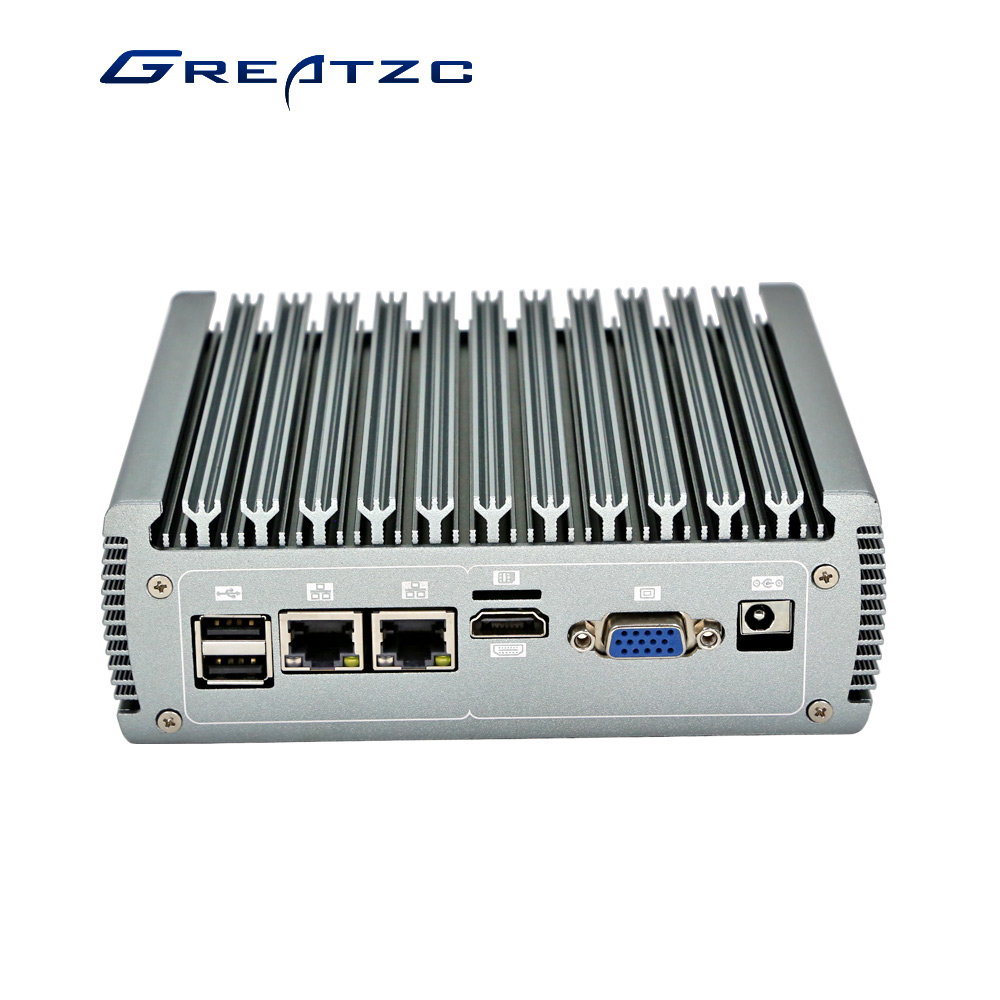

Rear |
1*HDMI |
|
|
1*VGA |
||
|
2*USB 2.0 |
||
|
2*RJ45 |
||
|
1*DC_IN |
||
|
Extension |
1*mPCIE,1*SIM Slot |
WIFI/4G Module Optional |
|
Software Support |
OS |
Support Windows10/11/Linux |
|
BIOS |
128Mb Flash ROM |
|
|
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
|
Cooling System |
Cooling Mode |
Fanless Passive Cooling |
|
Power Supply |
Input |
DC 12V(5.5*2.5) |
|
Environment |
Working Temp |
-10~60℃ |
|
Storage Temp |
-20~70℃ |
|
|
Working Humidity |
0% ~ 95% Relative humidity, non-condensing |
