ZC-WG12 Fanless Industrial PC Onboard Intel 12th Gen I3-1215U/ I5-1235U/ I7-1255U CPU,Intel Iris Xe Support 4K,2*LAN Ports
2*HDMI+1*DP Support 3 Display,With 4*USB 3.0,2*USB 2.0,1*Type C,1*Audio In,1*Audio Out
Main Features:
1.) Onboard Intel 12th Gen I3-1215U/ I5-1235U/ I7-1255U CPU
2.) Onboard Intel Iris Xe Graphics,Support 4K
3.) With 2*HDMI+1*DP Ports,Support 3 Display
4.) 4*USB 3.0+2*USB 2.0+USB Type C
5.) With 2*M.2+1*SATA 2.5’’ Hard Disk Slot
6.) Onboard 2*Intel i226-V 2.5G,Suppot PXE/Wake on LAN
7.) Full aluminium alloy shell,dustproof,durable,resist compression
8.) 1*M.2 2230 for WIFI/3G/4G module,1*SIM Slot
ZC-WG12 Fanless Industrial PC Specification
|
CPU |
Intel 12th Gen I3-1215U 6 Cores 3.3GHz to 4.4GHz |
|
Intel 12th Gen I5-1235U 10 Cores 3.3GHz to 4.4GHz |
|
|
Intel 12th Gen I7-1255U 10 Cores 3.5GHz to 4.7GHz |
|
|
Memory |
2*DDR4 SO-DIMM |
|
Storage |
1*M.2 Key-M 2280 NVME/SATA SSD |
|
1*M.2 Key-M 2280 SATA SSD |
|
|
1*2.5’’ Disk Slot(Optional) |
|
|
Graphics Card |
Intel Iris Xe Graphics eligible |
|
Network Card |
2*Intel i226-V 2.5G |
|
Support Wake On LAN,PXE |
|
|
Front Ports |

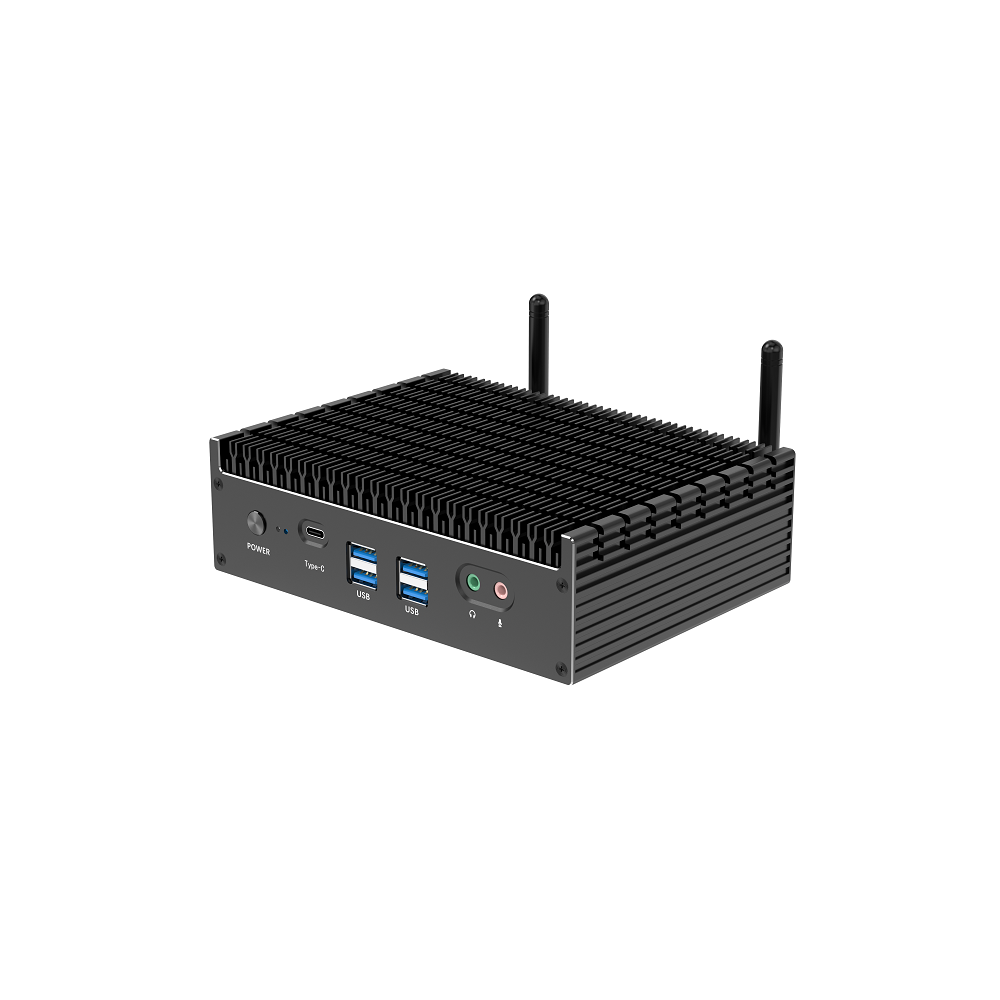

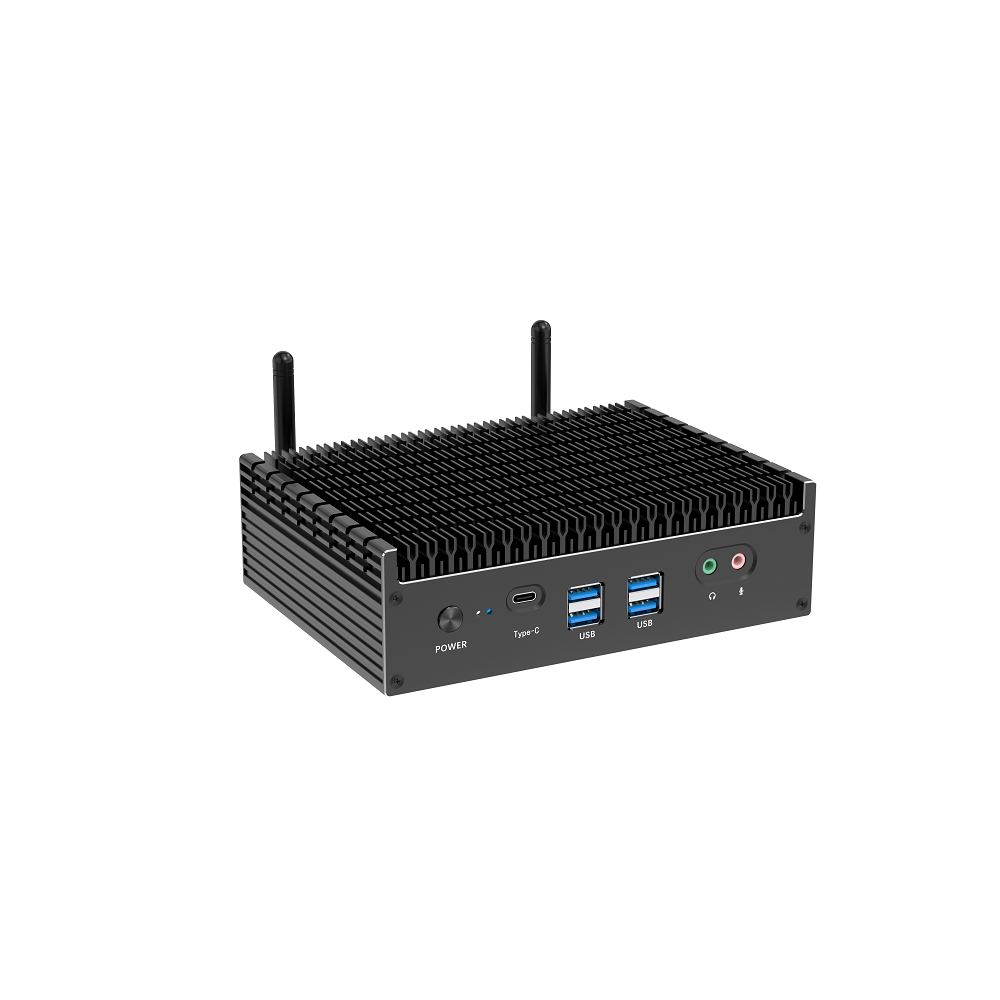

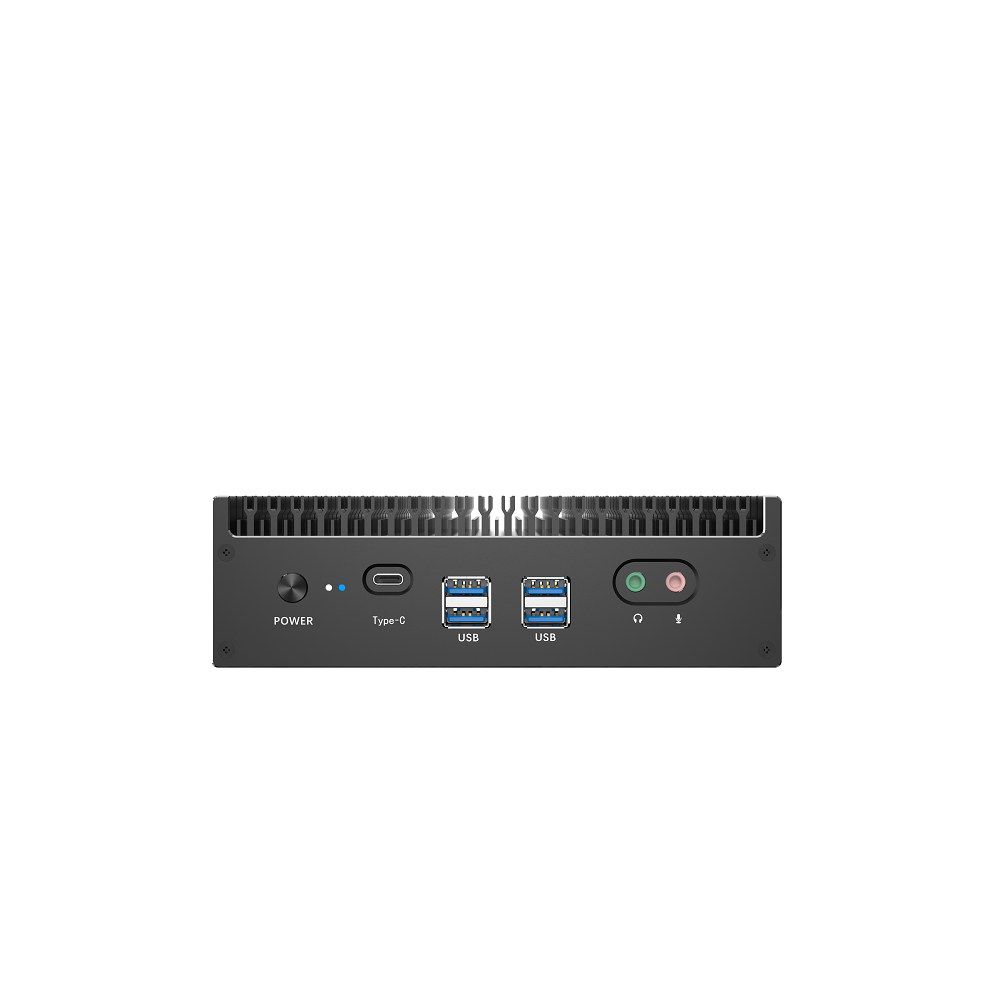

4*USB 3.0 1*USB Type C 1*Audio Out 1*Mic In 1*Power Button |
|
Rear Ports |

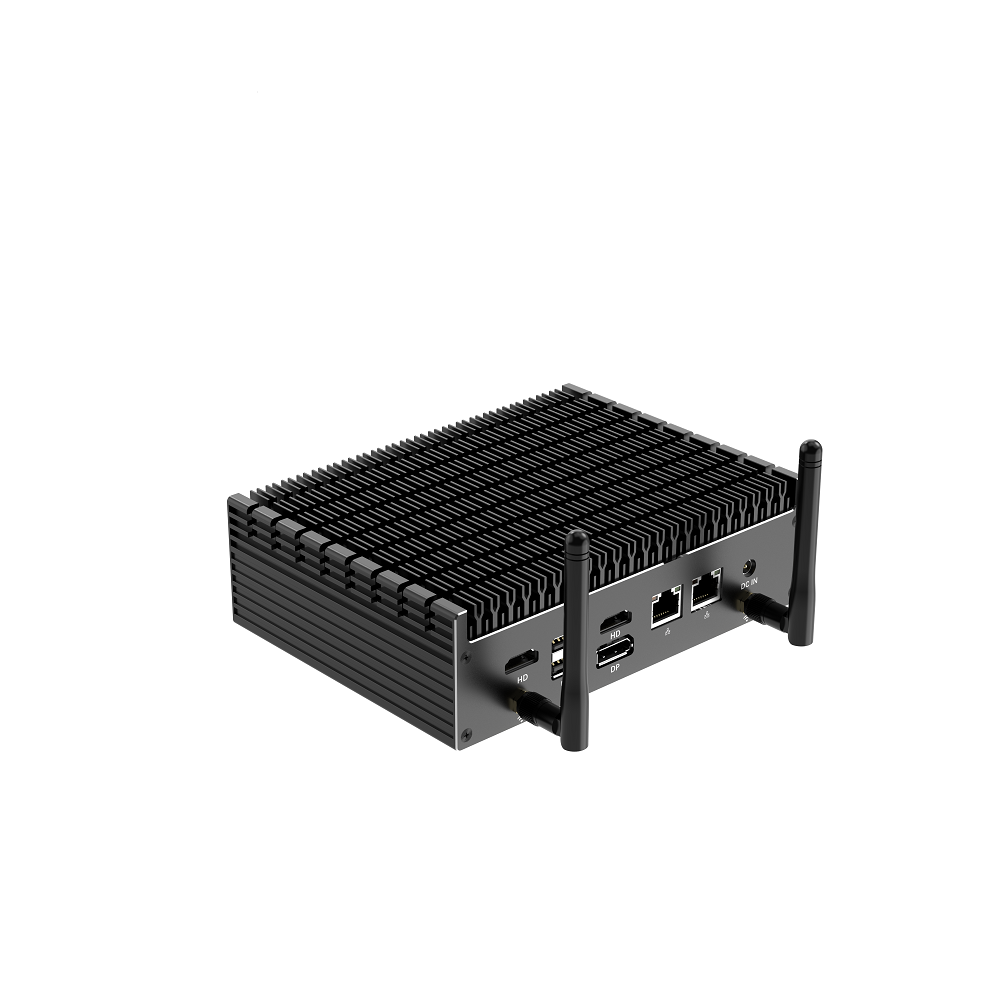

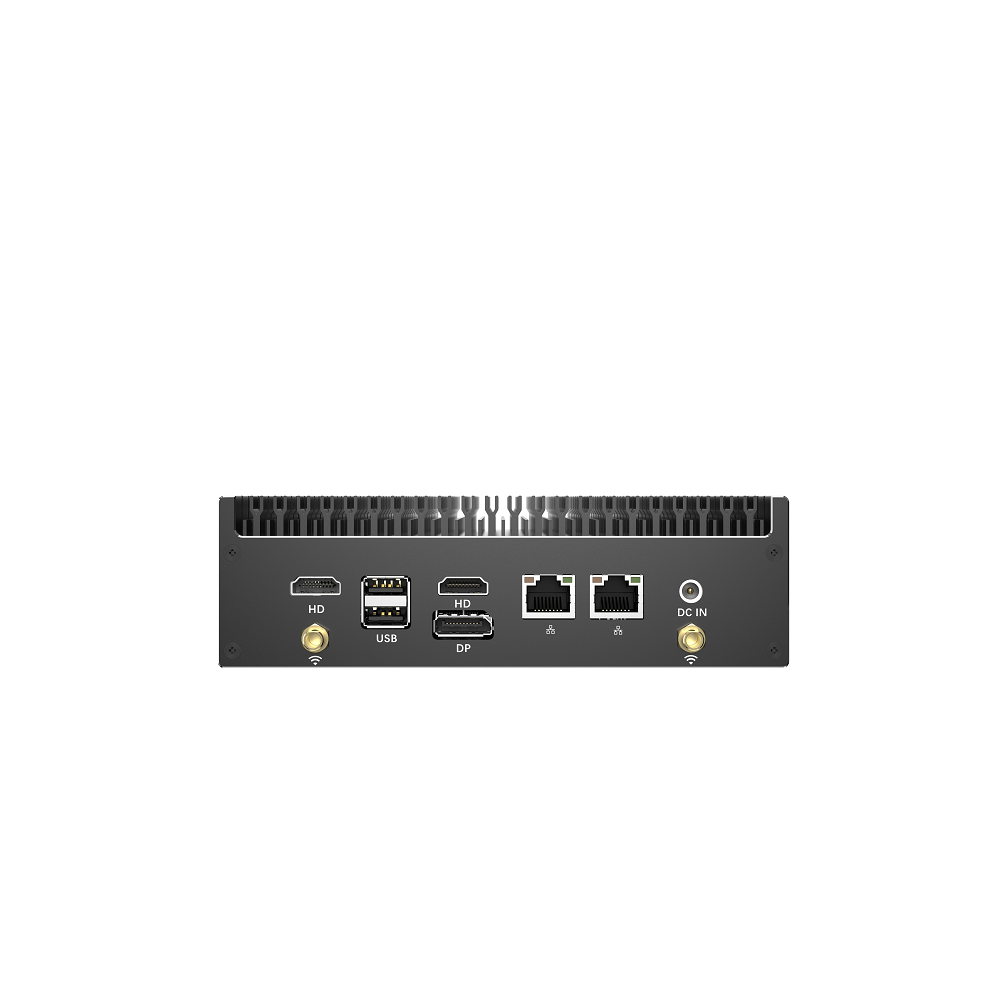

1*DP 2*HDMI 2*RJ45 2*USB 2.0 1*DC Jack 2*Antenna Holes |
|
Expand |
1*mPCIE for WIFI/3G/4G module 1*SIM Slot |
|
Size |
Product: 172*127*51mm Package: 310*180*80mm |
|
Weight |
N.W:1.1KG G.W:1.9KG |
|
Power Supply |
DC12V/19V |
|
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
OS |
Windows10/11/Linux |
|
Working Temperature |
-10℃~+70℃ |
|
Storage Temperature |
-20℃~+80℃ |
|
Relative Humidity |
5%-95% Relative humidity,no condensation |
Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
