ZC-N4125DL Fanless Mini PC Onboard CPU Intel Gemini Lake Refresh J4125 4 Cores 2.0GHz Burst to 2.7GHz
2*Intel I211 Gigabit Ethernet,1*HDMI 1.4+1*HDMI 2.0,2*COM RS232,3*USB 3.0,1*USB 2.0,1*USB Type C
Features:
1. Onboard CPU Intel Gemini Lake J4125 4 Cores 2.0GHz Burst to 2.7GHz
2. With 2*Intel I221 Gigabit Network Card
3. Rich Storage 1*SATA 2.5''Slot+1*M.2 SATA/NVME SSD Slot
4. Support Doubel Display 1*HDMI2.0+1*HDMI1.4
5. Rich USB,3*USB 3.0+1*USB 2.0+1*USB Type C
6. With 2*COM RS232 Ports,1*Line Out/MIC
7. Fanless Passive Cooling,Aluminium Alloy Case
8. Industrial Grade,Low Power Low Power Consumption
9. Small Size Only 132x125x46mm
|
Chassis |
Material |
Aluminium Alloy |
|
Color |
Bright Black |
|
|
Size |
132x125x46mm |
|
|
Weight |
0.6KG |
|
|
Motherboard |
CPU |
Intel Gemini Lake Refresh J4125 4 Cores 2.0GHz Burst to 2.7GHz. 4MB Cache,TDP 10W |
|
Chipset |
SOC |
|
|
Graphics |
Intel UHD Graphics 600 |
|
|
Display |
1*HDMI 2.0 Max 4096x2160@60Hz |
|
|
1*HDMI 1.4 Max 4096x2160@30Hz |
||
|
Network Card |
2*Intel I211 Gigabit |
|
|
Memory |
1*SO-DIMM DDR4 Max 32GB |
|
|
Storage |
1*2.5’’ SATA Slot |
|
|
1*M.2 2280 SATA/NVME SSD Slot |
||
|
|
||
|
I/O |

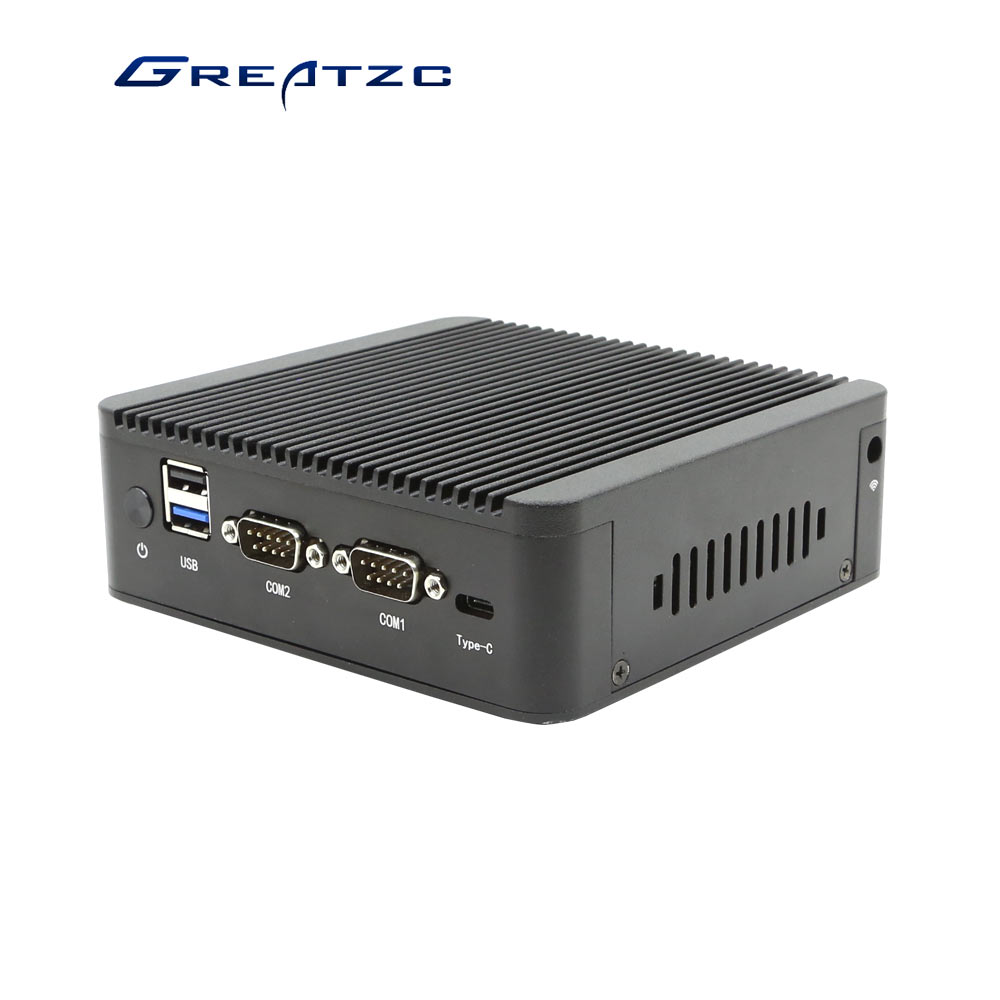

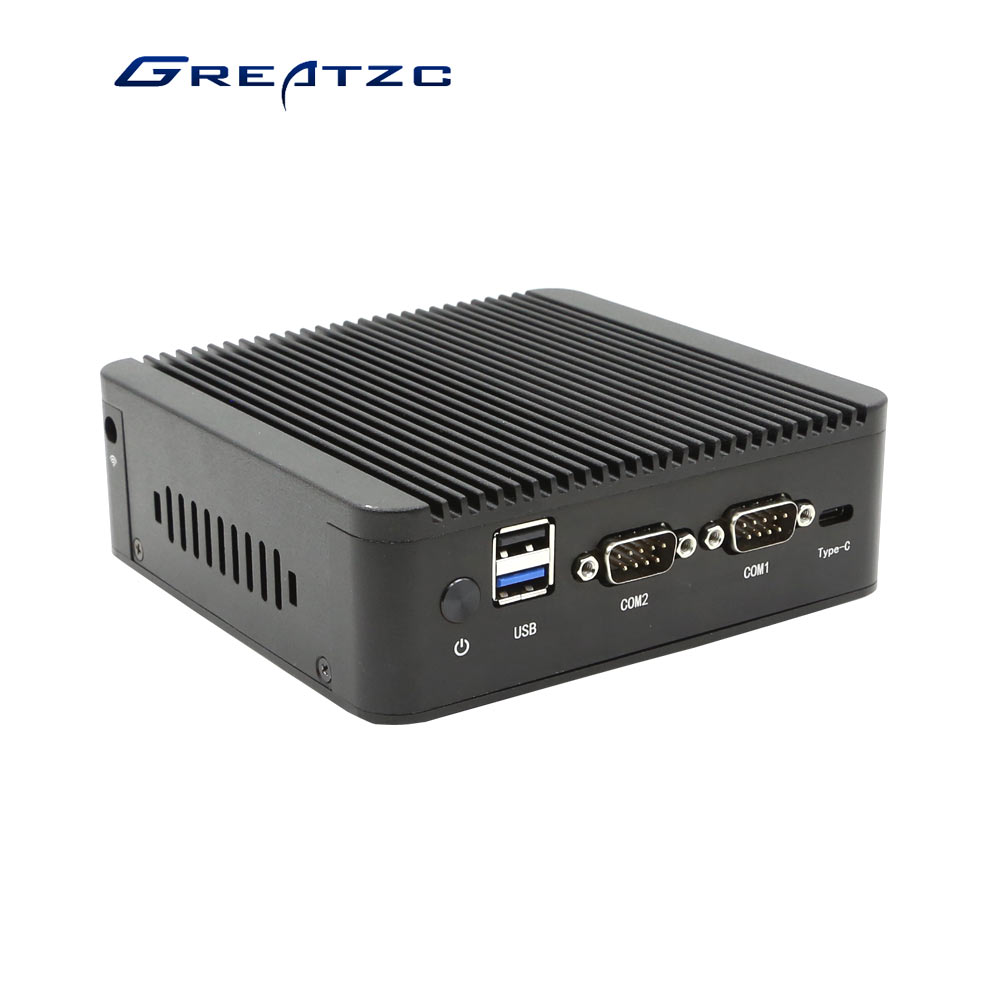

Front |
1*Power Button |
|
1*USB 2.0 |
||
|
1*USB3.0 |
||
|
1*USB Type C |
||
|
2*COM RS232 |
||
|

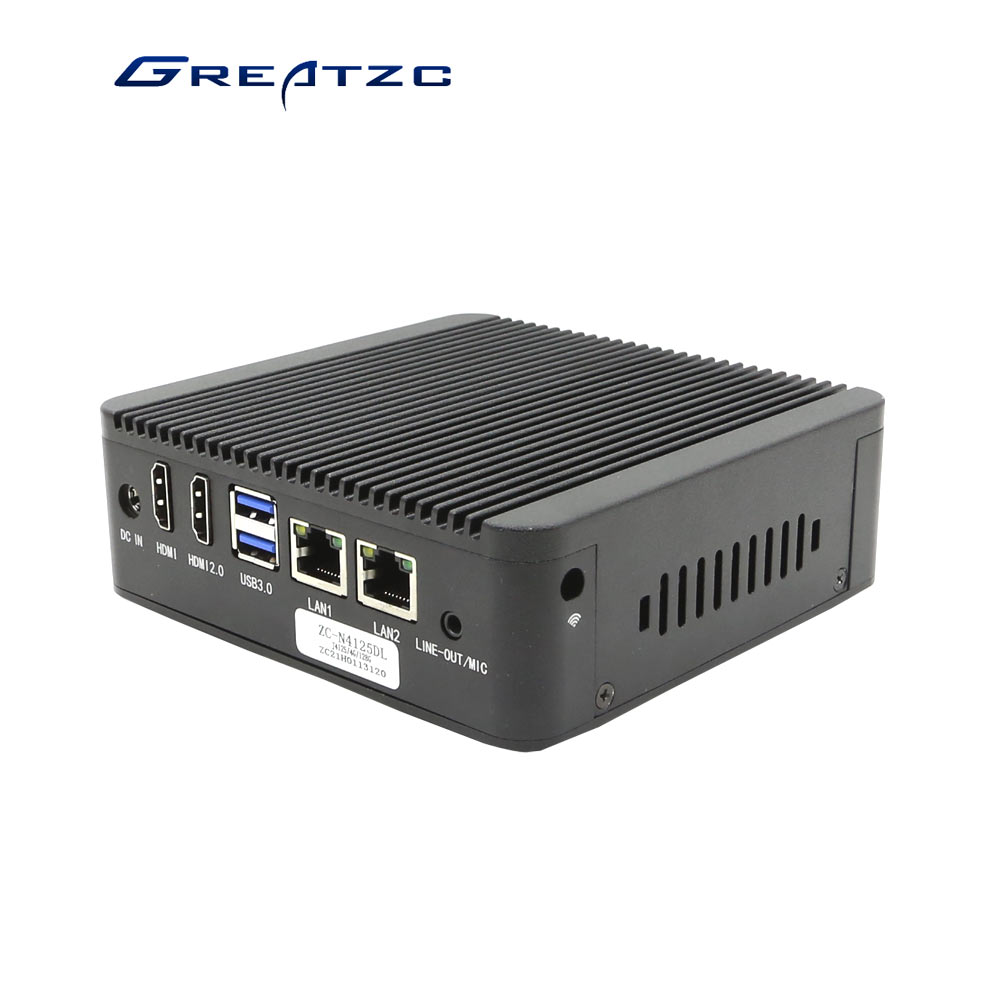

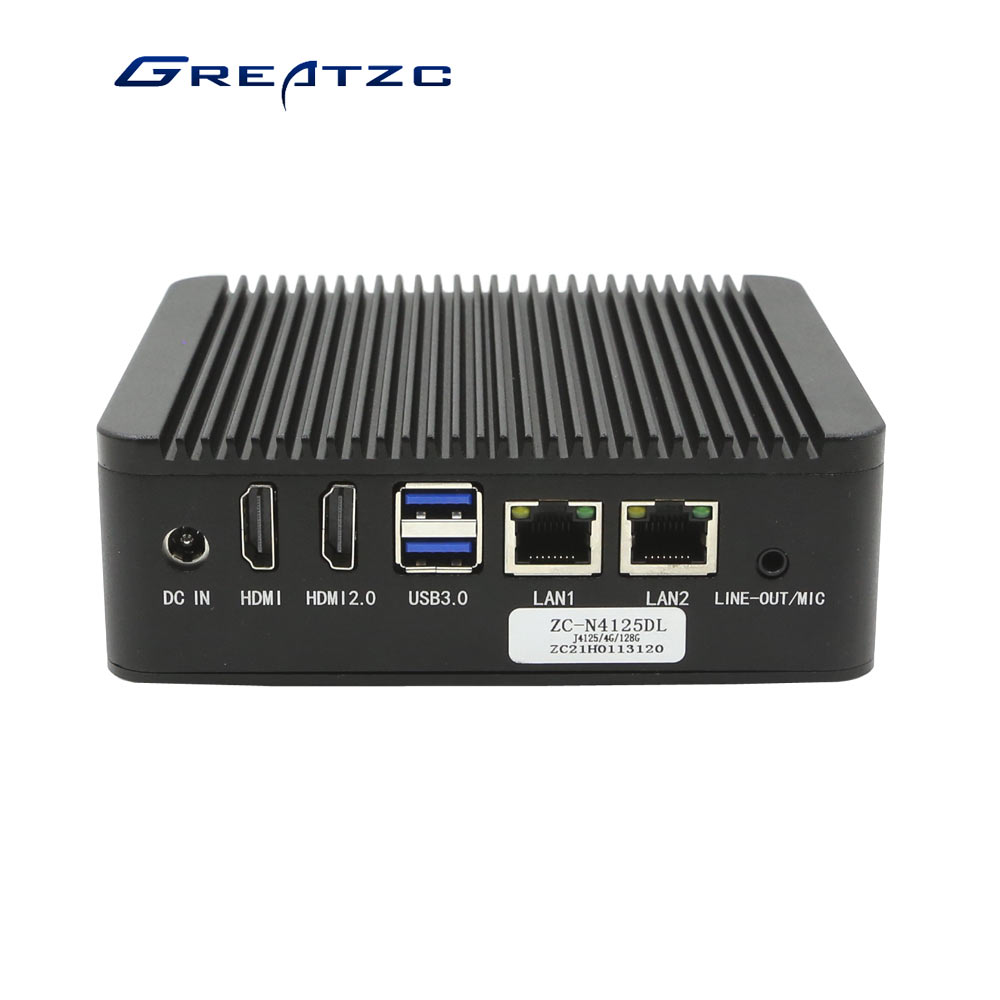

Rear |
1*HDMI 2.0 |
|
|
1*HDMI 1.4 |
||
|
2*USB 3.0 |
||
|
2*LAN |
||
|
1*DC_IN |
||
|
1*Line Out/Mic |
||
|
Software Support |
OS |
Support Windows 7/8.1/10,Linux,CentOS |
|
BIOS |
AMI BIOS 64M |
|
|
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
|
Cooling System |
Cooling Mode |
Fanless Passive Cooling |
|
Power Supply |
Input |
DC 12V (Φ2.5) |
|
Environment |
Working Temp |
-10~60℃ |
|
Storage Temp |
-20~70℃ |
|
|
Working Humidity |
0% ~ 95% Relative humidity, non-condensing |
Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
