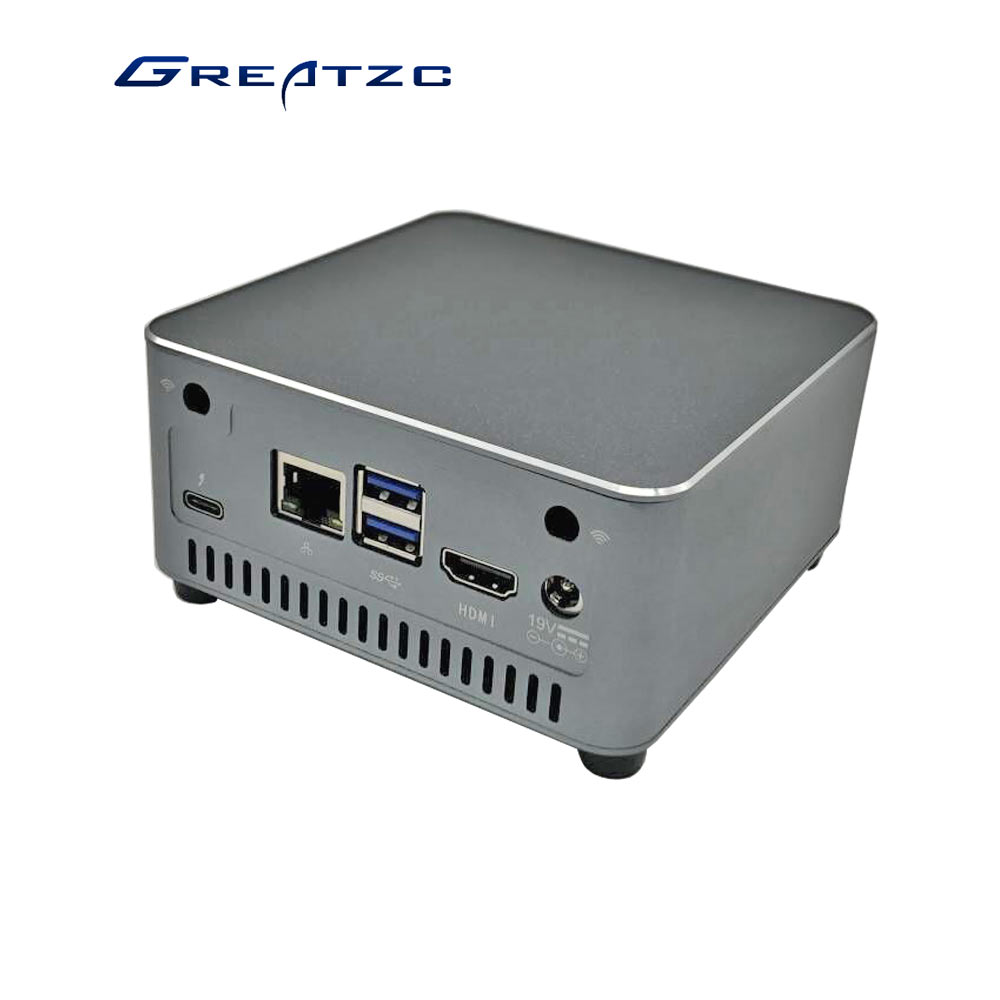

ZC-NUC10 NUC PC Onboard Intel 10th Gen Comet Lake U series CPU I3 I5 I7 with 3*USB 3.1+1*USB Type C,HDMI Display
Thunderbolt3 Port
Features:
1. Supports 10th Gen Comet Lake U series CPU I3 I5 I7
2. Intel i225V 2.5G wired network card
2. Dual-channel DDR4/SO-DIMM supports up to 64GB
4. Storage 1*2.5’’ Slot+1*M.2-M(SATA/NVME)
5. HDMI 2.0, Thunderbolt3 (VGA/HDMI/DP)
6. With 1*M.2-E(PCIEI)WIFI Slot
7. 12V~19V wide voltage power supply
ZC-NUC10 NUC PC Onboard Intel 10th Gen Comet Lake U series CPU I3 I5 I7
|
Chassis |
Material |
Aluminum alloy |
|
Color |
Silver/black |
|
|
Size |
112*112*55mm |
|
|
Weight |
0.6 Kg |
|
|
Motherboard |
CPU |
10th Generation Intel Comet Lake U Serial CPU I3-10110u: 2.10 GHz~4.10 GHz I5-10210u: 1.60 GHz~4.20 GHz i7-10510u: 1.80 GHz~4.90 GHz |
|
Chipset |
Soc |
|
|
Display |
Intel UHD Graphics |
|
|
Network Card |
Intel i225V 2.5G |
|
|
Memory |
2*DDR4 SO-DIMM,Up to 64GB |
|
|
Storage |
1*2.5’’ Slot,1*M.2 M Key (SATA/NVME) |
|
|
Extend |
1*M.2-E Key(PCIEI)WIFI Slot |
|
|
I/O Ports |
Front |
1*Power Button |
|
1*IR |
||
|
1*Earphone(MIC+LINE-OUT) |
||
|
1*USB3.1 |
||
|
1*Type-C |
||
|
Rear |
1*Thunderbolt3 |
|
|
1*LAN |
||
|
2*USB3.1 |
||
|
1*HDMI |
||
|
1*DC_IN |
||
|
Software Support |
System |
Supports windows 7/windows 10,Linux ubantu 16.04,CentOS 7.0 |
|
BIOS |
AMI 128M BIOS |
|
|
Cooling |
Cooling |
Active cooling with FAN |
|
Power |
Input |
12V~19V |
|
Environment |
Working Temp |
-10~60℃ |
|
Storage Temp |
-20~70℃ |
|
|
Working Humidity |
0% ~ 95% Relative humidity, non-condensing |
