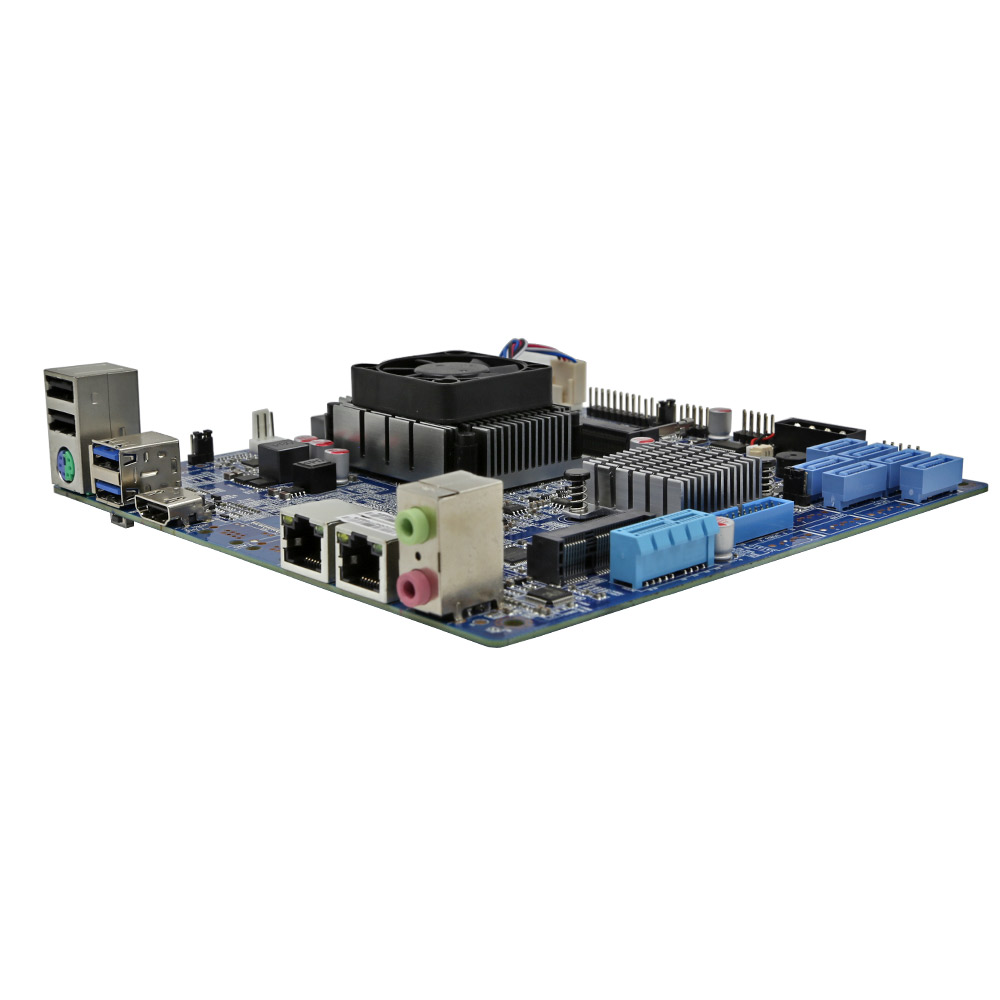

With 6 SATA 10 SATA NAS Mini Itx Motherboard ZC-3855DN-NAS has been launched
The motherboard is based on the standard Mini-ITX motherboard design of the original X86 motherboard,
the size is only 17cm * 17cm, the motherboard onboard Intel's seventh generation skylake-u platform
Celeron dual-core processor 3865U; with Intel high-performance Gigabit network card; with HDMI
Interface, support 1080P high-definition video playback; with HTPC function, can build entry-level
NAS server, to achieve file sharing, data backup, media server and other needs.
10 SATA ports on the board (one of which is optional with mSATA), 1 notebook memory slot, 1pcs PCIe
1X slot, 8 USB (2pcs USB3.0, 2pcs USB2.0, front one) Group USB2.0 pin and a set of USB3.0 pins),
1 COM port, etc., to meet different expansion needs of users.
In order to adapt to the changes in market demand, in response to the demand for large-capacity
data storage for SMEs and home users, SHEN ZHEN ZECHUANG WEIYE TECHNOLOGY CO.,LTD
have developed an entry-level network data storage server motherboard product that meets market demand.
Now ZC-3855DN-NAS Mini Itx Motherboard NAS with 6 SATA 10 SATA has been launched.
1.High Performance
Supports 10 SATA interfaces (one of which is optional with mSATA), up to 4 Intel Gigabit NICs, and
can build an entry-level NAS server for file sharing, data backup, media server and more. At the
same time, the performance of the platform is significantly improved.
2.Complete BIOS support, support for diskless boot, network wake up. And specially designed the
hardware power-on automatic boot function, which is more reliable and stable than the BIOS set
power-on automatic boot function.
3.High Reliability
The motherboard adopts Intel's seventh-generation Skylake-U platform Celeron dual-core processor
3865U. The CPU power supply part adopts switching power supply, which can provide stable, sufficient
and high-efficiency power supply to the CPU. The power supply of the memory is also powered by the
same switching power supply, which ensures the stability of the whole board. At the same time, all
the peripherals have added some anti-static and anti-interference components to ensure the system
can be stable, efficient and long-term work.
