Same used in the Media Play Why is the cost of the X86 motherboard higher than the Android ARM motherboard?

2019-04-13 09:36:55

Same used in the Media Play Why is the cost of the X86 motherboard higher than the Android ARM motherboard?




Today,by Shen Zhen ZeChuang Weiye Technology Co.,Ltd/GREATZC TECHNOLOGY LIMITED Industrial Grade Mini Itx Motherboard ZC-BT19SL and ARM RK3288 Android mainboard do a comparison for everyone to answer.Many customers are doing information distribution systems, such as hospitals, banks, tax authorities, conference rooms, advertising broadcasts, stores, chain stores, etc., often ask such questions.They same used in the media, why is the cost of the X86 Motherboard higher than the Android ARM Motherboard?



1. The memory is different:

A.GREATZC Mini Itx SBC J1900 X86 motherboard memory is plug-in DDR3 notebook memory, the capacity is generally 4GB or 8GB, the specifications are DDR3 1333/1600 and DDR4 2400/2133/2666, etc., fast, high cost



B.RK3288 ARM motherboard, the memory chip is generally onboard 1G or 2G memory, small capacity and low cost.



2. The X86 motherboard and the ARM motherboard are different on the PCB board materials:

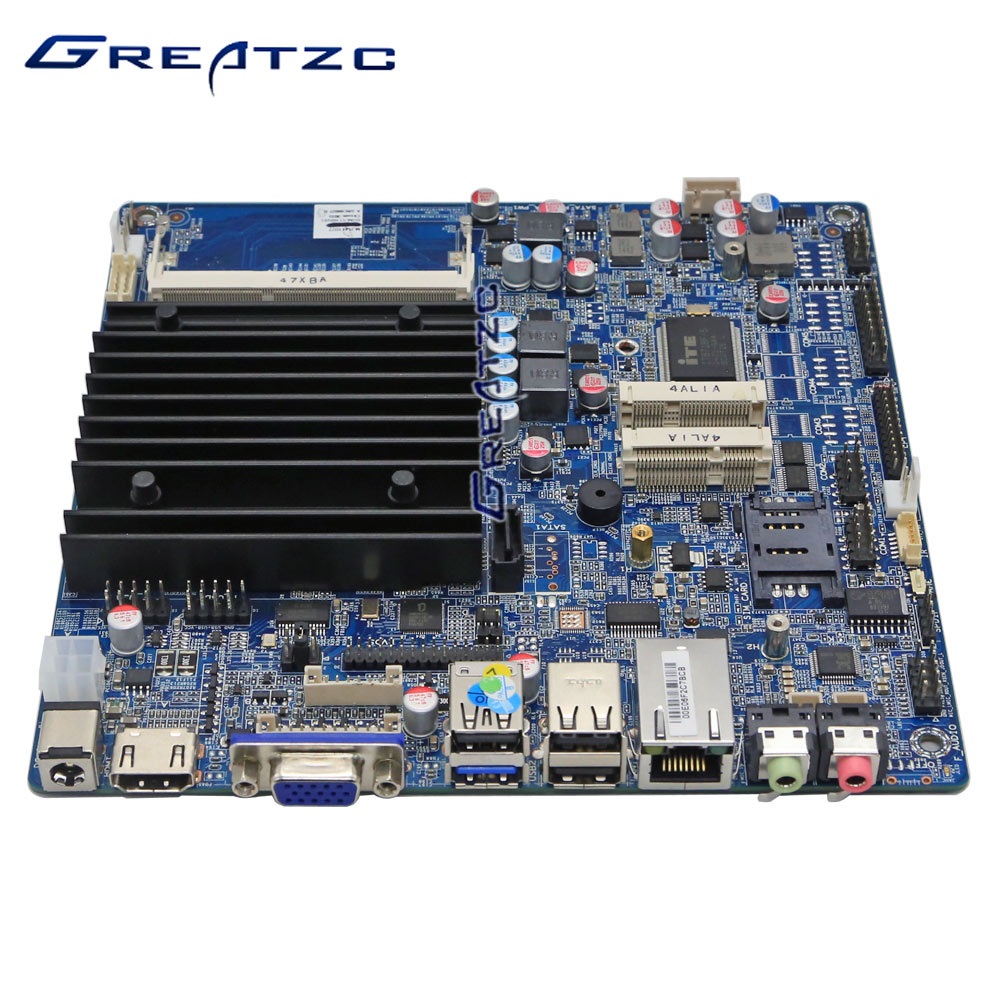

A.GREATZC Quad Core J1900 X86 Mini Itx Mainboard use INTEL original new CPU, the PCB board size is generally 17*17CM, the number of components on the motherboard is more, so the cost is higher.

B.Android ARM RK3288 motherboard generally has a small PCB size of 12*12 or less, with less materials and lower cost.



3. The storage is different:

A.Fanless Motherboard ZC-BT19SL X86 motherboard hard disk is MLC industrial-grade MSATA solid-state hard disk, the capacity is generally 32GB minimum, some customers use 256GB, read and write speed is faster, long life, larger capacity and higher cost.



B.Android Arm Board RK3288 ARM motherboard uses an onboard EMMC 8G or 16G memory chip. The lifetime and read/write speed of this type of chip is much worse than that of a normal SSD.



4. Different working life:

Under normal use, the X86 motherboard ZC-BT19SL can last up to 5-8 years and will not be scrapped or reworked. The ARM RK3288 motherboard has a life expectancy of 3-4 years, so in some equipment or applications that require long-term work, It is recommended to use an X86 architecture motherboard.



5. The operating system is different:

J1900 X86 motherboard, generally installed Windows system, if you need genuine license, the cost is higher. The ARM motherboard RK3288 uses free Android, which is one of its biggest advantages.
